Kogan KABNKNTCNTA Manuale utente

NOTE COUNTER

KABNKNTCNTA

Connect the machine to the power supply

Connect the power cord to a wall outlet or power supply (AC 220V ±10%, 50Hz). Note that

this device must be operated under the required voltage and frequency.

Prepare the device

Ensure the device is set up on a secure, durable and level surface. Inclinations may lead to

counting errors.

Set the position of the note guide to be 2mm-to-3mm longer than the banknotes being

counted.

Verifying and adjustment of the Hopper Plate

The Hopper Plate ensures proper feeding of the banknotes for counting. It is secured to the

back of the device with two pivoting points and a magnetic lock.

To verify that the hopper plate is properly adjusted, press or lift the hopper plate and look for

any displacement (see the figure). If any displacement occurs, press or lift the hopper until

the magnetic lock holds the piece in place.

Adjust a proper gap between hopper and feeding roller by turning the adjustment screw (Fig

1). Turn it left to decrease the space and turn right to increase it.

Fig 1

BEFORE FIRST USE

Preparing the banknotes

Before starting to count the banknotes, please check whether there are clips, staples, elastic

bands or coins in the banknotes. Remove all of these, as they may jam the device or result in

counting errors.

Clips

Staples

Elastic bands

Coins

Check for any wet, sticky or very dirty banknotes. Do not count these.

Check for any deformed, folded or badly damaged banknotes. Do not place these notes on

the feeding desk.

Deformed

Folded

Broken

To avoid jamming or counting errors, ensure the notes are neatly arranged and on an even

level before counting.

Before inserting, twist the stack of notes to create an even slope (Fig 2). Loosen and pat the

stack before placing onto the feeding tray. Figures 3 and 4 demonstrate incorrect procedure.

Fig 2

Fig 3

Fig 4

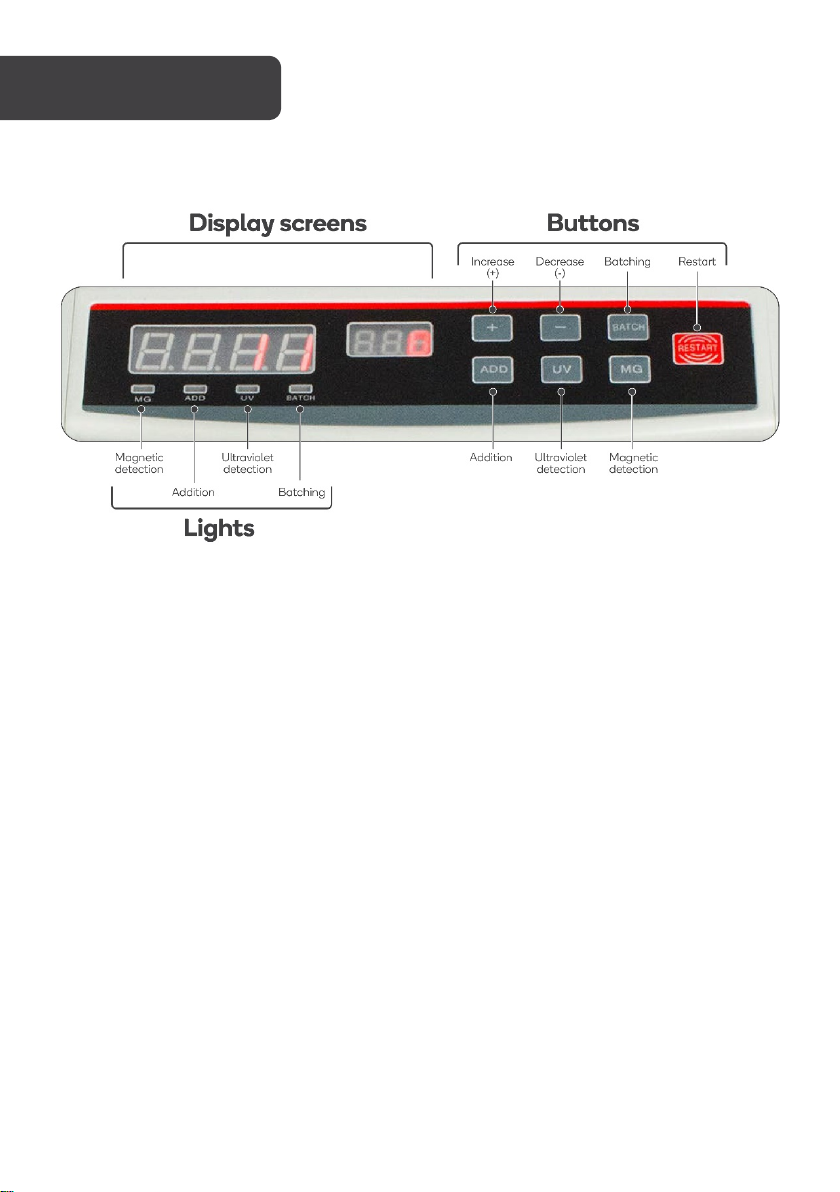

Control panel overview:

Basic operation:

Switch from Auto Mode to Manual Mode

•Upon start up, the device with begin in Auto mode as default.

•To switch to Manual mode, press and hold the 'RESTART' button for 3 seconds

until the display screen reads ‘ N O ’. Press the 'RESTART' button again to confirm

and save.

Ultraviolet Detection

•To turn on Ultraviolet Detection, press the ‘UV’ button until the UV light turns on.

•To t u r n Ultraviolet Detection off, simply press the ‘UV’ button once again. The light

will turn off.

Magnetic Detection

•To turn on Magnetic Detection, press the ‘MG’ button until the MG light turns on.

•To t u r n Magnetic Detection off, simply press the ‘MG’ button once again. The light

will turn off.

OPERATION

Addition Mode

•In Addition mode new inputs are added to the total counted, not resetting with

each new input.

•To turn on Addition mode, press the ‘ADD’ button until the Addition light turns on.

•To t u r n Addition mode off, simply press the ‘ADD’ button once again. The light will

turn off.

Batching mode

•In batching mode the counter can sort money together into pre-set values.

•Press the 'BATCH' button on the device, the display will show 100 / 50 / 20 / 10.

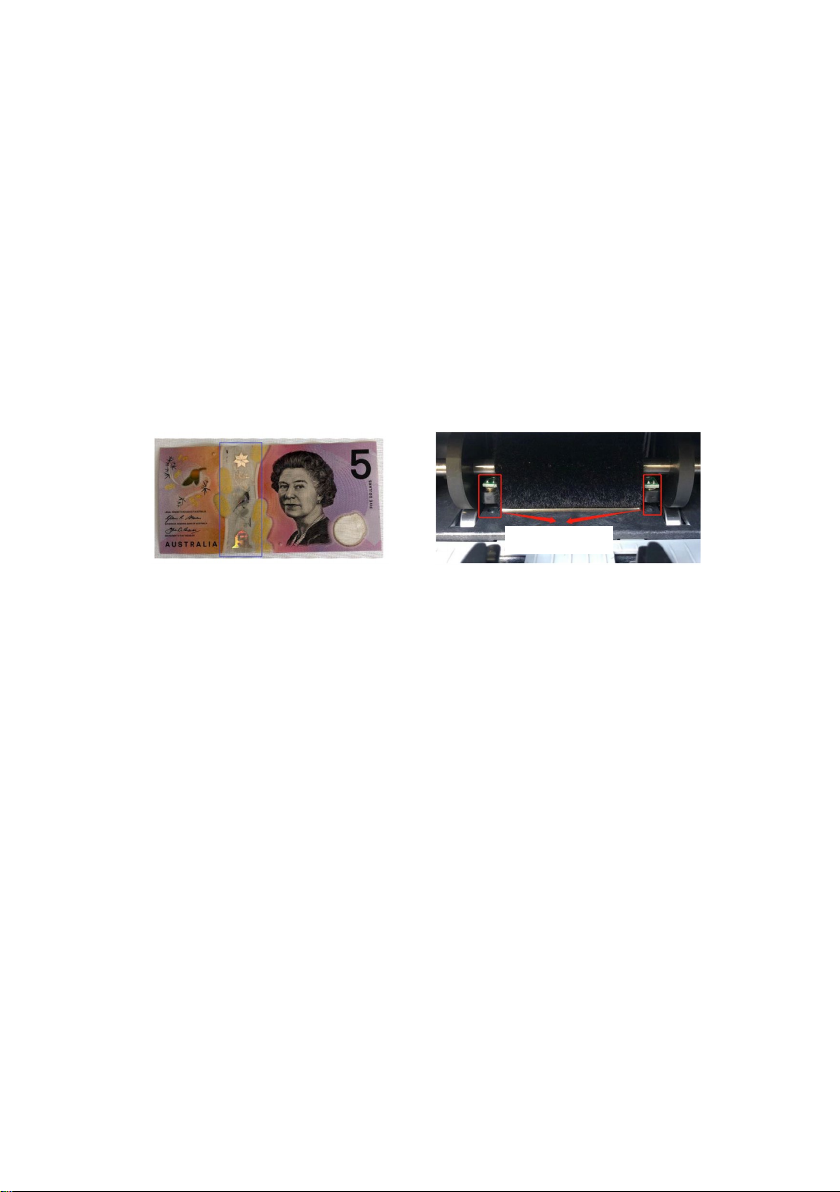

•For the latest Australian currency notes, ensure the transparent strip in the middle

of the note (Fig 5) does not pass through the IR sensors of the unit (Fig 6), as this

may cause the device to display error codes or an inaccurate note count.

Fig 5

Fig 6

Advanced operation:

Fake Note Counting

•To turn Fake Note Counting on, hold the Decrease (–) button for at least 3 seconds

until the display screen shows 'U-01 '.

•To t u r n i t off again, briefly press the Decrease (–) button again until the display

screen shows U-00.

•Let the device run to save your changes.

Double Note Recognition

•Double-note recognition alerts when two bills have been fed simultaneously.

•To increase the sensitivity in detecting double-notes, hold the 'BATCH' button for at

least 3 seconds until the display screen shows ‘E’ followed by a number (ie, ‘E-05’).

•The default sensitivity setting is E-05, however this can be adjusted by pressing the

Increase (+) button or Decrease (–) button. The total range is E-00 to E-20. A higher

number represents higher sensitivity for double-note detection.

•Press the 'RESTART' button to save your changes.

IR Sensors

Chained Note Recognition

•Chained-note recognition alerts when a leading bill has pulled in a trailing bull

prematurely.

•To increase the sensitivity in detecting chained-notes, hold the ‘ADD' button for at

least 3 seconds until the display screen shows ‘C’ followed by a number (ie, ‘C-05’).

•The default sensitivity setting is C-05, however this can be adjusted by pressing the

Increase (+) button or Decrease (–) button. The total range is C-00 to C-10. A higher

number represents higher sensitivity for chained-note detection.

•Press the 'RESTART' button to save your changes.

Ultraviolet Sensitivity

•The ultraviolet light sensitivity helps detect fake paper and plastic notes with

fluorescence.

•To increase the sensitivity in detecting abnormalities, hold the ‘UV’ button for at

least 3 seconds until the display screen shows ‘A’ followed by a number (ie, ‘A-10’).

•The default sensitivity setting is A-10, however this can be adjusted by pressing the

Increase (+) button or Decrease (–) button. The total range is A-00 to A-20. A higher

number represents higher sensitivity for detecting fake notes and plastic notes with

fluorescence.

•Press the 'RESTART' button to save your changes.

Magnetic Sensitivity

•The magnetic sensitivity helps detect fake paper and plastic notes with magnetic

components.

•To increase the sensitivity in detecting abnormalities, hold the ‘MG’ button for at

least 3 seconds until the display screen shows ‘B’ followed by a number (ie, ‘B-05’).

•The default sensitivity setting is B-05, however this can be adjusted by pressing the

Increase (+) button or Decrease (–) button. The total range is B-00 to B-20. A higher

number represents higher sensitivity for fake paper and plastic notes with magnetic

components.

•Press the 'RESTART' button to save your changes.

Factory Reset

•To perform a factory reset, first turn off the device, then hold the Increase (+) and

Restart buttons simultaneously for at least 3 seconds until the display screen

shows:

•Now turn the device on. The factory reset will be complete.

Rated voltage/Frequency AC 220V±10%, 60Hz

Rated current 350mA (Max)

Power consumption 75W (Max)

Counting speed >1000pcs/min

Feeding system Roller Friction Type

SPECIFICATIONS

Self-test Codes

Self-code

Reason

FE1

Start Sensor

FE2

Left Counting Sensor

FE3

Right Counting Sensor

FE6

Clear Sensor

FE7

Disc Code sensor

FEA

Error Codes

Code

Reason

Chain Note

Double Note

H Half Note/Cross Note

TROUBLESHOOTING

NOTES
