Kogan KABRP21SLMA Manuale utente
<ZWϮϭ^>D
USER MANUAL
TABLE OF CONTENTS
SPECIFICATIONS 25
TROUBLE SHOOTING 21
FREQUENTLY ASKED QUESTIONS 20
SYSTEM SETUP 15
SPECIAL FUNCTION PLAYBACK
12
ADVANCED PLAYBACK 11
BASIC PLAYBACK 10
REMOTE CONTROL 09
BASIC CONNECTION 07
SAFETY PRECAUTIONS 01
IMPORTANT SAFETY INSTRUCTIONS 03
NOTICE 04
PLAYABLE DISCS 05
ACCESSORIES AND PANEL 06
USING BD-LIVE FEATURES 14
SAFETY PRECAUTIONS
01
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE, DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
When replacing the unit's plug or power cord, the replacement must be the exactly
the same; or one recommended by the manufacturer.
The lightning flash with arrowhead symbol, within an equila-
teral triangle, is intended to alert the user to the presence
of uninsulated "dangerous voltage " within the product's en-
closure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
This Digital Video Disc player employs a laser system.
The symbol for CLASS II (Double Insulation).
Use of controls, adjustments or the performance of procedures other than those
specified may result To prevent direct expo-
sure to laser beam, do not try to open the enclosure.
DO NOT STARE INTO BEAM.
in hazardous exposure to radiation.
WARNING:
CAUTION:
Laser radiated lable stick at the bottom of unit.
*
SAFETY PRECAUTIONS
02
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product, it means the
product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the
municipal waste stream via designated collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact
your city office, waste disposal service or the shop where you purchased the product.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
This item incorporates copyright protection technology that is protected by U.S. patents
and other intellectual property rights. Use of this copyright protection technology must
be authorized by Rovi Corporation, and is intended for home and other limited viewing
uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or
disassembly is prohibited.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535
& other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and
the Symbol together are registered trademarks & DTS Digital Surround and the DTS
logos are trademarks of DTS, Inc. Product includes software. DTS, Inc. All Rights
Reserved.

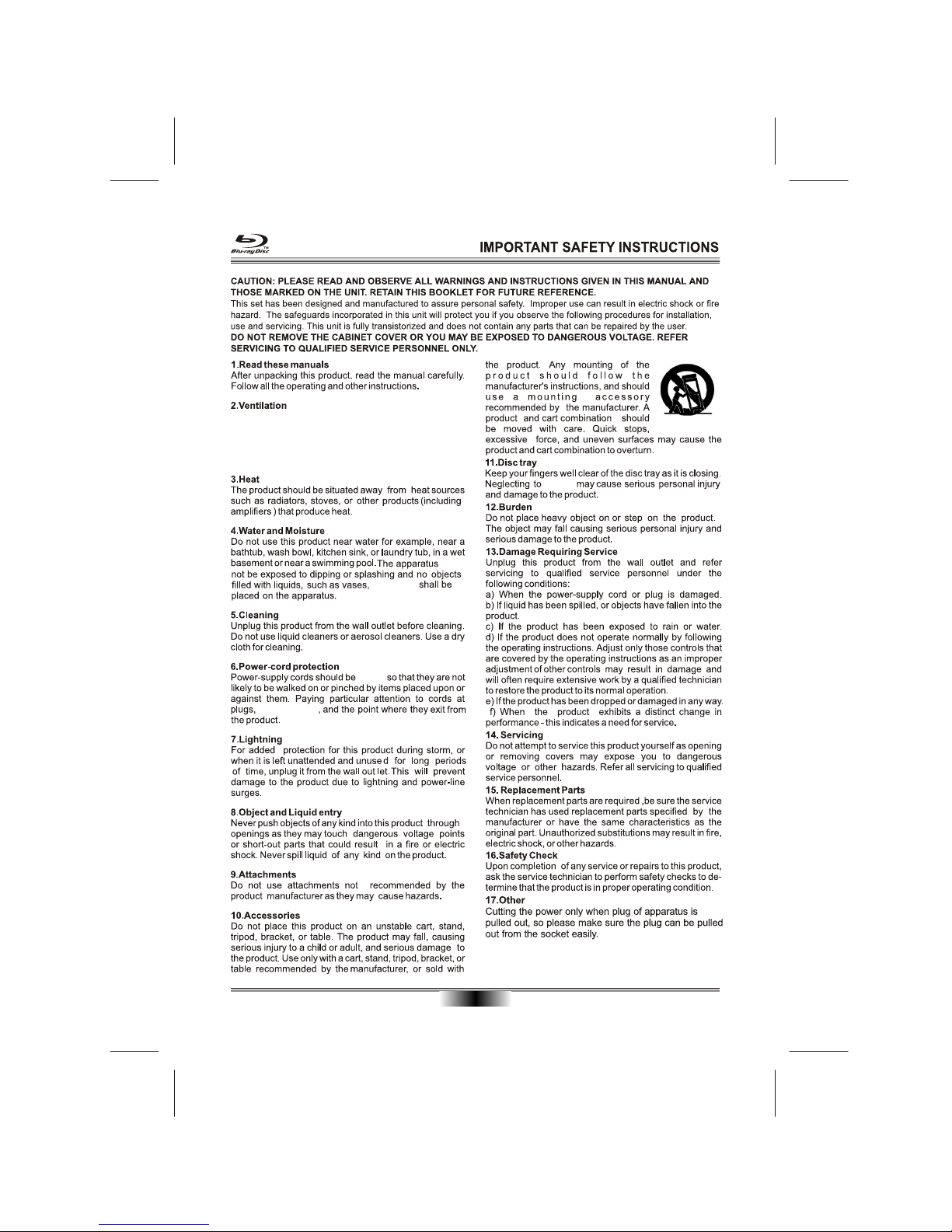

03
Slots and openings in the cabinet are provided for ventilation
and to ensure correct operation of the product. These protect
it from overheating. These openings must not be blocked or
covered. The openings should never be blocked by placing
the product on a bed, sofa, rug or other.
must
must ever
placed
power boards
do this
18.where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device
shall remain readily operable.

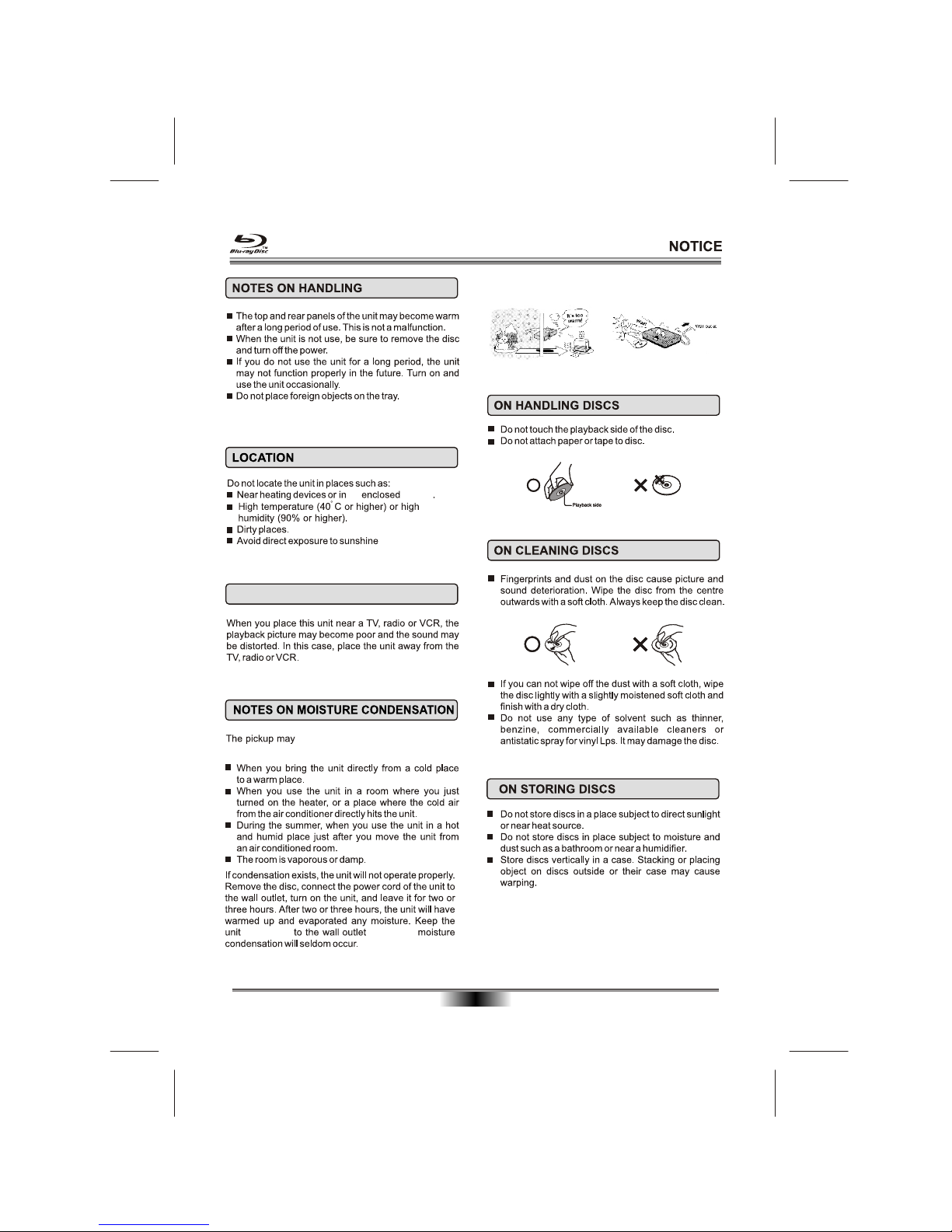

04
an vehicle
ELECTRICAL DISTURBANCE
following situations.
suffer from condensation under the
connecting will ensure
PLAYABLE DISCS
05
The following types of discs can play in the REF player:
Notes:
Writeable DVD discs (DVD-RW, DVD-R) must be finalized, VR-mode only.
Playback may not work for some types of discs, or when specific operations, such as angle change and
aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box.
Please refer to this if necessary.
Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust,
scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc
for playback.
CD-R/-RW, DVD-RW/-R recorded with UDF or ISO9660 format can be played back.
Windows Media Audio (WMA) files must be written to the disc with a .wma file extension in order to be
recognized and played back properly.
JPEG picture files must be written to the disk with an .jpeg or .jpg file extension in order to be recognized
and played back properly
Features
Full high-definition video playback at up to 1080p resolution for an amazing viewing experience.
Upconversion of standard definition DVDs for enhanced picture quality at up to 1080p over an HDMI
connection.
Rich multi-channel surround sound.
Easy and simple HDTV connection using a single HDMI cable (cable not included).
Multiple outputs for connecting your home theater system or amplifier.
PIP functionality that lets you display primary and secondary video at the same time (if available on the Blu-ray
Disc).
Pop-up menu display without interrupting playback (if available on the Blu-ray Disc).
HDMI 1080p/fps output (Blu-ray Disc only) that provides smooth playback of video with a frame rate of 50
frames per second (TV must be connected with an HDMI cable and be compatible with an HDMI cable and
be compatible with 1080p 50 frame).
Disc type Logo
Blu-ray Disc
DVD-video Disc
(DVD-ROM)
Audio CDs
(CDDA)
DVD-RW
DVD+RW
DVD-R
RW
Disc type Logo
DVD+R
WMA
MPEG4
CD-R
CD-RW
TM
Designed for
TM
Windows
Media
JPEG
ETHERNET HDMI VIDEO OUT / AUDIO OUT
VIDEO
COAXIAL
L
R
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
Manufactured under license under
U.S. Patent Nos: 5,956,674; 5,974,380;
6,487,535 & other U.S. and worldwide
patents issued & pending. DTS, the
Symbol, & DTS and the Symbol
together are registered trademarks
& DTS Digital Surround and the DTS
logos are trademarks of DTS, Inc.
DTS, Inc. All Rights Reserved.
S/N:
POWER: 15W
MODEL: KABRP21SLMAA
BLU-RAY DISC PLAYER
MADE IN CHINA
AC: 110V-240V~ 50/60Hz
N15486
Blu-ray DVD-Video
4
Manufactured under license from Dolby Lab-
oratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
1
2 3 4 5 6
ACCESSORIES and PANEL
06
REAR PANEL
FRONT PANEL
1. POWER LINE INPUT
2. ETHERNET INTERFACE
3. HDMI OUTPUT
4. L/R AUDIO OUTPUT
5. COAXIAL OUTPUT
6. VIDEO OUTPUT
ACCESSORIES
1 2 3 4 5 6 7
5V 500mA
1. TRAY . STOP
2. OPEN/CLOSE 6. USB
3. REMOTE CONTROL SENSOR 7. STANDBY/ON
4. PLAY/PAUSE
5
Batteries......................................
Audio/Video cable .....................
Remote control ..........................
2
1
1
AUDIO
RETURN
MUTE
SECONDARY
AUDIO
ENTER
123
456
7 8 9
0
A B C D
DISCMENU
SEARCH
SETUP
POPUPMENU
TITLEMENU
REPEAT A-B
SUBTITLE
ANGLE
STANDBY/ON OPEN/CLOSE
RESOLUTION PIP
OSD
VOL
BASIC CONNECTION
07
BASIC CONNECTION
Connecting to a TV with Audio/Video cable
Connecting to a wired router with ethernet cable
BD Player
Wired router
Computer
BD Player
To video input(yellow)
To audio inputs(red, white)
BASIC CONNECTION
08
Connecting to a devices with HDMI terminal
Connecting to an amplifier equipped with a digital audio input and TV
HDMI (High-Definition Multimedia Interface) setup:
Can only be achieved using HDMI. HDMI is the only REF output capable of 1080i/1080p video, and the
highest definition audio codecs. Connect the HDMI output of the player to the HDMI input of the audio receiver.
(You will need to connect a second HDMI cable from the HDMI output of the audio receiver to the HDMI input
of the television)
Coaxial cable
To COAXIAL
type digital
audio input
To video input
BD Player
BD Player
