Kogan KGNBD2VBA Manuale utente
TABLE OF CONTENTS
SAFETY PRECAUTIONS 01
IMPORTANT SAFETY INSTRUCTIONS 03
NOTICE 04

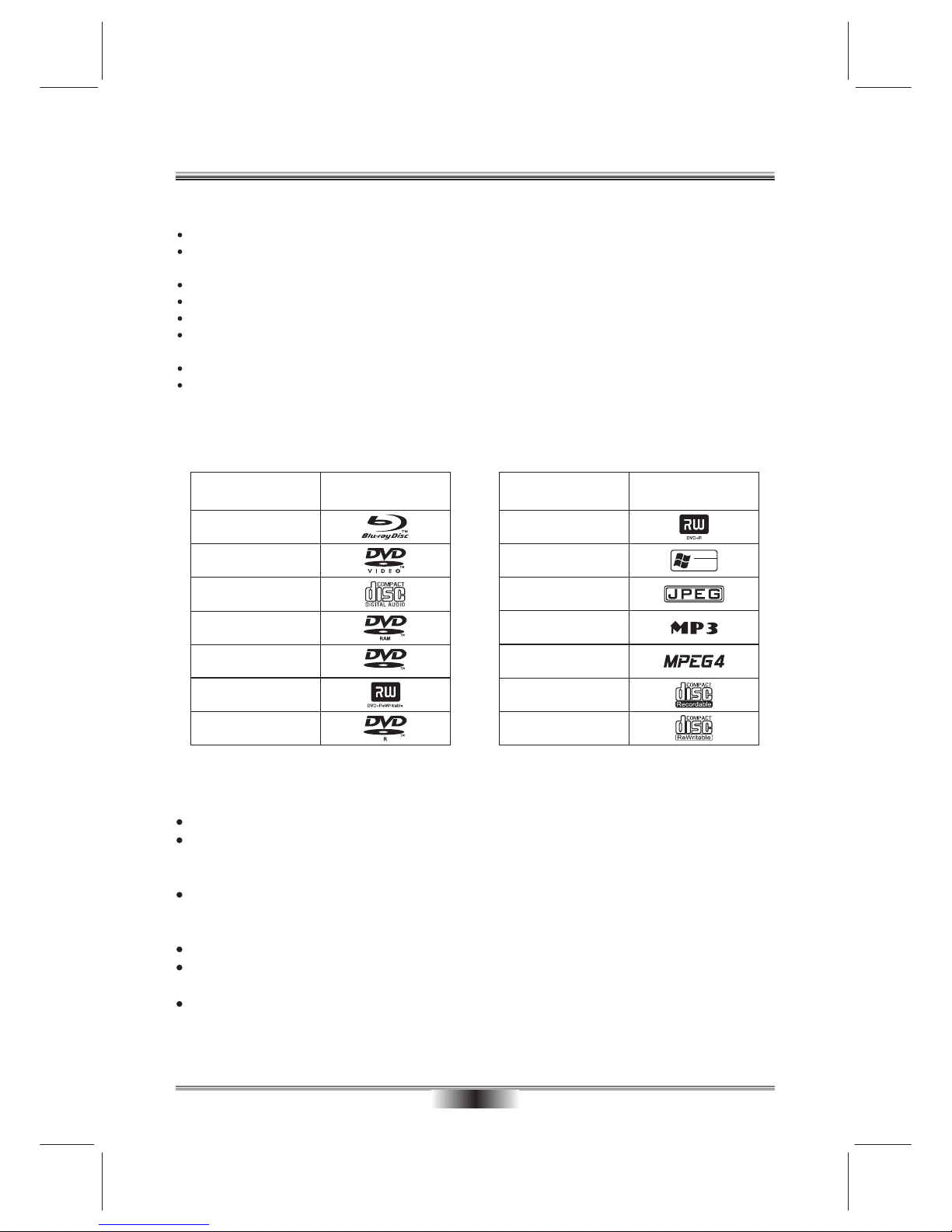

PLAYABLE DISCS
05
ACCESSORIES AND PANEL 06
REAR PANEL 07
BASIC CONNECTION 08
REMOTE CONTROL 11
BASIC PLAYBACK 12
ADVANCED PLAYBACK 13
SPECIAL FUNCTION PLAYBACK
14
SYSTEM SETUP 16
FREQUENTLY ASKED QUESTIONS 21
TROUBLE SHOOTING 22
SPECIFICATIONS 26
SAFETY PRECAUTIONS
01
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE, DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
When replacing the unit's plug or power cord, the replacement must be the exactly
the same; or one recommended by the manufacturer.
The lightning flash with arrowhead symbol, within an equila-
teral triangle, is intended to alert the user to the presence
of uninsulated "dangerous voltage " within the product's en-
closure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
This Digital Video Disc player employs a laser system.
The symbol for CLASS II (Double Insulation).
Use of controls, adjustments or the performance of procedures other than those
specified may result To prevent direct expo-
sure to laser beam, do not try to open the enclosure.
DO NOT STARE INTO BEAM.
in hazardous exposure to radiation.
WARNING:
CAUTION:
SAFETY PRECAUTIONS
02
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
This product incorporates copyright protection technology that is protected by U.S.
patents and other intellectual property rights. Use of this copyright protection technology
must be authorized by Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product, it means the
product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the
municipal waste stream via designated collection facilities appointed by the government
or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact
your city office, waste disposal service or the shop where you purchased the product.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674;5,974,380;
5,978,762;6,487,535 & other U.S. and worldwide patents issued & pending. DTS is a
registered trademark and the DTS logos, symbol, DTS-HD and DTS-HD Advanced
Digital Out are trademarks of DTS, Inc. 1996-2008 DTS, Inc. All rights reserved.

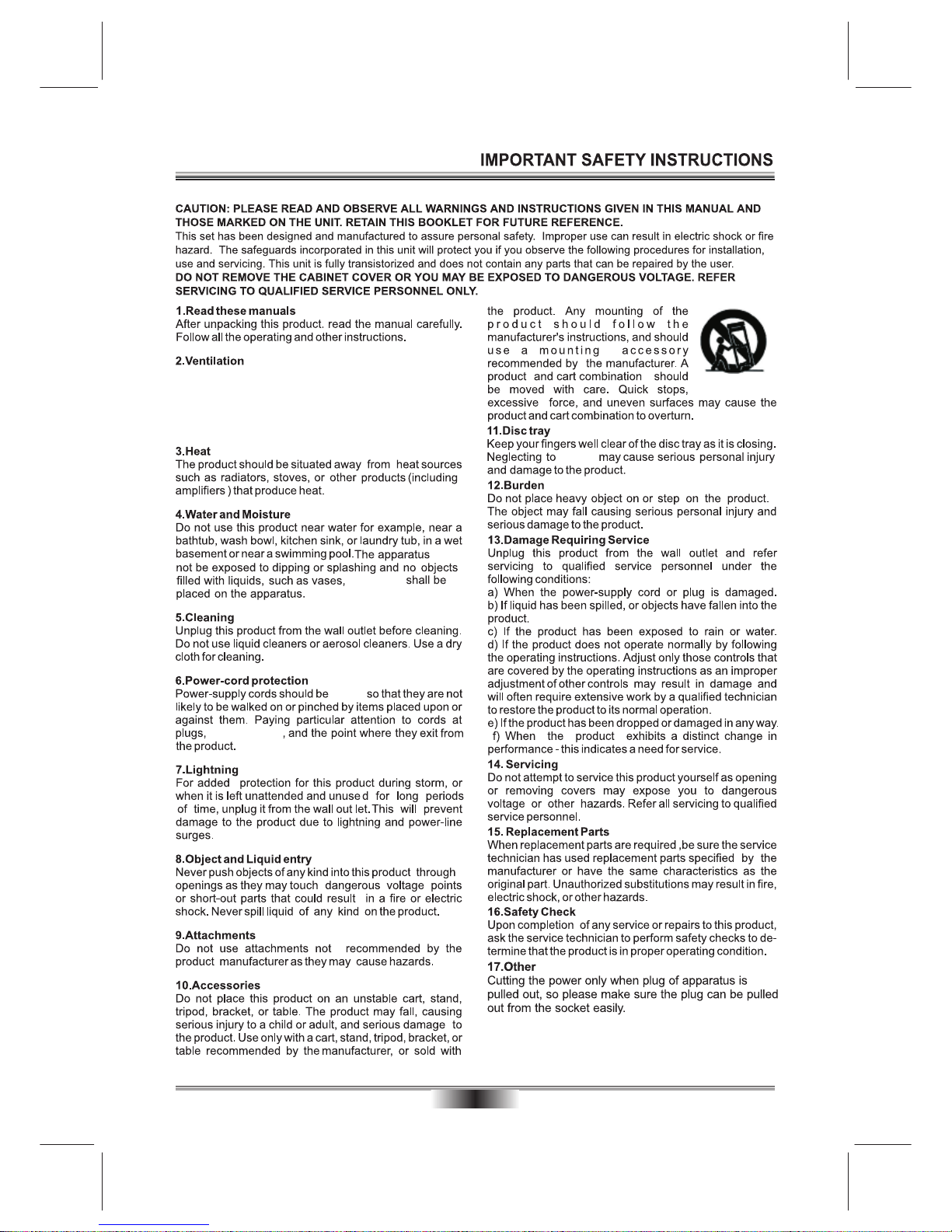

03
Slots and openings in the cabinet are provided for ventilation
and to ensure correct operation of the product. These protect
it from overheating. These openings must not be blocked or
covered. The openings should never be blocked by placing
the product on a bed, sofa, rug or other.
must
must ever
placed
power boards
do this
18.where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device
shall remain readily operable.

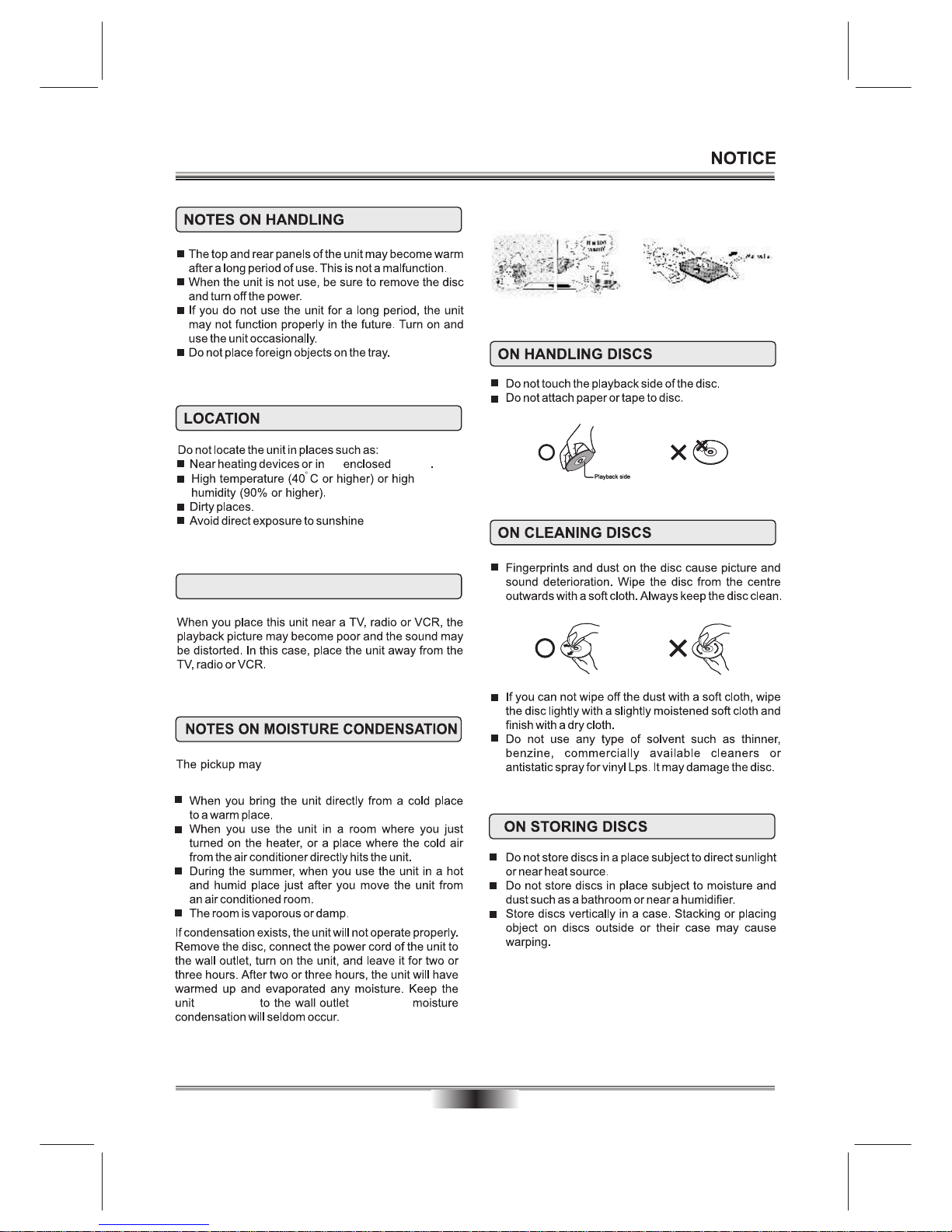

04
an vehicle
ELECTRICAL DISTURBANCE
following situations.
suffer from condensation under the
connecting will ensure
PLAYABLE DISCS
05
The following types of discs can play in the REF player:
Notes:
Writeable DVD disks (DVD-RAM, DVD-RW, DVD-R) must be finalized, VR-mode only.
This Blu-ray disc player supports discs that are compatible with DVD-RAM Standard Version 2.0.
Playback may not work for some types of discs, or when specific operations, such as angle change and
aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box.
Please refer to this if necessary.
Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust,
scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc
for playback.
CD-R/-RW, DVD-RAM/-RW/-R recorded with UDF or ISO9660 format can be played back.
Windows Media Audio (WMA) files must be written to the disc with a .wma file extension in order to be
recognized and played back properly.
JPEG picture files must be written to the disk with an .jpeg or .jpg file extension in order to be recognized
and played back properly
Features
Full high-definition video playback at up to 1080p resolution for an amazing viewing experience.
Upconversion of standard definition DVDs for enhanced picture quality at up to 1080p over an HDMI
connection.
Rich multi-channel surround sound.
Easy and simple HDTV connection using a single HDMI cable (cable not included).
Multiple outputs for connecting your home theater system or amplifier.
PIP functionality that lets you display primary and secondary video at the same time (if available on the Blu-ray
Disc).
Pop-up menu display without interrupting playback (if available on the Blu-ray Disc).
HDMI 1080p/fps output (Blu-ray Disc only) that provides smooth playback of video with a frame rate of 50
frames per second (TV must be connected with an HDMI cable and be compatible with an HDMI cable and
be compatible with 1080p 50 frame).
Disc type Logo
Blu-ray Disc
DVD-video Disc
(DVD-ROM)
Audio CDs
(CDDA)
DVD-RAM
DVD-RW
DVD+RW
DVD-R
WMA
RW
Disc type Logo
MPEG4
CD-R
CD-RW
DVD+R
TM
Designed for
TM
Windows
Media
JPEG
MP3
OPEN/CLOSESTANDBY/ON
ACCESSORIES and PANEL
06
FRONT PANEL
ACCESSORIES
Batteries......................................
Audio/Video cable .....................
Remote control ..........................
2
1
1
AUDIO
RETURN
MUTE
SECONDARY
AUDIO
ENTER
123
456
7 8 9
0
A B C D
DISCMENU
SEARCH
SETUP
POPUPMENU
TITLEMENU
REPEAT A-B
SUBTITLE
ANGLE
STANDBY/ON OPEN/CLOSE
RESOLUTION PIP
OSD
VOL
2
1. STANDBY/ON Turns the Blu-ray disc player on or off.
2. TRAY Opens to accept a disc.
3. LED SCREEN Display the playing status, time, etc.
4. REMOTE CONTROL SENSOR Receive the signal from the remote control.
5. PLAY Play: playback a disc.
PAUSE Pause:
STOP
9. OPEN/CLOSE Opens or closes the disc tray.
6. Temporarily pauses BD disc playback.
7. Stop playback.
8. for file playback or BD-Live storage.USB INTERFACE
1 3 4 5 6 7 8 9
REAR PANEL
07
REAR PANEL OUTPUT
Region codes:
If the Region number of a BD or DVD disc does not correspond to the Region number of this Blu-ray disc player,
the Blu-ray disc player cannot play the disc. The region code is called out on the rear panel of the BD player.
1
CENTER
SUB-WOOFER
RL
RR
SL
SR FR
FL
7.1-CH AUDIO OUT HDMIETHERNET VIDEO OUT / AUDIO OUT
VIDEO LR
Y CB/ PB CR / PR
DIGITAL AUDIO OUT
OPTICAL
COAXIAL
S/N:
POWER: 15WMODEL: KGNBD2VBA
BLU-RAY DISC PLAYER
MADE IN CHINA
AC: 110V-240V~ 50/60Hz
N15486
Manufactured under license under U.S.
Patent #'s: 5,451,942; 5,956,674; 5,974,
380; 5,978,762; 6,487,535 & other U.S.
and worldwide patents issued & pending.
DTS is a registered trademark & the DTS
logos and Symbol are trademarks of DTS,
Inc. 1996-2008 DTS, Inc. All Rights
Reserved.
Manufactured under
license from Dolby
Laboratories. Dolby
and the double-D
symbol are trademarks
of Dolby Laboratories.
U.S. Patent Nos. 6,836,
549; 6,381,747; 7,050,
698; 6,516,132; and
5,583,936.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CLASS 1 LASER PRODUCT
Blu-ray DVD-Video
4
2 3 4 5 76 8 9 10
1. POWER LINE INPUT
Isolates Mains supply
2. ANALOG 7.1 AUDIO OUTPUTS
Connect these outputs to the analog inputs of a surround sound speaker. (If surround sound speaker is 5.1
channel, leave the surround channels disconnected).
3. ETHERNET INTERFACE
4. HDMI OUTPUT
If your surround-sound audio receiver does not have an HDMI input (or if you are not using a surround-sound
receiver), connect this output directly to the HDMI input of the TV. One of the other audio outputs can be
connected to the audio receiver.
Otherwise, connect the HDMI output of the player to the HDMI input of the audio receiver. (You will need to
connect a second HDMI cable from the HDMI output of the audio receiver to the HDMI input of the television)
5. VIDEO OUTPUT
If your TV does not have component or HDMI video inputs, connect this output to the composite video input
of the HD television.
6. Y, CB/PB, CR/PR OUTPUT
Connect these outputs to the YUV inputs of the television, if the television does not have an HDMI input.
NOTE: The component video output has a maximum resolution of 1080i.
7. L/R AUDIO OUTPUT
C
8. OPTICAL OUTPUT
This is another digital audio output. If you have a surround-sound receiver with a digital optical input, connect
this output to the digital optical input of the surround sound receiver.
9. COAXIAL OUTPUT
This is a digital audio output. If you have a surround-sound receiver with a digital coaxial input, connect this
output to the digital coaxial input of the surround sound receiver.
10. WIFI ANTENNA
onnection for external equipment using the Red/White Audio (RCA) Cables.
CENTER
SUB-WOOFER
RL
RR
SL
SR FR
FL
7.1-CH AUDIO OUT HDMIETHERNET VIDEO OUT / AUDIO OUT
VIDEO LR
Y CB / PB CR / PR
DIGITALAUDIO OUT
OPTICAL
COAXIAL
BASIC CONNECTION
08
BASIC CONNECTION
Connecting to a TV with Audio/Video cable
Connecting to a audio system and TV equipped with YUV video input
To video input(yellow)
To audio inputs(red, white)
To audio inputs of the amplifier
To Y video input
To CB/PB video input
To CR/PR video input
To Y video output
To CB/PB video output
To CR/PR video output
Connecting to an amplifier equipped with 7.1ch audio input and TV
To 7.1ch audio inputs
Audio cable
BD Player
BD Player
BD Player
CENTER
SUB-WOOFER
RL
RR
SL
SR FR
FL
7.1-CH AUDIO OUT HDMIETHERNET VIDEO OUT / AUDIO OUT
VIDEO LR
Y CB / PB CR / PR
DIGITALAUDIO OUT
OPTICAL
COAXIAL
CENTER
SUB-WOOFER
RL
RR
SL
SR FR
FL
7.1-CH AUDIO OUT HDMIETHERNET VIDEO OUT / AUDIO OUT
VIDEO LR
Y CB / PB CR / PR
DIGITALAUDIO OUT
OPTICAL
COAXIAL
