Kohler Englefield Valencia 1500 FS Manuale utente

1365837-A02-C 27/02/2019

INSTALLATION

INSTRUCTIONS

BATHS

Engleeld

FREESTANDING

Englefield has a history of

making superb baths and

their popularity is testament to

their quality and affordability.

It’s the details that Englefield

cares about - from pioneering

the latest technology, to

innovative design, it’s all to

make your bathing

experience the very best it

can be.

Valencia 1500 FS Bath

Valencia 1700 FS Bath

Part number: 24247A-0

Part number: 24248A-0

Sierra 1500 FS Bath

Sierra 1700 FS Bath

Part number: 24249A-0

Part number: 24250A-0

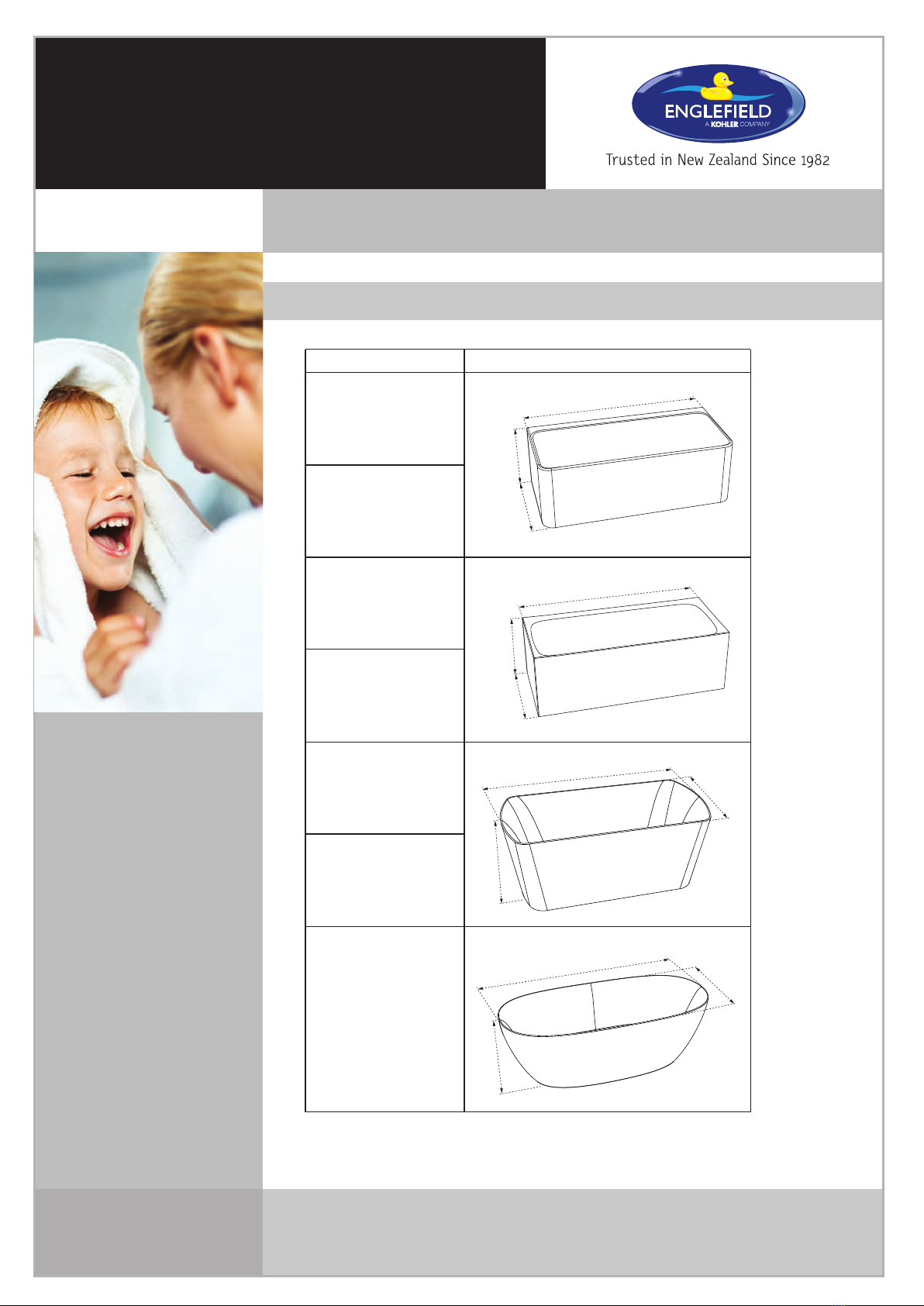

Product & Part Number

ROUGH IN DIMENSIONS

Rough-in dimensions

NOTE: Check the rough-in and room dimensions to provide adequate available

space for the bath unit. Check the flooring under designated bath position and make

repairs as needed. For best results, ensure that the floor is level.

585mm

750mm

750 /

800 mm

1500 / 1700mm

Tuscano 1500 FS Bath

Part number: 24251A-0

Tuscano 1700 FS Bath

Part number: 24252A-0

1500 / 1700mm

585

750 / 800

Studio II 1700 FS Bath

Part number: 24246A-0

1700mm

800mm

585

Page 1

Before installing the bath please read these instructions carefully to familiarise yourself with

the required tools, materials and installation sequences. This will help you avoid costly

mistakes. The installation documents included assume that walls are plumb and floors are

level. Slight adjustments to the installation procedure may be required for out-of-square

surfaces.

In addition to proper installation, read all operating and safety instructions and refer to the

Homeowner’s Guide for important care and cleaning information. Ensure that all local

building and plumbing codes are observed.

These instructions contain important care, cleaning and warranty information. Please leave

these instructions for the consumer after installation.

INSTALLATION INSTRUCTIONSFREESTANDING BATHS

BEFORE YOU BEGIN

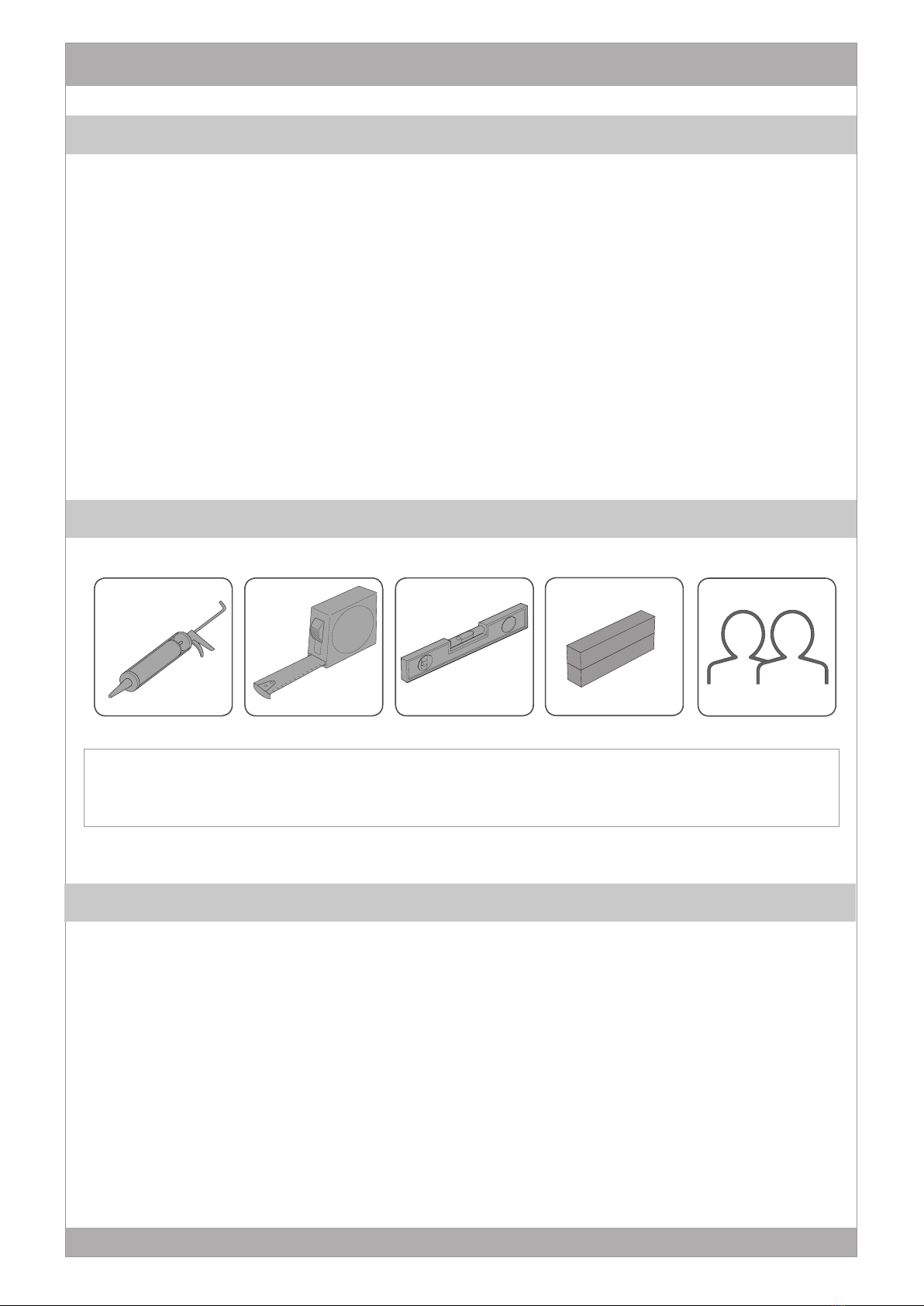

TOOLS AND MATERIALS REQUIRED

ENGLEFIELD

INSTALLATION

Note: Instructions, drawings, and diagrams contained in this manual present information available at the

time of printing. Although every attempt has been made to keep them up-to-date, Englefield reserves the

right to implement product changes without further notice.

1) Unpack the bath and check for any transit damage prior to installation.

2) Position the bath in the desired location in the bathroom.

3) Check that the plumbing can be connected to the bath when in the desired location and

that the positioning of the bath does not interfere with other bathroom fixtures.

Timber blocks

4) Install the waste system (not supplied) in accordance with the manufacturers instructions.

Please adhere to the relevant sections of NZS 3500 plumbing standard.

Page 2

INSTALLATION INSTRUCTIONSFREESTANDING BATHS

ENGLEFIELD

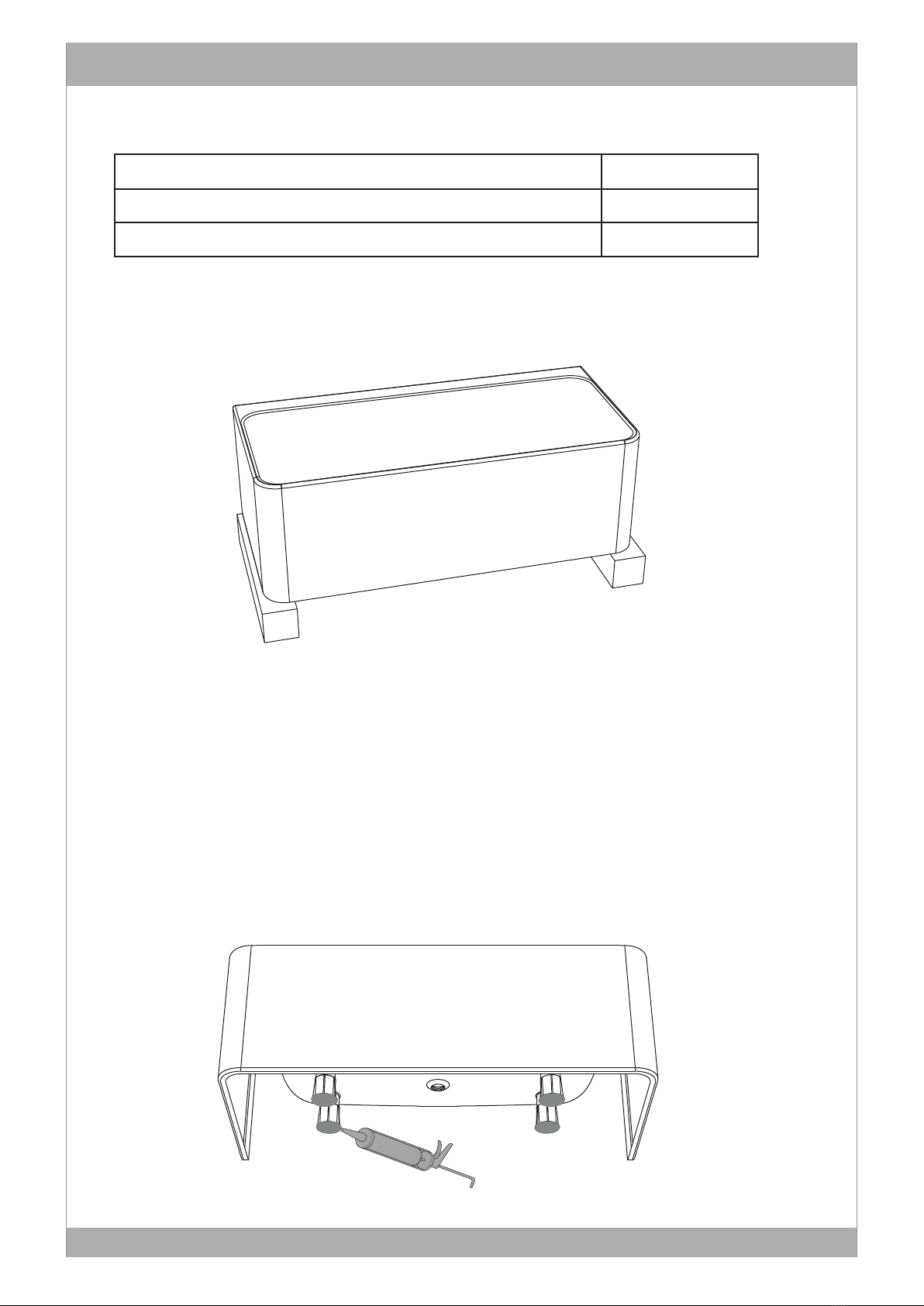

5) Raise the Free Standing bath off the floor by propping it up onto timber blocks

positioned at either end of the bath. Install and connect the waste outlet.

7) Carefully remove the timber blocks and use a spirit level to check that the bath is level

with the floor, adjust feet as necessary.

Product Part Number

40mm pop-up bath waste

99329A-CP

6) Adjust the feet so that the bottom of each foot is protruding approximately 3 to 5mm from

the underside of the bath. The feet must extend past the bath shell to take the weight

of the bath. Feet should be level with each other so that the weight of the bath is evenly

supported by the four feet.

Self-sealing trap with flexible waste pipe 80144A-NA

Recommended products are:

8) Carefully tilt the bath backward and apply an appropriate adhesive to each of the bath

feet. Lower the bath back into position.

Page 3

INSTALLATION INSTRUCTIONSFREESTANDING BATHS

ENGLEFIELD

CONTACT AND WARRANTY INFORMATION

NEW ZEALAND

KOHLER NZ LTD

Free Ph: 0800 100 382

Free Fax: 0800 664 488

www.engleﬁeld.co.nz

AUSTRALIA

KOHLER CO.

Free Ph: 1 800 ENGLEFIELD

(1 800 364 533)

www.engleﬁeld.com

Please refer to the Homeowner’s Guide for cleaning instructions.

For warranty information, please visit our website.

CLEANING AND MAINTENANCE INSTRUCTIONS

Installation complete.

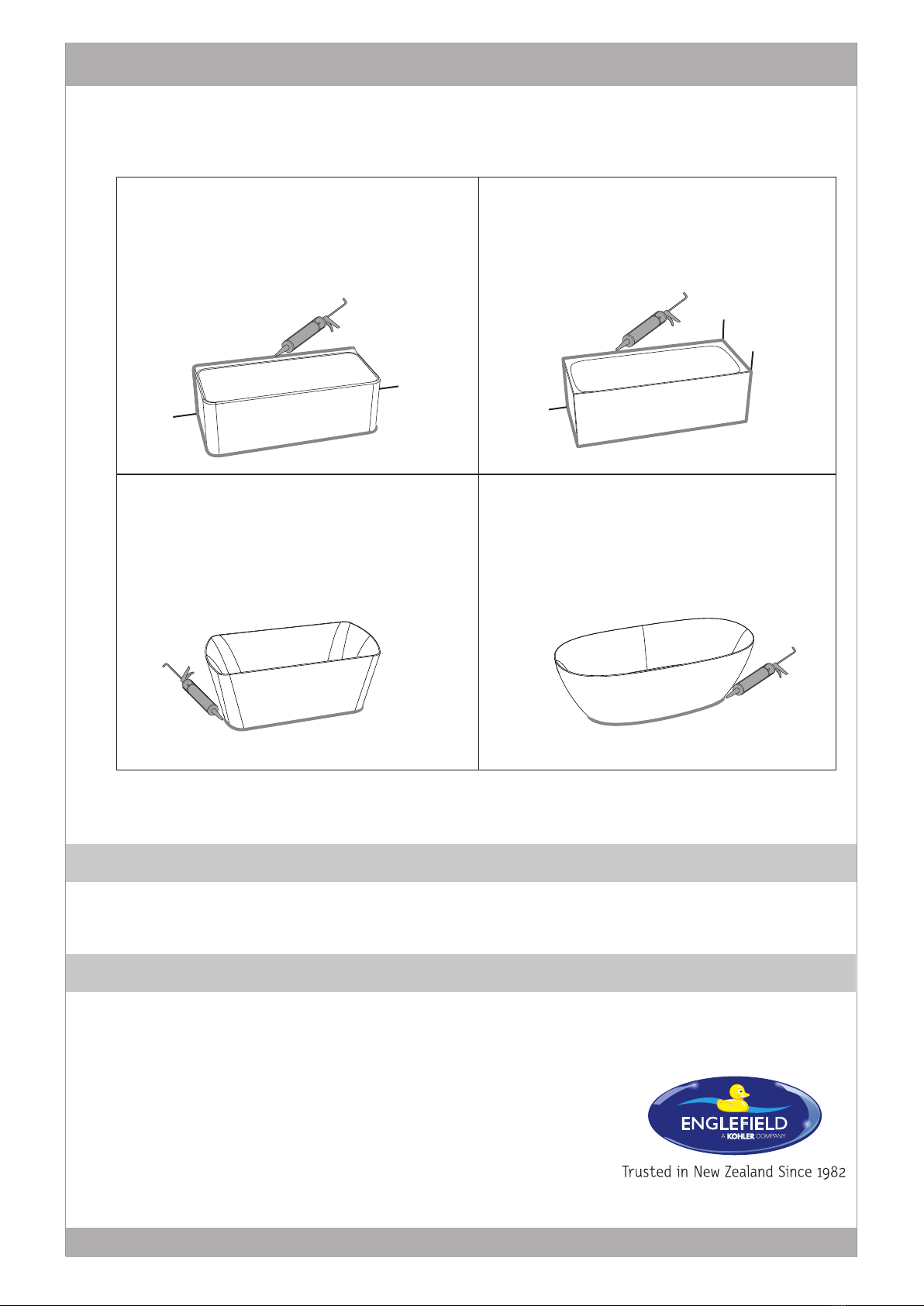

Valencia Freestanding BTW Baths Sierra Freestanding BTW Baths

Ensure that the silicone sealant is

applied along the back edge of the bath.

Ensure that silicone sealant is applied

along the back edge and top edge of

sides of bath that are adjacent to a wall.

9) Apply silicone sealant between edges and adjacent surfaces ensuring that a watertight

seal is formed.

Tuscano Freestanding Baths

Ensure that silicone sealant is applied

along the base edges that are adjacent

to the floor.

Studio II Freestanding Baths

Ensure that silicone sealant is applied

along the base edges that are adjacent

to the floor.
