Kohler Underscore K-1822-GVB Manuale utente

Features

•End drain.

•Slotted overflow for deep soaking.

•VibrAcoustic®technology emits sound waves and offers a

surround sound experience.

•Six transducers and a control amplifier with 25’ (7.6 m) of wiring.

•High-resolution color screen in polished chrome.

•Integral lumbar support.

•66" (1676 mm) x 32" (813 mm) x 22" (559 mm)

Material

•Acrylic

Hydrotherapy

•122 BubbleMassage™airjets.

•Variable-speed blower for adjusting hydromassage intensity.

•Automatic purge cycles remove residual water from air channels

after use. Codes/Standards

•Built-in 300 W heater. ASME A112.19.7/CSA B45.10

Installation CSA B45.5/IAPMO Z124

ASTM E162

•Drop-in or under-mount.

ASTM E662

•Syncs with devices enabled with BLUETOOTH®wireless

technology including smart phones, MP3 players, tablets and

laptops located up to 33 feet away.*

UL 1795

Greenguard UL 2818 - Gold

Required Accessories

K-7271 Brass Slotted Overflow Bath Drain

KOHLER®One-Year Limited Warranty

See website for detailed warranty information.

K-7272 PVC Slotted Overflow Bath Drain *The BLUETOOTH®word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by Kohler Co. is under license. Other

trademarks and trade names are those of their respective owners.

Recommended Accessories

1184460 Kit, UI Mounting Available Color/Finishes

K-550 Under-mount Installation Kit Color tiles intended for reference only.

DescriptionCodeColor

White0

Biscuit96

Almond47

DuneNY

Ice™Grey95

SandbarG9

Mexican Sand™33

CashmereK4

Thunder™Grey58

Black Black™7

USA/Canada: 1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

3-7-2017 06:08

Underscore®

5.5' VibrAcoustic®BubbleMassage™Bath

K-1822-GVB

Notes

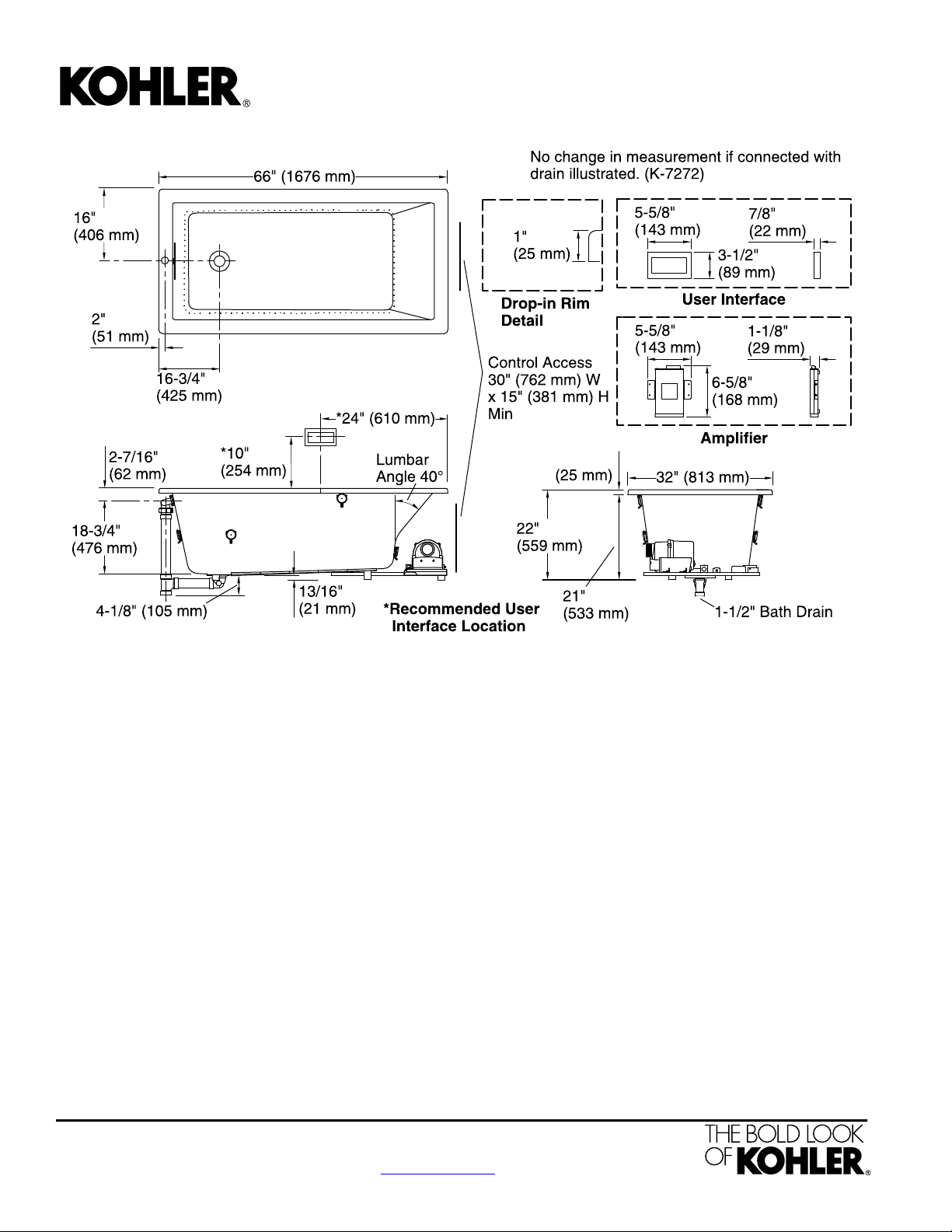

Required Electrical Service Measure your actual product for rough-in details.

One dedicated circuit required, protected with Class A

Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device

(RCD).

Install this product according to the installation

instructions.

Control amplifier fits 16" (406 mm) center studs.

25' (7.6 m) cables are included.

120 V, 15 A, 60 HzBlower, Amplifier:

Technical Information Remote blower installation kit K-1446 is available

for relocating the blower. Provide access for

servicing the blower.

All product dimensions are nominal.

Drop-in, Under-mountInstallation:

EndDrain location: Do not relocate or alter the PVC tee or coiled

flexible tubing connected to the blower. Follow

the blower relocation instructions exactly.

44-1/2" x 22-5/16" (1130 mm x 567 mm)Basin area, bottom:

59-5/8" x 25-1/2" (1514 mm x 648 mm)Basin area, top:

121 lbs (54.9 kg)Weight:

56.7 lbs/ft²(276.8 kg/m²)Minimum floor load:

18" (457 mm)Water depth:

85.8 gal (324.8 L)Water capacity:

Drop-in, 64-1/2" x 30-1/2" (1638 mm x

775 mm)

Cutout:

Blower: 120 V, 10 A, 60 Hz, 300 W

Amplifier: 120 V, 1.1 A, 50/60 Hz

Electrical component

rating:

2 at 15 W per channel

2 at 30 W per channel

Amplifier channels:

USA/Canada: 1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

3-7-2017 06:08

Underscore®

5.5' VibrAcoustic®BubbleMassage™Bath

K-1822-GVB
