Kohler Archer K-1122-GLAW Manuale utente

Features

•Bask®heated surface creates spa-like relaxation with soothing

warmth on your back and neck.

•Three heat settings allow you to customize the surface

temperature.

•120 airjets release thousands of bubbles that surround, support,

and massage the body.

•Variable-speed blower lets you adjust massage intensity to 18

levels.

•Comfort Depth®design offers a convenient 19-inch step-over

height while retaining the same depth as a standard 21-inch

bath.

•Molded lumbar support offers extra comfort while bathing.

•Slotted overflow allows for deep soaking. Codes/Standards

•Integral apron. ASME A112.19.7/CSA B45.10

•Integral flange helps prevent water from seeping behind wall

and simplifies alcove installation. CSA B45.5/IAPMO Z124

UL 1795

•Textured bottom surface

•Immediate and manual purge cycles remove residual water

from air channels after use. KOHLER®Plastic Baths and Receptors

Lifetime Limited Warranty

•Left-hand drain. KOHLER®Hydrotherapy Components

Five-Year Limited Warranty

•Coordinates with other products in the Archer collection.

Material See website for detailed warranty information.

•Acrylic

Available Colors/Finishes

Hydrotherapy

•BubbleMassage Color tiles intended for reference only.

Installation DescriptionCodeColor

•Three-wall alcove.

White0

Additional Hydrotherapy Options Biscuit96

•Soaking Bath - K-1123-LA Almond47

•Soaking Bath + Bask heated surface - K-1123-LAW

DuneNY

•BubbleMassage air bath - K-1122-GLA

Ice™Grey95

•BubbleMassage air bath + Bask heated surface - K-1122-GLAW

SandbarG9

•VibrAcoustic - K-1122-VBLA

•VibrAcoustic + Bask heated surface - K-1122-VBLAW CashmereK4

•Whirlpool - K-1122-LA Thunder™Grey58

•Whirlpool + heater - K-1122-HL Black Black™7

•Whirlpool + Bask heated surface - K-1122-LAW

•Whirlpool + BubbleMassage air bath - K-1122-XHGLA

Required Products/Accessories

K-7271 Brass Slotted Overflow Bath Drain

K-7272 PVC Slotted Overflow Bath Drain

1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

9-7-2019 05:25 - US/CA

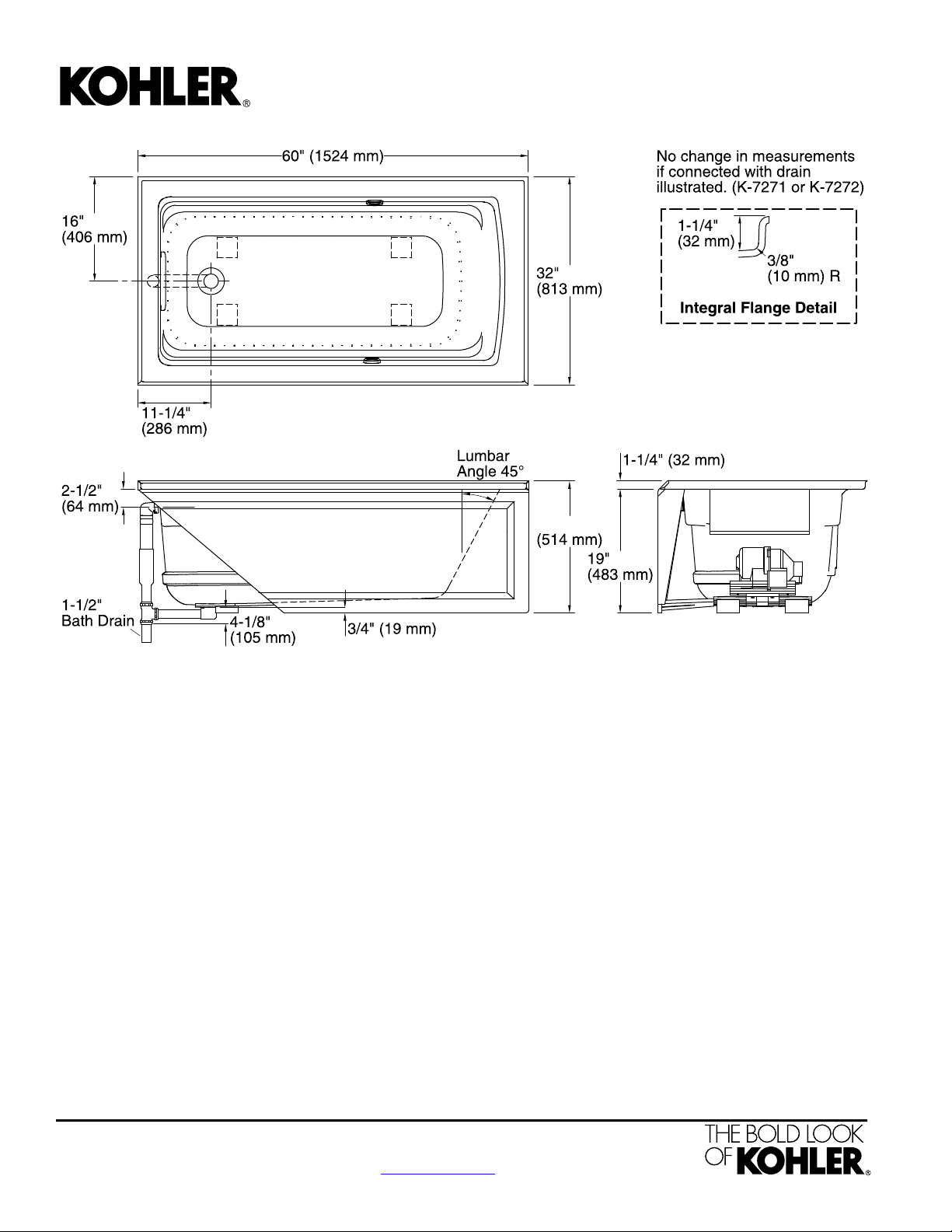

Archer®

5' BubbleMassage™Bath

K-1122-GLAW

20-1/4"

Notes

Required Electrical Service Measure your actual product for rough-in details.

One dedicated circuit required, protected with Class A

Ground-Fault Circuit-Interrupter (GFCI). Outside North America,

this device may be known as a Residual Current Device (RCD).

Install this product according to the installation

instructions.

The hot water supply should be 70% of the

capacity of the bath or greater. Installations will

vary.

120 V, 15 A, 60 HzBlower, Heated

Surface:

Technical Information Remote blower installation kit is available for

relocating the blower. Provide access for servicing

the blower.

All product dimensions are nominal.

Three-wall alcoveInstallation:

LeftDrain location: Do not relocate or alter the PVC tee or coiled

flexible tubing connected to the blower. Follow

the blower relocation instructions exactly.

45-1/8" x 19-11/16" (1146 mm x 500 mm)Basin area, bottom:

52-3/4" x 25-5/16" (1340 mm x 643 mm)Basin area, top:

106 lbs (48.1 kg)Weight:

46 lbs/ft²(224.6 kg/m²)Minimum floor load:

15" (381 mm)Water depth:

58 gal (219.6 L)Water capacity:

Blower: 120 V, 10 A, 60 Hz

Heated Surface: 120 V, 0.5 A, 60 Hz, 65

Electrical component

rating:

2-3/16" (56 mm)Minimum flat for door:

1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

9-7-2019 05:25 - US/CA

Archer®

5' BubbleMassage™Bath

K-1122-GLAW
