Kohler K-5889X Istruzioni per il montaggio
Installation and Care Guide
Urinal
1240012-X2-A ©2015 Kohler Co.
K-5889X
1240012-X2-A 2 Kohler Co.
Thank You for Choosing Kohler Company
Thank you for choosing Kohler. Kohler craftsmanship oers you a rare
combination of proven performance and graceful sophistication that will
satisfy you for years to come. The dependability and beauty of your Kohler
product will surpass your highest expectations. We’re very proud of our
products here at Kohler and we know you will be too.
Please take a few minutes to review this manual before you start installation. If
you encounter any installation or performance problems, please don’t hesitate
to contact us. Our phone numbers and website are listed on back cover.
All information in this manual is based upon the latest product information
available at the time of publication. At Kohler, we constantly strive to improve
the quality of our products. We reserve the right to make changes in product
characteristics, packaging or availability at any time without notice.
Thank you for choosing Kohler Company.
Kohler Co. 3 1240012-X2-A
Before You Begin
CAUTION: Risk of personal injury or product damage.
Handle with
care. Vitreous china can break or cause injury if handled carelessly.
Important Information
IMPORTANT NOTICE TO INSTALLERS!:Please leave these instructions for
the consumer. They contain important information.
In addition to installation procedures, this manual contains important care and
cleaning. Please retain for future reference.
NOTE: Some installation parts might not be provided.
NOTE: The product pictured in the installation steps may dier from the model
being installed.
¨Observe all local plumbing and building codes.
¨Carefully inspect the new urinal for damage.
¨Roughing-in remains the same when using the optional 2” outlet spud.
¨
Fixture dimensions are nominal and conform to tolerances by ANSI Standard
A112.19.2 and TIS.
¨Site preparation may require additional tools and hardware.
1240012-X2-A 4 Kohler Co.
¨
¨
¨
¨
Tools/
Kohler Co. 5 1240012-X2-A

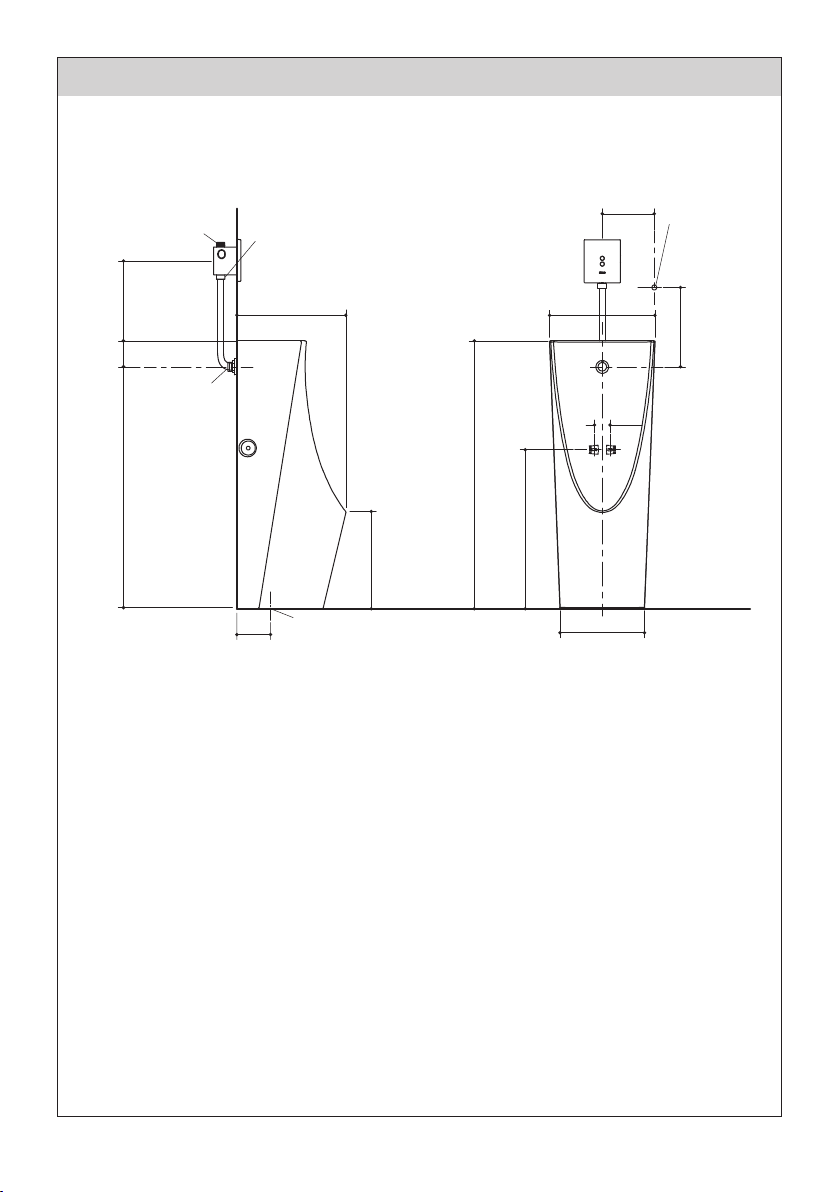

Roughing-In/
Dimensions are approximate. Unit: mm.
G1/2" Sensor
Inlet
G1/2" Sensor Outlet
G1/2" Spud
G1/2" Water
Supply
C
L of Outlet 2"
120
860
92
180±20 398
345
952
565
55
370
185
282
300
1240012-X2-A 6 Kohler Co.
Prepare the Site
For Retrot Installations
¨ Turn the water supply line o, remove the existing urinal, then cap o the
water supply line inside the wall.
For New Installations
¨Install waste pipe as necessary to conform to the roughing-in dimensions.
¨Install adequate support framing for the hangers as needed.
¨
¨
¨
Kohler Co. 7 1240012-X2-A

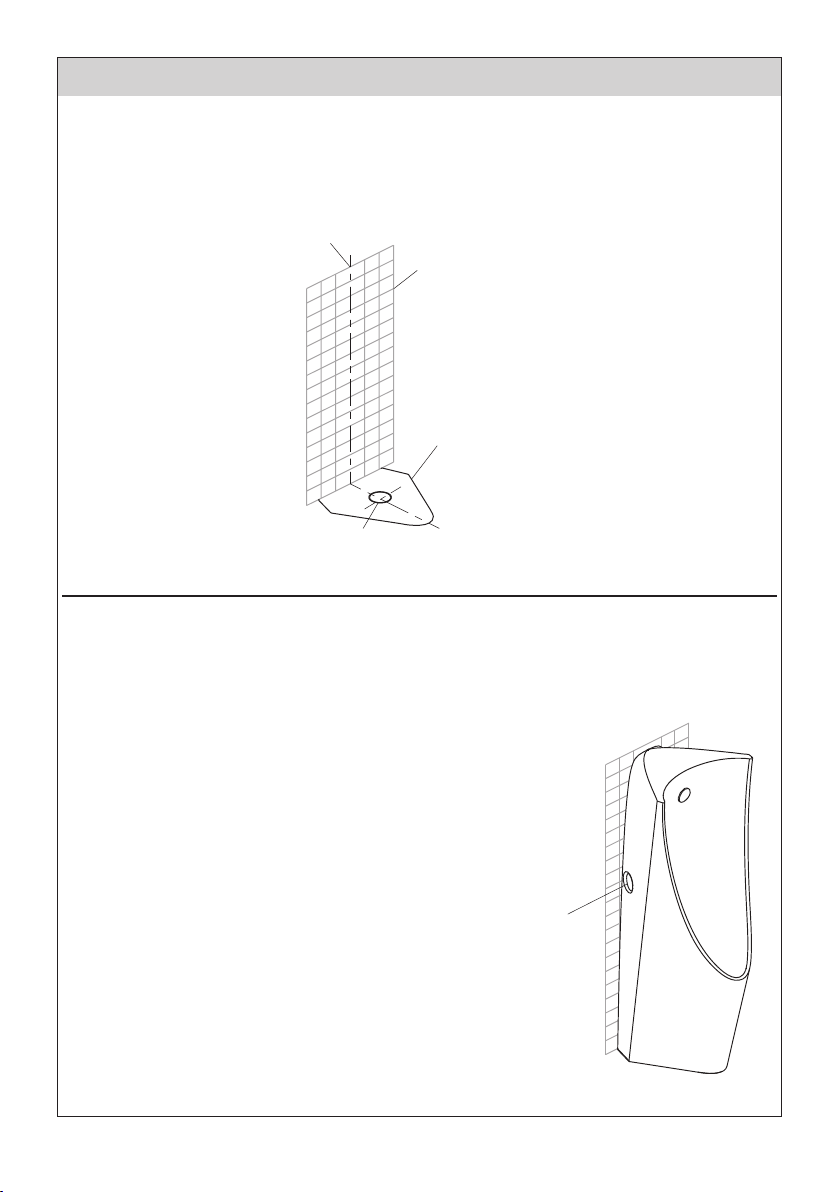

Install the Urinal/
1
Draw bottom outline and centerline of the urinal according to the position of the drain
pipe on the template. Extend the centerline to the wall.
2Put the urinal onto it and align with bottom outline. Draw lines according to the
height of the mounting holes and conrm the installation height of the L-shaped
block.
Draw lines according
to the template.
50 mm Drain Pipe
Finished Wall
Draw centerline.
ลากเสนกึ่งกลาง ผนัง
ลากเสนตามกระดาษแมแบบ
ท่อนํ�าทิ�ง
Draw lines according
to height of the mounting
hole center.
ลากเสนกึ่งกลาง
ขนานตามความสูง
ของรูยึด
1240012-X2-A 8 Kohler Co.

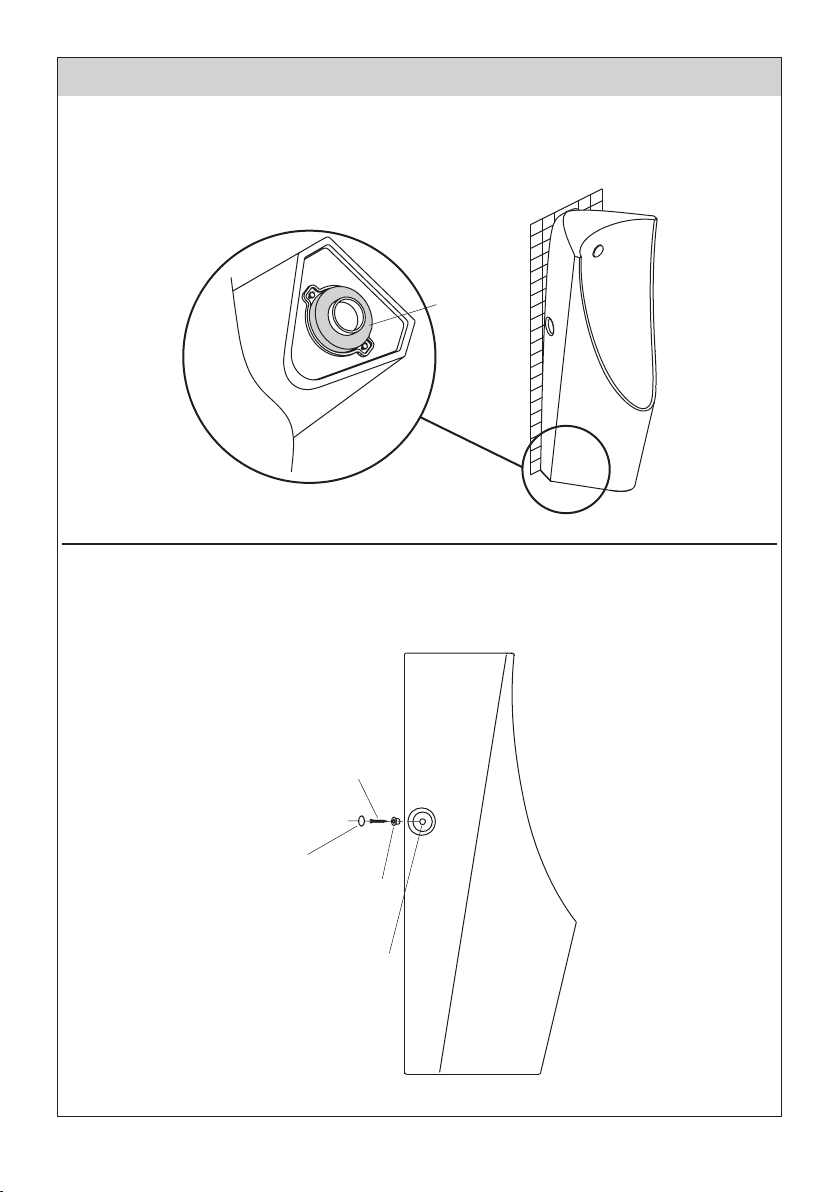

Install the Urinal/
3Draw centerline passing the mounting holes. Drill holes and install L-shaped block.
4Connect the supply hose to the nozzle.
Back of Urinal
Regulator
Nozzle
ด้านหลังของโถปัสสาวะ
หัวฉีด ตัวลดแรงดันนํ�า
Supply Hose
สายนํ�าดี
NOTE:
Check the regulator in the nozzle
55
Drill holes on the center.
เจาะรูตรงกึ่งกลาง
Kohler Co. 9 1240012-X2-A
Install the Urinal/
5Install gasket. Put the urinal against wall and align the bottom with the drawn lines.
6Tighten the screw to xing L-shaped block.
Gasket
ประเก็นยาง
Screw Hole
รูยึดสกรู
Bush
ปลอก
Screw
สกรู
Cap
ฝาครอบ
1240012-X2-A 10 Kohler Co.
¨
¨
¨
¨
Complete the Installation
¨Connect the water supply and complete the waste pipe connections.
¨Turn on the water supply
¨Flush and check the installation for leaks.
¨Repair as needed.

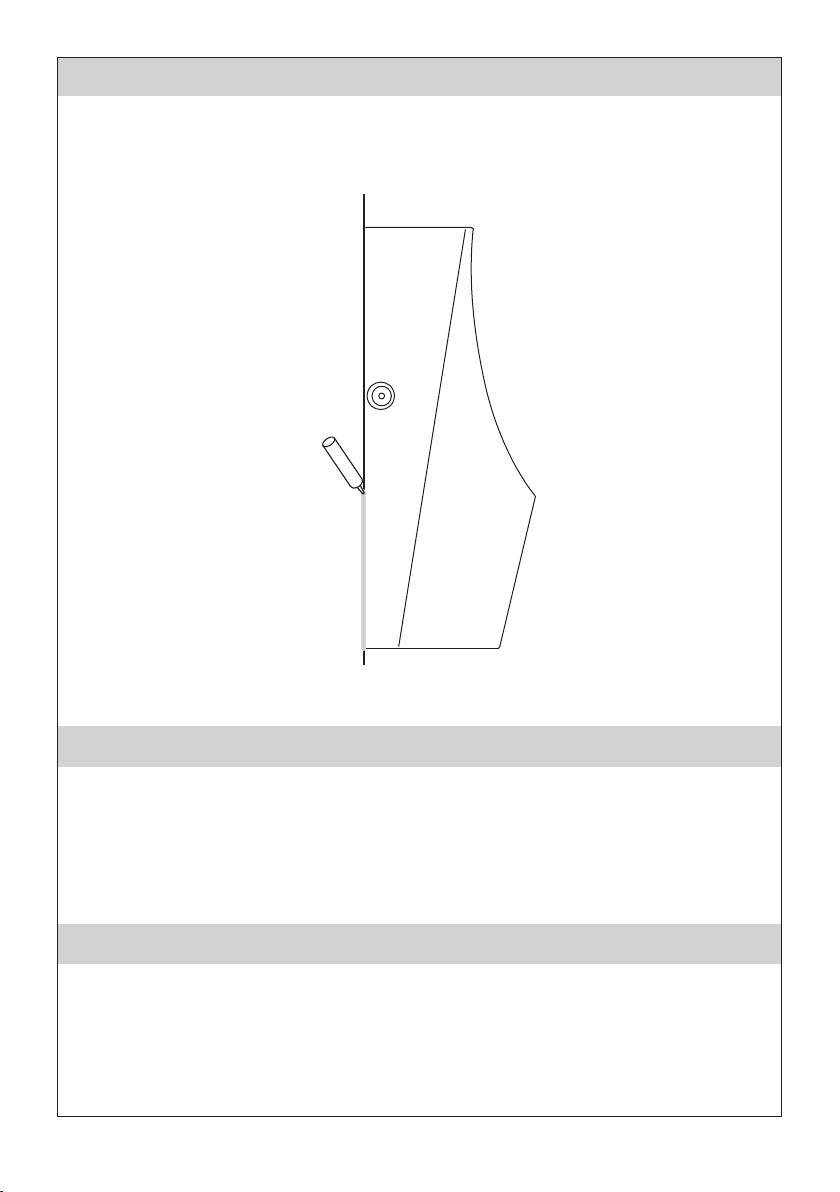

Install the Urinal/
7Apply silicone sealant between the urinal and the wall.
Finished wall
ผนัง
