Names of main parts/Camera body

①Flash mode switch

②Self-timer/Close-up mode switch

③Image quality mode switch

④Data display panel (LCD)

⑤Shutter release button

⑥Viewfinder

⑦Grip rubber

⑧Objective lens/Lens barrier*

⑨Self-timer indicator

⑩Flash adjustment sensor

⑪Flash tube

⑫Video port cover/Video port (inside cover)

⑬Power input terminal

⑭Serial port

⑮I/O terminal cover

⑯Lens barrier switch

①

②

③

④

⑤

⑥

⑦

⑧

⑨

⑩

⑪

⑫

⑬

⑭

⑮

⑯

⑰Viewfinder

⑱MENU button

⑲SET button

⑳SELECT buttons

控LCD monitor

攻Battery cover

昂Green lamp

晃Monitor power switch

更Card access warning lamp

杭Red lamp

校CF card cover/CF card ejector button (inside cover)

梗Card cover release button

構Strap eyelet

江 Tripod socket hole

* The lens barrier that shuts and opens by operation of the lens

barrier switch protects the objective lens.

Don't directly touch both the lens barrier and objective lens.

⑰

⑱

⑲

⑳

控

昂

晃

更

杭

校

梗

構

江

攻

* In the following picture, all indicators of the data display panel

are on for explanation.

①Battery's remaining energy indicator

Remaining energy of the battery is indicated in three steps of

[] (full), [ ] (half) and [ ] (depleted).

②Card NG indicator

This indicator goes on when the inserted CF card is unusable.

For example, when a CF card which is unformatted, uncon-

formable to this camera, has broken data and so on is inserted,

this indicator goes on.

③Close-up indicator

When you want to photograph close to an object (at a distance

of 0.2 to 0.8 m to an object), press the self-timer/close-up

switch to turn this indicator on.

In this mode, the shutter is actuated a little later than the nor-

mal photography.

④Self-timer indicator

For self-timer photography, press the self-timer/close-up switch

to turn this indicator on.

① ② ④ ⑤ ③

⑥

⑦

⑨

⑧

⑤Flash mode indicator

Each time the flash mode switch is pressed, indication of this

indicator circularly changes from 1) automatic flash (AUTO), to

2) automatic flash with red-eye reduction, to 3) forced flash

(ON), to 4) forced flash with red-eye reduction, to 5) non-flash

(OFF), and to 1) again for selection of a desired flash mode.

⑥Image quality (resolution) mode indicator

Each time the picture quality mode switch is pressed, indication

of this indicator circularly changes from “FINE” to “SUPER

FINE” to “ECONOMY” and to “FINE” again. Each indication

expresses the picture quality at the selected mode. Number of

pixels to be used to record a picture is 1152 (horizontal) X 872

(vertical) in the FINE and SUPER FINE modes, or 576 (hori-

zontal) X 436 (vertical) in the ECONOMY mode.

⑦Remaining exposure counter

This counter does not show number of exposed frames but

shows number of remaining frames. When the camera is con-

nected with a personal computer, “PC” appears in this indica-

tor.

⑧Sandglass mark

This sandglass mark blinks in a camera operation that it takes

a considerably long time to finish, for example, picture data

writing on a CF card or picture data transfer to a personal com-

puter, etc.

While this sandglass mark is blinking, the camera cannot

otherwise be operated.

⑨Card status indicator

This indicator is on when the CF card cover is closed with a

proper CF card set inside. This indicator goes out when the CF

card cover is opened or a CF card is removed from the cam-

era.

※When the remaining exposure counter shows “Err” and all

other indicators appearing on the indicator panel are blinking,

there is an error in camera control. On such an occasion, refer

to “Error message”.

Name of main parts/LCD monitor

●The LCD monitor is used for many purposes such as to show

playback pictures, to preview pictures and to show menus for

selecting various functions.

For details of each function or operation, read explanations on

and after the next page.

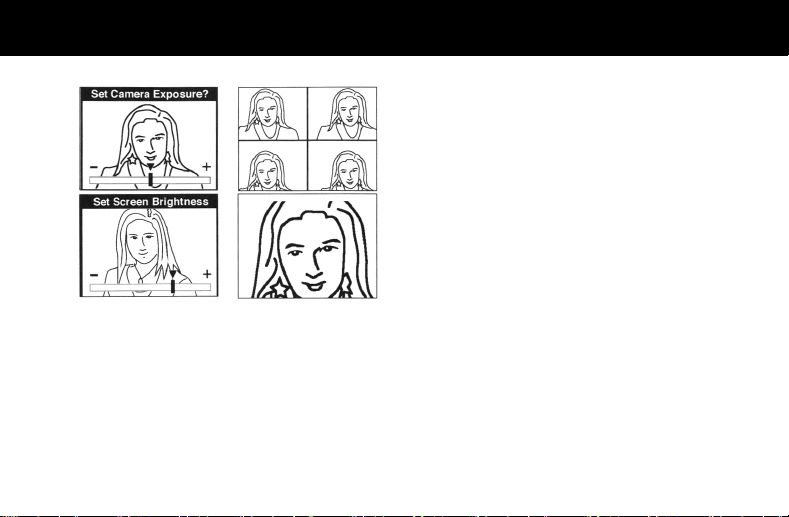

1. Functions that can be selected by pressing the MENU

button in the preview mode are shown below.

Ⓐ Exposure compensation

Ⓑ LCD monitor's brightness adjustment

Ⓓ Digital 2x zoom

1.Ⓐ

Ⓑ

Ⓒ

Ⓓ

2. Functions that can be selected by pressing the MENU

button in the playback mode are shown below. (Number

appearing in the lower right part of each menu shows the

menu number.)

(Each time the SELECT button (“ ” or “ ”) is pressed, the

following menus are circularly shown by turn.)

ⓐ Setting of frame protection

ⓑ Erase

ⓓ Adjustment of LCD monitor's brightness

ⓔ Slide show playback

ⓕ Formatting of CF card

ⓖ Setting of calendar and clock

ⓗ Switching between NTSC and PAL

ⓘ Setting of buzzer

2.ⓐ

ⓑ

ⓒⓕ

ⓔ

ⓓ

(1) MENU button

To access menus on the LCD monitor.

(2) SET button

To execute a selected function.

(3) SELECT buttons

To select a function from a menu.

(4) Monitor power switch

To turn on/off the LCD monitor.

ⓖⓘ

ⓗ

(1)

(2)

(4)

(3)

Setting batteries in camera

1. First of all, close the lens barrier without fail.

(Slide the lens barrier switch upwards.)

2. Make sure that the LCD monitor on the back of the camera is off.

3. Slide the battery cover on the bottom of the camera in the direction of the

arrow to open it.

Warning: Don’t touch the battery cover with wet hand, otherwise you may

get an electric shock.

4. Set AA-size batteries (four) in the battery chamber paying careful attention

to their respective orientations referring to + and - indications inside the

battery chamber.

Caution: If some battery is set in wrong orientation, it may cause not only

damage to or soil of the camera but also injury on you, because

a wrong set battery generates heat or leaks electrolyte.

①CLOSE

②OPEN

③LCD monitor
