EINSTRUCTION MANUAL

For Proper and Safe Use .................. 4

GETTING STARTED

Names of Parts................................ 10

Attaching the Camera Strap ............ 14

Inserting the Battery ........................ 15

Battery-condition Indicator .............. 16

Loading the Film .............................. 17

BASIC OPERATION

Fully Automatic Operation .............. 20

Focus Lock ...................................... 24

Focusing Range................................25

Special Focusing Situations ............ 26

For Closer Subjects ........................ 28

Rewinding the Film .......................... 30

CONTENTS

Thank you for your purchasing this

camera. Before using your new

camera, please take the time to read

through this instruction manual for it

contains important information on the

use and care of your camera.

ADVANCED OPERATION

Selecting the Flash Mode................ 32

Flash Range.................................. 34

Autoflash ...................................... 35

Autoflash with Red-eye Reduction 36

Fill-flash ........................................ 37

Flash cancel .................................. 38

Night Portrait ................................ 39

Self-timer ........................................ 40

Continuous Advance........................ 42

For Owners of the Quartz-date model..

........................................................ 44

Date and Time Imprinting .............. 44

Remote Control Operation ............ 50

APPENDIX

Care and Storage ............................ 54

Technical Specifications .................. 60

•Tape over lithium battery contacts to avoid short-circuiting during disposal;

always follow local regulations for battery disposal.

•Do not disassemble this product. Electric shock may cause injury if a high

voltage circuit inside the product is touched. Take the product to a Konica

Minolta Service Facility when repairs are required.

•Immediately remove the batteries and discontinue use if the camera is

dropped or subjected to an impact in which the interior, especially the flash

unit, is exposed. The flash has a high voltage circuit which may cause an

electric shock resulting in injury. The continued use of a damaged product or

part may cause injuries.

•Keep batteries or small parts that could be swallowed away from infants.

Contact a doctor immediately if an object is swallowed.

•Store this product out of reach of children. Be careful when around children,

not to harm them with the product or parts.

Continued on next page.

Read and understand all warnings and cautions before using this product.

Using batteries improperly can cause them to leak harmful solutions, overheat,

or explode which may damage property or cause personal injury. Do not ignore

the following warnings:

•Only use the batteries specified in this instruction manual.

•Do not install the batteries with the polarity (+/–) reversed.

•Do not use batteries which show wear or damage.

•Do not expose batteries to fire, high temperatures, water, or moisture.

•Do not attempt to recharge, short, or disassemble batteries.

•Do not store batteries near or in metallic products.

•Do not use leaking batteries. If fluid from the batteries enters your eye,

immediately rinse the eye with plenty of fresh water and contact a doctor. If

fluid from the batteries makes contact with your skin or clothing, wash the area

thoroughly with water.

WARNING

FOR PROPER AND SAFE USE

6Continued on next page.

•Do not fire the flash directly into the eyes. It may damage eyesight.

•Do not fire the flash at vehicle operators. It may cause a distraction or

temporary blindness which may lead to an accident.

•Do not look directly at the sun or strong light sources through the viewfinder. It

may damage your eyesight or cause blindness.

•Do not expose this product to liquids or operate this product with wet hands. If

liquid enters the product, immediately remove the batteries and discontinue

use. The continued use of a product exposed to liquids may cause damage or

inquiry through fire or electric shock.

•Do not use the product near inflammable gases or liquids such as gasoline,

benzine, or paint thinner. Do not use inflammable products such as alcohol,

benzine, or paint thinner to clean the product. The use of inflammable cleaners

and solvents may cause an explosion or fire.

•If the product emits a strange odor, heat, or smoke, discontinue use.

Immediately remove the batteries taking care not to burn yourself. The

continued use of a damaged product or part may cause injuries.

•Take the product to a Konica Minolta Service Facility when repairs are

required.

CAUTION

•Do not use or store the product in a hot or humid environment such as the

glove compartment or trunk of a car. It may damage the product and batteries

which may result in burns or injuries caused by heat, fire, explosion, or leaking

battery fluid.

•If batteries are leaking, discontinue use of the product.

•The lens retracts when the camera is turned off or the auto-power-off function

is activated. Touching the lens barrel while it is retracting may cause injury.

•Do not fire the flash while it is in contact with people or objects. The flash unit

discharges a large amount of energy which may cause burns.

FOR PROPER AND SAFE USE

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation. Changes or modifications not approved by

the party responsible for compliance could void the user's authority to operate

the equipment. This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

This mark on your camera certifies that this camera meets the

requirements of the EU (European Union) concerning interference

causing equipment regulations. CE stands for Conformité

Européenne (European Conformity).

NAMES OF PARTS

GETTING STARTED

Continued on next page.

* This camera is a sophisticated optical instrument. Care should be taken to keep these

surfaces clean. Refer to the care and storage section at the back of this manual (p. 55).

BODY The quartz-date model is illustrated.

Flash* (p. 32)

Self-timer/Remote-control

lamp* (p. 41, 52)

Lens*

Back-cover release (p. 17)

Manual-rewind button (p. 31)

Remote-control

receiver* (p. 50)

(Quartz-date model only)

Viewfinder window*

Tripod socket

Shutter-release button (p. 22)

Data panel (p. 12)

Viewfinder* (p. 13)

Date button (p. 44)

(Quartz Date model only)

Flash-mode/Select button

(p. 32, 44)

Main switch (p. 20)

Film window (p. 17)

Strap eyelet (p. 14)

Battery-chamber

door (p. 15)

Zoom lever (p. 21)

Back cover (p. 17)

Drive-mode/Adjust button

(p. 40, 42, 44, 51)

Meter window*

AF window*

1312

NAMES OF PARTS

GETTING STARTED

Battery-condition indicator (p. 16)

Frame counter (p. 19)

Film-transport signals (p. 19)

Cartridge mark (p. 30)

Self-timer indicator (p. 40)

Date/Time display (p. 44)

(Quartz-Date model only)

Autoflash

Autoflash with red-eye reduction

Fill-flash

Flash cancel

Night Portrait (with red-eye reduction)

DATA PANEL All indicators are displayed for clarity.

Flash-mode indicators (p. 32)

Continuous-advance indicator (p. 42)

Remote-control indicator (p. 51)

(Quartz-date model only)

VIEWFINDER

Focus lamp (green)

With the shutter-release button pressed partway down -

Glows: focus confirmed

Blinks rapidly: subject is too close

Blinks slowly: focus not confirmed (p. 26)

Flash lamp (orange)

With the shutter-release button pressed partway down -

Glows: flash is charged and ready

Blinks rapidly: flash charging

Blinks slowly: camera-shake warning

Focus frames

Close-framing guides (p. 28)

•Quartz-date model: after installing the battery, the date and time must be set,

see page 46.

•When changing batteries, always turn the camera off.

INSERTING THE BATTERY

The camera uses one 3-volt CR123A or

DL123A lithium battery.

1. Open the battery-chamber door

using the larger button key on the

camera strap.

2. Insert the battery. The positive and

negative battery terminals should

be orientated as illustrated on the

diagram in the battery chamber.

Snap the door closed.

GETTING STARTED

1. Pass the small loop of the

strap through the strap

eyelet on the camera.

ATTACHING THE CAMERA STRAP

•Button keys are attached to the strap. Use the

larger key to open the battery-chamber door, and

the smaller key to push the manual-rewind button.

Button keys

2. Pass the the other end of

the strap through the

small loop and tighten.

1716

1. Slide the back-cover release

down to open the back cover.

•Before opening the back cover, look

through the film window to confirm that

film is not currently loaded.

LOADING THE FILM

•If the back cover does not open, turn the camera off and on to release the film-

chamber lock.

•Use only DX-coded 35mm film rated between ISO 25 and 3200.

•Do not use Polaroid instant 35mm film. Winding problems may result.

•ISO 400 film is recommended for best results.

•Always load and unload the film in subdued light.

Continued on next page.

The indicator briefly appears. Power is

sufficient for all camera operations.

The indicator blinks and no other

indicators are displayed on the data

panel. The shutter will not release.

Replace the battery immediately.

Each time the camera is turned on, an indicator will appear on the data panel to

indicate the power status of the battery.

The indicator blinks. Power is sufficient

for camera operation, but the battery

must be replaced soon.

BATTERY-CONDITION INDICATOR

GETTING STARTED

1918

LOADING THE FILM

4. Close the back cover.

•The film automatically advances to the first frame

and “1”appears in the data-panel frame counter.

•If the film has been loaded improperly, “0” will

blink on the frame counter and the shutter will

not release. Open the back cover and repeat the

loading procedure.

•Once the film is loaded, the battery-chamber lock

will engage preventing the back cover from being

accidentally opened until the film is rewound.

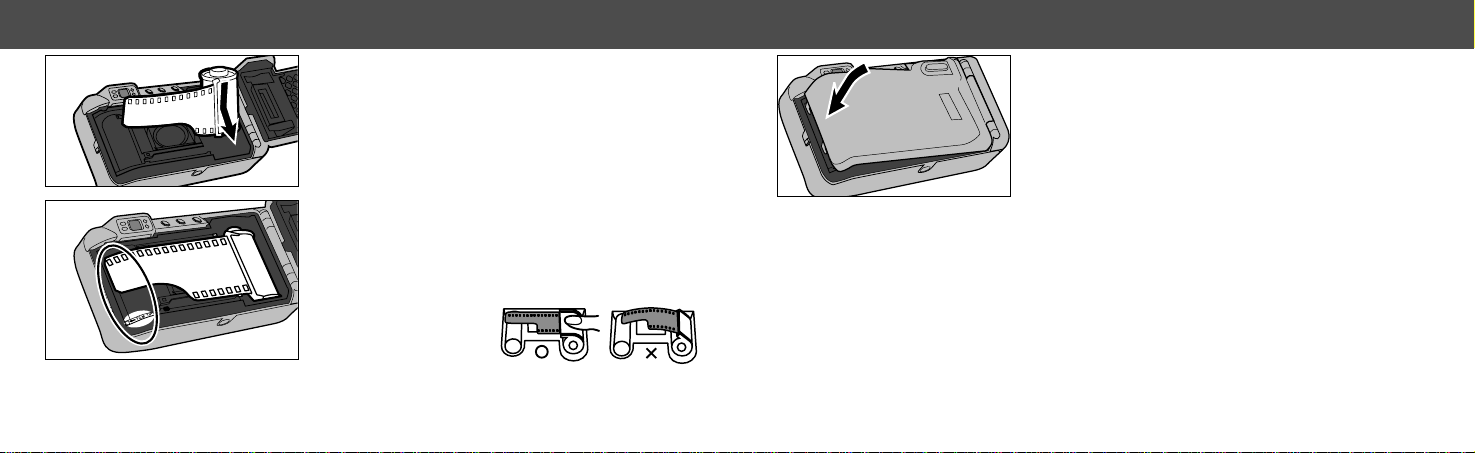

2. Place the film cartridge into the film

chamber.

GETTING STARTED

3. Extend the film leader to the film-tip

mark. The film must lay flat.

•If the film tip extends beyond the index mark,

push the excess film back into the cartridge.

Indice

Altri manuali Konica Minolta Macchina fotografica digitale

Konica Minolta

Konica Minolta Dynax Maxxum 7D Manuale utente

Konica Minolta

Konica Minolta DiMAGE X60 Manuale utente

Konica Minolta

Konica Minolta E-Mini-M E-Mini-Multi-Media Camera Manuale utente

Konica Minolta

Konica Minolta Digital Revio KD-400Z Manuale utente

Konica Minolta

Konica Minolta Digital Revio KD-500Z Manuale utente

Konica Minolta

Konica Minolta MAXXUM 5D Manuale utente

Konica Minolta

Konica Minolta DiMAGE G530 Manuale utente

Konica Minolta

Konica Minolta DYNAX 30 Manuale utente

Konica Minolta

Konica Minolta DiMAGE G400 Manuale utente

Konica Minolta

Konica Minolta MAXXUM 5D Manuale utente

Konica Minolta

Konica Minolta DiMAGE Z10 Manuale utente

Konica Minolta

Konica Minolta Digital Revio KD-300Z Manuale utente

Konica Minolta

Konica Minolta Minolta DiMAGE Xt Biz Manuale utente

Konica Minolta

Konica Minolta DiMAGE X31 Manuale utente

Konica Minolta

Konica Minolta Dynax 60 Manuale utente

Konica Minolta

Konica Minolta DiMAGE Z2 Manuale utente

Konica Minolta

Konica Minolta DIMAGE A2 - SOFTWARE Manuale utente

Konica Minolta

Konica Minolta DIMAGE DiMage Z5 Manuale utente

Konica Minolta

Konica Minolta Q-Mini Manuale utente

Konica Minolta

Konica Minolta DiMAGE X60 Manuale utente

Konica Minolta

Konica Minolta DiMAGE X31 Manuale utente

Konica Minolta

Konica Minolta DiMAGE Z1 Manuale utente

Konica Minolta

Konica Minolta DiMAGE G400 Manuale utente

Konica Minolta

Konica Minolta DiMAGE X1 Istruzioni per il montaggio

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
