Konica Minolta Q-M200 Manuale utente

Chapter 1 Preparations

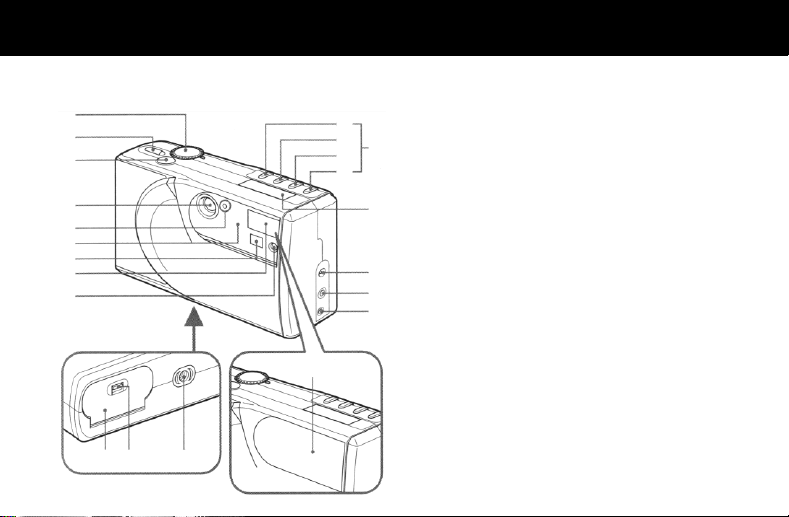

Names of Parts

察Mode select dial

拶Power button

撮Shutter button

擦Lens

札Selftimer LED

殺Active AF sensor

薩Viewfinder window

雑Flash

皐Flash adjustment sensor

鯖Mode setup buttons

捌Image quality mode button (QUALITY)

錆Selftimer button

鮫Flash mode button

皿Photo mode button (MODE)

晒Data display panel (LCD)

三Power input terminal

傘Serial port

参Video port

山 Lens cover

惨 Battery cover

撒 Battery cover lock button

散 Tripod socket hole

惨撒散

山

察

拶

撮

擦

札

殺

薩

雑

皐

捌

錆

鮫

皿

鯖

晒

三

傘

参

○* If foreign matter adheres to the active AF

sensor or the eye sensor, this may lead to

malfunction of the sensor.

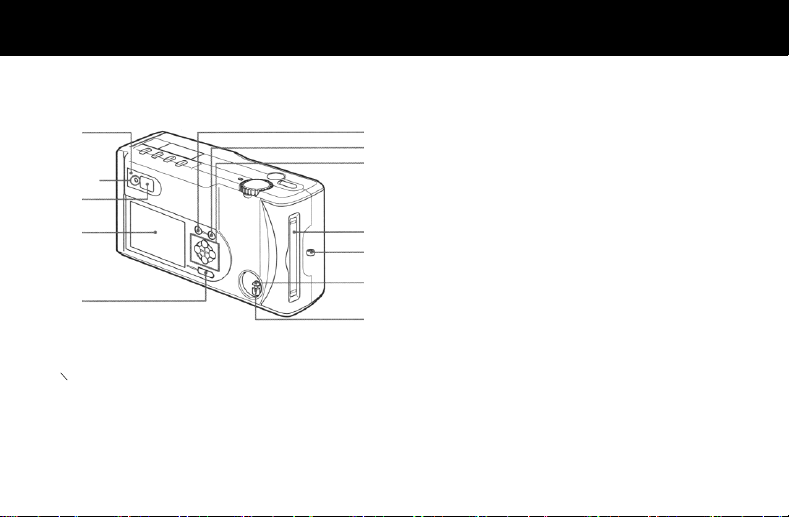

桟 Eye sensor

燦 Viewfinder LED

珊 Card access LED

産Viewfinder eyepiece

算LCD monitor

纂 LCD monitor power button (LCD POWER)

蚕 Menu button (MENU)

讃Set/Zoom button (SET/ZOOM)

賛Select button

酸Card cover

餐Strap eyelet

斬Eject lock button

暫 Card eject button

蚕

讃

賛

酸

餐

斬

暫

桟

燦/珊

算

産

纂

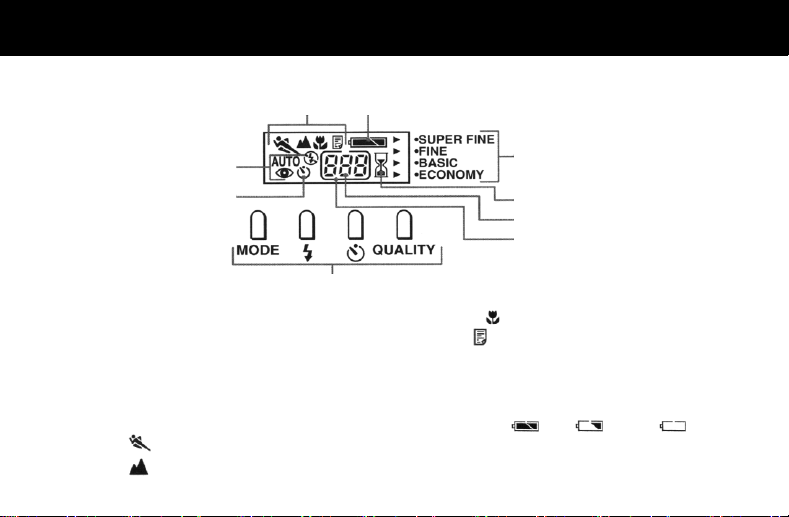

Data display panel

察Photo mode indicator

Press the photo mode button (MODE) of the

mode setup buttons to switch between the

following 5 preset states of subjects:

(No icon: initial)

Sports ( ): Quick action

Infinity ( ): Long distance

Macro ( ): Extremely short distance

Text ( ): Characters (black & white)

拶 Battery indicator

The remaining voltage of the battery used to

power the camera is indicated at one of three

levels (full: ,half: , empty: ).

撮

擦

札

殺

雑

薩

皐

察拶

撮 Image quality mode indicator

Press the image quality mode button

(OUALITY) of the mode setup buttons to switch

the mode among the following 4 choices of

image quality:

FINE (Initial setting)

SUPER FINE

BASIC

ECONOMY

擦 Sandglass indicator

Flashes to indicate an ongoing access to the

CompactFlash card (for writing shot images to

the card or transferring them to a personal

computer). Any other operation is disabled until

the mark stops flashing.

札 Remaining frame count indicator

Indicates the remaining number of frames that

can be shot.

"PC" appears when the camera is connected to

a personal computer.

殺 Card status indicator

Lights when a card is inserted and the eject

lock button is locked.

Goes off when the eject lock button is not

locked or a card is not in position.

薩 Selftimer indicator

Press the selftimer button ( ), a mode setup

button, to use the selftimer mode. The selftimer

indicator will appear on the data display panel.

雑 Flash mode indicator

Press the flash button ( ), a mode setup button,

to switch it among (1) Auto Flash ( AUTO)

(default), (2) Redeye Reduction/Auto Flash

(AUTO ), (3) Flash On ( ), (4) Redeye

Reduction/Flash On ( ) and (5) Flash Off ( ).

As the flash button is switched from one setting

to another, a corresponding mark will appear

on the data display panel.

皐 Mode setup buttons (MODE, , ,

QUALITY)

Press one of the 4 mode setup buttons to suit

the shooting environment.

When you press a mode setup button, the

corresponding mark will appear on the data

display panel.

Installing the Batteries/Special

Lithium-ion Battery and the Special

Adapter for Q-M200 (Option)

* Use of the lithium-ion battery is recommended.

First, press the camera power button and the LCD

monitor button to turn both off.

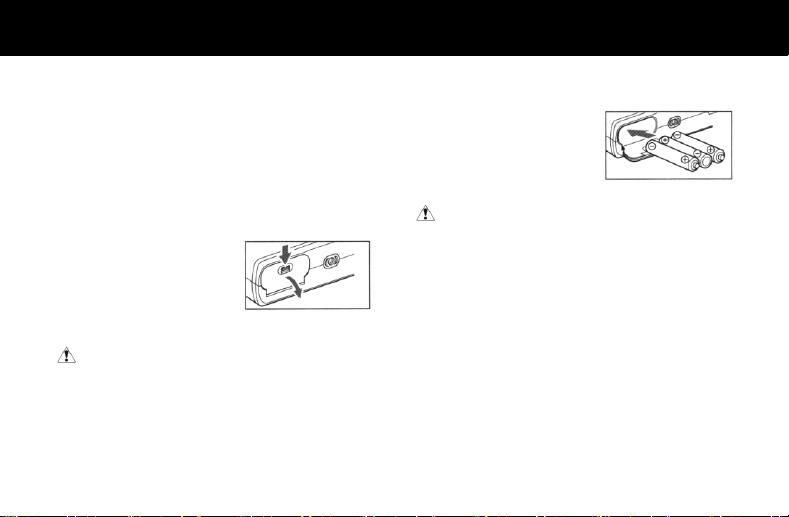

1. Open the battery cover

on the bottom by

pushing the battery

cover lock button in the

direction of the arrow

mark.

Warning

Do not perform this operation with wet hands

because there is danger of electrical shock.

2. Load the batteries.

•Ordinary AA batteries

Load 3 AA batteries with

the electrodes correctly

aligned with the indications

inside the battery

compartment.

Caution:

Incorrect polarity orientation might cause the

batteries to leak or heat, resulting in physical

injury, smear, or damage to the camera.

Note:

Two different types of batteries can be used: AA

alkaline and AA NiMH (3 each).

With Size AA alkaline batteries, the camera can

shoot about 10 pictures (if the LCD monitor is

turned on) or about 150 pictures (if the LCD

monitor is turned off) and plays recorded pictures

continuously for about 20 minutes (all under our

defined test conditions).

•Lithium-ion battery (PX-LB1)

Load the battery with the

label facing upward and

with the plus and minus

electrodes positioned as

shown in the diagram.

3. After making sure that the batteries are correctly

loaded, close the battery cover positively until it

clicks into position.

Note:

Battery replacement is indicated when only the

right half of the Battery indicator in the data

display panel is displayed. Replace all three AA

batteries at the same time. It is recommended

that spare batteries be carried on trips.

•AC adapter

(Option: PX-AC1/PX-AC2)

Connect the AC adapter

to an AC power outlet.

Next, connect the power

cable of the AC adapter to

the power input terminal of

the camera.

Handling the AC Adapter

•

Be sure to read Safety Considerations and the

instructions supplied with the AC adapter.

•

Use an AC adapter of the specified type

(PX-AC1/PX-AC2). Use of a nonstandard AC

adapter might cause the camera to fail or fire

or to develop electrical shock hazards.

Inserting/Ejecting Compact Flash

(CF) card

CF card applications and handling

●CF cards can be used to store photographic

images and to transfer data to a personal

computer (see Transferring Image Files to a

Personal Computer). Refer to CompactFlash

(CF) cards concerning handling.

Preparation

●Make sure that the lens cover is closed and that

the LCD monitor is turned off to prevent

damaging the camera and CF card when the

power is turned on.

Inserting the CF card

Position the CF card with the

Konica label facing the rear of

the camera and insert the CF

card fully by pushing in the

direction indicated by the

▲

mark on the label.

Ejecting the CF card

Hold the eject lock button

downward and slide the card

eject button to the left side.

(At Insertion/Ejection)

*The card access LED lights while shot images

are being written to the CF card. Never eject

the CF card while the lamp is on. Writing would

be interrupted, resulting in possible

malfunctioning.

(At Insertion)

*Inserting the CF card in the wrong direction

would cause damage to the connector.

(At Ejection)

*If the CF card won't eject easily when you press

the eject lock button and slide the card eject

button, push in the CF card once again and then

slide the card eject button while pressing the

eject lock button strongly.

*If you slide the card eject button with the CF

card slot facing down, the card could pop out. Be

careful not to let it drop.

*Turn the power off before inserting or ejecting a

CF card. If you press the eject lock button while

the card access LED is lighting, the access to

the CF card would be interrupted, resulting in

possible malfunctioning.
