Firmware Updater Guide

magicolor 1650EN

magicolor 2550/2550DN

magicolor 4650EN/4650DN

magicolor 4750EN/4750DN

magicolor 5450

magicolor 5550/5570

magicolor 5650EN/5670EN

magicolor 7440

magicolor 7450

magicolor 7450II

magicolor 4695MF

pagepro 4650EN/5650EN

bizhub C30P

4138-9560-09A

Contents i

Contents

1 Updating the Firmware (for Windows) ............................................................ 1

System Requirements 2

Starting the Firmware Updater 3

For a Network Connection 6

If Spooling of the Data Fails 8

For a Local Connection 10

If Spooling of the Data Fails 12

When Specifying the IP Address of the Printer 14

If Transferring of the Data Fails 16

2 Updating the Firmware (for Macintosh) ........................................................ 17

System Requirements 18

Starting the Firmware Updater 19

If Transferring of the Data Fails 23

Contentsii

1Updating the

Firmware

(for Windows)

System Requirements2

System Requirements

Computer:

– PC with a Pentium 2, 400 MHz or faster processor

(A Pentium 3, 500 MHz or faster processor is recommended.)

Operating system:

– Microsoft Windows XP Home Edition/Professional, Windows 2000,

Windows Vista Home Basic/Home Premium/Business/Enterprise/

Ultimate

Available hard disk space:

– Approximately 20~26 MB

Memory:

– 128 MB or more

Interface:

– 10Base-T/100Base-TX/1000Base-T Ethernet

– USB 2.0 (High Speed) compliant

– Parallel (IEEE 1284)

Compatible printer:

– magicolor 1650EN

– magicolor 2550/2550DN

– magicolor 4650EN/4650DN

– magicolor 4750EN/4750DN

– magicolor 5450

– magicolor 5550/5570

– magicolor 5650EN/5670EN

– magicolor 7440

– magicolor 7450

– magicolor 7450II

– magicolor 4695MF

– pagepro 4650EN/5650EN

– bizhub C30P

Starting the Firmware Updater 3

Starting the Firmware Updater

CAUTION

You must have administrator privileges in order to update the firmware.

CAUTION

Before starting the firmware updater, turn on the printer, and make sure

that it is correctly connected.

CAUTION

When the firmware is updated, the printer control panel settings may

return to their defaults. Before starting the firmware updater, be sure to

print the configuration page to check the settings. For details on

printing the configuration page, refer to the printer’s User’s Guide.

CAUTION

Do not perform any of the following operations while updating the

firmware.

– Turn off the printer.

– Turn off the computer running the firmware updater.

– Exit the firmware updater.

– Send a print job to the printer from any other computer on the net-

work.

" If the User Account Control window appears when installing on Win-

dows Vista, click Allow button or the Continue button.

The following procedure describes how to update the firmware for magicolor

5450. Follow the same procedure to update the firmware for magicolor

1650EN, magicolor 2550/2550DN, magicolor 4650EN/4650DN, magicolor

4750EN/4750DN, magicolor 5550/5570, magicolor 5650EN/5670EN, magi-

color 7440, magicolor 7450, magicolor 7450II, magicolor 4695MF, pagepro

4650EN/5650EN and bizhub C30P.

1Download the firmware updater from the web site.

2Double-click “5450Gxxxxxxxx.exe”.

Starting the Firmware Updater4

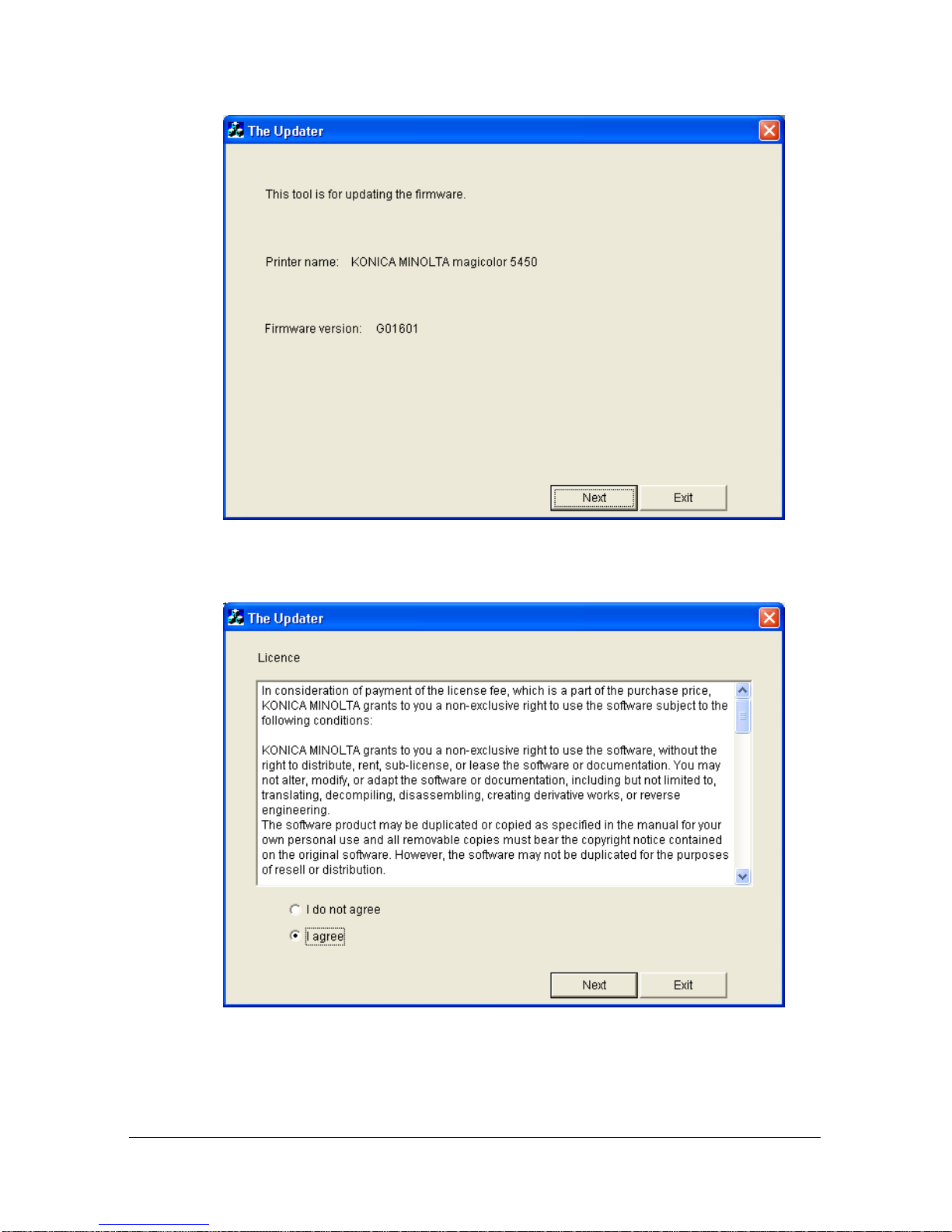

3The printer name and firmware version are displayed. Click the [Next] but-

ton.

4The license agreement is displayed. Select “I agree”, and then click the

[Next] button.

Starting the Firmware Updater 5

5The list of printer drivers is displayed. Select the appropriate connection

for the environment where the printer is being used.

" If you select “Network port” or “Local port”, make sure that the

printer driver has been installed.

If you select “Printer IP address”, the firmware can be updated even

if a printer driver is not already installed.

For a Network Connection Select “Network port”. →Continue

with page 6.

For a Local Connection Select “Local port”. →Continue with

page 10.

When Specifying the IP Address of

the Printer Select “Printer IP address”. →Con-

tinue with page 14.

For a Network Connection6

For a Network Connection

When “Network port” is selected, a list of printer drivers for the network port

appears.

1Select the printer driver, and then click the [Next] button.

2A message appears, requesting confirmation to update the firmware.

Click the [Start] button to begin transferring the firmware.
