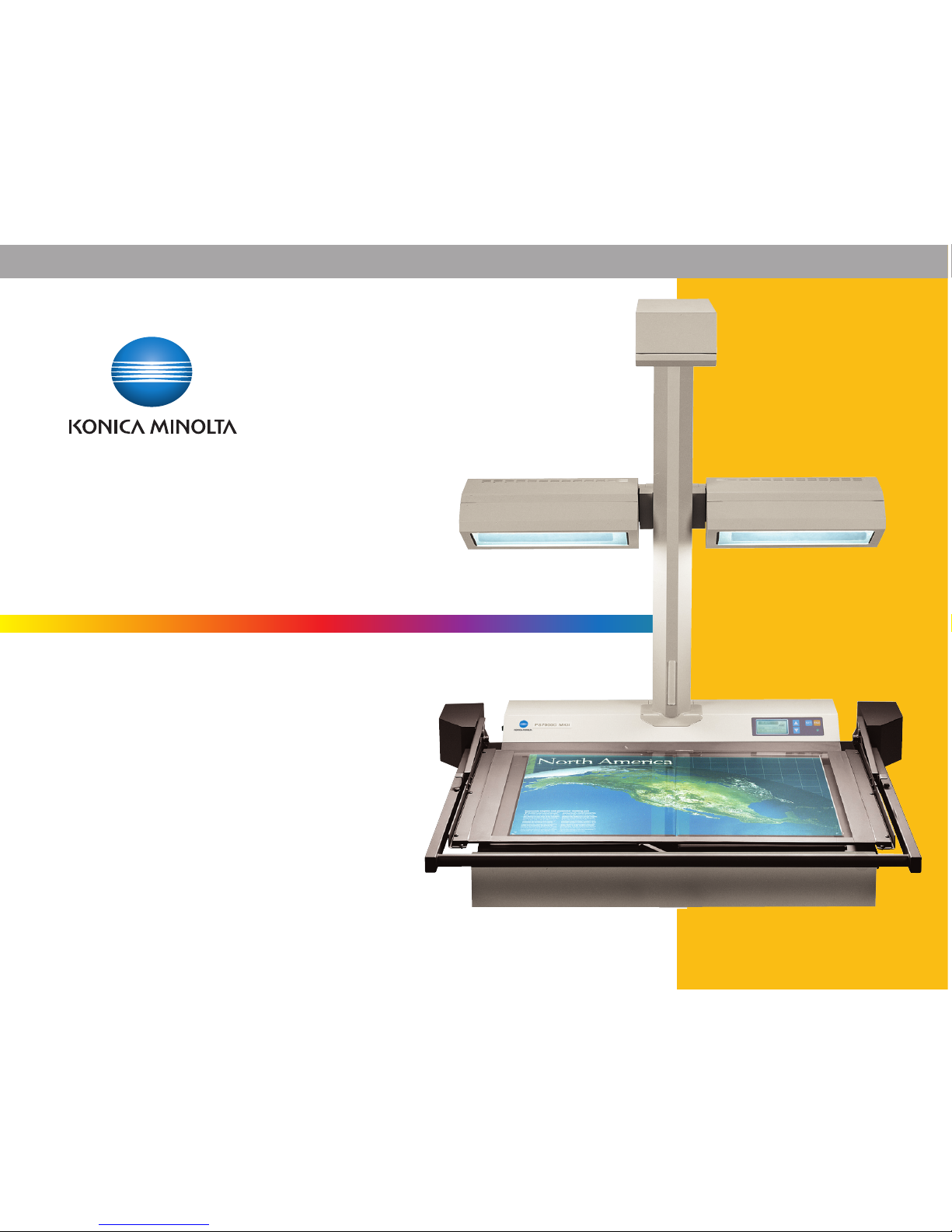

Konica Minolta PS7000C MKII Manuale utente

PS7000C MKII Full Color Digital Book sCanner

Quick Guide

FOR A BOOK ORIGINAL

Place the original face up on the

book table, aligning the top edge

of the book against the stopper,

and the spine of the book with

the center mark.

CENTER MARK

FOR A SHEET ORIGINAL

Place the original face up on the book table, aligning the top

edge of the book against the stopper.

When making spread or split scans, align the center of the book

with the center mark. For a right page scan, align the left edge

of the book to the center mark, and for a left page scan, align

the right edge of the book to the center mark.

1Placing the original

FOR A 3D OBJECT

Place the 3D object face up on the book table. Optimum exposure can be

obtained by placing the 3D object on a piece of white paper.

1Placing the original

HOW TO PLACE THE ORIGINAL ON THE BOOK TABLE

Do not place the original askew.

Do not place the book with its top edge

beyond the stopper.

Be careful to avoid the condition shown

in the ﬁgure above if pressing the

original from the bottom.

When the original is spread open,

be careful not to produce any gaps

between pages.

Make sure that book is pressed down

completely so it is as ﬂat as possible.

1Placing the original

Hold the edges of both pages at the

middle with your hands, and press

the book down, pulling the pages

slightly apart.

Adjust the height of the book table

so that the right and left pages

will be horizontal.

Notes:

When the inclination of the page at the

center of the book exceeds 50°, the image

may not be read correctly.

Press down the

higher side of the original.

Auto Focus is only effective within the

range of 50 mm (2 inches) above the usual

height of the book table. Adjust the book

table height so that the original is placed in

the effective Auto Focus range.

CAUTION! Optional cradle is

adjustable and has moving parts.

There is a possibility of catching

ﬁngernails when adjusting the cradle.

2Using the optional glass plate unit

1. After spreading the book or placing a document on the book

table, hold the glass plate unit by its handle, and gently lower it

onto the document to ﬂatten.

2. After scanning has completed, hold the unit by its handle and

gently lift up.

2Using the optional

glass plate unit

3Initiate “SCAN” & Print with Image DIVA

A. Make your scan selections.

B. Click or touch the “Scan” button on the Image DIVA screen.

E. Image DIVA will show the “Now Printing”

message when starting.

3Initiate “SCAN” & Print

with Image DIVA

C. Scanned image will appear in the preview area.

D. Click or touch the “Print” button on the Image DIVA screen.
