Korenix JetNet 6059G Manuale utente
JetNet 6059G Series
Industrial 9-port Gigabit Managed
Ethernet Switch
Quick Installation Guide
www.korenix.com
V1.0
Introduction
JetNet 6059G series is an Industrial Gigabit Managed Ethernet Switch with 9 full gigabit
ports and 32G switching backplane to ensure high quality data transmission in industrial
applications requiring high-bandwidth connectivity. In addition to 4 Giga RJ-45 ports, the
switch is equipped with 5 Giga RJ-45/SFP combo ports to deliver maximum throughput and
flexibility for high-density connection while providing Giga uplink or Giga Ring connection.
With the Korenix patented MSR technology, users can aggregate up to 4 Multi Gigabit Rings
into a single switch and ensure network reliability in applications with increased bandwidth
and expended system. Furthermore, JetNet 6059G supports advanced management and
security features, such as LLDP and JetViewPro, 4 Priority queues per port, 256 VLANs,
IGMP Snooping, DHCP, LACP to ensure high performance network communication. JetNet
6059G is compliant with NEMA -TS2 /Maritime, Railway standards and has dual redundant
10.5~60VDC power inputs and -40~75OC wide operating temperature range to work reliably
under vibrating and shock environments in Maritime, Railway or rolling stock applications.

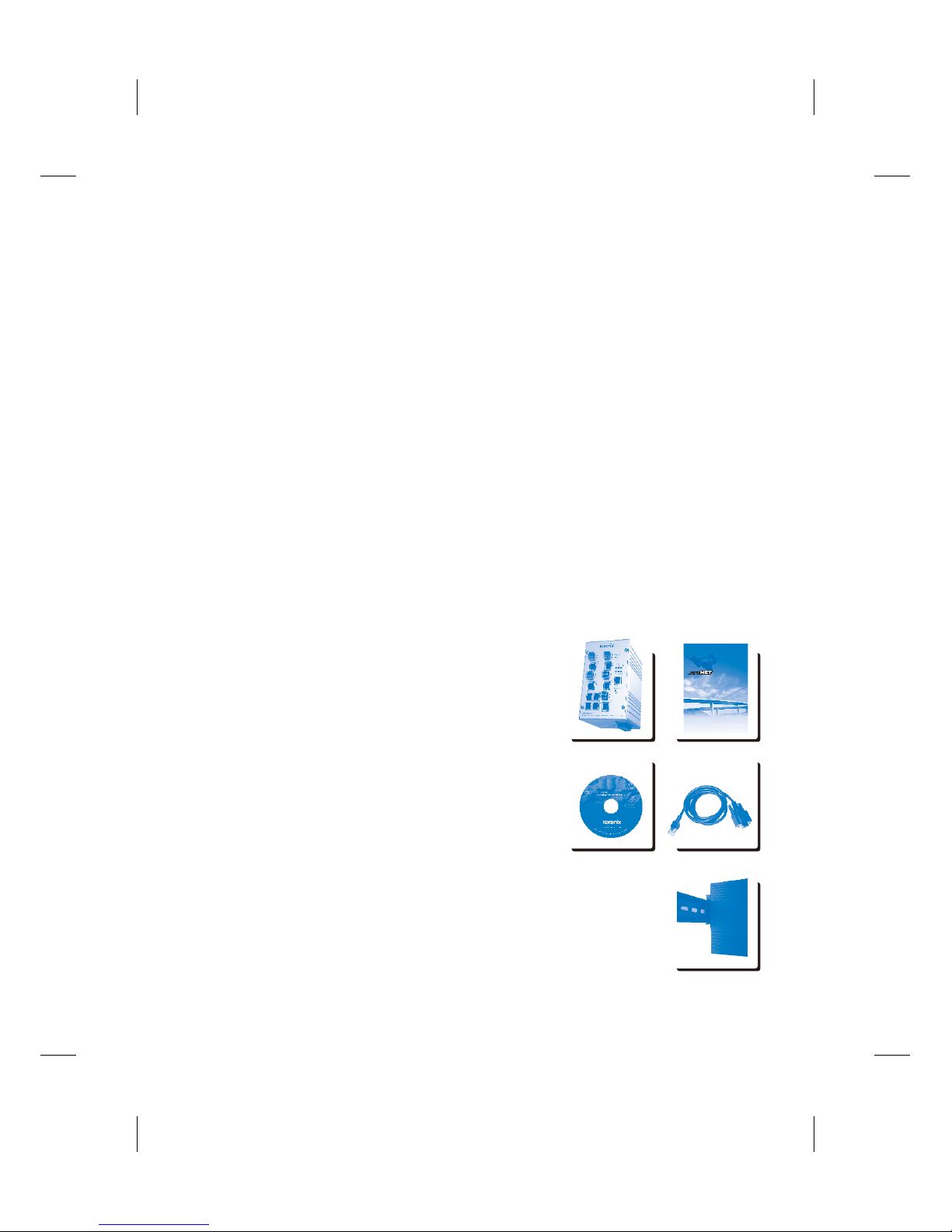

Package Checklist
Unpack the box, you will find
4JetNet 6059G with DIN Rail kit x1
4Quick Installation Guide
4CD User Manual
4Console Cable (RJ-45 /DB9)
4Wall Mount kits
Mounting the Unit
Din-Rail mount: Mount the din-rail clip on the rear of
JetNet 6059G on the DIN rail.
For information about the DIN Rail installation, please
refer to user’s manual.
JetNet 6059G Series
Industrial 9-portGigabit Managed
Ethernet Switch
Quick Installation Guide
www.korenix.com
V1.0
Grounding JetNet 6059G
There is one grounding screw on the bottom side
of JetNet 6059G. Connect the frame grounding
of JetNet 6059G to the grounding surface to
ensure safety and prevent noise to interfere
communication.
Wiring the Power Inputs
1. Insert the positive and negative wires into the V+ and V- contact on the terminal block
connector.
Wiring the Relay Output (DO)
The relay output contacts are in the bottom side as shown on Figure-3. The relay output (DO)
is controlled by the pre-defined operating rules. To activate relay output function, please refer to
the User’s Manual for the Relay Output information.
2. Tighten the wire-clamp screws to prevent the power wires from being loosened.
Notes: The recommended working voltage is DC 24V (Input range: DC10.5~ 60 V),
maximum power consumption is 20 Watts.
Note: The relay contact only
supports 1A current, DC 24V.
It is not recommended to apply
voltage and current higher than
the specifications.
Figure-3
Wiring the Digital Input (DI)
The Digital Input (D.I.) contacts are in the bottom side of the device as shown in Figure-4.
It accepts one external DC type signal input and can be configured to send alert message
through Ethernet when the signal is changed.
Note: the DI accepts DC type signal and supports isolated input circuit with Digital High
Level input DC 11V~30V and Digital Low Level input DC 0V~10V. Don’t apply higher
voltage than the specification; it may cause internal circuit damage or a wrong action of DI.
Connecting to Network
1. Connecting the Ethernet Port: Connect the Ethernet port of JetNet 6059G with the
other Ethernet device by Cat-5/Cat-6 UTP or STP cable, and then the LNK/ACT LED will
turn on and start flashing to indicate the communication is occurred between 2 devices.
2. Connecting the SFP Port: Plug in SFP fiber transceiver. We recommend using Korenix
certificated SFP mini GBIC transceiver. Cross-connect the transmit channel at each end to
the receive channel at the opposite end as illustrated in the Figure-5.
Figure-5
Ȋ
This is a Class 1 Laser/LED product.
Don’t stare at the Laser/LED Beam.
TX
RX
AB
TX
RX
ATTENTION
Figure-4
Device Management
JetNet 6059G Industrial Managed Switch provides both in-band and out-band configuration
methods. You can configure the switch via the RS232 console with the attached console
cable. Or you can remotely manage the switch via network. You can choose Telnet/SSH,
Web/HTTPS management.
1. Preparation for console management: Attach the RS-232 DB9 connector to your PC’s
COM port. Connect the RJ-45 connector to the console port of the JetNet 6059G
Go to Start -> Program -> Accessories -> Communication -> Hyper Terminal
Give a name to the new console connection.
Choose the COM name and select the correct serial settings. The serial port settings of
JetNet 6059G are as below: 9600bps, No parity check, 8 Data bits, 1 stop bit
After connected, you will see the Switch login request. Type the username and password
then you can login. The default username is “admin”, password is “admin”.
Follow the manual to configure the software features.
2. Preparation for Web management: Before you attempt to use the embedded web
interface to manage switch operation, verify that JetNet 6059G is properly installed on your
network and that every PC on this network can access the switch via the web browser.
Launch the web browser (Internet Explorer or Mozilla Firefox) on the PC.
Type http://6059G_IP_Address (The default IP address is 192.168.10.1.) then press Enter.
The login screen will appear next.
Type in the user name and password and click
“OK” button. The welcome page of the Web-Based
management interface will appear then. The default
user name and password is admin/admin
Korenix Customer Service
KoreCARE is Korenix Technology’s global service center, where our professional staffs are
ready to answer your questions at any time.
At the left column of the web management interface
are the software features, where ring column will
list the available settings.
For more operating instructions, please refer to
the User’s manual of JetNet 6059G included in the
packing or downloadable from the Korenix Website
– www.korenix.com.
ὖ䗄
JetNet 6059G㋏߫ᰃϔℒܼܚ㔥ㅵൟᎹϮҹ㔥Ѹᤶᴎˈࣙ9Ͼܚッষˈᬃᣕ32GѸᤶ
㚠ᵓˈЎ催ᏺᆑᎹϮᑨ⫼ᦤկ催ક䋼᭄Ӵ䕧᳡ࡵDŽ䰸њ4ϾܚRJ-45ッষˈѸᤶᴎ䖬䜡
5ϾܚRJ-45/SFP comboৃ䗝ッষˈᦤկ᳔࣪৲䞣♉⌏ᗻˈЎ催ᆚᑺ㔥㒰ᦤկܚϞ
㘨ܚ⦃㔥㾷އᮍḜDŽᬃᣕKorenixϧ߽MSR⦃㔥ݫԭᡔᴃˈ⫼᠋ৃৄѸᤶᴎϞᭈড়4
Ͼܚ⦃㔥ˈϡҙ⹂ֱᎹϮ⦄എ㔥㒰ⱘৃ䴴ᗻˈ䖬㛑ᦤᏺᆑᠽሩ㋏㒳ᶊᵘDŽℸˈJetNet
6059G䖬ᬃᣕܼ䴶ⱘ催㑻㔥ㅵࡳ㛑ᅝܼᴎࠊˈ՟བLLDP䆂JetViewProㅵ⧚䕃ӊˈ↣ッ
ষᬃᣕ4ϾӬܜ㑻ˈ256ϾVLAN㒘ˈIGMP SnoopingˈDHCPˈLACPㄝˈ⹂ֱ㔥㒰䗮䆃ⱘӬ
䋼催ᬜDŽJetNet 6059G⒵䎇NEMA -TS2 /⍋џᑨ⫼ˈ䪕䏃ᑨ⫼ޚˈᑊᬃᣕ10.560VDCݫ
ԭ⬉⑤䕧ܹ-40~75OCᆑ⏽Ꮉ⦃๗ˈ催ᤃࡼ催ކߏ⦃๗ⱘ⍋џˈ䪕䏃ˈ⿏ࡼ䔺䕚ᑨ⫼Ё
⹂ֱ㔥㒰ⱘৃ䴴ᗻDŽ
⹀ӊᅝ㺙
ᠧᓔࣙ㺙Ẕᶹ䜡ӊ:
4JetNet 6059G˄ᇐ䔼།˅
4ᖿ䗳ᅝ㺙ᇐ
4⫼᠋ݠܝⲬ
4ࠊ㒓㓚(RJ-45 /DB9)
4ຕᣖᅝ㺙䜡ӊ
䆒ᅝ㺙
ᇐ䔼ᅝ㺙: ⫼JetNet 6059Gᴎ䑿㚠䴶ⱘᇐ䔼།ᇚ䆒Ϟ
ᇐ䔼DŽᇐ䔼ᅝ㺙ֵᙃˈ䇋খ㗗⫼᠋᪡ݠDŽ
CH
JetNet 6059G Series
Industrial 9-portGigabit Managed
Ethernet Switch
Quick Installation Guide
www.korenix.com
V1.0
JetNet 6059G䆒ഄ
JetNet 6059Gᴎ䑿ᑩ䚼᳝ϔϾഄ㶎↡DŽᇚഄ㒓㶎
↡ഄˈ⹂ֱ䆒ᅝܼˈ䰆ℶ⬉⇨ᑆᡄDŽ
⬉⑤䖲
1. ᇚ⬉⑤ⱘℷ䋳ᵕᓩ㒓ߚ߿ܹ䆒ᑩ䚼⬉⑤㒓ῑⱘV+V-ッষDŽ
Relay Output (DO)㒻⬉఼䄺䖲
བ-3᠔⼎ˈ㒻⬉఼䄺㾺⚍ԡѢᴎ䑿ᑩ䚼DŽRelay Output (DO)㒻⬉఼䄺ৃḍ乘ᅮНⱘϡ
ৠ᪡ᴹ㾺থDŽབԩࡼ㒻⬉఼䄺ࡳ㛑ˈ䇋খⳟ⫼᠋ݠ㒻⬉఼䄺ࡳ㛑䆺㾷DŽ
2. ᢻ㋻㶎ϱˈ䰆ℶ⬉⑤㒓㜅㨑
⊼: 㤤Ꮉ⬉ЎDC 24V (䕧ܹ⬉㣗ೈ: DC10.5~ 60 V), ᳔ࡳ㗫20W.
⊼:㒻⬉఼䄺㾺⚍ҙᬃᣕ1A⬉
⌕ˈDC 24V⬉DŽ䇋࣓Փ⫼催Ѣ
ℸ㾘Ḑⱘ⬉ঞ⬉⌕DŽ
-3
Digital Input (DI)᭄ᄫ䕧ܹ䖲
བ-4᠔⼎ˈ᭄ᄫ䕧ܹ㾺⚍ԡѢᴎ䑿ᑩ䚼DŽᅗফϔ䏃䚼DCֵো䕧ܹˈᔧֵোব࣪ᯊৃথ
䗕䄺ֵᙃDŽ
㔥㒰䖲
1. 䖲ҹ㔥ッষ: ⫼Cat-5/Cat-6ሣ㬑䴲ሣ㬑ঠ㒲㒓䖲JetNet 6059Gⱘ㔥ষ݊ᅗҹ
㔥䆒ˈ߭LNK/ACT LEDᣛ⼎♃Ӯ҂䍋ᑊ䮾⚕ˈ㸼⼎ϸϾ䆒П䯈ℷ䗮䆃DŽ
2. 䖲SFPッষ: ᦦܹSFPܝ㑸ᬊথ఼ഫDŽ㤤Փ⫼㒣Korenix⌟䆩䅸䆕ⱘSFP mini GBIC
ܝ㑸ᬊথ఼ഫDŽབϟ5᠔⼎ˈᇚথ䗕ッ䖲ࠄⳂⱘ䆒ⱘᬊッˈ䖯㸠ѸঝѦ䖲DŽ
-5
⊼: DIফDCֵো䕧ܹˈ䘏䕥1˖DC11V~30Vˈ䘏䕥0˖DC 0V~10VDŽߛ࣓Փ⫼催Ѣℸ㾘
Ḑⱘ⬉ˈ৺߭ৃ㛑ᇐ㟈ݙ䚼ಲ䏃䗴៤DIᬙ䱰DŽ
-4
Ȋ
ℸЎClass 1 Laser/LEDܝষѻકˈ
ߛ࣓Ⳉ㾚▔ܝᴳDŽ
TX
RX
AB
TX
RX
⊼ᛣ
䆒ㅵ⧚
JetNet 6059G㔥ㅵൟᎹϮҹ㔥Ѹᤶᴎᬃᣕᏺݙ(in-band)ঞᏺ(out-band)䆒㕂ᓣDŽ⫼᠋ৃ
ҹ䗮䖛RS232ࠊッষᇍѸᤶᴎ䖯㸠䆒㕂ˈ䗮䖛㔥㒰䖯㸠䖰ㅵ⧚DŽᙼ䖬ৃҹ䗝ᢽTelnet/
SSH, Web/HTTPS⾡ㅵ⧚⬠䴶DŽ
1. Consoleㅵ⧚ⱘޚᎹ: ᇚRS-232 DB9༈ッ䖲ࠄԴ䅵ㅫᴎⱘCOMষˈᇚRJ-45ッᦦܹ
JetNet 6059GⱘConsleッষDŽ
䖤㸠Start(ࡼ) -> Program(ᑣ) -> Accessories(䰘ӊ) -> Communication(䗮䆃) -> Hyper
Terminal(䍙㑻㒜ッ)
䗝ᢽCOMッষোˈ䆒ᅮℷ⹂ⱘІষখ᭄DŽJetNet 6059GⱘІষখ᭄䆒ᅮབϟ:
⊶⡍⥛˖9600bps, 偠ԡ˖᮴, ᭄ԡ˖8, ذℶԡ˖1
䖲ৢˈӮߎ⦄Ѹᤶᴎⱘⱏᔩᦤ⼎DŽ䬂ܹ⫼᠋ৡঞᆚⷕৃⱏᔩDŽ咬䅸⫼᠋ৡᰃĀadmināˈ
ᆚⷕᰃĀadmināDŽ
䇋ḍ⫼᠋ݠ䖯㸠ࡳ㛑䆒㕂DŽ
2. Webㅵ⧚ޚᎹ: Փ⫼ݙ㕂Web⬠䴶ᇍѸᤶᴎᅲᮑㅵ⧚Пࠡˈ䇋ܜ偠䆕JetNet 6059GᏆ
㒣ℷ⹂ܹ㔥㒰ˈϨ㔥㒰Ёⱘӏᛣ䅵ㅫᴎ䛑ৃҹ䗮䖛Web⌣㾜఼䆓䯂ѸᤶᴎDŽ
ࡼ䅵ㅫᴎϞⱘ⌣㾜఼ (IE⌣㾜఼Mozila Firefox)DŽ
ഄഔ䬂ܹhttp://6059GⱘIPഄഔ (咬䅸ⱘIPഄഔᰃ192.168.10.1.)✊ৢಲ䔺DŽӮߎ⦄ⱏᔩに
ষDŽ
䬂ܹ⫼᠋ৡᆚⷕˈ⚍ߏĀOKā䬂ˈ߭Ӯߎ⦄web
ㅵ⧚⬠䴶ⱘЏ义DŽ咬䅸ⱘ⫼᠋ৡᆚⷕᰃadmin/
adminDŽ
