KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VM-114H

2x Input 1:4 HDMI DA

P/N: 2900-000643 Rev 9

VM-114H – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Using Twisted Pair Cable 5

3.2 About the Power Connect™ Feature 5

3.3 Defining the VM-114H 2x Input 1:4 HDMI DA 5

4Connecting the VM-114H 8

5Using the VM-114H 2x Input 1:4 HDMI DA 10

5.1 Selecting an Active Input 10

5.2 Acquiring the EDID 10

5.3 Connecting to the VM-114H via RS-232 11

5.4 Wiring the Twisted Pair RJ-45 Connectors 12

6Technical Specifications 13

7Default EDID 15

8Protocol 2000 16

8.1 Syntax 16

Figures

Figure 1: VM-114H 2x Input 1:4 HDMI DA 6

Figure 2: Connecting the VM-114H 2x Input 1:4 HDMI DA 9

Figure 3: TP PINOUT 12

VM-114H - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer VM-114H 2x Input 1:4 HDMI DA,

which is ideal for the following typical applications:

Home theater, presentation and multimedia applications

Rental and staging

VM-114H - Getting Started

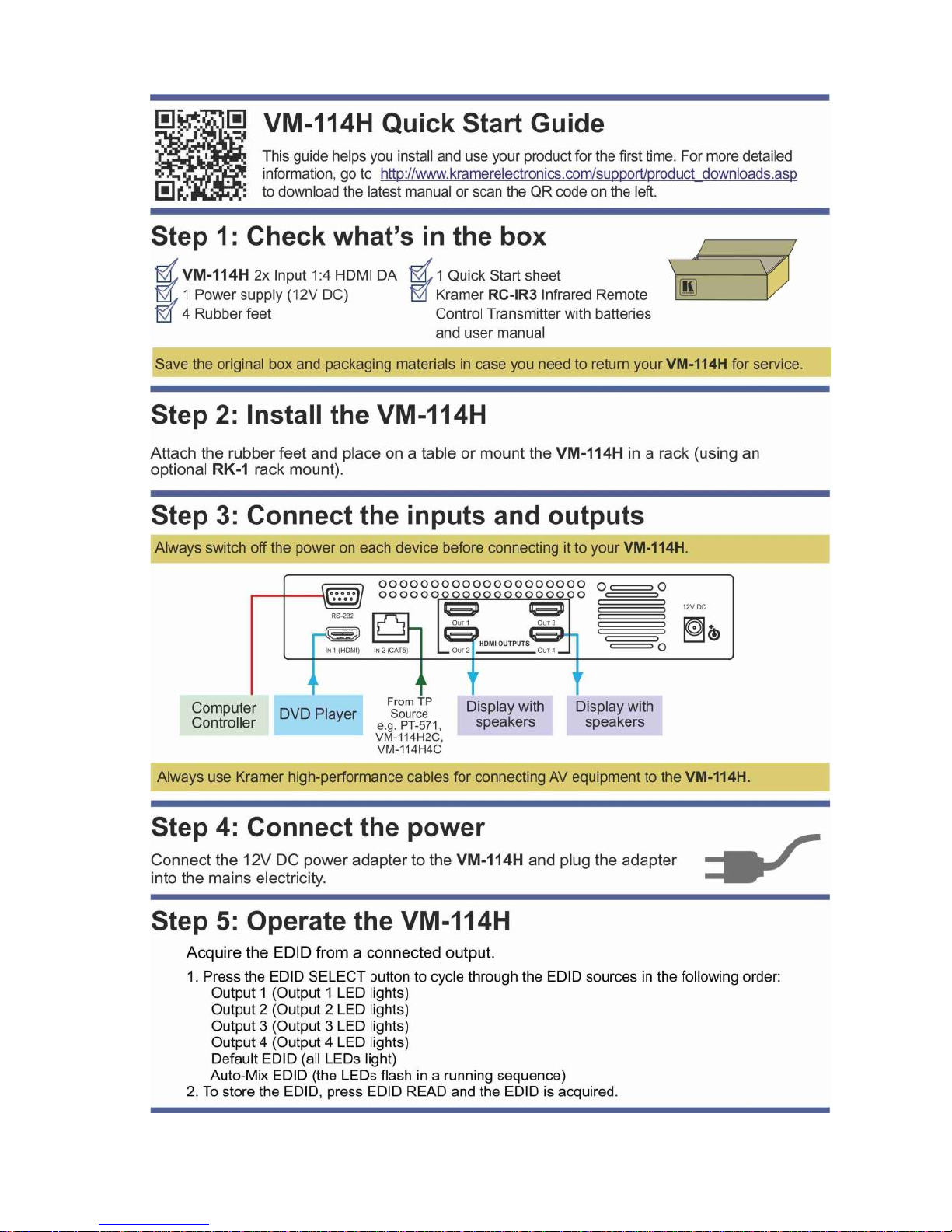

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer VM-114H away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

VM-114H - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

VM-114H - Overview

3 Overview

The high-quality VM-114H 2x Input 1:4 HDMI DA is a switcher/distribution amplifier

for HDMI and TP (Twisted Pair) signals. It reclocks and equalizes one of two

selectable input signals and distributes it to four identical HDMI outputs.

In particular, the VM-114H features:

A maximum data rate of 6.75 Gbps (2.25Gbps per graphic channel) (HDMI),

4.95Gbps (1.65Gbps per graphic channel) (DGKat)

Reading and storing, in non-volatile memory, the default EDID, or the EDID

block from one or a mix of the output display devices, so it can then provide

the EDID information to the source even if the display device is not

connected

The EDID acquired is a weighted average of all the connected outputs. For example, if

several displays with different resolutions are connected to the outputs, the acquired

EDID supports all the resolutions, as well as other parameters included in the EDID

I-EDIDPro™ Kramer Intelligent EDID Processing™ an intelligent EDID

handling & processing algorithm ensures Plug and Play operation for HDMI

systems

3D Pass-through, Deep Color (on the HDMI input), x.v.Color™ and

uncompressed audio channels (Dolby TrueHD, DTS-HD)

HDCP compliance

LEDs indicating the selected input and active output

IR remote control

12V DC supply and is housed in a Kramer desktop enclosure

The VM-114H supports ranges of:

Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded

BC-DGKat524 cable

Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded

BC-DGKat623 cable

Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded

BC-DGKat7a23 cable

VM-114H - Overview

You can daisy-chain up to six devices with the maximum overall distance between

the first and last devices being cumulative and limited by the cable type used.

3.1 Using Twisted Pair Cable

Kramer engineers have developed special twisted pair cables to best match our

digital twisted pair products; the Kramer: BC-DGKat524 (CAT 5 24 AWG), the

Kramer: BC-DGKat623 (CAT 6 23 AWG cable), and the Kramer: BC-DGKat7a23

(CAT 7a 23 AWG cable). These specially built cables significantly outperform

regular CAT 5 / CAT 6 / CAT 7a cables.

3.2 About the Power Connect™ Feature

The Power Connect™ feature here means that only one unit in a system, the

transmitter or receiver, needs to be connected to a power source when the

devices are within 60m (197ft) of each other. The Power Connect™ feature

applies as long as the cable can carry power and the distance does not exceed

60m on standard TP cable. (Heavier gauge cable may be used to extend the

Power Connect™ range).

Warning: Using an incorrectly wired TP cable will cause permanent

damage to the device!

3.3 Defining the VM-114H 2x Input 1:4 HDMI DA

This section defines the VM-114H.

VM-114H - Overview

Figure 1: VM-114H 2x Input 1:4 HDMI DA

Feature

Function

IR Remote Control Sensor

Sensor for the remote control IR transmitter

IR LED

Lights yellow when receiving signals from the IR

remote control transmitter

EDID READ Button

Press (when one of the input LEDs is flashing to

indicate a selected input) to read the selected

EDID (see Section 5.1)

EDID SELECT Button

Press repeatedly to cycle through the inputs to

select an input from which to read the EDID. The

relevant LED flashes (see Section 5.1)

OUTPUT 1~4 LEDS

The relevant LED lights green when an acceptor

is connected to the output

Also lights or flashes during EDID setup (see

Section 5.1)

POWER LED

Lights green when the unit receives power

INPUT SELECTOR Button

Press to select an input. The relevant input LED

lights

IN1 HDMI LED

Lights green when the HDMI input 1 is selected

IN2 CAT5 LED

Lights green when the TP CAT 5 input 2 is

selected

RS-232 9-pin D-sub (F)

Connector

Connect to a PC or remote controller

12V DC Power Connector

Connect to the +12V DC power adapter, center

pin positive

VM-114H - Overview

Feature

Function

IN1 (HDMI) Input HDMI

Connector

Connect to an HDMI source

IN2 (CAT5) Input RJ-45

Connector

Connect to a TP CAT 5 source (for example,

PT-571 HDMI Line Transmitter, VM-114H2C or

VM-114H4C)

HDMI OUTPUTS 1 to 4

Connect to the HDMI acceptors
