Kramer VS-808TP Manuale utente

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VS-808TP

8x8 Twisted Pair Matrix

Switcher

P/N: 2900-300147 Rev 1

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Using Twisted Pair Cable 2

3Overview 3

4Defining the VS-808TP 8x8 Twisted Pair Matrix Switcher 4

5Installing the VS-808TP in a Rack 6

6Connecting the VS-808TP 7

6.1 Connecting a Serial Data Source to the VS-808TP RS-232 Data Port 8

6.2 Connecting a Serial Controller to the VS-808TP 8

6.3 Connecting to the VS-808TP via Ethernet 10

6.4 Connecting the Balanced/Unbalanced Stereo Audio Output 12

6.5 Wiring the CAT 5 Line In/Line Out RJ-45 Connectors 13

7Operating the VS-808TP Locally via the Front Panel Buttons 14

7.1 Using the Menu 15

8Operating the VS-808TP Remotely via the Web Pages 19

8.1 Accessing the VS-808TP Web Pages 19

8.2 Connections Page 20

8.3 Setup Page 20

8.4 User Management 23

8.5 Firmware 23

9Technical Specifications 24

10 Default Parameters 25

10.1 Default Communication Parameters 25

10.2 Default Logon Credentials 25

11 Kramer Protocol 26

11.1 Kramer Protocol 2000 26

Figures

Figure 1: VS-808TP 8x8 Twisted Pair Matrix Switcher Front Panel 4

Figure 2: VS-808TP 8x8 Twisted Pair Matrix Switcher Rear Panel 5

Figure 3: Connecting the VS-808TP 8x8 Twisted Pair Matrix Switcher 7

Figure 4: Crossed Cable RS-232 Connection 9

Figure 5: Straight Cable RS-232 Connection with a Null Modem Adapter 9

Figure 6: Wiring for an RS-485 Serial Data Source 10

Figure 7: Wiring for an RS-422 Serial Data Source 10

Figure 8: Local Area Connection Properties Window 11

Figure 9: Internet Protocol (TCP/IP) Properties Window 12

Figure 10: Balanced Stereo Audio Connection 13

Figure 11: Unbalanced Stereo Audio Connection 13

Figure 12: CAT 5 Pinout 13

Figure 13: Web Browser Address Bar 19

Figure 14: Connections Page 20

Figure 15: Web Page 21

VS-808TP - Contents

Figure 16: Serial Page 21

Figure 17: Port Name Page 22

Figure 18: Data and Audio Processing Page 22

Figure 19: User Management Page 23

Figure 20: Firmware Page 23

VS-808TP - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP

5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP

7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Video Products.

Congratulations on purchasing your Kramer VS-808TP 8x8 Twisted Pair Matrix

Switcher which is ideal for long range graphics distribution and multimedia

applications.

2 VS-808TP - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

Use Kramer high performance, high resolution cables

•Use only the power cord supplied with the device

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs and to check whether firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Do not secure the cables too tightly or too loosely. Leave a small amount of

slack

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your Kramer VS-808TP away from moisture, excessive sunlight and

dust

2.2 Using Twisted Pair Cable

Kramer engineers have developed special twisted pair cables to best match our

digital twisted pair products; the Kramer: BC-DGKat524 (CAT 5 24 AWG), the

Kramer: BC-DGKat623 (CAT 6 23 AWG cable), and the Kramer: BC-DGKat7a23

(CAT 7a 23 AWG cable). These specially built cables significantly outperform

regular CAT 5/CAT 6/CAT 7a cables.

VS-808TP - Overview 3

3 Overview

Thank you for purchasing the Kramer VS-808TP 8x8 Twisted Pair Matrix Switcher.

This unique matrix switcher which utilizes economical TP (Twisted Pair) cabling

often pre-installed in buildings these days, routes and distributes signals both from

a local and/or remote source, and at extended ranges. It is designed especially for

installations where a high level of control possibilities is required from extended

distances. Typical uses include presentation and multimedia applications, as well

as long-range graphics distribution and control for schools, hospitals, security, and

stores.

The VS-808TP features:

•Eight inputs and eight outputs for remote connection to compatible TP

transmitters and receivers

•A switchable local input (built-in transmitter) and output (built-in receiver)

allowing direct connection of the signals (up to WUXGA, audio and RS-232)

for the units located near to the switcher (TP-133/TP-134 only)

•Follow or breakaway switching for audio signals

•Baud rate of up to 115200 for full-duplex RS-232

•Two-line LCD display for separate route indication of video, audio or RS-232

•Control via front panel buttons, RS-232, RS-485 and Ethernet

•15 user-programmable presets for quick-change configurations

•Kramer 2000 communication protocol (limited)

•100-230V AC worldwide power supply

•Standard 1U 19” rack mount size

4 Defining the VS-808TP 8x8 Twisted Pair Matrix Switcher

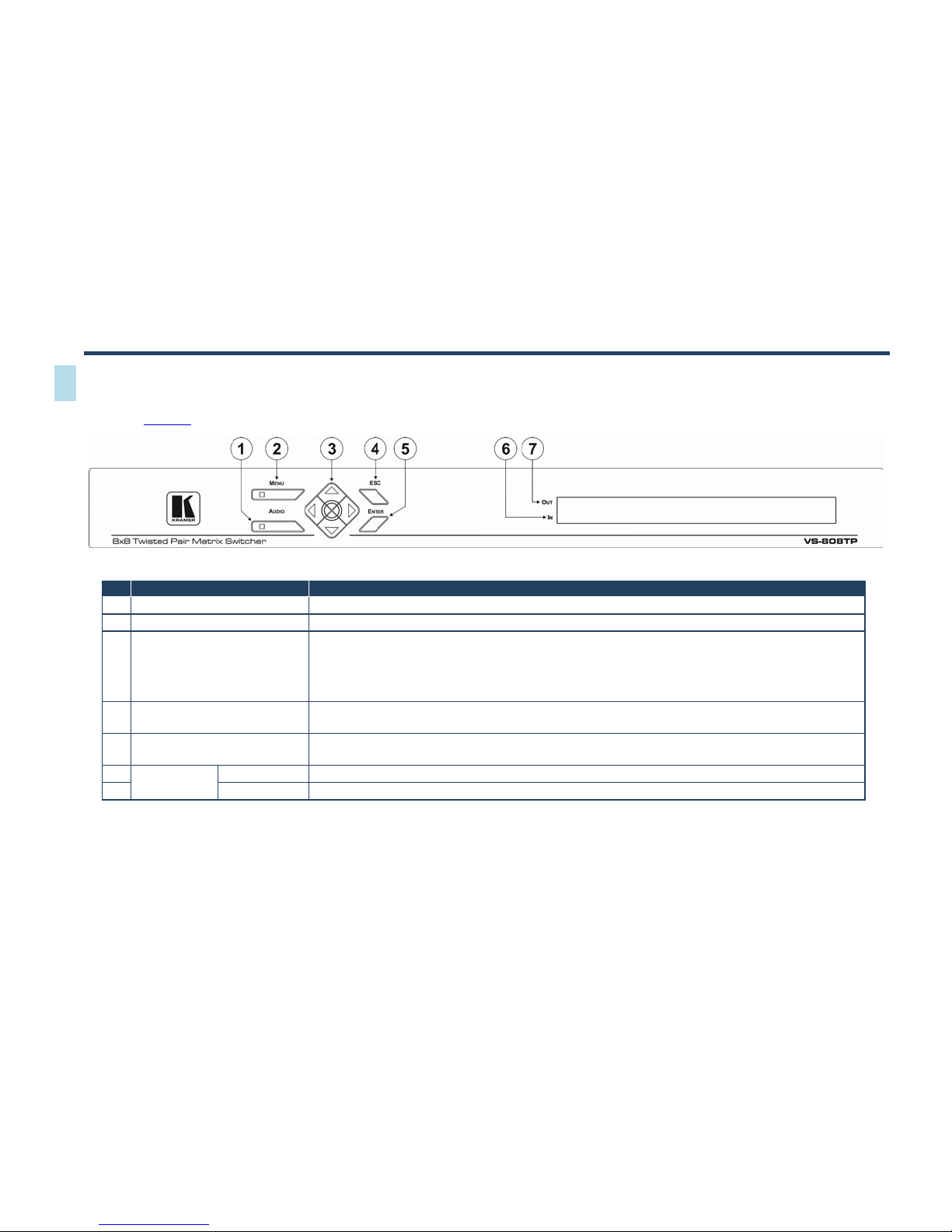

Figure 1defines the front panel of the VS-808TP.

Figure 1: VS-808TP 8x8 Twisted Pair Matrix Switcher Front Panel

# Feature Function

1 AUDIO Button Press to display/switch audio status. Press again to display/switch video/RS-232 status

2 MENU Button Press to display the menu. Press again to escape the menu and display video switching

3 Arrow keypad When switching is displayed: press the left (◄) and right (►) arrows to move forward and backward to select

the output of a switched pair. Press the up (▲) and down (▼) arrows to move up or down through available

input channels.

When the menu is displayed: press the up (▲) and down (▼) arrows to move up or down through available

sub-menus. Press the left (◄) and right (►) a rrows to move through parameter values

4 ESC Button When the menu is displayed: press to move up one menu level or press repeatedly to exit the menu.

When audio switching is displayed: press to display video switching

5 ENTER Button When audio switching is displayed: press to accept the selected out/in channels.

When the menu is displayed: press to accept the selected parameter value

6 LCD Readout IN Display Displays the selected switched inputs

7 OUT Display Displays the selected switched outputs

4VS-808TP – Defining the VS-808TP 8x8 Twisted Pair Matrix Switcher

Figure 2defines the rear panel of the VS-808TP.

Figure 2: VS-808TP 8x8 Twisted Pair Matrix Switcher Rear Panel

# Feature Function

AUDIO

Connectors

Unbalanced

IN 3.5mm mini jack Connect to the output of the unbalanced stereo audio source (for example, the audio output

of the laptop)

9 OUT 3.5mm mini jack Connect to the input of the unbalanced stereo audio acceptor (for example, the audio input of

the AV system)

10 Balanced IN 5-pin terminal block Connect to the output of the balanced stereo audio source

11 OUT 5-pin terminal block Connect to the input of the balanced stereo audio acceptor

12 RS-485/RS-422 5-Pin Terminal Block Connect to the serial controller

13 RS-232 (DATA) 9-pin D-sub Connector Connect to the serial data source

14 ETHERNET RJ-45 Connector Connect via a LAN to the Ethernet port on the PC controller

15 INPUTS 1 ~ 8 RJ-45 Connectors Connect to the TP transmitters (for example, TP-133 or TP-125)

16 OUTPUTS 1 ~ 8 RJ-45 Connectors Connect to the TP receivers (for example, TP-134 or TP-126)

17 Chassis Ground Terminal Terminal for grounding the chassis to the common ground of the system

18 AC Mains Module Mains socket Connect the mains power cord

19 Mains fuse holder Fuse for protecting the device

20 Mains switch Turn the device on and off

21 PC IN 15-pin HD VGA Connector Connect to the output of the VGA (up to WUXGA) source (for example, PC graphics card)

22 PC OUT 15-pin HD VGA Connector Connect to the input of the VGA acceptor (for example, LCD monitor)

23 RS-232 (CONTROL)9-pin D-sub Connector Connect to the serial controller

VS-808TP – Defining the VS-808TP 8x8 Twisted Pair Matrix Switcher 5

VS-808TP - Installing the VS-808TP in a Rack

5 Installing the VS-808TP in a Rack
