KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VM-2Hxl

1:2 HDMI Distributor

P/N: 2900-000672 Rev 3

VM-2Hxl – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the VM-2Hxl 1:2 HDMI Distributor 4

4Connecting the VM-2Hxl 6

4.1 Acquiring the EDID 7

5Technical Specifications 9

Figures

Figure 1: VM-2Hxl 1:2 HDMI Distributor 5

Figure 2: Connecting the VM-2Hxl 1:2 HDMI Distributor 6

VM-2Hxl - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer VM-2Hxl 1:2 HDMI Distributor, which

is ideal for the following typical applications:

Home theater, presentation and multimedia applications

Rental and staging

VM-2Hxl - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer VM-2Hxl away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

VM-2Hxl - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

VM-2Hxl - Overview

3 Overview

The high-quality VM-2Hxl accepts an HDMI input and distributes the signal to two

outputs. In particular, the VM-2Hxl features:

A maximum data rate of 6.75Gbps (2.25Gbps per graphic channel)

HDMI support for Deep Color, x.v.Color™, Lip Sync, CEC

HDTV compatibility

HDCP compliance

3D pass-through

I-EDIDPro™ Kramer Intelligent EDID Processing™, an intelligent EDID

handling and processing algorithm that ensures Plug and Play operation for

HDMI systems

Kramer Equalization & re-Klocking™ Technology that rebuilds the digital

signal integrity to travel longer distances

Active Output LED

A default EDID for fast and efficient connection of the unit

5V DC power

3.1 Defining the VM-2Hxl 1:2 HDMI Distributor

This section defines the VM-2Hxl.

VM-2Hxl - Overview

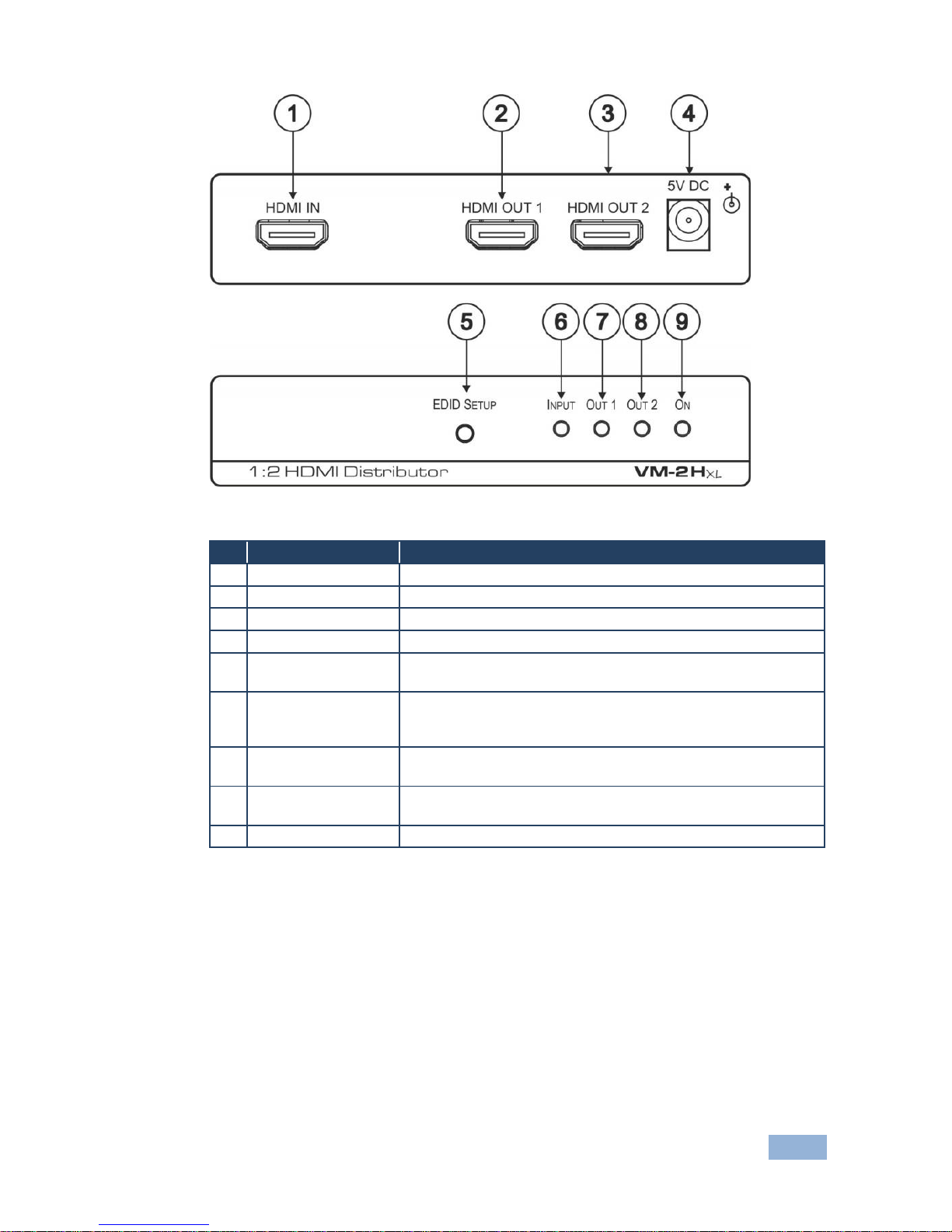

Figure 1: VM-2Hxl 1:2 HDMI Distributor

Feature

Function

HDMI IN

Connects to the HDMI source

HDMI OUT 1

Connects to the HDMI acceptor 1

HDMI OUT 2

Connects to the HDMI acceptor 2

5V DC

+5V DC connector for powering the unit

EDID SETUP Button

Press for more than 3 seconds to acquire the EDID information

from the display

INPUT LED

Flashes when the stored EDID does not match the display

device EDID; illuminates when the EDID corresponds to the

display device and that HDMI source is active

OUT 1 LED

Flashes during the EDID setup; illuminates when output 1 is

connected

OUT 2 LED

Flashes during the EDID setup; illuminates when output 2 is

connected

ON LED

Illuminates when receiving power

VM-2Hxl - Connecting the VM-2Hxl

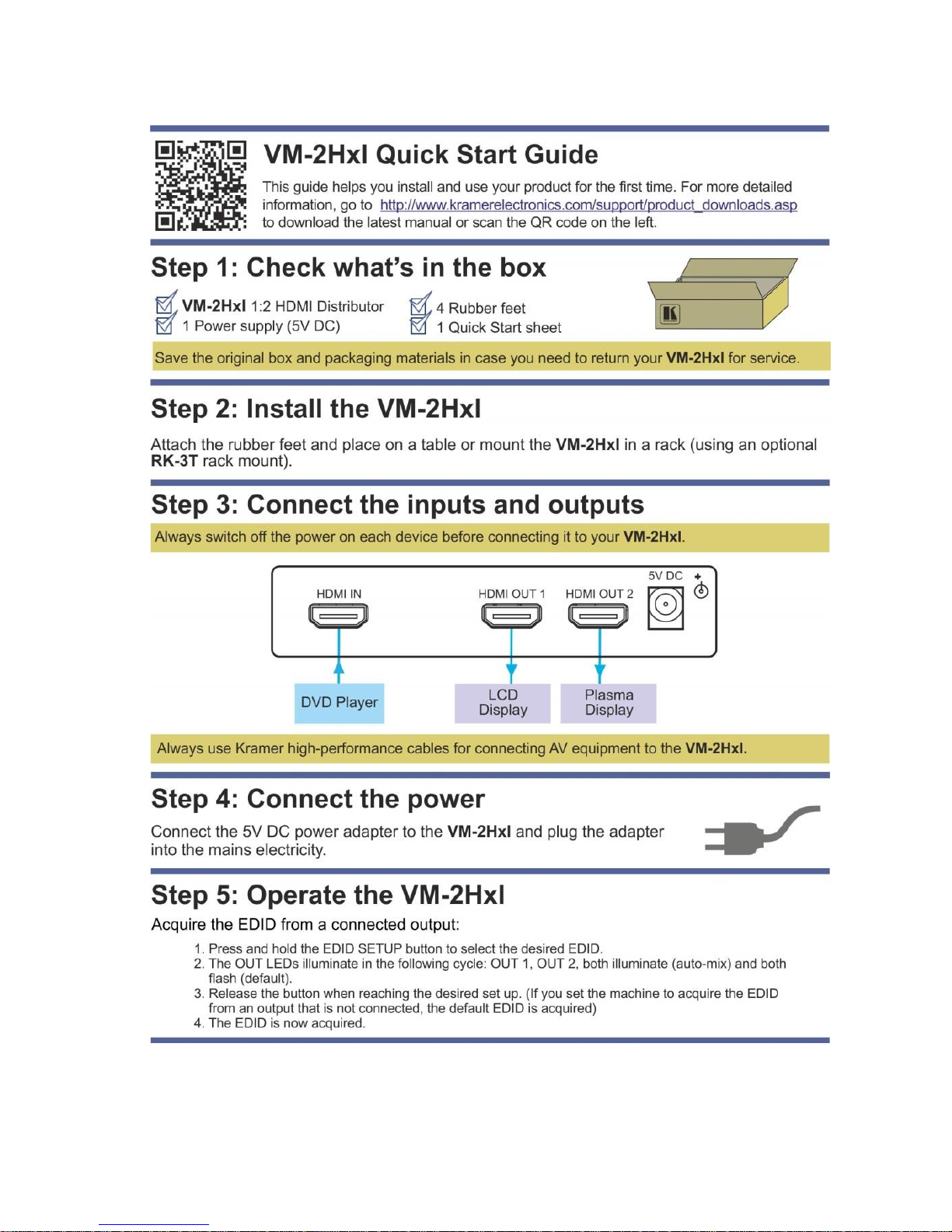

4 Connecting the VM-2Hxl

Always switch off the power to each device before connecting it to your

VM-2Hxl. After connecting your VM-2Hxl, connect its power and then

switch on the power to each device.

To connect the VM-2Hxl as illustrated in the example in Figure 2:

1. Connect the HDMI source (for example, a DVD player) to the HDMI

IN connector.

2. Connect the HDMI OUT connectors to up to two HDMI acceptors, as follows:

HDMI OUT 1 connector to an LCD TV

HDMI OUT 2 connector to a plasma display

3. Connect the 5V DC power adapter to the power socket and connect the

adapter to the mains electricity.

4. Press the EDID SETUP button to acquire or change the EDID information

(see Section 4.1).

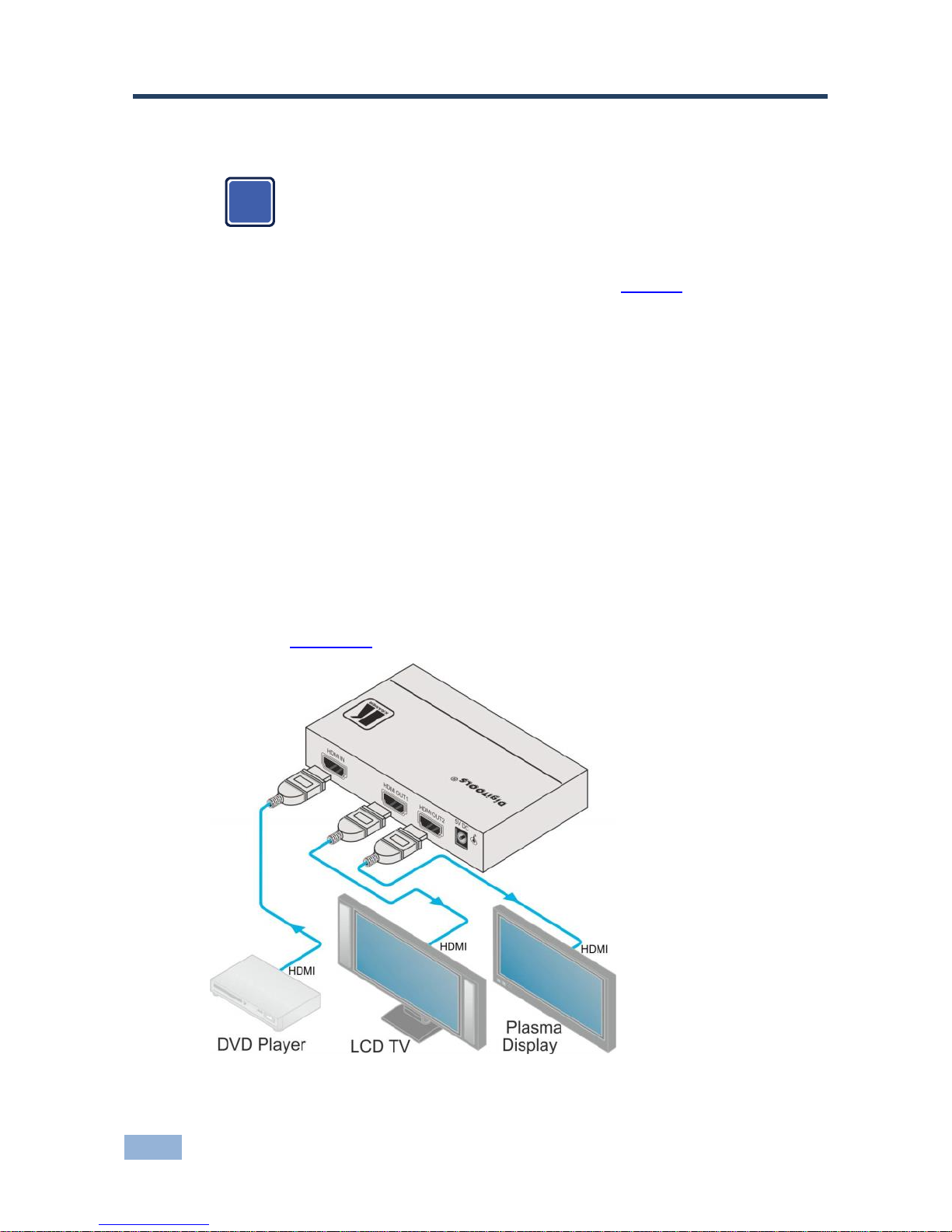

Figure 2: Connecting the VM-2Hxl 1:2 HDMI Distributor

VM-2Hxl - Connecting the VM-2Hxl

4.1 Acquiring the EDID

Initially, the VM-2Hxl operates with the factory default EDID. This lets you connect

the power before connecting one of the acceptors or sources.

You can acquire the EDID from:

This is usually done only once, when the machine is being set up in an installation. Once

acquired, the EDID is saved in non-volatile memory and further acquisition is not necessary.

One output (the relevant output illuminates)

The default EDID (both output LEDs flash)

Two connected outputs, the auto-mix mode (both output LEDs illuminate)

The EDID acquired is a weighted average of all the connected outputs. For example, if

several displays with different resolutions are connected to the outputs, the acquired

EDID supports all the resolutions, as well as other parameters included in the EDID.

When pressing the EDID SETUP button briefly, the OUT LEDs indicate which type

of EDID was last acquired. If the:

OUT 1 LED illuminates, the OUT 1 EDID is stored in the non-volatile

memory

OUT 2 LED illuminates, the OUT 2 EDID is stored in the non-volatile

memory

OUT 1 and OUT 2 LEDs illuminate, the Auto-Mix EDID is stored in the non-

volatile memory

OUT 1 and OUT 2 LEDs flash, the Default EDID is stored in the non-volatile

memory

To acquire the EDID, do the following:

1. Connect the power.

2. Connect the output or outputs from which you want to acquire the EDID.

3. Press and hold the EDID SETUP button to select the desired EDID.

The OUT LEDs illuminate in the following cycle: OUT 1, OUT 2, both

illuminate (auto-mix) and both flash (default).
