WP-789R Quick Start

P/N:

2900- 301299QS

Rev:

Scan for full manual

WP-789R Quick Start Guide

This guide helps you install and use your WP-789R for thefirst time.

Go to www.kramerav.com/downloads/WP-789R to download thelatest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

WP-789R HDMI 4K Wall-Plate Line Receiver

1 Quick start guide

Installation accessories

1 Power adapter and cord

Frame (or frame kit)

Step 2: Get to know your WP-789R

Feature

Function

HDMI™ OUT Connector

Connect to an HDMI acceptor.

IR (Tx1, Tx2) Output, 3-pin

Terminal Block Connectors

Connect to an external IR emitter cable:

Tx1, G: use for fixed 38kHz non-modulated IR signals.

Tx2, G: use for 20-100kHz wide-range modulated IR signals.

STATUS LED

LED Color

HDBT Connected

Source Detected

Acceptor Detected

Blue

Yes

Green

Yes

Yellow

Yes

N/A

White

Device is powered with no detected connections.

STATUS LED is off only when the device does not receive power.

RS-232 (G, Rx, Tx)

3-pin Terminal Block Connector

Connect to an RS-232 port.

Power Supply 2-pin Terminal

Block Connector

Connect to a power supply (if required). Connect GND to GND, +12V to +12V.

Ring Tongue Terminal

Grounding Screw

Connect to grounding wire (optional).

HDBT IN RJ-45 Connector

Connect to the HDBT OUT connector on a transmitter (for example, TP-780T).

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

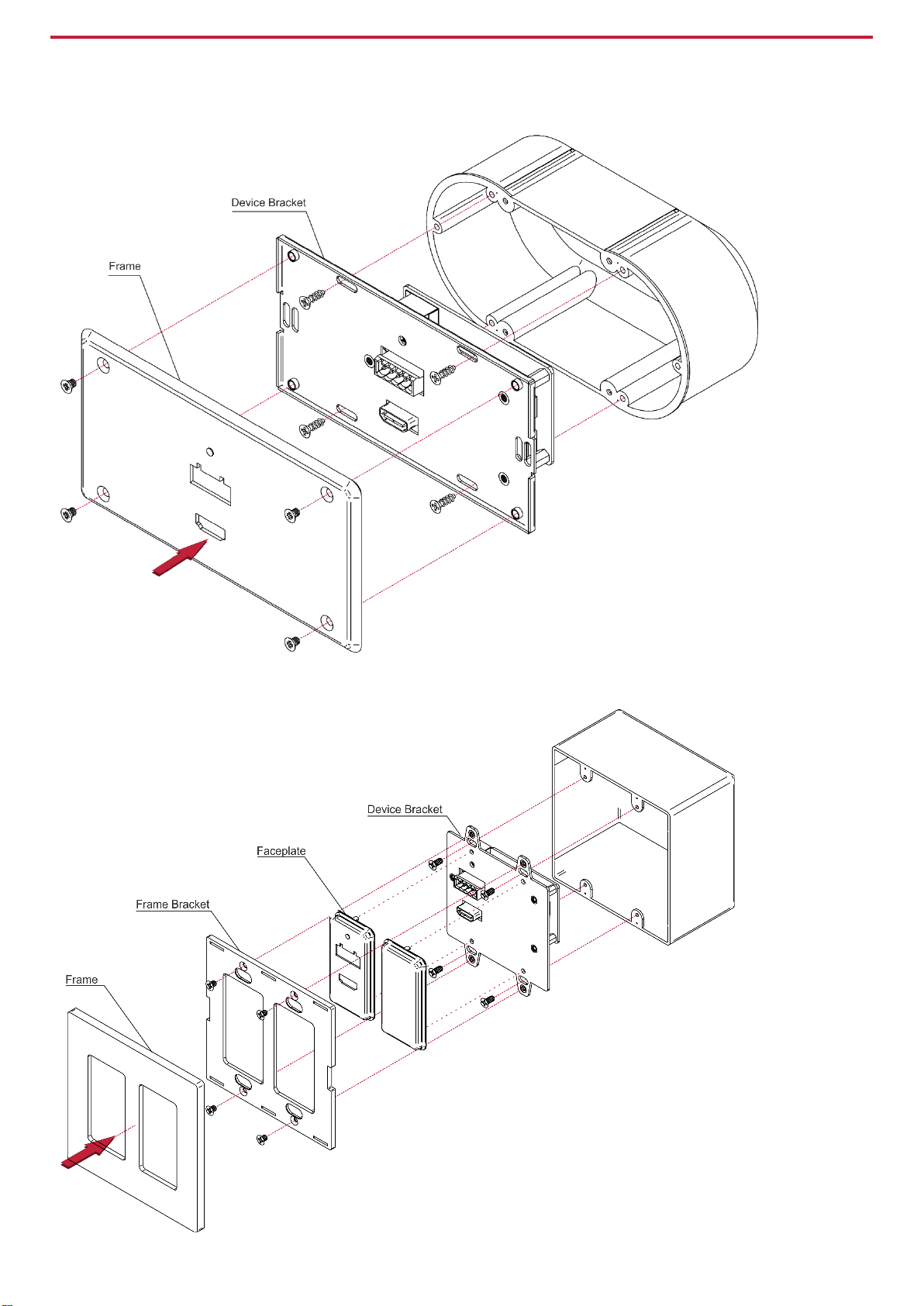

Step 3: Install the WP-789R

Insert the device into the in-wall box (note that first you need to connect the HDBT cable and power) and connect the parts as

shown in the illustrations below:

EU/UK Version

US-D Version

DECORA® design frames are included in US-D models.

DECORA® is a registered trademark of Leviton Manufacturing Co., Inc.

We recommend that you use any of the following standard 2 gang in-wall junction boxes (or their equivalent):

•US-D: 2 gang US electrical junction boxes.

•EU: 2 gang in-wall junction box, with a cut-hole diameter of 2x68mm and depth that can fit in both the device and the

connected cables (DIN 49073).

•UK: 2 gang in-wall junction box (BS 4662), 135x75mm (W, H) and depth that can fit in both the device and the

connected cables.

•EU/UK: 2 gang on-wall junction box (use the recommended Kramer on-wall box available at

www.kramerav.com/product/WP-789R.).

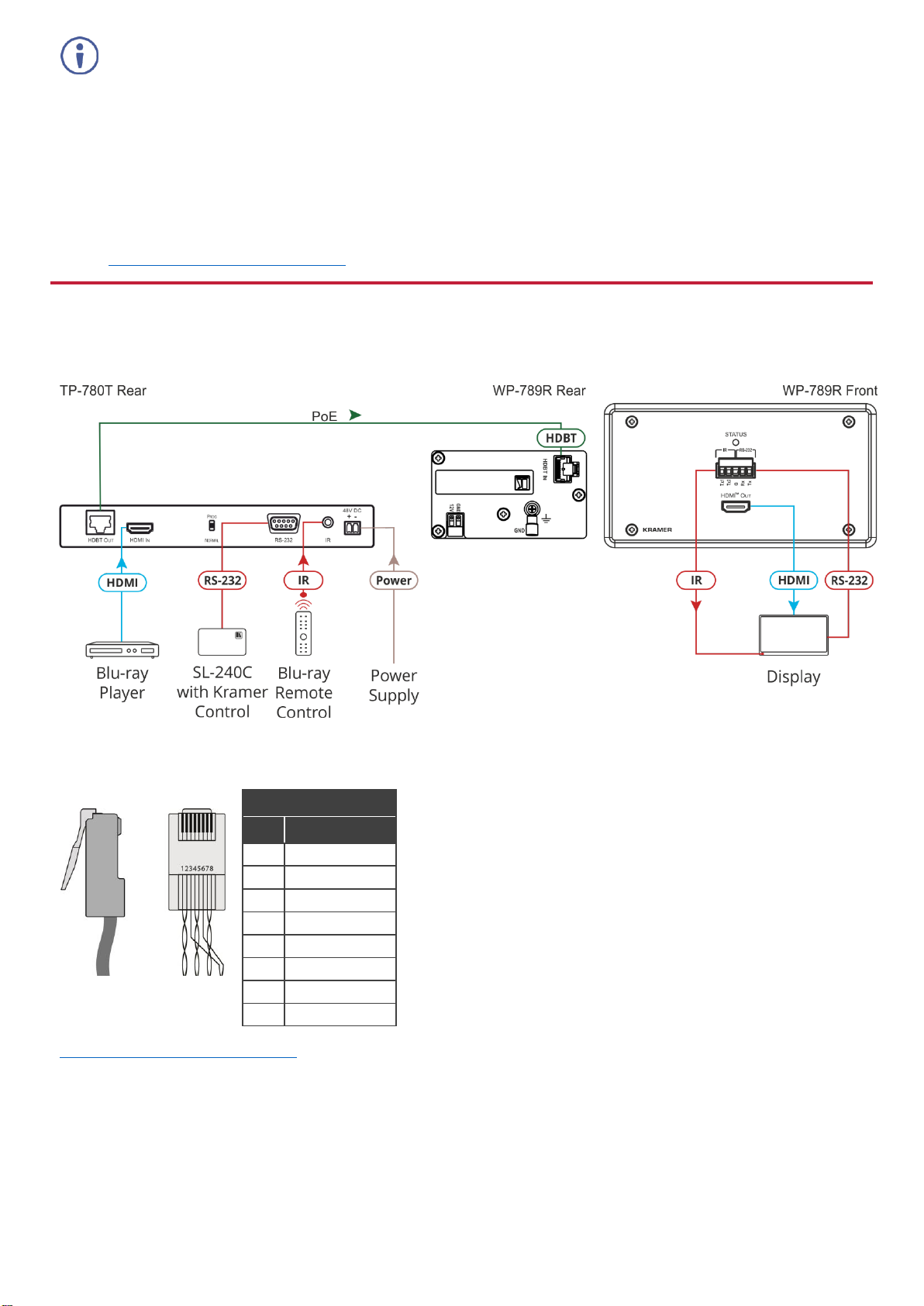

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your WP-789R. For best results, we recommend that you

always use Kramer high-performance cables to connect AV equipment to the WP-789R.

Wiring the RJ 45 Connectors

It is recommended that the cable ground shielding be

connected/soldered to the connector shield.

PIN EIA /TIA 568b

Wire Color

Orange / White

Orange

Green / White

Blue

Blue / White

Green

Brown / White

Brown

For optimum range and performance use the recommended Kramer cables available at

www.kramerav.com/product/WP-789R.

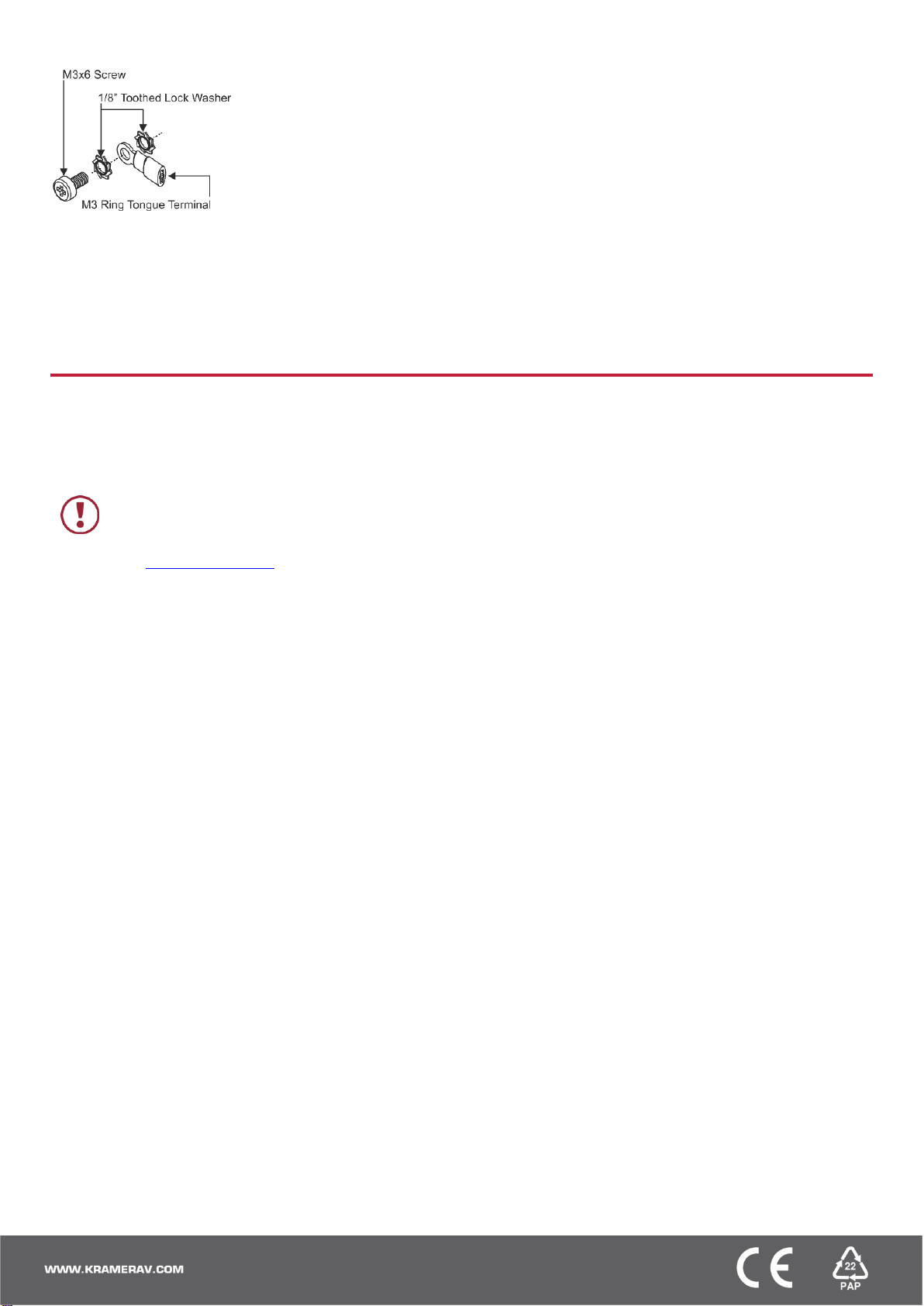

Grounding the WP-789R (Optional)

1. Connect the ring tongue terminal to the building grounding point wire (a green-yellow, AWG#18 (0.82mm2) wire,

crimped with a proper hand-tool is recommended).

2. Insert the M3x6 screw through the toothed lock washers and the tongue terminal in the order shown above.

3. Insert the M3x6 screw (with the two toothed lock washers and ring tongue terminal) into the grounding screw hole

and tighten the screw.

Step 5: Connect the power

When accepting power over HDBaseT from a PoE provider (for example, the TP-780T), there is no need to connect the 12V

DC power supply.

Otherwise, connect the 12V power adapter to the device and plug the power supply into the mains electricity.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the Kramer Electronics power supply that is provided with the unit.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.
