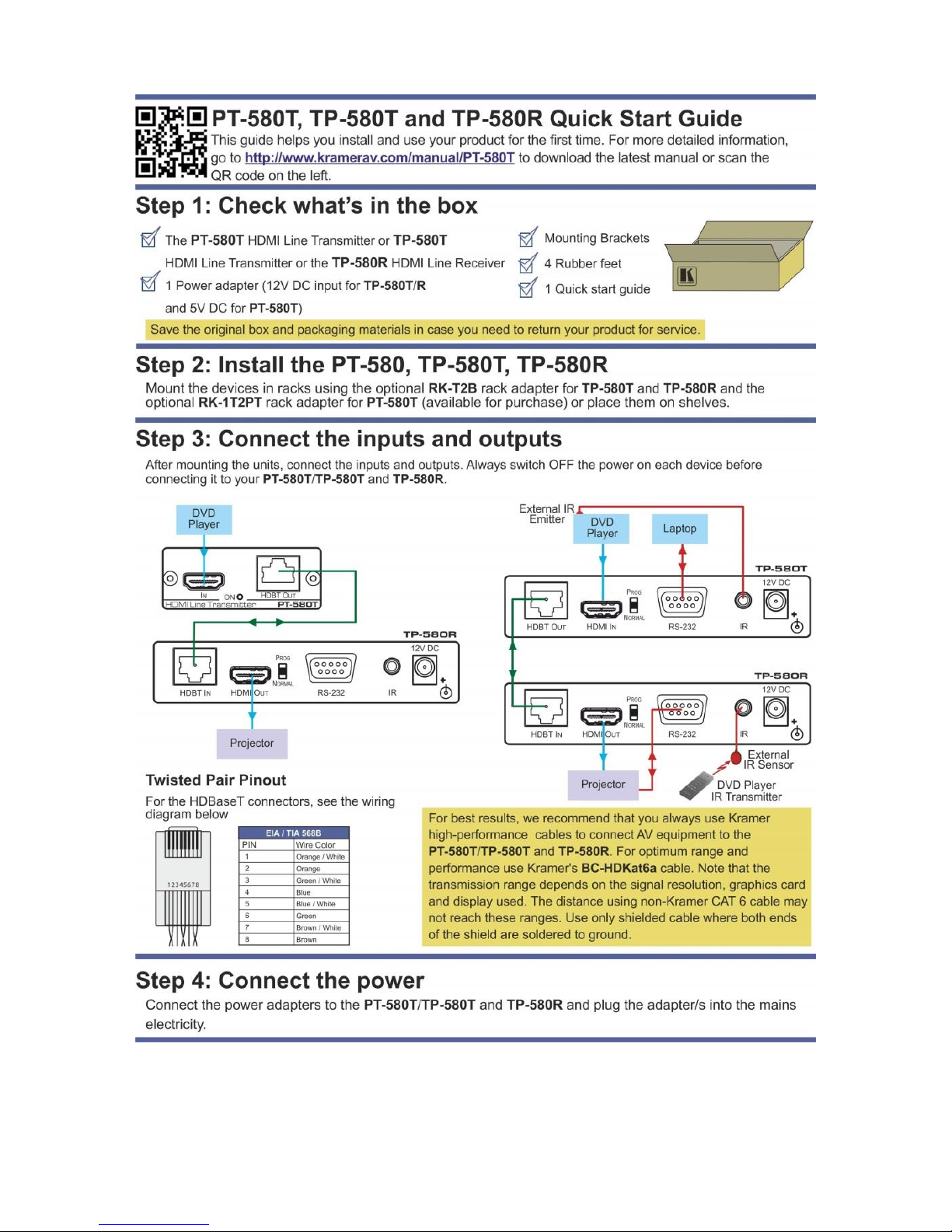

Kramer PT-580T Manuale utente

KRAMER ELECTRONICS LTD.

USER MANUAL

MODELS:

PT-580T

HDMI Line Transmitter

TP-580T

HDMI Line Transmitter

TP-580R

HDMI Line Receiver

P/N: 2900-300340 Rev 2

TP-580T/TP-580R – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

3.1 TP-580T and TP-580R Overview 4

3.2 PT-580T Overview 5

3.3 About HDBaseT™ Technology 6

3.4 Using Twisted Pair Cable 6

3.5 Defining the TP-580T HDMI Line Transmitter 7

3.6 Defining the TP-580R HDMI Line Receiver 8

3.7 Defining the PT-580T 9

4Connecting the TP-580T and TP-580R 10

4.1 Controlling the A/V Equipment via an IR Transmitter 12

4.2 Connecting to a PC 14

5Connecting the PT-580T 15

6Wiring the RJ-45 Connectors 16

7Technical Specifications 17

Figures

Figure 1: TP-580T HDMI Line Transmitter 7

Figure 2: TP-580R HDMI Line Receiver 8

Figure 3: PT-580T HDMI Line Transmitter 9

Figure 4: Connecting the TP-580T/TP-580R Transmitter/Receiver Pair 11

Figure 5: Controlling a DVD Player via the TP-580R 12

Figure 6: Controlling an LCD Display via the TP-580T 13

Figure 7: RS-232 Control 14

Figure 8: Connecting the PT-580T/TP-580R Transmitter/Receiver Pair 15

Figure 9: TP PINOUT 16

PT-580T/TP-580T/TP-580R - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP

5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP

7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and

GROUP 14: Collaboration.

Congratulations on purchasing your Kramer PT-580T or TP-580T or TP-580R

transmitter/receiver pair, which is ideal for the following typical applications:

Projection systems in conference rooms, boardrooms, auditoriums, hotels

and churches, production studios

Rental and staging

Note that PT-580T, TP-580T and TP-580R are purchased

separately, and can be connected to other HDBaseT certified

transmitters and receivers, respectively.

PT-580T/TP-580T/TP-580R - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to www.kramerav.com/downloads/PT-580T

to check for up-to-date user manuals, application programs, and to check

if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer PT-580T, TP-580T and TP-580R transmitter/receiver

pair away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the

wall before installing

PT-580T/TP-580T/TP-580R - Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerAV.com/support/recycling/.

PT-580T/TP-580T/TP-580R - Overview

3 Overview

This section describes the PT-580, TP-580T and TP-580R features.

3.1 TP-580T and TP-580R Overview

The TP-580T and TP-580R are a high-performance, HDBaseT technology twisted

pair transmitter and receiver for HDMI, bidirectional RS-232 and IR signals. The

TP-580T converts the HDMI signal, RS-232 and IR input signals to a twisted pair

signal. The TP-580R converts the twisted pair signal back into HDMI, RS-232, and

IR signals.

The TP-580T and the TP-580R can form a transmission and reception system

either together or each device separately with another certified HDBaseT device.

For example, the transmitter and receiver system can be composed of the TP-580T

that connects to the Kramer TP-580R to form a transmitter receiver pair.

The TP-580T transmitter and TP-580R receiver feature:

A bandwidth of up to 10.2Gbps (3.4Gbps per graphic channel), supporting

4K resolution

A range of 70m (230ft) at 2K, 40m (130ft) at 4K UHD resolutions

For optimum range and performance using HDBaseT™, use Kramer's

BC−HDKat6a cable. Note that the transmission range depends on the

signal resolution, source and display used. The distance using

non−Kramer CAT 6 cable may not reach these ranges.

HDBaseT™technology

HDTV compatibility and HDCP compliance

HDMI support - HDMI (deep color, x.v.Color™, lip sync, HDMI

uncompressed audio channels, Dolby TrueHD, DTS−HD, CEC, 2k, 4k, 3D)

EDID pass through, passes EDID/HDCP signals from the source to the display

Bidirectional RS-232 interface - commands and data can flow in both

directions via the RS−232 interface, allowing status requests and control of

the destination unit

PT-580T/TP-580T/TP-580R - Overview

Bidirectional infrared interface for remote control of peripheral devices (see

Section 4.1)

LED status indicators for input selection, output, link and power

Compact DigiTOOLS®enclosures, and these can be rack mounted side-by-

side in a 1U rack space with the optional RK-3T, RK-6T or RK-9T universal

rack adapters

3.2 PT-580T Overview

The PT-580T is a high-performance, HDBaseT technology Twisted Pair

transmitter for HDMI signals and converts it to a twisted pair signal. An HDBaseT

receiver (for example the TP-580R or WP-580R) converts the twisted pair signal

back into an HDMI signal and together they form a transmitter receiver pair.

The PT-580T transmitter features:

A bandwidth of up to 10.2Gbps (3.4Gbps per graphic channel), supporting

4K resolution

A range of up to 70 meters (230 feet)

HDBaseT technology

HDTV compatibility and HDCP compliance

HDMI support - HDMI (deep color, x.v.Color™, lip sync, HDMI

uncompressed audio channels, Dolby TrueHD, DTS−HD, CEC, 2k, 4k, 3D)

EDID pass-through - passes EDID signals from the source to the display

LED status indicator for power

Ultra-Compact PicoTOOLS™ – 4 units can be rack mounted side−by−side in

a 1U rack space with the optional RK−4PT rack adapter

For optimum range and performance using HDBaseT™, use Kramer's

BC−HDKat6a cable. Note that the transmission range depends on the

signal resolution, source and display used. The distance using

non−Kramer CAT 6 cable may not reach these ranges.

PT-580T/TP-580T/TP-580R - Overview

3.3 About HDBaseT™ Technology

HDBaseT™ is an advanced all-in-one connectivity technology (supported by the

HDBaseT Alliance). It is particularly suitable in the consumer home environment

as a digital home networking alternative where it enables you to replace numerous

cables and connectors by a single LAN cable used to transmit, for example,

uncompressed full high-definition video, audio, IR, as well as various control

signals.

The products described in this user manual are HDBaseT certified.

3.4 Using Twisted Pair Cable

Kramer engineers have developed special twisted pair cables to best match our

digital twisted pair products; the Kramer BC−HDKat6a (CAT 6 23 AWG cable)

significantly outperforms regular CAT 5 / CAT 6 cables.

We strongly recommend that you use shielded twisted pair cable.

PT-580T/TP-580T/TP-580R - Overview

3.5 Defining the TP-580T HDMI Line Transmitter

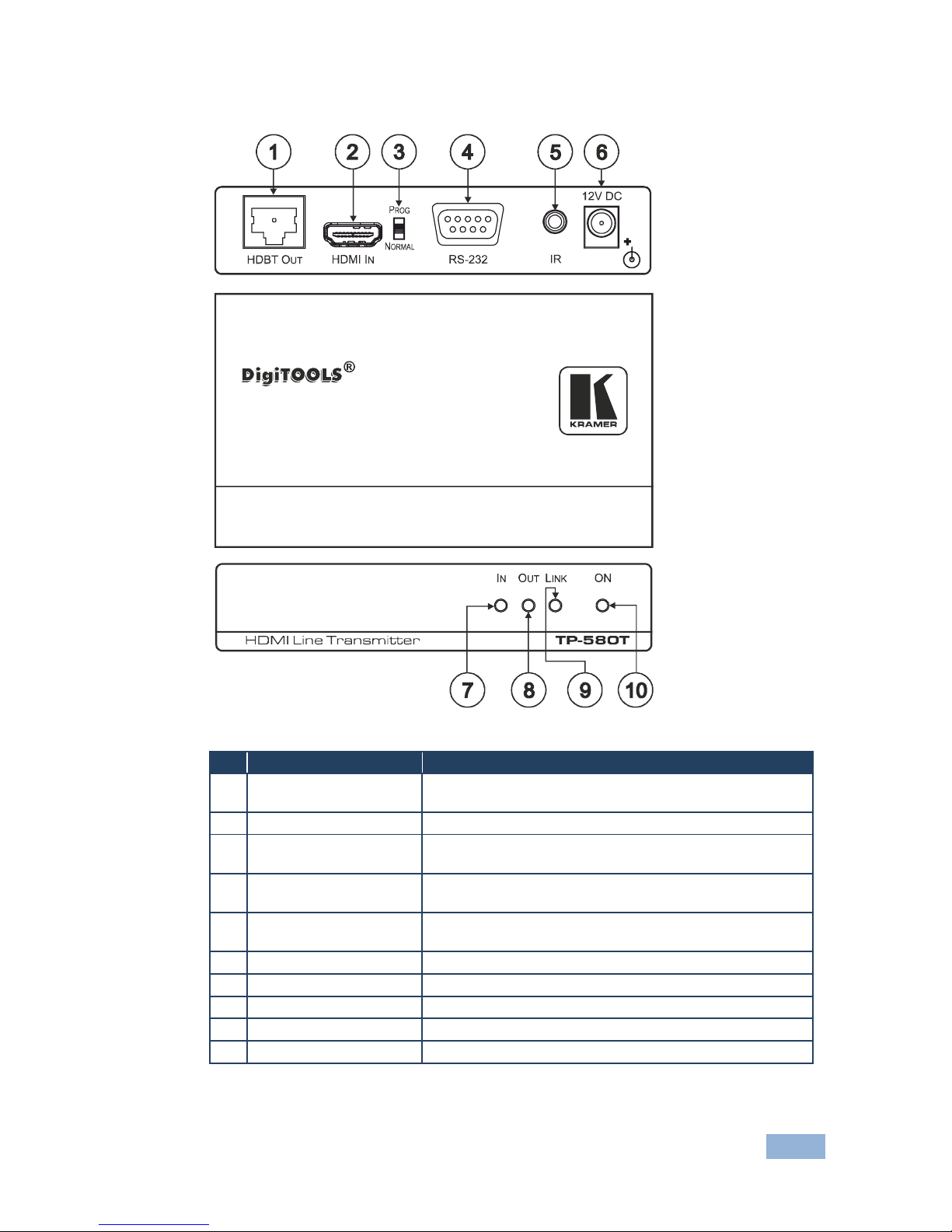

Figure 1: TP-580T HDMI Line Transmitter

Feature

Function

HDBT OUT RJ-45

Connector

Connects to the HDBT IN RJ-45 connector on the TP-580R

HDMI IN Connector

Connects to the HDMI source

PROG/NORMAL Switch

Slide to PROG to upgrade to the latest Kramer firmware via

RS-232, or slide to NORMAL for normal operation

RS-232 9-pin D-sub

Connector

Connects to an RS-232 port for firmware upgrade and

control of the destination unit

IR 3.5mm Mini Jack

Connector

Connects to an external infrared transmitter / sensor

(receiver)

12V DC

+12V DC connector for powering the unit

IN LED

Lights green when an HDMI input device is connected

OUT LED

Lights green when an HDMI output device is detected

LINK LED

Lights green when the TP connection is active

ON LED

Lights when receiving power
