Kramer DIP-31M Manuale utente

P/N: 2900-300749 Rev 1 www.kramerAV.com

USER MANUAL

MODEL:

DIP-31M

Automatic Video Switcher

With Maestro - Full Room Automation and

Personalization

DIP-31M – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

3.1 About Maestro 5

4Defining the DIP-31M Automatic Video Switcher 6

5Connecting the DIP-31M Automatic Video Switcher 8

5.1 Connecting the Remote Control Switches 10

5.2 Wiring the RJ-45 Connectors 11

6Principles of Operation 12

6.1 Input Selection and Switching 12

6.2 Signal Loss and Unplugged Cable Timeouts 13

6.3 Audio Signal Control 13

6.4 VGA Phase Shift 14

7Operating the DIP-31M 15

7.1 Locking the EDID 15

7.2 Resetting the DIP-31M 15

7.3 Controlling Analog Audio Output Volume 16

8Configuring the DIP-31M 17

8.1 Setting the Audio and Video Configuration DIP-switch 17

8.2 Using Auto Switching Delays 18

8.3 Using the Step-in Feature 18

9Operating the DIP-31M Remotely Using the Web Pages 19

9.1 Accessing DIP-31M Web Pages 20

9.2 Selecting Input Signals 22

9.3 Setting Device Configurations 23

9.4 Creating Automatic Room Controls 25

9.5 Setting Video and Audio Parameters 28

9.6 Setting Authentication 29

9.7 Managing EDID 30

9.8 Upgrading the Firmware 32

9.9 About Us 33

10 Using Maestro to Create Single-Trigger Control 34

10.1 Configuring Ports 34

10.2 Creating Commands 37

10.3 Using a Command Database 38

10.4 Creating Actions 45

10.5 Setting a Trigger 47

10.6 Configuration Example 49

11 Technical Specifications 58

11.1 Default IP Parameters 59

11.2 Default Logon Credentials 59

11.3 Supported HDMI Resolutions 59

11.4 Supported VGA Resolutions 60

DIP-31M - Contents

12 Default EDID 61

12.1 HDMI 61

12.2 PC-UXGA 63

13 Protocol 3000 65

13.1 Understanding Protocol 3000 66

13.2 Kramer Protocol 3000 Syntax 68

13.3 Protocol 3000 Commands 69

DIP-31M – Contents

iii

Figures

Figure 1: DIP-31M Front Panel 6

Figure 2: DIP-31M Rear Panel 7

Figure 3: Connecting the DIP-31M 8

Figure 4: Remote Switches Terminal Block 10

Figure 5: TP PINOUT 11

Figure 6: Configuration DIP-switch 17

Figure 7: Entering Logon Credentials 20

Figure 8: Opening Web Page 21

Figure 9: Switching Page 22

Figure 10: Device Settings Page 23

Figure 11: Control Settings Page 26

Figure 12: Video and Audio Settings Page 28

Figure 13: Authentication Page 29

Figure 14: EDID Management Page 30

Figure 15: Firmware Upgrade Page 32

Figure 16: About Us Page 33

Figure 17: Configuring an RS-232 Port 35

Figure 18: Configuring an Ethernet Port 36

Figure 19: Creating a Command 37

Figure 20: Entering a Command Database 39

Figure 21: Connecting to a Command Database 40

Figure 22: Find Command on Kramer Network Server Window 41

Figure 23: Device-Specific Commands Available in the Database 41

Figure 24: Adding a Command from the Database 42

Figure 25: Free Searching in the Database 43

Figure 26: Adding aWake on LAN Command 44

Figure 27: Dragging a Command to an Action 45

Figure 28: Adding a Delay 46

Figure 29: Testing an Action Command 47

Figure 30: Setting a Trigger 48

Figure 31: Example Room Control Scenario 50

Figure 32: Configuring the Lights Ethernet Port 51

Figure 33: Screen Down Command in Protocol 3000 52

Figure 34: Barco Projector Command List 53

Figure 35: Projector On Command 54

Figure 36: RB-6 Command List 54

Figure 37: Lights Off Command 55

Figure 38: Adding a Delay to the Action Command List 56

Figure 39: Specifying a Trigger for the Action 57

DIP-31M – Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined by

function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and

GROUP 14: Collaboration.

Congratulations on purchasing your Kramer DIP-31M Automatic Video Switcher

which are part of the Kramer Audio Distribution System and are ideal for:

Display systems requiring simple, automatic input selection.

Multimedia and presentation source selection.

Video distribution in hotel rooms and schools.

DIP-31M - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment.

Review the contents of this user manual.

Go to www.kramerav.com/downloads/DIP-31M to check for up-to-date

user manuals, application programs, and to check if firmware upgrades are

available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often associated

with low quality cables).

Do not secure the cables in tight bundles or roll the slack into tight coils.

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality.

Position your DIP-31M Automatic Video Switcher away from moisture,

excessive sunlight and dust.

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the power cord that is supplied with the unit.

Warning:

Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only.

Warning:

Disconnect the power and unplug the unit from the wall

before installing.

DIP-31M – Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims

to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country go

to our recycling pages at www.kramerav.com/support/recycling/.

DIP-31M - Overview

3 Overview

DIP-31M is an automatic switcher for 4K HDMI, VGA, Ethernet, data and

unbalanced audio signals. The unit supports resolutions up to 4K@60Hz (4:2:0) and

various modes of input selection and transmits the signal via HDMI cable to a

compatible receiver (for example, VS−62H or when connecting directly to a

display/projector). DIP-31M is a Step−in commander when connected to a matrix

switcher that supports Step−in over HDMI such as the VS−62H.

DIP-31M features Maestro software that provides powerful single-trigger, room

automation functions that can automatically control the lights, projectors, displays,

video sources, screens, blinds HVAC and many more.

The DIP-31M Automatic Video Switcher features:

Max. Resolution –4K@60Hz (4:2:0) UHD and WUXGA.

Max. Data Rate –10.2Gbps (3.4Gbps per graphic channel).

HDTV support.

HDCP 1.4 compliancy –works with sources that support HDCP repeater mode.

HDMI with Deep Color, x.v.Color™ and 3D.

I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID handling

& processing algorithm ensures Plug and Play operation for HDMI systems.

Automatic live input detection based on video clock presence.

Automatic input selection based on priority selection or last connected input.

Manual input selection.

Step-in control when connected to a device that provides step-in support.

Automatic analog audio detection and embedding.

Control via Kramer Protocol 3000 and embedded Web pages over a LAN.

A lockable EDID.

DIP-31M – Overview

Remote control via contact-closure switches.

Equalization and re-clocking of the data.

Support for digital audio formats.

An RS-232 data port for controlling external devices.

3.1 About Maestro

DIP-31M showcases Maestro, Kramer’s easy to configure, single-trigger room

automation software that creates customized meeting room environments with

minimal end-user intervention.

Maestro creates a series of actions based on a pre-defined event, or trigger, such

as plugging in a laptop or turning a display off. These events can trigger actions

such as turning on computers (via Wake-on-LAN) and turning on and off lights,

projectors, displays, video sources, and HVAC.

Integrated with Kramer’s dynamic database of device drivers, there is no end to the

types of actions Maestro can perform. Maestro enables automated control over a

variety of port types: RS-232, Ethernet, GPIO, relay, and IR.

Maestro makes meeting rooms environmentally-friendly by ensuring that lights and

devices are automatically turned off. The solution turns a device or series of devices

on or off based on triggers, e.g., removing inputs, time, etc. This helps create a

greener workplace, and over time, saves significant energy costs.

DIP-31M - Defining the DIP-31M Automatic Video Switcher

4 Defining the DIP-31M Automatic Video

Switcher

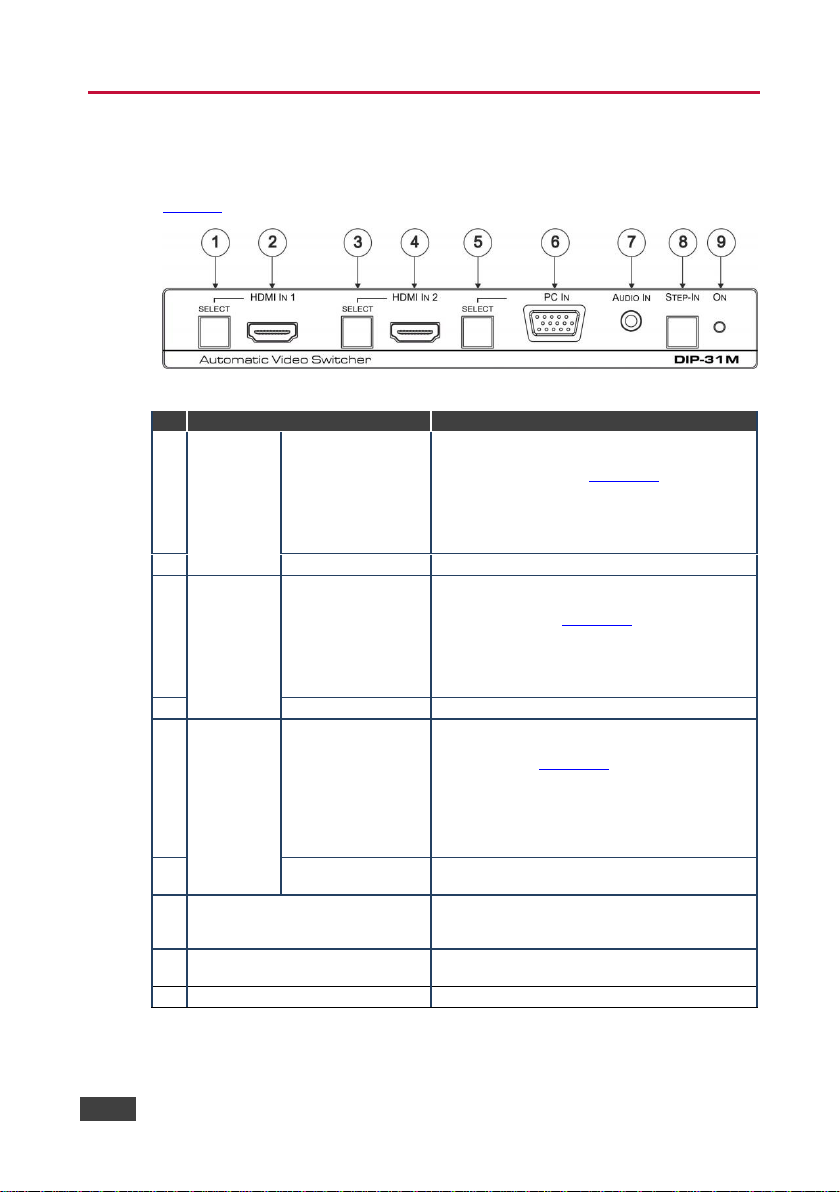

Figure 1 defines the front panel of the DIP-31M.

Figure 1: DIP-31M Front Panel

Feature

Function

HDMI IN 1

SELECT Button

Press to select the HDMI IN 1 input. When HDMI

IN 1 is selected, the button lights and indicates

the selected audio (see Section 8.1)

Red –External audio from the analog Audio IN is

selected

Green –Embedded audio from HDMI IN 1 is

selected

HDMI 1 Connector

Connects to the first HDMI source

HDMI IN 2

SELECT Button

Press to select the HDMI IN 2 input. When HDMI

IN 2 is selected, the button lights and indicates

the selected audio (Section 8.1)

Red –External audio from the analog Audio IN is

selected

Green –Embedded audio from HDMI IN 2 is

selected

HDMI 2 Connector

Connects to the second HDMI source

PC IN

SELECT Button

Press to select the VGA input. When PC IN is

selected, the button lights and indicates the

selected audio (Section 8.1)

Red –External audio from the analog Audio IN is

selected

Green –No audio is selected (embedded audio

from the HDMI inputs cannot be used with this

input)

PC Graphics 15-pin

HD Connector

Connects to the VGA source, (for example, a

laptop)

AUDIO IN 3.5mm Mini Jack

Connects to the unbalanced, stereo audio

source, (for example, the audio output of the

laptop)

Step-In Button

Press to take control of the input that this device

is connected to on a compatible switcher

ON LED

Lights green when the device is powered on

Altri manuali per DIP-31M

Altri manuali Kramer Interruttore

Kramer

Kramer VP-23 Manuale utente

Kramer

Kramer TOOLS VP-222K Manuale utente

Kramer

Kramer VS-41H2 Manuale utente

Kramer

Kramer DIP-31M Manuale utente

Kramer

Kramer VS-33V Manuale utente

Kramer

Kramer VP-23xl Manuale utente

Kramer

Kramer VP-550X Manuale utente

Kramer

Kramer VS-21T Manuale utente

Kramer

Kramer ProScale VP-728 Manuale utente

Kramer

Kramer VP-774A Manuale utente

Kramer

Kramer VIA CONNECT PRO Manuale utente

Kramer

Kramer VS-44HN Manuale utente

Kramer

Kramer VS-21H-IR Manuale utente

Kramer

Kramer VS-211UHD Manuale utente

Kramer

Kramer VM-218DTxr Manuale utente

Kramer

Kramer VP-411DS Manuale utente

Kramer

Kramer VP-558 Manuale utente

Kramer

Kramer KIT-401 Manuale utente

Kramer

Kramer PT201VGA Manuale utente

Kramer

Kramer VP-440 Manuale utente

Kramer

Kramer VS-81HDxl Manuale utente

Kramer

Kramer VP-724xl Manuale utente

Kramer

Kramer VS-41HC Manuale utente

Kramer

Kramer VS-21HDMI Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
