KAV–400xi

Remote Control Integrated Amplifier

Instructions for Use

v 03.0

CONTACT

INFORMATION

WARNINGS

Krell KAV–400xi iii

Contents

Page

INTRODUCTION 1

DEFINITION OF TERMS 2

UNPACKING 4

PLACEMENT 5

AC Power Guidelines 5

Power Cord 5

FRONT PANEL / REMOTE CONTROL DESCRIPTION 7

REMOTE CONTROL ONLY 9

Battery Installation and Removal 9

Remote Control Only Functions 9

BACK PANEL DESCRIPTION 12

CONNECTING THE KAV–400xi TO YOUR SYSTEM 14

Connection Steps 14

OPERATING YOUR KAV–400xi 15

Amplifier Operation 15

Tape Input and Output 16

OPTIONAL CONFIGURATIONS 17

Configuring the KAV–400xi for Theater Throughput 17

Preamplifier Output 18

HOW TO TROUBLESHOOT SYSTEM NOISE 19

QUESTIONS AND ANSWERS 20

WARRANTY 21

RETURN AUTHORIZATION PROCEDURE 22

SPECIFICATIONS 23

iv Krell KAV–400xi

Illustrations

FIGURE 1 The KAV–400xi Front Panel 6

FIGURE 2 The KAV–400xi Remote Control 6

FIGURE 3 The KAV–400xi Back Panel 11

Page

Krell KAV–400xi 1

Introduction

Thank you for your purchase of the Krell KAV–400xi Remote

Control Integrated Amplifier. This fully integrated amplifier and pre-

amplifier has a fully balanced signal path from input to output and

employs a wide bandwidth design with low negative feedback for

sonic accuracy throughout the frequency spectrum. All circuits up

to the driver stage are pure Class A.

Krell’s new surface mount technology (SMT) means that the

KAV–400xi is an integrated amplifier with big power—200 Watts

per channel—that does not require big space. SMT allows individ-

ual circuit elements to be placed very close together. This shortens

signal paths and allows circuit elements to operate at the same

temperature, resulting in more accurate signal transfer and

enhanced reliablilty.

The KAV–400xi is easy to operate and integrate into your system.

The remote control accesses all amplifier functions, and remote

control connection options allow the KAV–400xi to be easily con-

nected with other components. The Theater Throughput feature

provides easy integration of the amplifier into a home theater

system.

This owner’s reference manual contains important information on

the placement, installation, and operation of the KAV–400xi.

Please read this information carefully. A thorough understanding of

these details will help ensure satisfactory operation and long life

for your KAV–400xi and related system components.

Definition of Terms

OPERATION

Following are the definitions of key terms used in your owner’s ref-

erence manual.

Theater Throughput

Theater Throughput is a Krell configuration option that allows the

signal from a surround preamp/processor to pass through a Krell

preamplifier or integrated amplifier with no gain, for integrated vol-

ume and balance management of Krell home theater systems.

Balanced

Asymmetrical input or output circuit that has equal impedance

from both input terminals to a common ground reference point.

The industry standard for professional and sound recording instal-

lations, balanced connections have 6 dB more gain than single-

ended connections and allow the use of long interconnect cables.

Balanced connections are completely immune to induced noise

from the system or the environment.

Single-ended

Atwo-wire input or output circuit. Use care when using single-

ended connections as the ground connection is made last and

broken first. Turn the system off prior to making or breaking single-

ended connections. Single-ended connections are not recom-

mended for connections requiring long cable runs.

Off

The component is off when the AC power cord is unplugged from

the wall receptacle.

Stand-by Mode

Alow power consumption status that keeps the audio circuits at

idle. When you plug the AC power cord into the wall receptacle,

the red stand-by LED illuminates. The component is now ready to

be switched to the operational mode. Krell recommends leaving

the component in the stand-by mode when it is not playing music.

Operational Mode

When the component is in the stand-by mode, and you press the

power button on the front panel or the power key on the remote

control, the blue power LED illuminates. The component is in the

operational mode and is ready to play music.

CONFIGURATIONS

INPUT AND OUTPUT

CONNECTIONS

2Krell KAV–400xi

Definition of Terms, continued

Krell Current Mode

Aproprietary Krell circuit topology in which the audio gain stages

of a component operate in the current rather than voltage domain.

This unique technology provides the component with exceptional

speed and a wide bandwidth.

TECHNOLOGY

Krell KAV–400xi 3

4Krell KAV–400xi

Unpacking

Follow these steps to safely unpack the KAV–400xi:

1. Open the shipping box and remove the top layer of foam. The

KAV–400xi and the KAV–400xi accessory kit containing the

following items are visible:

1 AC power cord

1 12 VDC (12 V trigger) cable

2 spare loudspeaker fuses (AGC 8)

1 KAV–400xi remote control

1 CR2025 lithium battery

1packet containing the Quick Setup Guide

and the warranty registration card

2. Grasp the underside of the amplifier and lift it straight out of

the packing box.

3. Place the amplifier in a safe location and remove the protective

plastic wrapping.

If any of these items are not included please contact your authorized

Krell dealer.

Save all packing materials. If you must ship your KAV–400xi in the future,

repack the unit in its original packaging to prevent shipping damage.

Notes

Krell KAV–400xi 5

Placement

Before you install the KAV–400xi into your system, review the fol-

lowing guidelines to choose the location for the KAV–400xi. This

will facilitate a clean, trouble-free installation. The KAV–400xi does

not require any type of special rack or cabinet for installation. For

the dimensions of the KAV–400xi, see Specifications, on the

back cover.

Place the KAV–400xi on a firm, level surface, away from exces-

sive heat, humidity, or moisture. The KAV–400xi requires at least

two inches (5 cm) of clearance on each side and at least two inch-

es (5 cm) of clearance above and below the component to provide

adequate ventilation. Installations inside cabinetry may need extra

ventilation.

The KAV–400xi is not hum-sensitive. Other components may be

placed on or around the KAV–400xi (make sure ventilation grids

remain unobstructed).

Place the amplifier as close to the loudspeakers as possible and

keep loudspeaker cable lengths to a minimum. Loudspeaker cable

adds impedance to the load the amplifier must drive, regardless of

the cable’s gauge. All Krell amplifiers drive the lowest impedances

with ease, but long loudspeaker cables reduce the maximum

power that can be delivered to the loudspeakers.

The KAV–400xi has superb regulation and does not require a ded-

icated AC circuit. Avoid connections through extension cords or

multiple AC adapters. High quality 15 amp grounded AC strips are

acceptable. High quality AC line conditioners or filters may be

used if they are grounded and meet or exceed the unit’s maximum

power consumption of 1800 Watts.

The KAV–400xi should be operated only with the power cord

supplied. Please contact your authorized Krell dealer, distributor,

or Krell before using any devices designed to alter or stabilize the

AC power for the KAV–400xi.

AC Power

Guidelines

Power Cord

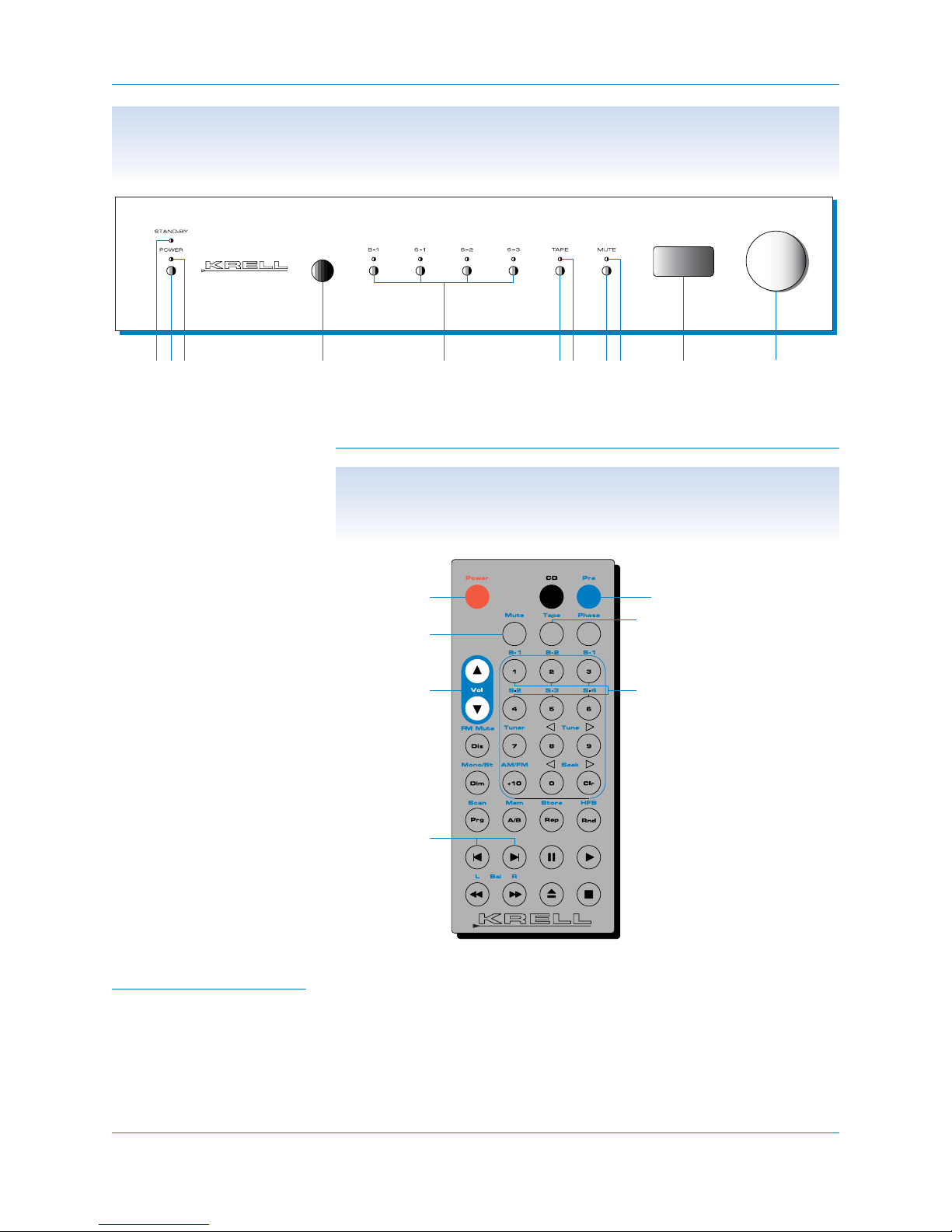

Figure 1 The KAV–400xi Front Panel

2 71 4 11

6 9 10

83 5

KAV–400xi

Figure 2 The KAV–400xi Remote Control

112

Activates the

KAV—400xi remote

to access amplifier

commands

Note Remote control keys listed above function with the KAV–400xi. Other keys

on this remote control may activate other Krell components. Consult the

Krell reference manual for each model to review your component’s full

remote control capabilities.

6Krell KAV–400xi

Power

1Power Button

2Power LED

3Stand-by LED

4Infrared Sensor

12 Pre Key (Remote)

Analog Devices

5S-1, S-2, S-3, and

B-1, Buttons, Keys

and LEDs

6Tape Button or Key

7Tape LED

Mode Indicators

8Mute Button or Key

9Mute LED

Volume Adjustment

Functions

10 Level Knob / Level Keys

11 Front Panel Display

13 Bal (Balance) Keys

(Remote)

Indice

Altri manuali Krell Industries Amplificatore

Krell Industries

Krell Industries Foundation 4K Guida rapida

Krell Industries

Krell Industries PAM-3 Manuale utente

Krell Industries

Krell Industries Power Amplifier KAV-150a Guida rapida

Krell Industries

Krell Industries EVOLUTION 222 Manuale utente

Krell Industries

Krell Industries K-300p Guida rapida

Krell Industries

Krell Industries Evolution Two Manuale utente

Krell Industries

Krell Industries 2250e Manuale utente

Krell Industries

Krell Industries Illusion II Manuale utente

Krell Industries

Krell Industries 300 Manuale utente

Krell Industries

Krell Industries KSP-7B Manuale utente

Krell Industries

Krell Industries Preamplifier PAM-5 Manuale utente

Krell Industries

Krell Industries KRC-3 Guida rapida

Krell Industries

Krell Industries Power Amplifiers MDA-300/500 Guida rapida

Krell Industries

Krell Industries Audio + Video Standard Surround... Guida rapida

Krell Industries

Krell Industries KAV-300IL Manuale utente

Krell Industries

Krell Industries Evolution 600 Manuale utente

Krell Industries

Krell Industries S-1200 Guida rapida

Krell Industries

Krell Industries KMA-i800 Guida rapida

Krell Industries

Krell Industries S-150m Manuale utente

Krell Industries

Krell Industries S-1500 Manuale utente

Krell Industries

Krell Industries Power Amplifier KSA 150 / 250 Manuale utente

Krell Industries

Krell Industries Amplifier KAV-250a Guida rapida

Krell Industries

Krell Industries FBI Guida rapida

Krell Industries

Krell Industries KAV-500 Guida rapida

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
