KTI Networks KS-324F Manuale utente
Installation Guide
24-port 10/100 Fast Ethernet Switch
with 1 Fiber Connection
Model Name: KS-324F
We make no warranties with respect to this documentation and disclaim any implied warranties of
merchantability, quality, or fitness for any particular purpose. The information in this document is subject to
change without notice. We reserve the right to make revisions to this publication without obligation to notify any
person or entity of any such changes.
Trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective
companies.
Contents
1. Introduction
1.1 Package Contents
2. Where to Place the 24port Switch
3. Configure The Network Connection
3.1 Connecting Devices to the 24port Switch
3.2 Connecting to Another Ethernet Switch/Hub
3.3 Application
4. For 100BaseFX Connection
4.1 Adding 100BaseFX Module
5. LED Conditions Definition
5.1 LEDs Defined
6. Configure from Console
6.1 Hardware Setting for console
6.2 Operation in Console
Appendix A -Product Specifications
Appendix B -Cable Specifications
Appendix C -Electro-magnetic and Safety Compliances
Appendix D -Warranty
P/N: 17000084
1. Introduction
This 24port Switch is a 24-port 10/100Mbps Fast Ethernet switch. This switch
supports the advanced features for current switch design. This switch can auto
detect the 10/100Mbps speed, full/half duplex mode and MDI/MDI-X
connection. These features provide user the simplest way to complete the
network connection.
There is a console port on the switch. You can configure the switch from the
console for VLAN setting, port setting and priority setting. Port 24 could be a
TP port or FX port and a FX module port is reserved for 100BaseFX expansion.
This 24port Switch also supports CoS function for advanced network
application. This switch supports 2 priority transmit queues per port and long
Ethernet packet up to 1536 bytes for tagged packets.
1.1 Package Contents
lOne 24port Smart Switch
lOne AC power cord
lOne console cable
lTwo rack-mount kits and screws
lThis user's guide
19X7X 15X3X 13X
14X
1X
2X 16X
17X
18X4X
5X
6X 20X
21X
8X
9X
10X
11X
22X12X
TX RX
100BaseFX
RXTX
24X
23X
19X7X 15X3X 13X
14X
1X
2X 16X
17X
18X4X
5X
6X 20X
21X
8X
9X
10X
11X
22X12X TX RX
100BaseFX
24X
23X
Module Not Added
Module Added (TX Port 24 will be disabled)
2. Where To Place the 24port Switch
This 24port Switch can be placed on a flat surface (your desk, shelf or table).
Place the 24port Switch at a location with these connection considerations in
mind:
lThe switch configuration does not break the rules as specified in Section 3.
lThe switch is accessible and cables can be connected easily to it.
lThe cables connected to the switch are away from sources of electrical
interference such as radio, computer monitor, and light fixtures.
lThere is sufficient space surrounding the switch to allow for proper
ventilation (the switch may not function according to specifications beyond
the temperature range of 0 to 50 degrees C).

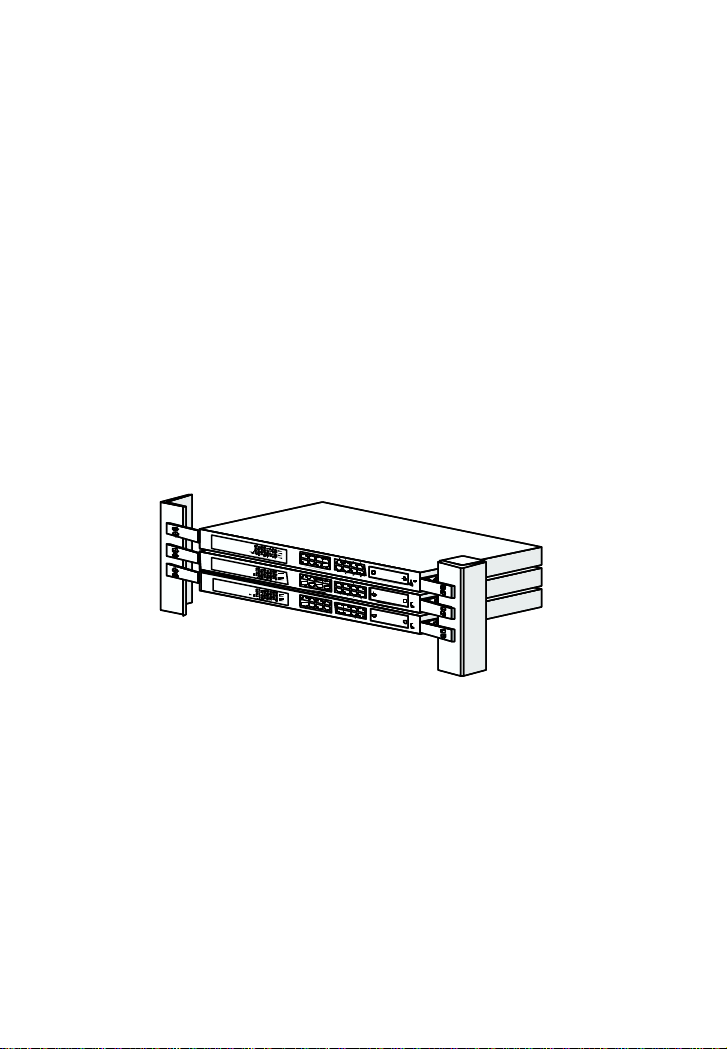

You can also install this 24port switch on a 19" rack with the rack-mount kits
as the picture.
3. Configure the Network Connection

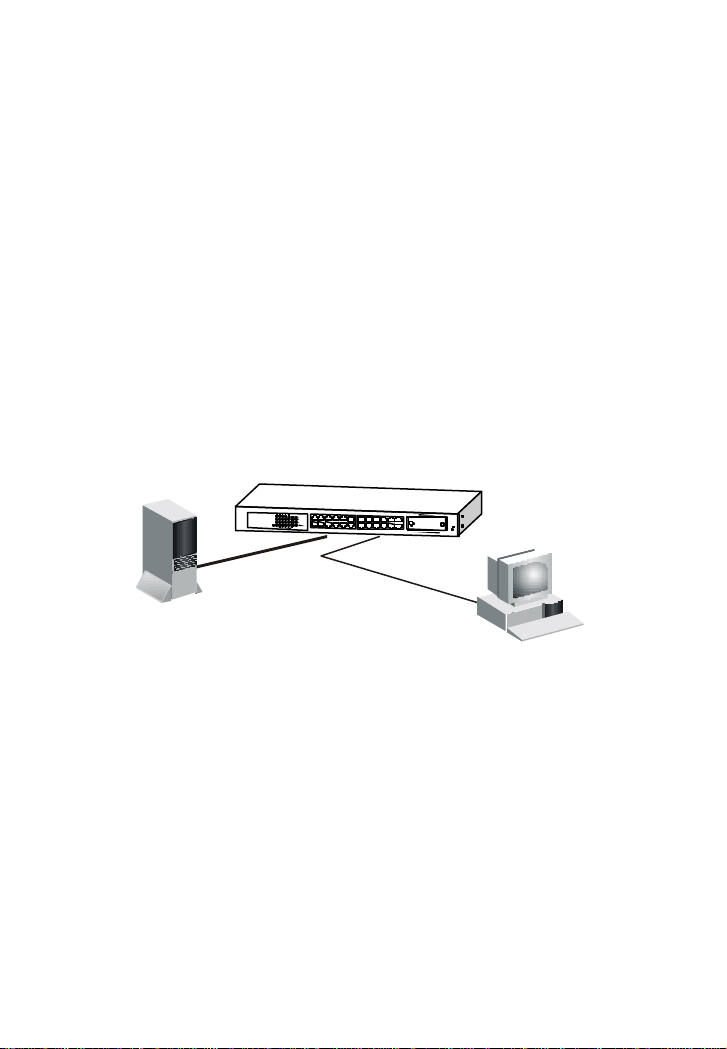

3.1 Connecting Devices to the 24port Switch
[ Connection Guidelines: ]
lUse Category 3 or 5 twisted-pair Ethernet cable when connecting 10BaseT
devices to the switch (cable pin assignments defined in Appendix A)
lUse Category 5 (straight-through) twisted-pair Ethernet cable when
connecting 100BaseTX devices to the switch (cable specifications are defined
in Appendix B)
lAlways limit the cable distance to 100 meters (328 ft) as defined by IEEE
specification
lIf your switch has a FX port, you can connect long distance fiber optic cable
to the switch.
lBecause this switch supports Auto MDI/MDI-Xdetection, you can use normal
straight through cable for both workstation connection and hub/switch
cascading.

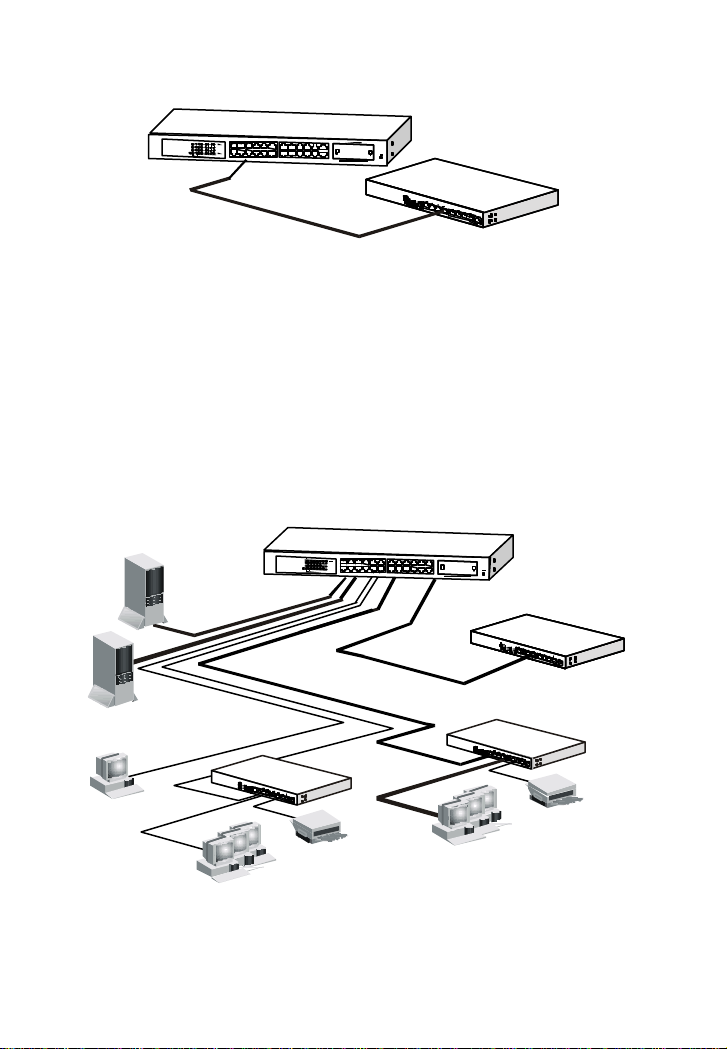

3.2 Connecting to Another Ethernet Switch/Hub
This 24port Switch can be connected to existing 10 Mbps or 100 Mbps
hubs/switches. Because all the TP ports on the 24port Switch are Auto
MDI/MDI-X, you can connect from any TP port of the 24port Switch to the
MDI or MDI-X port of another hub/switch with Straight Through or crossover
cables.
100BASETX:
Cat-5 Twisted-pair cable
Max. 100m (328) 10BASET:
Cat-3,4,5 Twisted-pair cable
Max. 100m (328) PC
FS feet)
feet)
3.3 Application
A switch can be used to overcome the hub to hub connectivity limitations as
well as improve overall network performance. Switches make intelligent
decisions about where to send network traffic based on the destination address of
the packet. As a result, the switch can significantly reduce unnecessary traffic.
The example below demonstrates the switch ability to segment the network.
The number of nodes on each segment is reduced thereby minimizing network
contention (collisions) and boosting the available bandwidth per port.
TO:MDI or MDI-X port
Max. 100m (328
)feet)
Workgroup
Power User
Workgroup
FS
FS Hub/Switch
Hub/Switch
Another Ethernet
Switch
4. For 100BaseFX Connection
4.1 Adding 100BaseFX Module
This 24port switch has a module port for 100BaseFX connection extension.
You can add a 100BaseFX module to the switch and this switch gets a
100BaseFX port for long distance fiber optic cable connection. But when this
module is added, the 24th TP port will be disable and this FX port become the
24th port.
Please follow the steps to add the module to the switch.
1. Turn off the switch.
2. Loosen the screws of the blank cover and remove the cover from the module
port of the switch.
3. Slide in the module into the module port.
4. Tighten the screws of the module to the switch.
5. Connect the fiber optic cable to the FX port of the module.
6. Power on the switch.
7. Refer to Section 6 to configure Port 24 to [Auto-Disable, 100Mbps, Full
Duplex] for 100BaseFX connection from console.
Module Port
5. LEDs Conditions Definition
5.1 LEDs Defined
The LEDs provide useful information about the switch and the status of all
individual ports.
LED STATUS CONDITION
Power ON Switch is receiving power.
ON Port has established a valid link.
Flashing Data packets being received or sent.
Green The connection speed is 100Mbps.
Link / Act
Yellow The connection speed is 10Mbps.
ON The connection is Full Duplex.
FDX / Col
Flashing Packet collisions occurring. A low level of
collision is a part of normal Ethernet Operation.
