Industrial 5-Port Fast Ethernet Switches

with SFP Slot and optional 4 PoE PSE Ports

Basic Model: KSD-541

PoE Model: KSD-541-P

Installation Guide

DOC.100125

-2-

any form or by any means or used to make any directive work (such as translation or transformation)

without permission from KTI Networks Inc.

KTI Networks Inc. reserves the right to revise this documentation and to make changes in content

from time to time without obligation on the part of KTI Networks Inc. to provide notification of such

revision or change.

For more information, contact:

United States KTI Networks Inc.

P.O. BOX 631008

Houston, Texas 77263-1008

Phone: 713-2663891

Fax: 713-2663893

E-mail: [email protected]

URL: http://www.ktinet.com/

International Fax: 886-2-26983873

E-mail: [email protected]

URL: http://www.ktinet.com.tw/

-3-

The information contained in this document is subject to change without prior notice. Copyright (C). All

RightsReserved.

TRADEMARKS

Ethernetisaregisteredtrademark of Xerox Corp.

WARNING:

Thisequipment has been testedandfoundtocomplywiththelimitsfor a ClassAdigitaldevice, pursuant

toPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst harmful

interferencewhenthe equipment is operated inacommercial environment. This equipment generates,

uses, and can radiate radio frequency energy and if not installed and used in accordance with the

instructionmanualmaycause harmful interference in which case theuserwillbe required to correct the

interferenceathis own expense.

NOTICE:

(1) The changes or modifications not expressively approved by the party responsible for compliance

couldvoidthe user's authority tooperatethe equipment.

(2) Shielded interface cables and AC power cord, if any, must be used in order to comply with the

emission limits.

CISPRACOMPLIANCE:

Thisdevicecomplies withEMCdirectiveofthe European Communityandmeetsorexceeds thefollowing

technicalstandard.

EN 55022 - Limits and Methods of Measurement of Radio Interference Characteristics of Information

Technology Equipment.This device complies withCISPR ClassA.

CE NOTICE

Marking by the symbol indicates compliance of this equipment to the EMC directive of the Euro-

pean Community.Suchmarkingis indicative that this equipmentmeetsor exceeds the followingtechni-

calstandards:

EN 55022: Limits and Methods of Measurement of Radio Interference characteristics of Information

Technology Equipment.

EN50082/1:Generic Immunity Standard -Part 1:Domestic Commercial and Light Industry.

EN 60555-2: Disturbances in supply systems caused by household appliances and similar electrical

equipment- Part 2:Harmonics.

-4-

Table of Contents

1. Introduction.................................................................................................. 5

1.1 Features ...................................................................................................................6

1.2 Product Panels .........................................................................................................6

1.3 LED Indicators..........................................................................................................6

1.4 Specifications...........................................................................................................7

2. Installation .................................................................................................... 9

2.1 Unpacking .................................................................................................................9

2.2 Safety Cautions ........................................................................................................9

2.3 Mounting the Switch on a Wall...................................................................................9

2.4Din-RailMounting ....................................................................................................10

2.5PanelMounting ........................................................................................................11

2.6ApplyingPower ........................................................................................................11

3. Making Connections.................................................................................. 13

3.1 Making UTP Connections .......................................................................................13

3.2 Making Fiber Connection ........................................................................................13

3.3 Making PoE Connections .......................................................................................14

3.4 LED Indication ........................................................................................................15

4. Applications ............................................................................................... 16

4.1 Applications with Basic Switch Model .....................................................................16

4.2 Applications with PoE Switch Model .......................................................................17

-5-

1. Introduction

The switches are 5-port Fast Ethernet switches which are featured with four copper ports and one

combo port. The combo port comes with one RJ-45 and one SFP slot. The SFP slot can be mounted

with a fiber transceiver optionally to support a fiber connection.

For more coming PoE (Power Over Ethernet) applications, the PoE switch model is equipped with PoE

design in four copper ports. With proper 48VDC power supply, it is able to deliver power to four PoE PD

devicesviaCat.5 cables.This guide describestheinstallationinformationabout two models as follows:

Basic Model Industrial 5-port Fast Ethernet switch with SFP slot

PoE Model Industrial 5-port Fast Ethernet switch with SFP slot and PoE feature

In summary, the switch provides the following advantages:

Plug and Play

No configuration is required in using the switch.With the featured auto-negotiation function, the switch

can detect and configure the connection speed and duplex automatically. The switch also provides auto

MDI/MDI-X function, which can detect the connected cable and switch the transmission wire pair and

receiving pair automatically.This auto-crossover function can simplify the type of network cables used.

Fiber Connectivity

For fiber connection, the SFP slot can be installed with an optional SFP optical fiber transceiver to

support one fiber connection when needed.

Power over Ethernet

For PoE applications, four IEEE 802.3af-compliant PoE PSE ports are provided in four copper ports.

Each PSE port can deliver +48VDC power to one PoE PD (Powered Device) via the connected Cat.5

cable.

Industrial Features

For industrial environment, the devices are designed with the following enhanced features exceeding

that of commercial Ethernet switches:

• High and wide operating Temperature

• Power input interface: Industrial screw terminal block and DC power jack for external

commercial power adapter as option

• Screw panel andDIN rail mounting support for industrial enclosure

• Industrial-rated Emission and Immunity performance

-6-

1.1 Features

zProvides 5 10/100Mbps RJ-45 and one 100Mbps SFP slot

zAll copper ports support auto-negotiation and auto-MDI/MDI-X detection

zProvides full wire speed forwarding

zSupports IEEE 802.3x flow control for full-duplex and backpressure for half-duplex

zProvides SFP slot for optional optical fiber connection

zProvides four IEEE 802.3af-compliant PoE PSE ports

zProvides two types of power supply interfaces - DC Jack and terminal block

zSupports stand-alone, wall,Din-Rail, and panel mounting

zIndustrial-rated emission and immunity performance

1.2 Product Panels

The following figure illustrates the faces of the switch:

1.3 LED Indicators

LED Function

POWER Power status

LINK/ACT Port link status and activities (Port 1 - Port 5)

100M/10M Port speed status (Port 1 - Port 5)

PoE STATUS Port PoE power status (Port 2 - Port 5)

SFP/RJ-45 Port 1 SFP / RJ-45 selection status

-7-

1.4 Specifications

Copper Ports w/h PSE (P2-P5)

Compliance IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

Connectors Shielded RJ-45 jacks

Pin assignments Auto MDI/MDI-X detection

Configuration Auto-negotiation

Transmission rate 10Mbps,100Mbps

Duplexsupport Full/Halfduplex

Network cable Cat.5 UTP

Power over Ethernet IEEE 802.3af-compliant PSE (function equipped in PoE Model only)

Combo Port (P1)

Compliance IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX/100Base-FX

Interface Selection Fiber is selected if an SFP fiber transceiver is installed in SFP slot

Copper Interface

Connector Shielded RJ-45 jack

Pin assignments Auto MDI/MDI-X detection

Configuration Auto-negotiation or software control

Transmission rate 10Mbps,100Mbps

Duplexsupport Full/Halfduplex

Network cable Cat.5 UTP

Fiber Interface

Connector SFP slot for optional SFP type fiber transceivers

Configuration 100Mbps,Full duplex

Far End Fault Support Enabled

Network cables MMF 50/125 60/125, SMF 9/125

Eye safety IEC 825 compliant

Switch Functions

MAC Addresses Table 1K entries

Forwarding & filtering Non-blocking, full wire speed

Switchingtechnology Store and forward

Maximum packet length 1536 bytes

Flowcontrol IEEE 802.3x pause frame base for full duplex operation

Back pressure for half duplex operation

Broadcast Storm Protection design

-8-

Power over Ethernet Function (PoE Model)

PSE Pin 4,5 Positive of power voltage (Typical 48VDC)

PSE Pin 7,8 Negative of power voltage (Typical 48VDC)

Discovery PD resistance 15K ~ 33K

PDClassification Class 0 ~ 4

Power delivery 15.4W max. (per port)

Protection Under voltage protection

Over voltage protection

Over current detection

DC IN Power Input

Interfaces DC IN Jack ( -D 6.3mm / + D 2.0mm)

DC IN Terminal Block (screw type)

Operating Input Voltages +6 ~ 60VDC

Power Consumption 3W max. @7.5V (No PoE output)

PoE Function Operating input voltage: +43V ~ 54V(Typical 48V)

DC IN Jack Interfaces Power jack -D 6.3mm / + D 2.0mm

DC IN Terminal Block Pins: + / - / GND

Mechanical

Dimension (base) 144 x 104.5 x 26 mm

Housing Enclosed metal with no fan

MountingSupport Din-rail mounting, Panelmounting,Wall mounting,Desktop mounting

Environmental

Operating Temperature Typical -20oC ~ 70oC

Storage Temperature -20oC ~ 85oC

RelativeHumidity 10% ~ 90%

Electrical Approvals

FCC Part 15 rule Class A

CE EMC, CISPR22 Class A

Safety IEC60950-1 / EN60950

-9-

2. Installation

2.1 Unpacking

The product package contains:

•The switch unit

•One product CD-ROM

2.2 Safety Cautions

To reduce the risk of bodily injury, electrical shock, fire, and damage to the product, observe the

followingprecautions.

•Do not service any product except as explained in your system documentation.

•Opening or removing covers may expose you to electrical shock.

•Only a trained service technician should service components inside these compartments.

•If any of the following conditions occur, unplug the product from the electrical outlet and replace

the part or contact your trained service provider:

- The power cable, extension cable, or plug is damaged.

- An object has fallen into the product.

- The product has been exposed to water.

- The product has been dropped or damaged.

- The product does not operate correctly when you follow the operating instructions.

• Do not push any objects into the openings of your system. Doing so can cause fire or electric

shock by shorting out interior components.

• Operate the product only from the type of external power source indicated on the electrical

ratings label. If you are not sure of the type of power source required, consult your service

provider or local power company.

2.3 Mounting the Switch on a Wall

The switch can be mounted on a desktop or shelf or a wall. Make sure that there is proper heat

dissipation from and adequate ventilation around the device.Do not place heavy objects on the device.

-10-

2.4 Din-Rail Mounting

The steps to mount the switch on aDin-rail are:

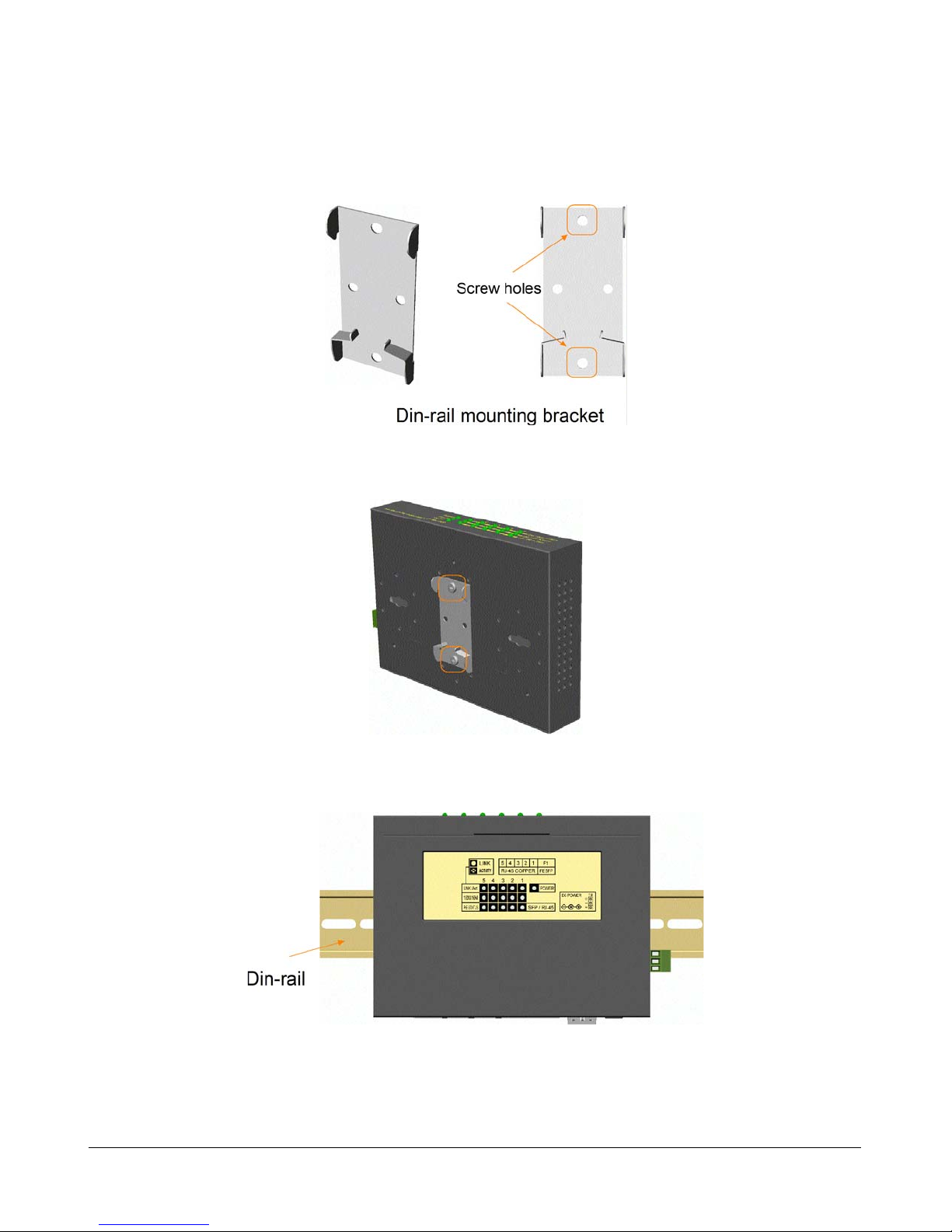

OneDin-rail mounting bracket is provided in the product package as shown below:

Install the bracket on the bottom of the switch unit.

Mount the device on aDin-rail.

Altri manuali per KSD-541

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KTI Networks Interruttore

KTI Networks

KTI Networks KGS-0500 Manuale utente

KTI Networks

KTI Networks KS-116 Manuale utente

KTI Networks

KTI Networks KGS-1064-HP Manuale utente

KTI Networks

KTI Networks KGS-0820 Manuale utente

KTI Networks

KTI Networks KFS-2621 Manuale utente

KTI Networks

KTI Networks KS-2402 Manuale utente

KTI Networks

KTI Networks KS-115F Series Manuale utente

KTI Networks

KTI Networks KS-280 Manuale utente

KTI Networks

KTI Networks KSD-800 Manuale utente

KTI Networks

KTI Networks KSD-541 Manuale utente

KTI Networks

KTI Networks KGS-1064-BP Manuale utente

KTI Networks

KTI Networks KCD-303P-A1 Manuale utente

KTI Networks

KTI Networks KF-16M Manuale utente

KTI Networks

KTI Networks KGS-2422-TG Series Manuale utente

KTI Networks

KTI Networks KGS-0820 Manuale utente

KTI Networks

KTI Networks KS-2240 Manuale utente

KTI Networks

KTI Networks KGS-500 Ver.D Manuale utente

KTI Networks

KTI Networks KGS-510F Ver.D Manuale utente

KTI Networks

KTI Networks KS-2601 Manuale utente

KTI Networks

KTI Networks KGS-2421 Manuale utente

KTI Networks

KTI Networks KSD-103-A Series Manuale utente

KTI Networks

KTI Networks KS-2601 Manuale utente

KTI Networks

KTI Networks KPOE-800-1P Manuale utente

KTI Networks

KTI Networks KGS-2461-S Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
