KVM-TEC INDUSTRYLINE MVX1i Manuale utente

Check out our

Installation Channel:

FIRST AID

6701i SET INDUSTRYLINE MVX1i

Copper

6701iL CPU/LOCAL/ 6701iR CON/REMOTE

6801i SET INDUSTRYLINE MVXi

Fiber

6801iL CPU/LOCAL/ 6801iR CON/REMOTE

CHECK YOUR EXTENDER

www.kvm-tec.com

kvm-tec

First

Aid

INDUSTRYLINE

smart connections

First

Aid

kvm-tec

INDUSTRYLINE

smart connection

Delivery content

LOCAL/CPU Unit MVX1

1 x MVX1i local (CPU)

without power supply

1 x Power Connector

1 x DVI - DVI cable 1,8m/5,9ft

1 x USB cable 1,8m/5,9ft

1 x VGA - DVI cable 1,8m/5,9ft (opt)

4 x rubber feet

REMOTE/CON Unit

1 x MVX1 remote (CON)

without power supply

1 x Power Connector

4 x rubber feet

possible upgrades for Industryline

USB Memory

Analog VGA- transmitted as DVI (included in US)

Matrix Switching System up to 48 endpoints ( included in US )

1. First check your delivery content for Industryline...

2. Are your upgrades for

INDUSTRYLINE are unlocked

3. Than check your installation....

to unlock upgrades, please send an email or give us a

calll. Please have your ID code ready.( you ﬁ nde your ID

in the OSD menu by pressing the button „M“ - Device ID

You´ll get a code from our support team.

Please, enter the code

1. power plug

12-24 VDC

4. DVI in

from PC

2. USB to PC

4. DVI out

from Monitor

1. power

plug

12-24 VDC

2. USB from

Kayboard and Mouse

3. Network cable CAT 5e/6/7)up to 150m/492ft

4. DVI to Moni-

tor

Kayboard and Mouse

earth

connection

earth

connecti-

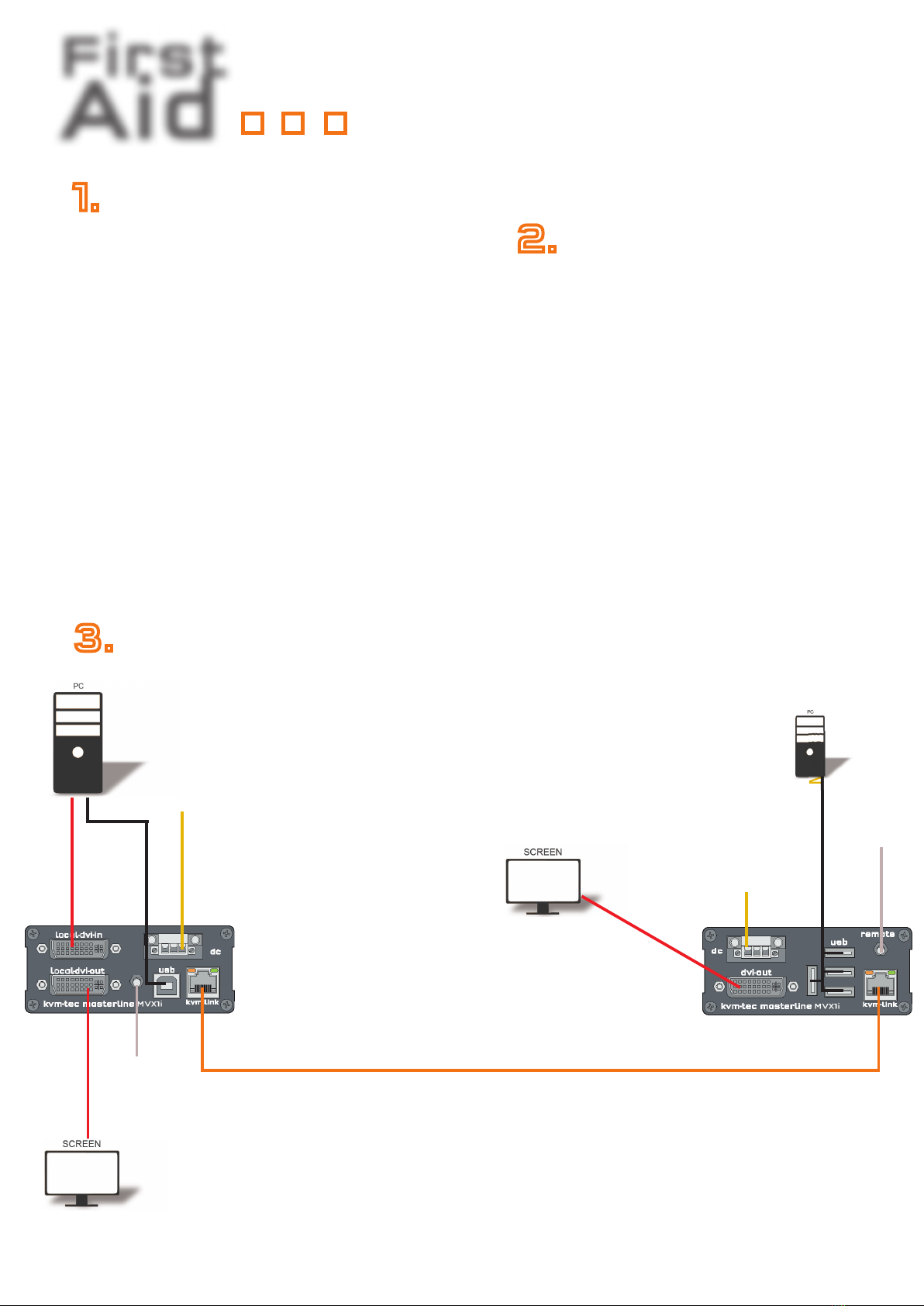

Quick Installation INDUSTRYLINE MVXi local / CPU – remote/ CON

1. Connect the CON / Remote and the CPU / Local Unit to the included 12V 1A power supply.

2. Now connect the USB cable to a USB port on your PC and connect the other end of the USB cable to the CPU /

Local Unit. Connect keyboard and mouse to the CON / Remote Unit.

3. Connect the CPU / Local and the CON / Remote Unit with a network cable.

4. Now connect the HDMI-DVI cable to the DVI socket of the PC and the other end to the HDMI socket of the CPU /

Local Unit (PC-in). Then connect the monitor with the HDMI-DVI cable to the CON / Remote Unit.

HAVE FUN - your kvm-tec Extender is now in use for many years ( MTBF approx 10 years)

First

Aid

kvm-tec

INDUSTRYLINE

smart connection

Delivery content

LOCAL/CPU Unit

1 x MVX 1i -F local (CPU)

Without power supply

1 x Power Connector

1 x DVI - DVI cable 1,8m / 5,9 ft

1 x USB cable 1,8m / 5,9 ft

1 x VGA - DVI cable 1,8m / 5,9 ft (opt)

1 x SFP Modul-Multimode up to 500m / 1640 ft

(alternativ with Single-Mode up to 20km / 12 mi)

4 x rubber pads

Remote (CON)

1 x MVX1-F remote (CON)

without Power supply unit

1 x Power Connection

1 x SFP Modul Multimode up to 500m/1640 ft.

(alternativ with Single-Mode up to 20km/12 mi)

4 x rubber feet

for your FIBER Extender

4 x SFP Module-Multimode up to

500m/1640 ft.

alternativ with Single-Mode up to 20km/12mi-

ItemNr6831

possible upgrades for Industryline

USB Memory

Analog VGA- transmitted as DVI (included in US)

Matrix Switching System up to 48 endpoints ( included in US )

to unlock upgrades, please send an email or give us a

calll. Please have your ID code ready.( you ﬁ nde your ID

in the OSD menu by pressing the button „M“ - Device ID

You´ll get a code from our support team.

Please, enter the code

1. First check your delivery content ...

2. Are your upgrades for In-

dustryline ﬁ ber unlocked

3. Than check your installation....

1. power plug

12-24 VDC

4. DVI in

from PC

2. USB to PC

4. DVI out

from Monitor

1. power

plug

12-24

VDC

2. USB from

Kayboard and Mouse

3.Duplex Multimode Fiber cable up to 500m/1640ft

4. DVI to Monitor

earth

connection

earth

connection

Quick Installation INDUSTRYLINE FIBER local / CPU – remote/ CON

1. Connect the CON / Remote and the CPU / Local Unit to the included 12V 1A power supply.

2. Now connect the USB cable to a USB port on your PC and connect the other end of the USB cable to the CPU /

Local Unit. Connect keyboard and mouse to the CON / Remote Unit.

3. Connect the CPU / Local and the CON / Remote Unit with a network cable.

4. Now connect the HDMI-DVI cable to the DVI socket of the PC and the other end to the HDMI socket of the CPU

/ Local Unit (PC-in). Then connect the monitor with the HDMI-DVI cable to the CON / Remote Unit.

HAVE FUN - your kvm-tec Extender is now in use for many years ( MTBF approx 10 years)

First

Aid

kvm-tec

INDUSTRYLINE

smart connection

4. Check the LEDS to get more information....

Error Cause Solution

LED is not

lighting

The devices get no power Is the power supply connected? (white box)

LED is lighting

in red

No connection between

Loc and Rem

Check if the RJ45/network cable is connected well. (Clicking noise when

plugging in)

Control both, if it does not work please send an e-mail to support@kvm-

tec.com

LED is lighting

in orange

No picture on the monitor Check if the local/CPU (PC) cable is connected well.

Check if the remote/CON (monitor) cable is connected well.

If everything is connected well but no function appears, reconnect

power supply again.

If the menu is visible, press the Okey and choose the resolution of the

monitor. Then press the assigned number on your keyboard.

LED is lighting

green

Screen occurs but the

keyboard is not working

Plug out/in USB of keyboard and wait until driver is installed (after few

seconds).

Check all USB connections on both sides (Local and Remote)

If it is still not working, plug out/in DC once more

LED is lighting

green

No audio Establish audio connection:

plug stereo-jack to the audio output of the PC (green) connection with

local: IN

remote: headset OUT

Establish microphone connection:

plug stereo-jack to the microphone input of the PC (pink)

connection with local OUT

LED is lighting

green

The screen ﬂ ickers, has

an incorrect display

Install current ﬁ rmware from our homepage www.kvm-tec.com/

support/ﬁ rmware-download

LED is blinking

green

Different ﬁ rmware or

USB is not compatible

e-mail to [email protected]

LED are

lighting

differently

Different ﬁ rmware To enter on screen menu/check ﬁ rmware version:

To enter the On screen menu, press the Scroll Lock key ﬁ ve times in

quick succession. The currently installed ﬁ rmware version is displayed

below the menu

If ﬁ rmware update does not work, please send an e-mail to support@

kvm-tec.com

First

Aid

kvm-tec

INDUSTRYLINE

smart connection

5. Your Extender....

Video error

(stripes in the

picture)

USB is not

working

No Power

(No LED)

Check the

powerplug

Is the power

supply ok? Try

another Unit.

Try reprogramming

the Unit by using a

JTAG programmer

Contact kvm-tec

support

Are the USB

Devices plugged

in correctly?

Is the USB cable

on the Local side

plugged into the

PC?

Are the USB

Devices working

directly on the

PC?

Check if local and

remote Unit have

the same ﬁ rm-

ware

Replace the USB

cable from PC to

the Local Exten-

der

Check if the local

or the remote

Unit is causing

the problem by

swaping ﬁ rst the

local and than the

remote Unit to

another Unit

Contact kvm-tec

support

Check if all

cables are plug-

ged in correctly

Check if the PC is

sending a Image by

plugging in a

monitor on the

local out of the

local Unit

Check if the DDC is

set correctly (in menu

under point „O“)

Check if both

Units have the

correct ﬁ rmware

No Video

Contact kvm-tec

support

Check if all

cables are plug-

ged in correctly

Check if the PC is

sending a Image

by plugging in a

monitor on the

local out of the

local Unit

Check if local and re-

mote Unit have the

correct ﬁ rmware

Check if the DDC

is set correctly (in

the menu under

point „o“)

Check if the net-

work switch is

setup correctly

and has enough

bandwidth

Contact kvm-tec

support

Check if other units

have the same

behaviour

We are here for you to answer

your questions about installation?

Manual download www.kvm-tec.com

kvm-tec Installationchannel on our homepage

personally +43 2253 81912

kvm-tec Support

[email protected]

Phone: +43 2253 81912 - 30

First

Aid

kvm-tec

INDUSTRYLINE

smart connection

6. Check the ﬁ rmware version ....

To view the ﬁ rmware version

Make sure the main menu is open. The currently installed ﬁ rmware version of the remote and local units are

displayed (e.g. ‘4267’) and check that you have the same ﬁ rmware on both units.

Ways to update the ﬁ rmware version ....

There are four ways to perform an update:

1. update via a bitmap image

2. automatic update

3. network update

how to update the ﬁ rmware version ....

To perform a ﬁ rmware update:

1. Make sure the main menu is open.

2. Press the Nkey to do a network update.

3. Press the Akey to do an automatic update.

4. Press the Ukey to do a direct update.

5. Press the Skey to do a USB Update.

Update service with kvm-tec Switching Manager....

For all our devices of the SVX and MVX series we deliver a free demo version of the kvm-tec Switching Manager Software

(Item No. 4004) for a comfortable update of all units in the switching system. For our devices of the MX and UVX series

the Switching Manager is included.

This is a comfortable update management for your switching system.

You can update all extenders at the same time. The update is performed in the background and in a second step the

units are rebooting with the new ﬁ rmware.

Only a short time is needed for the second step.

ATTENTION ! Only when the bar is grey, the update is ﬁ nished.

First

Aid

kvm-tec

INDUSTRYLINE

smart connection

o identify your extender

o ﬁ rst check your delivery content

o are all needed upgrades are unlocked

o all cables are connected and all units are switched on

o check the LED status

o Video - check if the DDC is set correctly (in menu under point „O“ )

o USB - are all cables connected

o in case of issues check the ﬁ rmware version (download for the newest ﬁ rmware kvm-tec.com/support )

if everything is working ﬁ ne - perfect

Tipps from our engineers for engineers

• reduce the setting of your system and set up only one local and one remote at the same place

• connect the monitor directly to the PC - does the monitor display an image ? (follow the mentioned steps

from above)

• LED status is red or blinking - this can be a cable problem - try to get a short patchcable and to connect

the units and be sure that it´s not a cross - over cable

• USB problems with mouse and keyboard - please try a different type of mouse and keyboard

Further expert tipps for issues

• Adapter - our units are transmitting DVI signals. If you are using adapters try a PC with DVI signal

• PC - please try another machine

• If you have more sets please make a cross check and change of the units

Further steps

Please, ﬁ ll out the support form

and contact our support team +43 2253 81912 - 30

7. Checklist ....

First

Aid

kvm-tec

INDUSTRYLINE

smart connection

If the shoe pinches, then we are there for you!

Support Form

Support - request

If the shoe pinches, then we are there for you!

Contact Information

Company

Contact person

phone number

customer from

device type

SVX1

MVX1 Fiber copper

MX48 Fiber copper

MX2000 Fiber copper

UVX Fiber copper

Switching Manager

copper SVX2

MVX2 Fiber copper

copper

Firmware & Upgrade

Firmware Nr.:

Memory Option

RS232

VGA

Sound

Switching

Other connected devices

(Switches, HUBs, Touch-

screens, Webcams,.....)

To support your case as quickly as possible

and to be able to process and track your data,

we ask you to provide us with

the following information.

After we have received your mail, a sup-

port ticket is automatically created in

our ticket system, where all informati-

on about your support case is stored.

and are traceable at any time.

This way the support team has all the informa-

tion about your system in a direct conversati-

on and your advantage is that the questions

can be answered in a targeted and faster way.

Problem description

Almost done! If you want to be even faster on the phone, the following data would be helpful:

No power

No Link

VGA problem

No connection

DOA (dead on

arrival)

Stripy screen

No Video

No USB

Mouse/ Key-

board doesn´t

work

LED Status local/CPU

LED Status remote/CON

red orange green

glowing ﬂ ashing

red orange green

glowing ﬂ ashing

Please send the form to [email protected].

Thank you very much! As soon as we have received your mail, it will be tracked in our system as a support case and we will

contact you immediately!

Resolution:

Fix

kvm-tec electronic gmbh

Gewerbepark Mitterfeld 1A, 2523 Tattendorf, Austria

+43 2253 81912-30 - [email protected]

copper

First

Aid

kvm-tec

INDUSTRYLINE

smart connection

RMA Form

If the shoe pinches, then we are there for you!

RMA - request

If the shoe pinches, then we are there for you!

Contact Information

Company

Contact person

phone number

customer from

device type

SVX1

MVX1 Fiber copper

MX48 Fiber copper

MX2000 Fiber copper

UVX Fiber copper

Switching Manager

copper SVX2

MVX2 Fiber copper

copper

Firmware & Upgrade

Firmware Nr.:

Memory Option

RS232

VGA

Sound

Switching

Other connected devices

(Switches, HUBs, Touch-

screens, Webcams,.....)

Problem description

Almost done! If you want to be even faster on the phone, the following data would be helpful:

No power

No Link

VGA problem

No connection

DOA (dead on

arrival)

Stripy screen

No Video

No USB

Mouse/ Key-

board doesn´t

work

LED Status local/CPU

LED Status remote/CON

red orange green

glowing ﬂ ashing

red orange green

glowing ﬂ ashing

Please send your RMA to Heidi Brosig email [email protected]

Resolution:

Fix

kvm-tec electronic gmbh

Gewerbepark Mitterfeld 1A, 2523 Tattendorf, Austria

+43 2253 81912-30 - [email protected]

copper

RMA Number

Questo manuale è adatto per i seguenti modelli

Altri manuali KVM-TEC Estensione

KVM-TEC

KVM-TEC Matrixline 2000 Series Manuale utente

KVM-TEC

KVM-TEC Smartline SVX Series Manuale utente

KVM-TEC

KVM-TEC Masterline MVX Manuale utente

KVM-TEC

KVM-TEC Master Line MVX Series Manuale utente

KVM-TEC

KVM-TEC USBflex Manuale utente

KVM-TEC

KVM-TEC SmartLINE SVX Manuale dell'operatore

KVM-TEC

KVM-TEC EASYLINE smartEasy Manuale utente

KVM-TEC

KVM-TEC smartEASY single SE1 Manuale utente

KVM-TEC

KVM-TEC Matrixline MX Manuale dell'operatore

KVM-TEC

KVM-TEC masterEASY Manuale dell'operatore

KVM-TEC

KVM-TEC KT-6031L Manuale utente

KVM-TEC

KVM-TEC Matrixline MX2000 Manuale utente

KVM-TEC

KVM-TEC USBflex Istruzioni operative originali

KVM-TEC

KVM-TEC 4K Multiview Commander Istruzioni operative originali

KVM-TEC

KVM-TEC masterEASY Manuale utente

KVM-TEC

KVM-TEC masterEASY Manuale utente

KVM-TEC

KVM-TEC Profiline PROVX2 Manuale utente

KVM-TEC

KVM-TEC SMARTLINE Manuale utente

KVM-TEC

KVM-TEC masterEASY Manuale utente

KVM-TEC

KVM-TEC media4Kconnect 6930 DP1.2 Manuale utente

KVM-TEC

KVM-TEC USBflex Istruzioni operative originali

KVM-TEC

KVM-TEC media4Kconnect 6930 DP1.2 Foglio di istruzioni

KVM-TEC

KVM-TEC Masterline MVX1 Manuale utente

KVM-TEC

KVM-TEC FLEXLINE KT-6011L Istruzioni operative originali

Manuali Estensione popolari di altre marche

SY HDBT-60T Manuale utente

Appsys ProAudio

Appsys ProAudio ADX-16 Manuale utente

Atlona

Atlona RS232 Manuale utente

IDK

IDK OPF-TH1000-A Manuale utente

Enable-IT

Enable-IT 824WP Manuale utente

Worx

Worx Landroid RadioLink WA0864 Scheda tecnica

TP-Link

TP-Link TL-WA730RE Manuale utente

Camplex

Camplex CMX-HDMI-SFPL Manuale utente

SC&T

SC&T HE03-4K Manuale utente

Marmitek

Marmitek MegaView70 Manuale utente

Samsung

Samsung SCS-26UC4 Manuale utente

Foxun

Foxun SX-GES24 Manuale utente

MuxLab

MuxLab 500771 Manuale utente

foxunhd

foxunhd SX-AEX01 Manuale utente

TERK Technologies

TERK Technologies LFIRX2 Manuale utente

Devolo

Devolo Audio Extender Manuale

Edimax

Edimax EW-7438RPn V2 Manuale utente

Shinybow USA

Shinybow USA SB-6335T5 Manuale utente
