KVM-TEC SmartEasy Manuale dell'operatore

Misprints, errors and technical changes reserved

kvm-tec

First Aid

smartEASY

Video error

(stripes in the

picture)

USB is not

working

No Power

(No LED)

Check the

powerplug

Is the power

supply ok? Try

another Unit.

Contact kvm-tec

support

Are the USB

Devices plugged

in correctly?

Is the USB cable

on the Local side

plugged into the

PC?

Are the USB

Devices working

directly on the

PC?

Check if local

and remote Unit

have the same

 rmware

Replace the USB

cable from PC to

the Local

Extender

Check if the local

or the remote

Unit is causing

the problem by

swaping  rst the

local and than the

remote Unit to

another Unit

Contact kvm-tec

support

Check if all

cables are plug-

ged in correctly

Check if the PC is

sending a Image by

plugging in a

monitor on the

local out of the

local Unit

Check if the DDC is

set correctly (in menu

under point „O“)

Check if both

Units have the

correct  rmware

No Video

Contact kvm-tec

support

Check if all

cables are plug-

ged in correctly

Check if the PC is

sending a Image

by plugging in a

monitor on the

local out of the

local Unit

Check if local and re-

mote Unit have the

correct  rmware

Check if the DDC

is set correctly (in

the menu under

point „o“)

Check if the

network switch

is setup correctly

and has enough

bandwidth

Contact kvm-tec

support

Check if other units

have the same

behaviour

We are here for you to answer

your questions about installation?

Manual download www.kvm-tec.com

kvm-tec Installationchannel on our homepage

personally +43 2253 81912

kvm-tec Support

[email protected]

Phone: +43 2253 81912 - 30

smart

Easy

FULL HD - KVM EXTENDER OVER IP

Tune in the easy KVM World

Check out

our Installation Channel:

Quick

Instructions

Easy

FULL HD - KVM EXTENDER OVER IP

Tune in the easy KVM World

•

smartEasy

Single in copper

Art Nr: KT - 8111

www.kvm-tec.com

V102022

Misprints, errors and technical changes reserved

Power plug

12V 1A

Power plug

12V 1A

USB to PC

DVI in

from PC

DVI to Monitor

USB from

Keyboard and mouse

Quick Installation smartEASY Single local / CPU – remote / CON

1. Connect the CON / Remote and the CPU / Local Unit to the included 12V 1A power supply.

2. Now connect the USB cable to a USB port on your PC and connect the other end of the USB cable to the CPU /

Local Unit. Connect keyboard and mouse to the CON / Remote Unit.

3. Connect the CPU / Local and the CON / Remote Unit with a network cable.

4. Now connect the DVI cable to the DVI socket of the PC and the other end to the DVI socket of the CPU / Local

Unit (PC-in). Then connect the monitor with the DVI cable to the CON / Remote Unit.

5. If you are using a switch: Connect all endpoints to the switch. Ensure that all connections have a bandwith of

1Gbit/sec. For video sharing the network has to support IGMP snooping (Layer3)

HAVE FUN - your kvm-tec Extender is now in use for many years (MTBF approx 10 years)

Network cable CAT5e/6/7/ up to 150m/492ft

DVI out

to Monitor

Öpen OSD menu

The OSD main menu is opened with the

standard shortcut: 5 x ALT Gr

(Attention: the  rst 20 seconds 5 x Scroll

always works, in case the shortcut was

forgotten.)

Switching list

: CTRL+ALT+PRINT

Changing the shortcuts

in the OSD menu

Go to the Remote Settings and then navi-

gate to Keyboard Shortcut.

Delivery Content

LOCAL/CPU Unit

1 x SE1 local (CPU)

1 x wall power supplyl 12V 1A (INT or EU-plug)

2 x DVI - DVI cable 1,8m/5.9ft

1 x USB canle 1,8m/5.9ft

4 x rubber feet

REMOTE/CON Unit

1 x SE1 remote (CON)

1 x wall power supplyl 12V 1A (INT orEU-plug)

4 x rubber feet

Misprints, errors and technical changes reserved

ACCESS TO MAIN MENU

Use the monitor and the keyboard to access the main menu

Access to the main menu.

1. make sure the extenders, monitors, and computers are turned on.

2.Press the Scroll Lock button ve times quickly. The main menu and an overview of the

submenus are displayed.

3.To enter a submenu, press the corresponding key.

Main meu Short Cuts :

S Status Overview Menu Status / current Status

U Update Flash FW Firmware update

F Features Overview Settings Features

D DDC Option DDC Option Fix

L Local Settings Settings Local

R Remote Settings Settings Remote

A About Overview Exit

Key „Esc“

DISPLAYING THE FIRMWARE VERSION

Make sure that the main menu is open. Under „A“ - About the currently installed rmware

version of the remote (CON) and local (CPU) extender is displayed

FEATURES

Press the F key to enter the Features menu.

Switching mode is set by default

Misprints, errors and technical changes reserved

FRONTBRIDGING

HARDWARE: 2 SINGLE LOCAL + 1 X DUAL REMOTE

The „Status Menu“ displays the current status of the extender connection. The menu shows the

information about the connection, the resolution of the video channel and the USB status.

The link status shows if a connection is possible. Connected shows if the kvm  les can currently

be transferred.

Video and USB show if data is currently being transferred

Single

BACKBRIDGING

HARDWARE: 1 X DUAL LOCAL + 2 X SINGLE REMOTE

The „Status Menu“ displays the current status of the extender connection. The menu shows the

information about the connection, the resolution of the video channel and the USB status.

The link status shows if a connection is possible. Connected shows if the kvm data can currently

be transferred.

Video and USB show if data is currently being transferred

KVM-TEC

Gewerbepark

Mitterfeld 1 A

2523 Tattendorf

Austria

www.kvm-tec.com

IHSE USA LLC

1 Corp.Dr.Suite

Cranburry NJ 08512

USA

www.ihseusa.com

IHSE GMBH Asia

158Kallang

Way,#07-13A

349245 Singapore

www.ihse.com

IHSE China Co.,Ltd

Room 814

Building 3, Kezhu Road

Guangzhou PRC

www.ihse.com.cn

IHSE GmbH

Benzstr.1

88094 Oberteuringen

Germany

www.ihse.com

KVM-TEC ASIA

p +9173573 20204

[email protected]

KVM-TEC CHINA

- P + 86 1360 122 8145

[email protected]

www.kvm-tec.com

Altri manuali per smartEasy

Questo manuale è adatto per i seguenti modelli

Altri manuali KVM-TEC Estensione

KVM-TEC

KVM-TEC FLEXLINE KT-6011L Istruzioni operative originali

KVM-TEC

KVM-TEC masterEASY Manuale utente

KVM-TEC

KVM-TEC 6980L CPU/LOCAL Manuale utente

KVM-TEC

KVM-TEC USBflex Istruzioni operative originali

KVM-TEC

KVM-TEC SMARTLINE Manuale utente

KVM-TEC

KVM-TEC Ultraline UVX1 Manuale utente

KVM-TEC

KVM-TEC USBflex Istruzioni operative originali

KVM-TEC

KVM-TEC media4Kconnect DP 1.2 Istruzioni operative originali

KVM-TEC

KVM-TEC Masterline MVX Manuale utente

KVM-TEC

KVM-TEC media4Kconnect 6930 DP1.2 Foglio di istruzioni

KVM-TEC

KVM-TEC Smartline Dual SVX2 Series Manuale dell'operatore

KVM-TEC

KVM-TEC 4K Multiview Commander Istruzioni operative originali

KVM-TEC

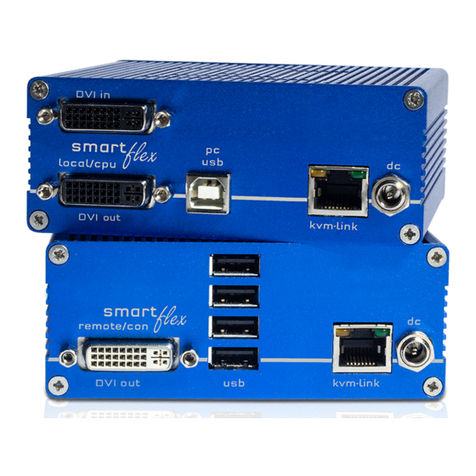

KVM-TEC SMARTflex Manuale utente
