Kyocera Mita Ecosys FS-1900 Manuale utente

Installation Guide

Cover.fm Page 1 Thursday, October 18, 2001 10:22 AM

Caution

NO LIABILITY IS ASSUMED FOR ANY DAMAGE CAUSED BY IMPROPER INSTALLATION.

Notice on Software

SOFTWARE USED WITH THIS PRINTER MUST SUPPORT THE PRINTER’S EMULATION MODE. The

printer is factory-set to emulate the HP PCL 6. The emulation mode can be changed by following the procedures

described in the Operation Guide contained as an electronic file in the Kyocera Mita Digital Library CD-ROM

supplied with the printer.

Notice

The information in this manual is subject to change without notification. Additional pages may be inserted in

future editions. The user is asked to excuse any technical inaccuracies or typographical errors in the present

edition.

No responsibility is assumed if accidents occur while the user is following the instructions in this manual. No

responsibility is assumed for defects in the printer’s firmware (contents of its read-only memory).

This manual, any copyrightable subject matter sold or provided with or in connection with the sale of the page

printer, are protected by copyright. All rights are reserved. Copying or other reproduction of all or part of this

manual, any copyrightable subject matter without the prior written consent of Kyocera Corporation is prohib-

ited. Any copies made of all or part of this manual, any copyrightable subject must contain the same copyright

notice as the material from which the copying is done.

Table of Contents

STEP 1 Unpacking.........................................................................1

STEP 2 Positioning the Printer .....................................................2

STEP 3 Installing the Toner Container .........................................3

STEP 4 Installing the Waste Toner Box ........................................5

STEP 5 Connecting the Printer to the Computer.........................7

STEP 6 Connecting the Power Cord ............................................9

STEP 7 Adding Paper to the Paper Cassette and MP Tray .......10

STEP 8 Turning the Power Switch On ........................................17

STEP 9 Printing a Status Page....................................................18

Revision 1.0 October 2001

IFS19EE.book Page 1 Thursday, October 18, 2001 9:51 AM

Unpacking

Carefully remove the printer and other items from the box. Check that nothing is miss-

ing against the list of shipped components below.

List of Shipped Components

STEP

Printer

(E)

(D)

(A)

(B)

(F)

(C)

(for

U.S.A.

only)

Printer

Power Cord (F)

Installation Guide

[this booklet] and

other printed matter

(B)

Kyocera Mita Digital

Library CD-ROM (B)

Waste Toner

Box (E)

To n e r

Container (D) Plastic Bag for

Developer Unit (A)

Dust Cover (C)

[for U.S.A. only]

IFS19EE.book Page 1 Thursday, October 18, 2001 9:51 AM

Positioning the Printer

Make sure that the place of installation meets the following requirements:

Clearance

Be sure to secure enough space

around the printer. Prolonged

use without sufficient clearance

may cause heat to build up

within the printer, resulting in

fire.

Environment

Do not install the printer where temperature or humidity is outside the rec-

ommended range. Print quality may suffer and there will be an increased

chance of paper jams.

Places to Avoid

Avoid installing the printer in locations subject to:

• Direct drafts of hot or cold air

• Direct drafts from outside (Avoid locations near building entrances.)

• Sudden temperature or humidity changes

• Sources of high temperature, for example, near stoves or radiators

•Excessivedust

•Vibration

• Unstable surfaces and surfaces that are not level

• Ammonia or other harmful fumes (If you are planning to fumigate the room, or

make liberal use of insecticide, remove the printer first!)

• Excessive sunlight or humidity

• Lack of ventilation

• Low air pressure, e.g., elevations greater than 2000 meters (6500 feet) above

sea level

Te m p e r a tu r e 10 to 32.5 °C (50 to 90.5 °F), ideally about 23 °C (73.4 °F)

Humidity 20 to 80 %, ideally 60 %

STEP

30 cm (11-13/16 inches)

25 cm

(9-7/8

inches)

60 cm

(23-5/8

inches)

30 cm

(11-13/16

inches)

20 cm (7-7/8 inches)

[40 cm (15-3/4 inches) when the option

face-up output tray is installed]

IFS19EE.book Page 2 Thursday, October 18, 2001 9:51 AM

Installing the Toner Container

Before you can use the printer for the first time, you must prepare it by installing the

toner container, waste toner box, and set up the interfacing with the computer.

1Open the printer top cover all the way.

2Take the toner container from the bag.

3With the label side down, thoroughly

shake the toner container (in the direc-

tion of the arrow) ten times or more to

loosen and mix the toner inside.

4Carefully remove the protective seal.

5Install the toner container into the

printer.

STEP

To p C o v e r

Toner Container

10 times or

Protective Seal

IFS19EE.book Page 3 Thursday, October 18, 2001 9:51 AM

6Push firmly on the top of the toner con-

tainer at the positions marked PUSH

HERE.

Whenthetonercontainer fits into place,

it will lock with a clicking sound.

7Close the top cover.

To remove the toner container

Pull the lock lever (green colored) to

the right and gently lift the toner con-

tainer.

Lock Lever

IFS19EE.book Page 4 Thursday, October 18, 2001 9:51 AM

Installing the Waste Toner Box

The waste toner box is supplied with the printer. The waste toner box must be installed

in the printer.

1Open the cap of the waste toner box.

2Open the left cover on the left side of the

printer.

3Insert the waste toner box as shown in

the figure. The box will be locked when

it fits into place.

STEP

Cap

Waste Toner

Box

Left Cover

IFS19EE.book Page 5 Thursday, October 18, 2001 9:51 AM

4Ensuring that it is correctly inserted,

close the left cover.

To remove the Waste Toner Box

While holding the waste toner box,

press the lock lever and then gently

remove the waste toner box.

Lock Lever

IFS19EE.book Page 6 Thursday, October 18, 2001 9:51 AM

Connecting the Printer to the Computer

There are various ways of connecting the printer to the computer, such as through the

parallel interface connector, through the USB (Universal Serial Bus) interface connec-

tor, through the option serial interface board kit (IB-10E) or through the option network

interface card.

Printer Connections

Before performing this step, be sure to turn off both the printer and the com-

puter’s power switches and unplug the printer’s power plug from the power

outlet. Failure to do so may result in electrical shock.

The standard Centronics parallel interface connector ( ) and USB interface

connector ( ) are located on the rear of the printer.

STEP

Printer (Rear)

Parallel Interface

Network Option Network

Interface Card

(3.3 V DC)

Serial Interface

Power Supply

Connector for option sorter

(See the option sorter’s

user’s manual.)

USB Interface

Option Serial Interface

Board Kit (3.3 V DC)

Ifs19ee1.fm Page 7 Thursday, October 18, 2001 12:20 PM

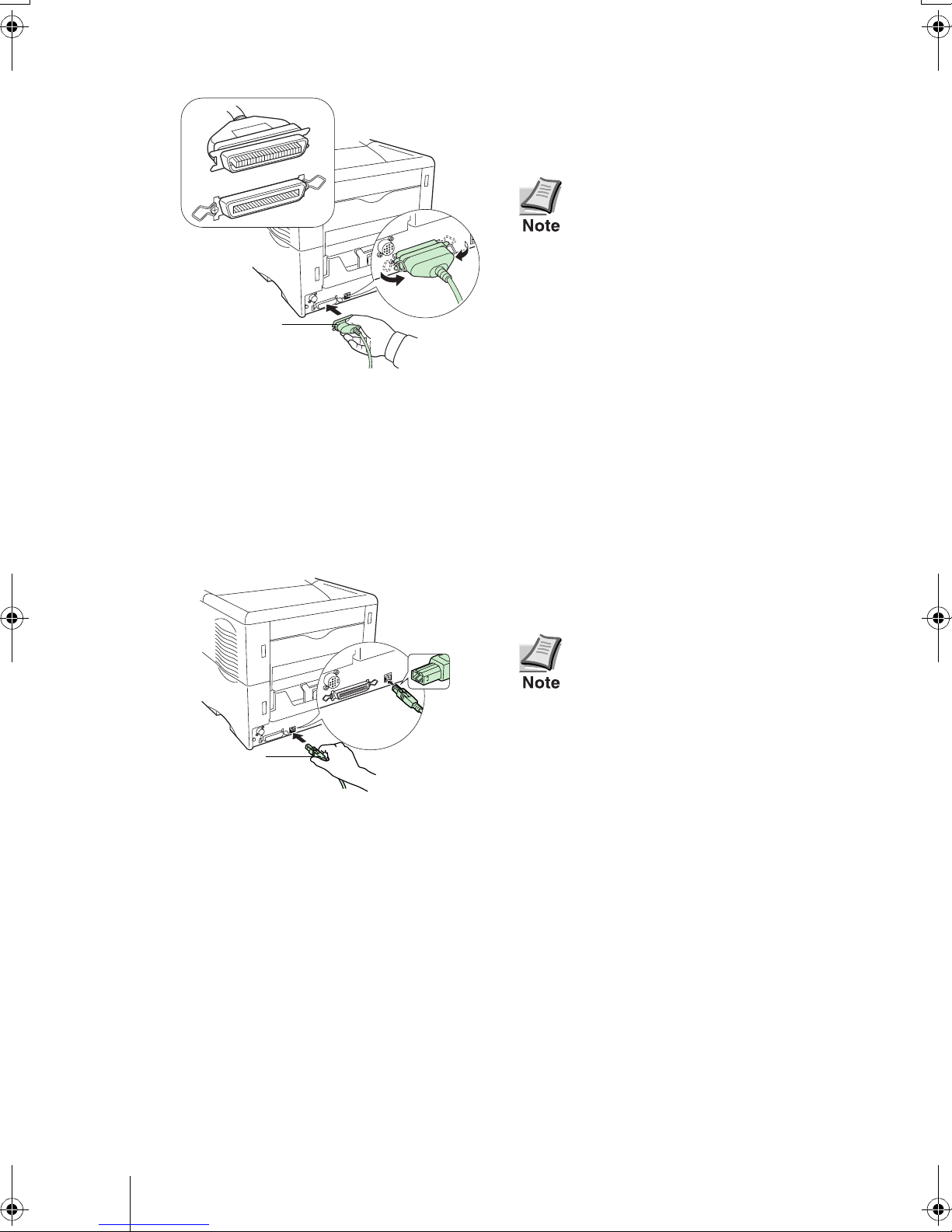

Parallel Interface Connection

1Plug one end of the printer cable (not

included) into the parallel interface con-

nector on the rear of the printer.

• Use a parallel printer cable

that complies with the

IEEE1284 standards.

• The printer will work best if it

is installed near the computer.

The connecting cable should

be shielded and not be longer

than 3 meters (10 feet).

2Close the clips on both sides to fix the

connector in place.

Plug the other end of the printer cable

into the computer’s parallel interface

connector.

USB (Universal Serial Bus) Interface Connection

1Plug one end of the USB cable on the

rear of the printer.

•Useacablethatcomplies

with Revision 1.1 of USB stan-

dard.(a rectangular Type A

plug and a square Type B

plug).

• The connecting cable should

be shielded and not be longer

than 5 meters (16 feet).

2Plug the other end of the USB cable into

the computer’s USB interface connec-

tor.

Parallel Printer

Cable

Clip Clip

USB Cable

IFS19EE.book Page 8 Thursday, October 18, 2001 9:51 AM
