Kyocera ECOSYS FS-C5400DN Manuale utente

Installation Guide

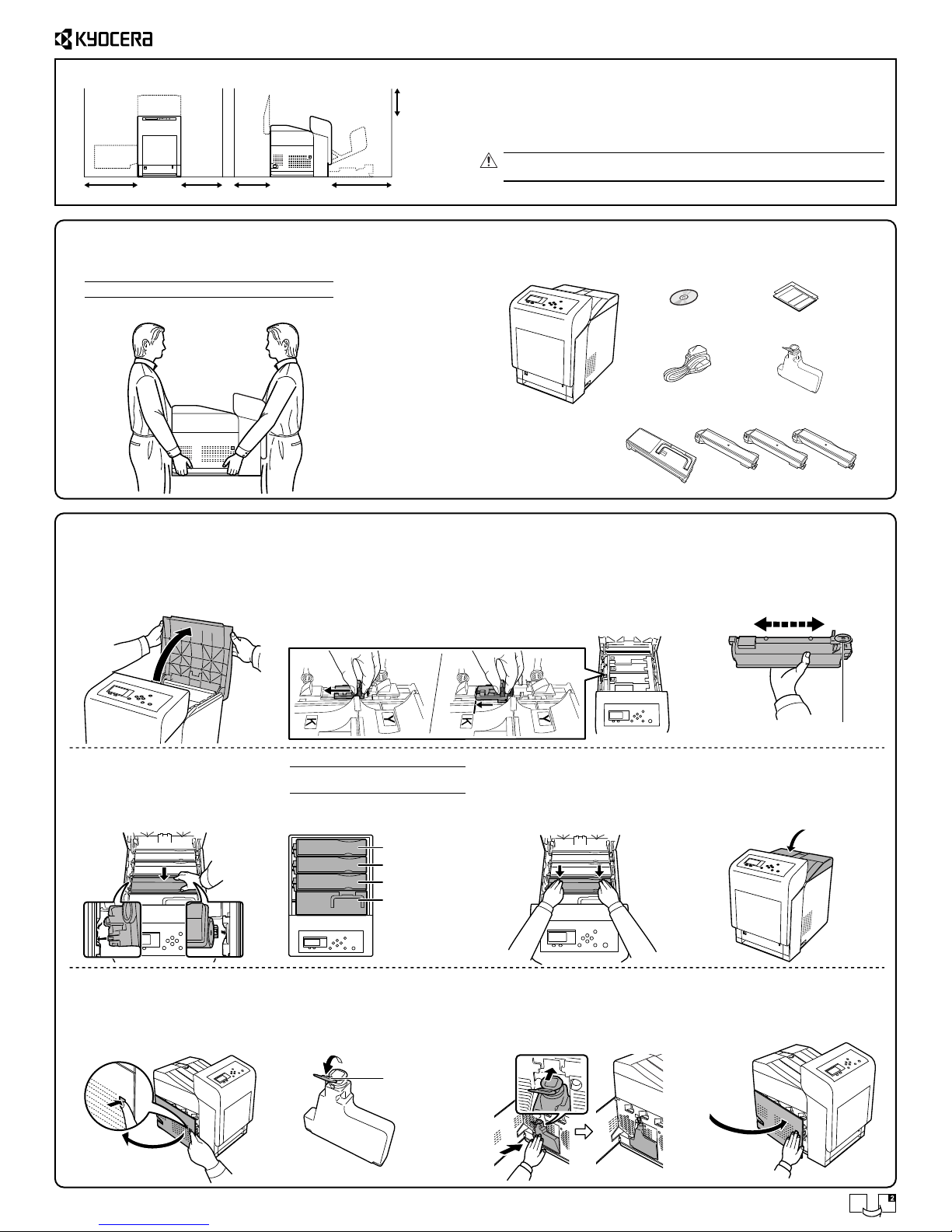

Clearance

• Temperature: 10 to 32.5 °C (50 to 90.5 °F) The humidity should be 70 % or less when the

temperature is 32.5 °C (90.5 °F)

• Humidity: 15 to 80 %RH The temperature should be 30 °C (86 °F) or less when the humidity

is 80 %

• Power Supply: 120 V AC, 60 Hz, 9.7 A / 220 to 240 V AC, 50/60 Hz, 4.9 A

FS-C5400DN

Environment

CAUTION: Be sure to provide enough space around printer. Prolonged use

without sufficient clearance may cause overheating.

400 mm (15-3/4") 250 mm (9-13/16") 200 mm (7-7/8") 600 mm (23-5/8")

Unpacking

CD-ROM Manuals and Other

Printed Materials

Printer

Power Cord

Toner Containers (4)

Waste Toner Box

Installing the Toner Container and Waste Toner Box

Open the top cover until it stops. Before installing the toner container, open the slide lever (yellow-colored) on the

developer unit. The toner container cannot be installed until the slide lever is open.

Proceed as follows:

To open the slide lever, squeeze and hold the lever (1), and slide the lever all the way

toward the direction of the arrow indicated (2) on the lever. When the slide lever is

open, install the toner container.

Push down on the container until it

clicks firmly into place.

Follow the procedure above to install

the other color toner containers.

Note: Ensure the toner container is in the

correct location for that color.

Close the top cover.

564Place the new toner container in the

printer with the markings facing

upward.

400 mm

(15-3/4")

Open the cap of the waste toner box.

87 Open the left cover.

Unpack the printer and all its included components.

Important: The printer must be carried by two persons.

Check the parts and components.

Magenta (M)

Cyan (C)

Yellow (Y)

Black (K)

Cap

Toner Supply Opening

Position the bottom of the waste toner

box in the receptacle and push the box

down until it snaps firmly into place.

Hold the toner container with the

markings (caution notes, etc.) facing

downward and shake it 5 or 6 times as

shown.

Close the left cover.

(1) (2)

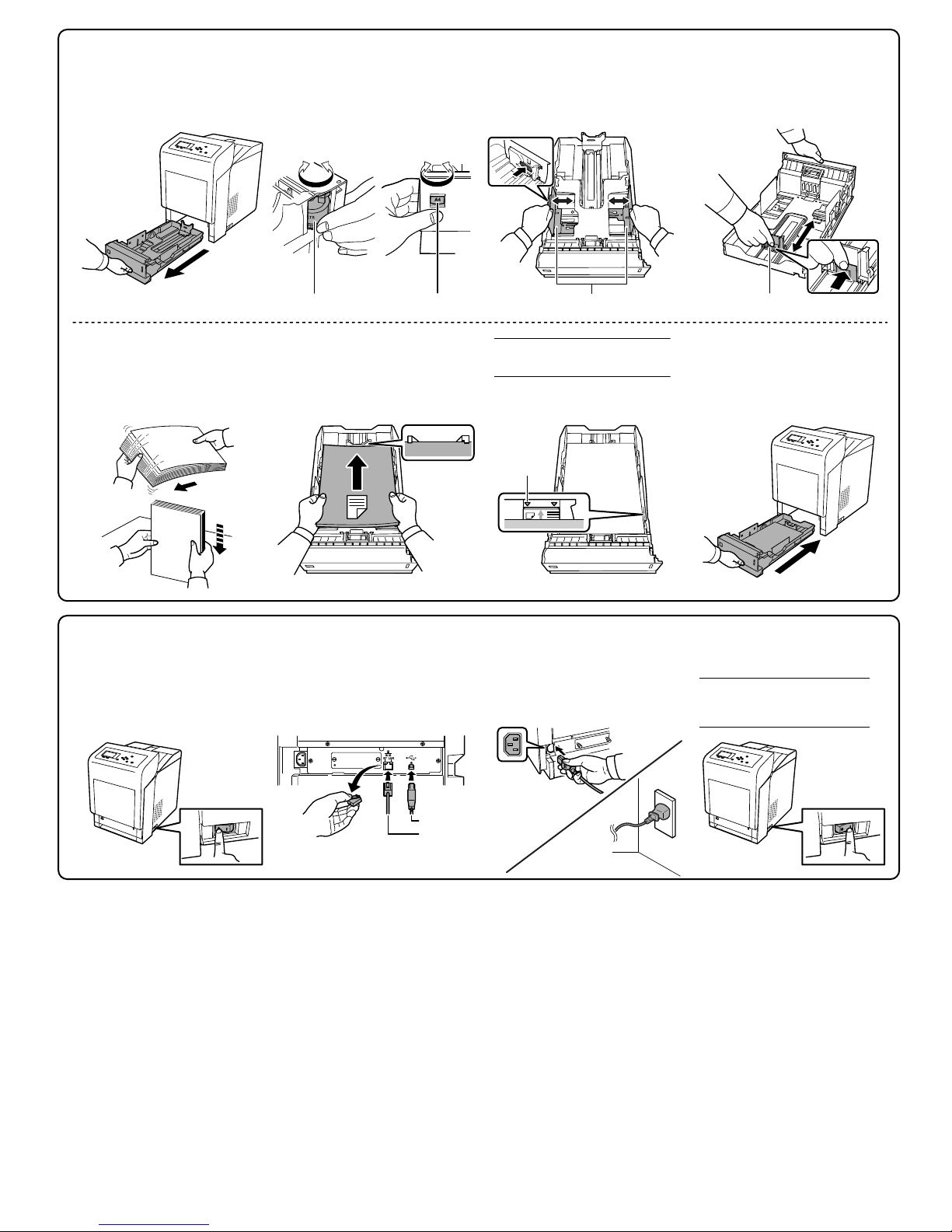

Pull the paper cassette all the way out

of the printer.

Paper Width Guides

Loading Paper

Adjust the paper length guide to fit the

paper size.

Adjust the paper width guides to fit the

paper size.

Turn the paper size dial so that the size

of the paper to use appears in the

paper size window.

Paper Length Guide

Fan the paper, then tap it on a level

surface to avoid media jams or skewed

printing.

Load paper in the cassette, with the

side to be printed upward. Important: Do not exceed the upper limit

of the cassette. Otherwise, it may cause

paper jams.

Insert the paper cassette into the slot in

the printer. Push it straight in as far as

it will go.

Limit Mark

Connect the power cord to the printer

and the other end into a power outlet.

Turn the power switch off (O). Connect the printer to the PC or your

network device. Use shielded interface

cables. These cables are sold

separately.

Connecting Cables

132

Refer to the Operation Guide to install the printer driver and to set network parameters.

Remove the cap, when using the

network interface.

USB Interface

Network Interface

Paper Size Dial Paper Size Window

Turn the power switch on (|).

Important: When the printer is first

switched on after installation, the printer

will begin cleaning the LSU; this will take

approximately 70 seconds.
