Frequently Asked

Questions

ECOSYS P2235dw

ECOSYS M2040dw

Table of Contents

My P2235dw displays “Check toner/Low toner”. 3

How do I check the Toner Level on my P2235dw? 5

How do I access the Command Center RX webpage? 6

Where is the Serial Number located for the P2235dw? 7

How do I install the Windows Print Driver for my P2235dw? 7

My P2235dw has poor image quality 13

My P2235dw displays an error indication. 14

My P2035dw does not turn on. 15

My P2035dw has an indicator that a Paper Jam has occurred. 16

Setting the Connection by Using the Wi-Fi Setup Tool (Microsoft Windows)”. 23

When trying to access the Command Center web page on my P2235dw it states,

“incorrect login User Name or Password”. 31

How can I print onto “Special Media” such as Envelopes or Labels on my P2235dw? 32

Installing the Apple OS print driver. 35

ECOSYS M2040dw

My P2235dw displays “Check toner/Low toner”.

Check to ensure the toner is Genuine Kyocera Toner. You can do this by checking if the toner has the Kyocera

Hologram on the toner bottle.

1. Remove the toner container and shake it, re-install the toner container.

ECOSYS M2040dw

2. Make sure the front cover is closed all the way.

3. Make sure the toner is installed in the printer correctly.

ECOSYS M2040dw

How do I check the Toner Level on my P2235dw?

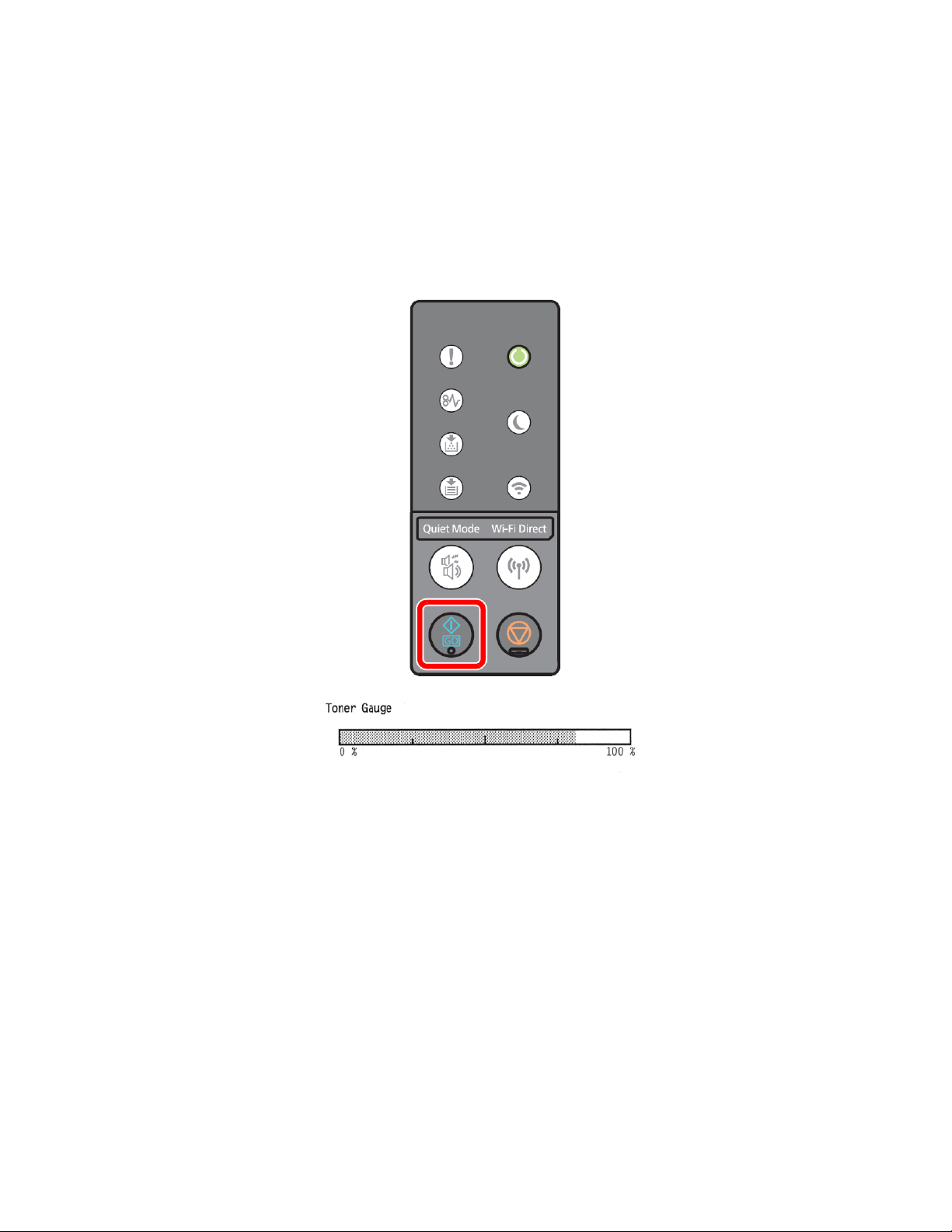

The toner gauge can be found on the printer Status Page.

Press the Go button for 4 seconds and release, a status page will be printed

Check Toner Gauges at the bottom of the page.

ECOSYS M2040dw

How do I access the Command Center RX webpage?

(Command Center is not available with USB Cable connected devices)

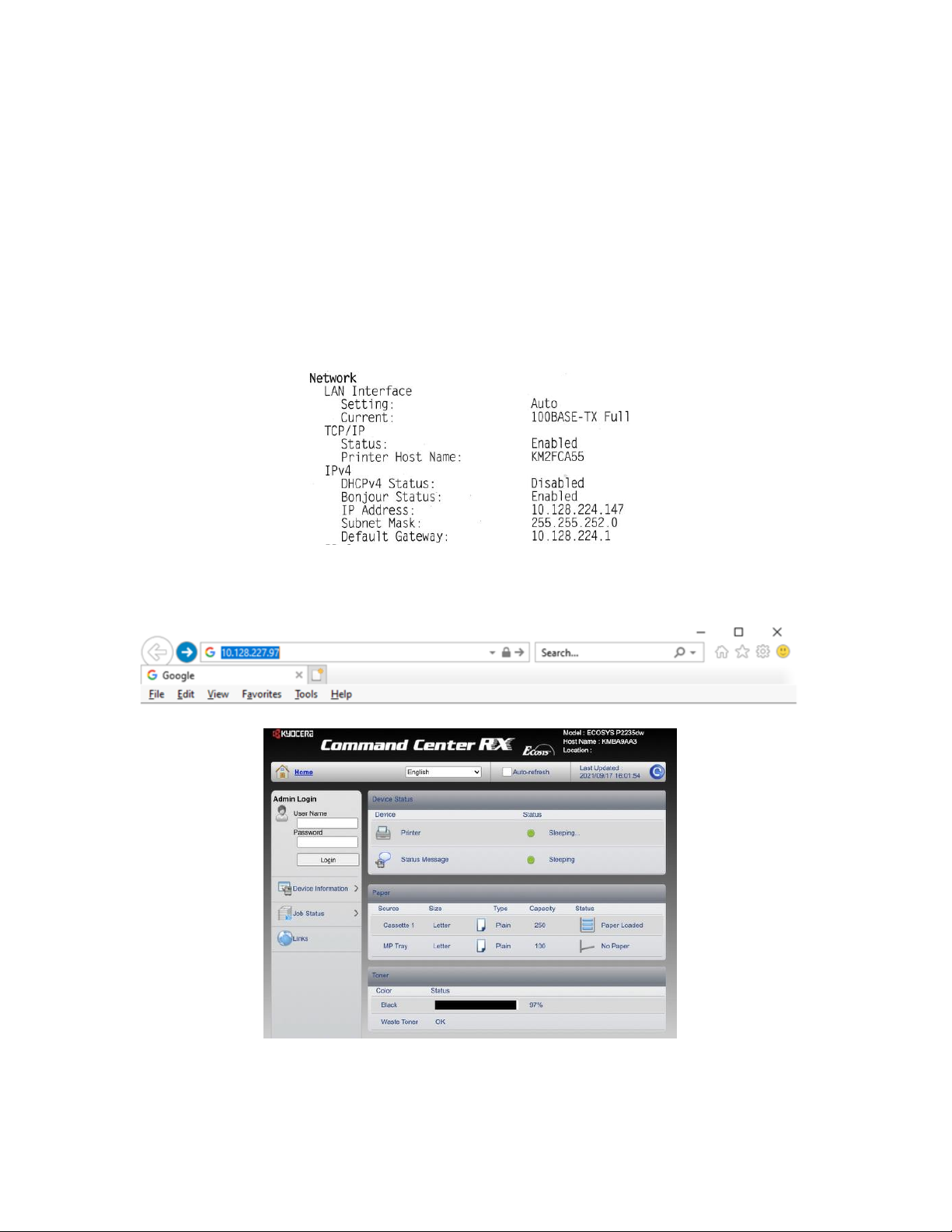

Print the Status Page to get the TCP IP address for the printer.

Press the [Menu] key > press the [▲] [▼] key to select [Report Print] > [►] key>select Print Status Page

Look for the heading of Network on left column of the printed Status Page.

Below Network look for IPv4.

Look for the IP Address on the third line down.

Open a Web Browser such as Internet Explorer then delete the text in the Address Field.

Key in the IP address obtained from the Status Page then press Enter.

The default login is

Username: Admin (capital A)

Password: Admin (capital A)

ECOSYS M2040dw

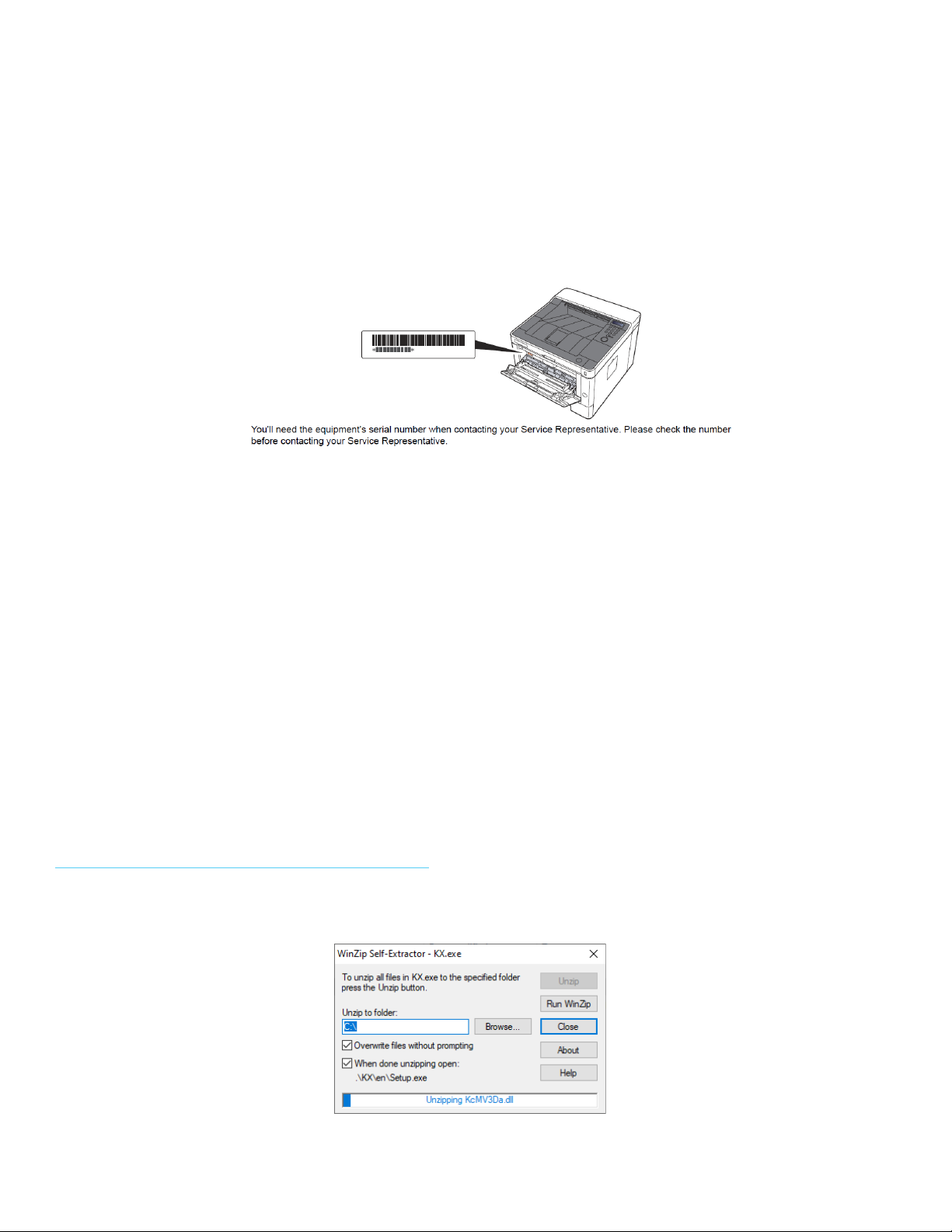

Where is the Serial Number located for the P2235dw?

Open the Multi-Purpose Tray to find the Serial Number.

It will be a white label that looks like a barcode.

Note: The serial # is also located in the upper right corner on the previously printed status page.

How do I install the Windows Print Driver for my

P2235dw?

Supported operating systems

+Windows 10

+Windows 8.1

+Windows Server 2019

+Windows Server 2016

+Windows Server 2012 R2

+Windows Server 2012

Note: If you install the driver in unsupported operating systems including Windows 7, Windows Server 2008 R2, and

Windows Server 2008, a security message appears. To proceed with the installation, allow the installer to make

changes to your computer. For more information on Microsoft Windows support policy, go to the Microsoft Support

website.

The KX Print Driver can be downloaded from:

https://www.kyoceradocumentsolutions.us/p2235dw

Once downloaded, double click on the exe file to start the installation. The driver installation files will extract to a

folder on the C drive.

ECOSYS M2040dw

When the extraction completes, The Kyocera Product Library will open.

Accept the License Agreement.

ECOSYS M2040dw

Acknowledge the Energy Star Compliance notification by clicking OK.

In the menu on the left select Express Install.

ECOSYS M2040dw

In Express mode, the installer will search the network and USB connections for any Kyocera devices.

Click on the printer to highlight it and click Install.
