Product

Guide

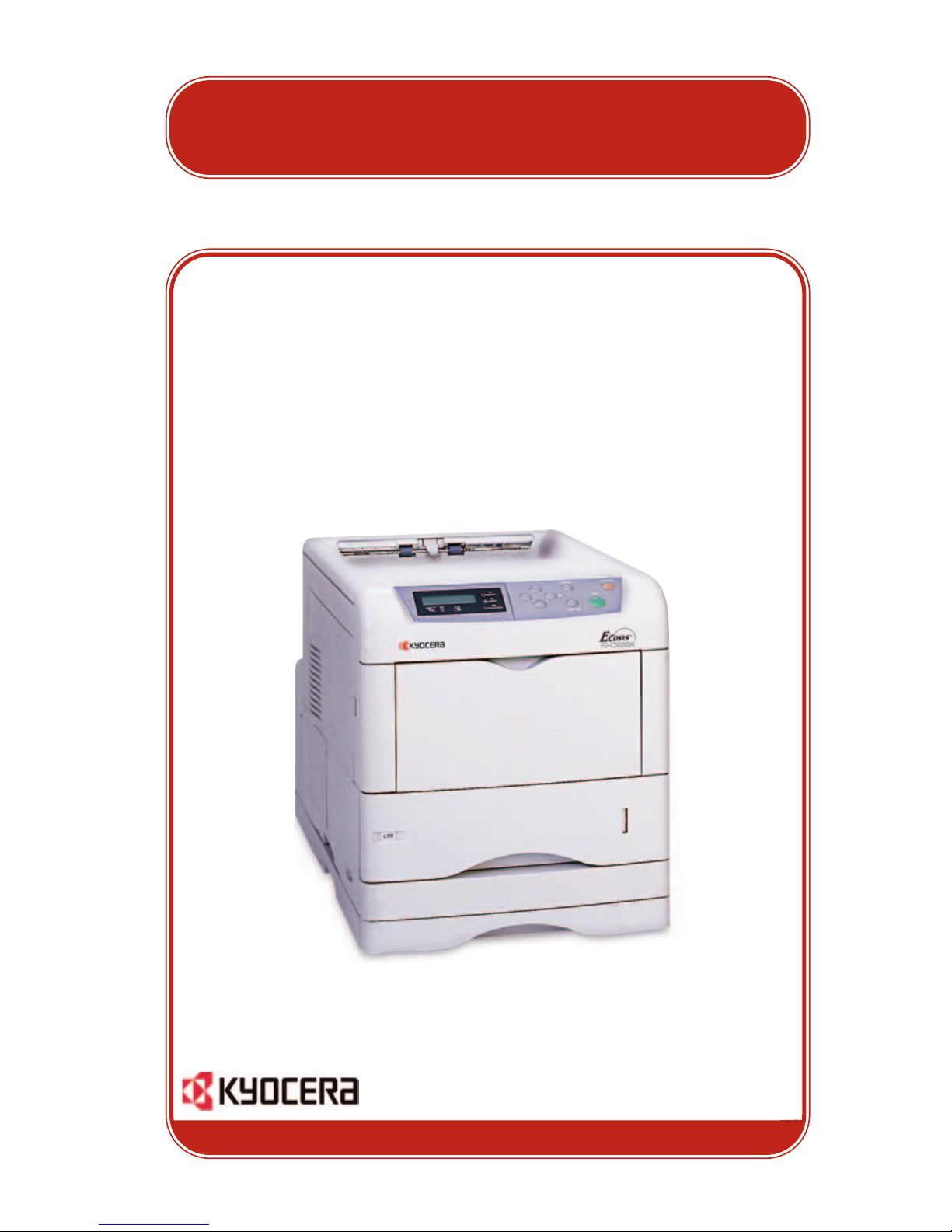

FS-C5020N and FS-C5030N

FS-C5020N and FS-C5030N Product Guide

Published April 2005

Richard Berberian

Product Marketing Manager

Specifications subject to change without notice.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Just the Facts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Productivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

KX Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Print System Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Counters, Yields, and Volume Rating . . . . . . . . . . . . . .47

Trademarks and Disclaimers . . . . . . . . . . . . . . . . . . . . .49

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

- 3 -

- 4 -

This page intentionally blank

FS-C5020N

and FS-C5030N

Product Guide

Introduction

Building on the success of the FS-C5016N, Kyocera adds

two new high quality, highly reliable, fully functional, Full-

Color printers targeting the

demands for workgroup

corporate color printing. Meet

the all new FS-C5020N and the

FS-C5030N Print Systems.

Serious Business - Serious Color

These affordable, 17 and 26ppm full-color tandem

process ECOSYS™ workgroup printers are capable of

imaging at 600 dpi for crisp colorful letter or legal size

corporate documents - for about five cents a page in full-

color. In addition, the fast PowerPC 750CXr and 750FX

CPUs, process documents quickly for maximum

productivity and minimum wait time. Plus, standard

10/100BaseTX and convenient KX driver installation,

makes the FS-C5020N and FS-C5030N an easy

addition to corporate networks

- 5 -

With the transition of distributed documents from monochrome to color

continuing to expand at a fast pace, color printers have become

increasingly attractive to a broader array of decision makers in

Corporate America - in some cases, even taking the place of older

monochrome models. And with color presentations and bulletins

continuing to become standard practice, the market is primed to accept

products like the FS-C5020N and FS-C5030N Full-Color Tandem

Process Printers. The award-winning FS-C5016N was designed to do

just that. With the release of the FS-C5020 and FS-C5030N, Kyocera

plans to build upon that success.

Now add the fact that Kyocera has a printer at about five cents per

page full-color and you’ve got a dynamic printer solution that will grab

everyone’s attention! Take a look!

No other competitor comes close to the cost savings these compact

printers produce over their lifetime. No other printer on the market will

positively impact a company’s bottom line like the FS-C5020N and the

FS-C5030N.

Monochrome CPP

0.008615

0.022165

0.010590

0.006667

0.008615

0.008570

0.019258

0.019998

0.013133

0.010800

0.011500

0.012998

0.000 0.010 0.020 0.030

Xerox Phaser 8400DX

Sharp AR-C240p

Oki C7550dn

Lexmark C762

Konica Minolta 5430DL

HP CLJ4650n

Brother HL-4200CN

FS-C5030N

Ricoh CL3000e

Oki C5400tn

HP CLJ3700dn

FS-C5020N

Full Color CPP

0.04751

0.10716

0.08859

0.05902

0.04751

0.072851

0.097372

0.119993

0.099933

0.066225

0.0745

0.072992

0.000 0.050 0.100 0.150

XeroxPhaser 8400DX

Sharp AR-C240p

Oki C7550dn

Lexmark C762

Konica Minolta 5430DL

HP CLJ4650n

Brother HL-4200CN

FS-C5030N

RicohCL3000e

Oki C5400tn

HP CLJ3700dn

FS-C5020N

- 6 -

FS-C5020N and FS-C5030N Product Guide

System Overview

Developed with ECOSYS technology and color printing needs in mind:

The FS-C5020N and FS-C5030N have a small footprint, fast color

speed, and low CPP. The FS-C5020/30 are designed to meet the color

output demands in today’s office environment. Consider the following

features:

¿Fast Monochrome and Full-Color Printing

¿FS-C5020N: 17ppm

¿FS-C5030N: 26ppm

¿Standard 10/100BaseTX network interface

¿Ability to image onto paper sizes ranging from Statement to

Legal and on paper weights ranging from 16lb Bond up to 110lb

Index - from the 100 Sheet Multi-Purpose Paper Tray

¿High performance PowerPC CPUs for faster processing

¿FS-C5020N: PowerPC750CXr

¿FS-C5030N: PowerPC750FX

¿High-Yield 200K Maintenance Kits

¿High Print Quality of 600DPI with 256 gradation levels along with

Kyocera’s Multi-Bit Technology

¿Optional 20GB Hard Disk Drive for faster document

processing, and storage of fonts, PRESCRIBE forms, and frequently

used documents

¿Low Cost Per Print (CPP) for both Color and Monochrome output

providing a low TCO

Collectively, these capabilities make the FS-C5020N and FS-C5030N

affordable, easy to use, efficient, and productive workgroup Color Print

Systems. Let’s take a closer look . . . . .

- 7 -

FS-C5020N and FS-C5030N Product Guide

System Overview

- 8 -

FS-C5020N and FS-C5030N Product Guide

This page intentionally blank

Technology

¿Type: Desktop Full-Color/Monochrome Printers

¿Imaging System: 4 Drum Tandem

¿Color Technology: Advanced Beam Array

¿Primary Transfer: Intermediate Transfer Belt

¿Secondary Transfer: Roller

¿Fusing: Oil-Less Heat/Pressure

¿Controller: PowerPC

¿FS-C5020N: PowerPC750CXr

¿FS-C5030N: PowerPC750FX

¿Print Resolution: Multi Bit 600 DPI (2 and 4 bit modes)

¿Gradation Levels: 256

¿Service: 200K MK-512 or MK-522 Maintenance Kit

Includes: Drum, Developer Kit, Transfer Unit, Feed Unit,

Fuser Kit, Two Ozone Filters, Roller Feed Set

¿C, M, Y, K Toner Cartridge Yield: 8K

¿Toner Type: Polymerized

¿HDD: Optional 20GB

¿Maximum Monthly Volume:

¿FS-C5020N: 85K

¿FS-C5030N: 100K

Memory Management

¿Optional 20GB HDD

¿128MB RAM (1024MB Max with 100 pin DDR DIMMs)

¿One Compact Flash Card Slot

¿One KUIO-LV Slot

Speeds

¿Warm up: FS-C5020N: 80 Seconds, FS-C5030N: 60 Seconds

FS-C5020N

FPOT Color/Mono 16 Sec

Letter (Color/Mono) 17/17 PPM

Legal (Color/Mono) 14/14 PPM

Thick (Color/Mono) 12/12 PPM

OHP (Color/Mono) 7/7 PPM

Duplex (letter) 16 PPM

Duplex Letter Efficiency 94%

Duplex (legal) 14 PPM

Duplex Legal Efficiency 100%

- 9 -

FS-C5020N and FS-C5030N Product Guide

FS-C5016NJust the Facts

FS-C5030N

FPOT Color/Mono 12 Sec

Letter (Color/Mono) 26/26 PPM

Legal (Color/Mono) 21/21 PPM

Thick (Color/Mono) 12/12 PPM

OHP (Color/Mono) 12/12 PPM

Duplex (letter) 24 PPM

Duplex Letter Efficiency 92%

Duplex (legal) 20 PPM

Duplex Legal Efficiency 95%

Paper Handling

¿Std. 500 Sheet Paper Drawer

Paper Size: Letter, Legal

Custom: 5.8” x 8.3” - 8.5” x 14”

Paper Weights: 16lb - 28lb Bond

Paper Types: Plain, Recycled, Thick

¿Std. 100 Sheet Multi-Purpose Tray

Paper Size: Letter, Legal,

Custom: 2.8” x 5.8” - 8.5” x 14”

Paper Weights: 16lb - 24lb Bond, 110lb Index

Paper Types: Plain, Recycled, Transparencies, Adhesive-Backed

Labels, Envelopes, Cardstock, PostCards

¿Std./Max. Paper Supply: 600/2,100 Sheets

¿Std./Max. Paper Sources: 2/5 Drawers

¿Opt. 500 Sheet Paper Drawer (Up to 3) (PF-60)

Paper Size: Letter, Legal, Custom

Paper Weights: 16 to 28lb Bond

¿Opt. Automatic Duplex Unit (DU-301)

Paper Weights: 16 to 28lb Bond

¿Opt. Envelope Feeder (EF-60)

40mm or 1.5” Height Capacity

¿Face-Up Tray: (PT-300)

250 sheet for printer

100 sheets for Duplexer (DU-301)

Connectivity & Interface

¿Std. 10/100 BaseTX

¿Std. Hi-Speed USB 2.0

¿Std. Bi-Directional Parallel (IEEE 1284 Nibble/ECP mode)

¿Std. KUIO-LV (one slot for HDD or one of the following:)

¿Opt. IB-22 IEEE 802.11b (Wireless)

¿Opt. IB-20 10/100 BaseTX, 10Base2

¿Opt. IB-11 Serial

Page Description Languages

¿KPDL3 (Postscript 3 Emulation)

¿PCL 6 (PCL 5c/PCL XL)

¿PRESCRIBE

Fonts

¿136 KPDL PostScript

¿80 PCL 5c/PCL XL Outlines

¿1 Bitmap

FS-C5020N and FS-C5030N Product Guide

FS-C5016N

- 10 -

Just the Facts
