Kyocera KD135GX-LPU - MOUNTING GUIDE Manuale utente

KKM-SM-0512

MOUNTING GUIDE

FOR THE

SOLAR PHOTOVOLTAIC POWER MODULES

Please read this guide carefully before installing the modules.

2009.12.01

KD series modules may be attached to a support structure

by the following methods. Detailed mounting method is

described in ‘mounting table’.

For optimal performance in all applications, clearance

between the module frame and the mounting surface is

required to allow cooler ambient air to circulate around the

back of the module and to avoid the module and / or wiring

damage.

The minimum spacing of .6” (15 mm) is required between

PV module and the mounting surface around the perimeter

of PV module. There should also be a clearance of at

least .13” (3.2 mm) between the individual modules to allow

heat-related expansion.

BOLTING: Utilizing 5/16” or 8 mm stainless steel hardware

through the existing .35” (9 mm) diameter mountingholes in

the module frame and then through module mounting holes

on the support structure. Tighten the screws with adequate

torque (132 in-lb).

Refer to the Module Drawings for the position of the solar

module mounting holes.

CLAMPING: Fasten modules firmly with clamps using

torque values specified by structure manufacturers.

Top-down clamps must have a minimum 40mm clamping

width, and minimum 9mm overlap onto module frame.

Clamps also must not shade the sunlight incidence on glass

surface. Clamp material must be either stainless steel or

anodized aluminum.

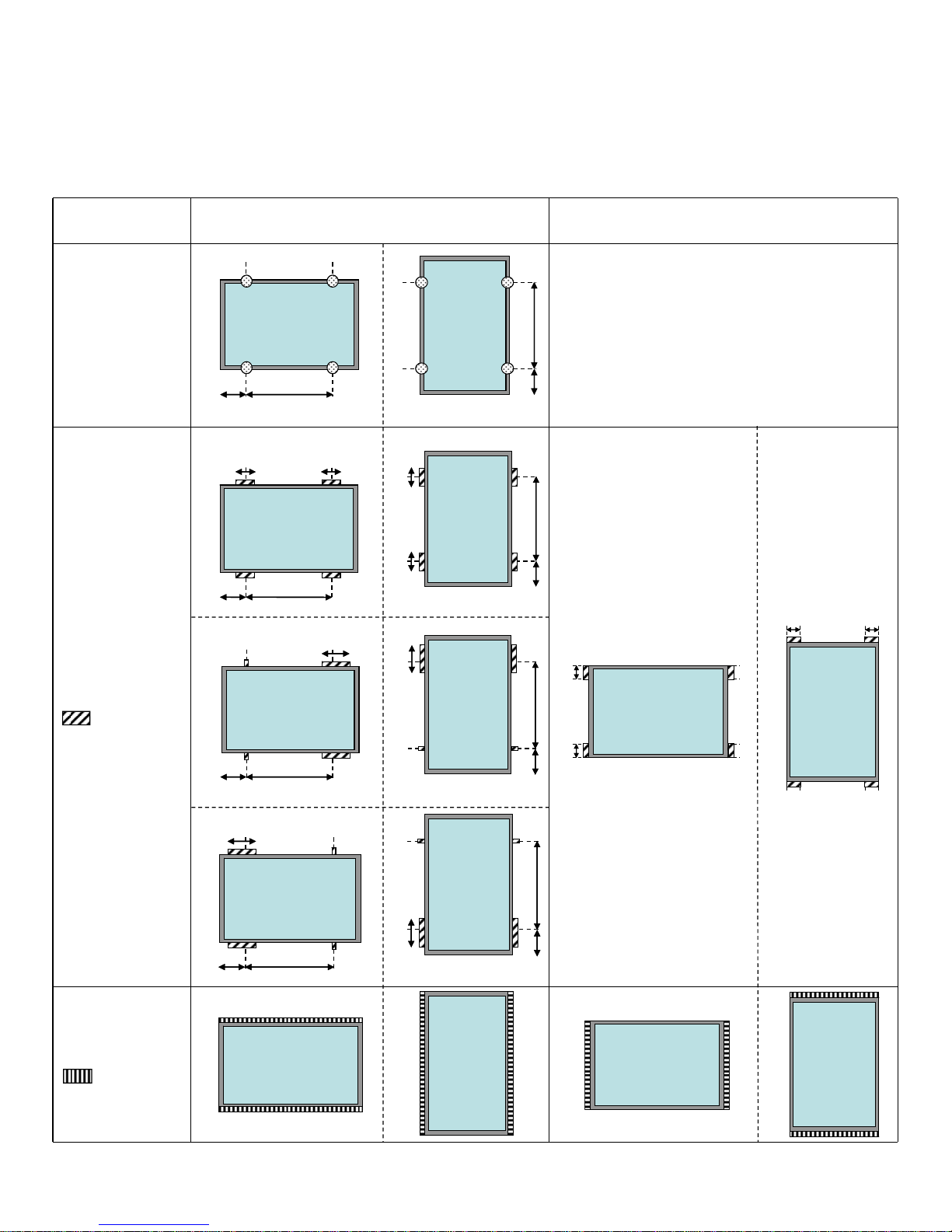

KD135SX-UPU, KD135GX-LPU～KD215GX-LPU

KKM-SM-0512

Long Side ShortSide

Bolting

Top Down

Clamp

Continuous

Clamp

<KD205GX-LPU,KD210GX-LPU,

KD215GX-LPU >

943mm

100mm 100mm 100mm 100mm

278.5mm 943mm

100mm 100mm 100mm 100mm

278.5mm

943mm

100mm 100mm 100mm 100mm

278.5mm 943mm

100mm 100mm 100mm 100mm

278.5mm

100mm 200mm

943mm278.5mm

100mm 200mm

943mm278.5mm

100mm 200mm

943mm278.5mm

100mm 200mm

943mm278.5mm

200mm 100mm

943mm

278.5mm

200mm 100mm

943mm

278.5mm

200mm 100mm

943mm

278.5mm

200mm 100mm

943mm

278.5mm

943mm278.5mm 943mm278.5mm

continuous clamp

Permissible

clamping range

Mountingtable- 1

150mm

150mm 150mm

150mm

150mm 150mm

150mm

KKM-SM-0512

Bolting

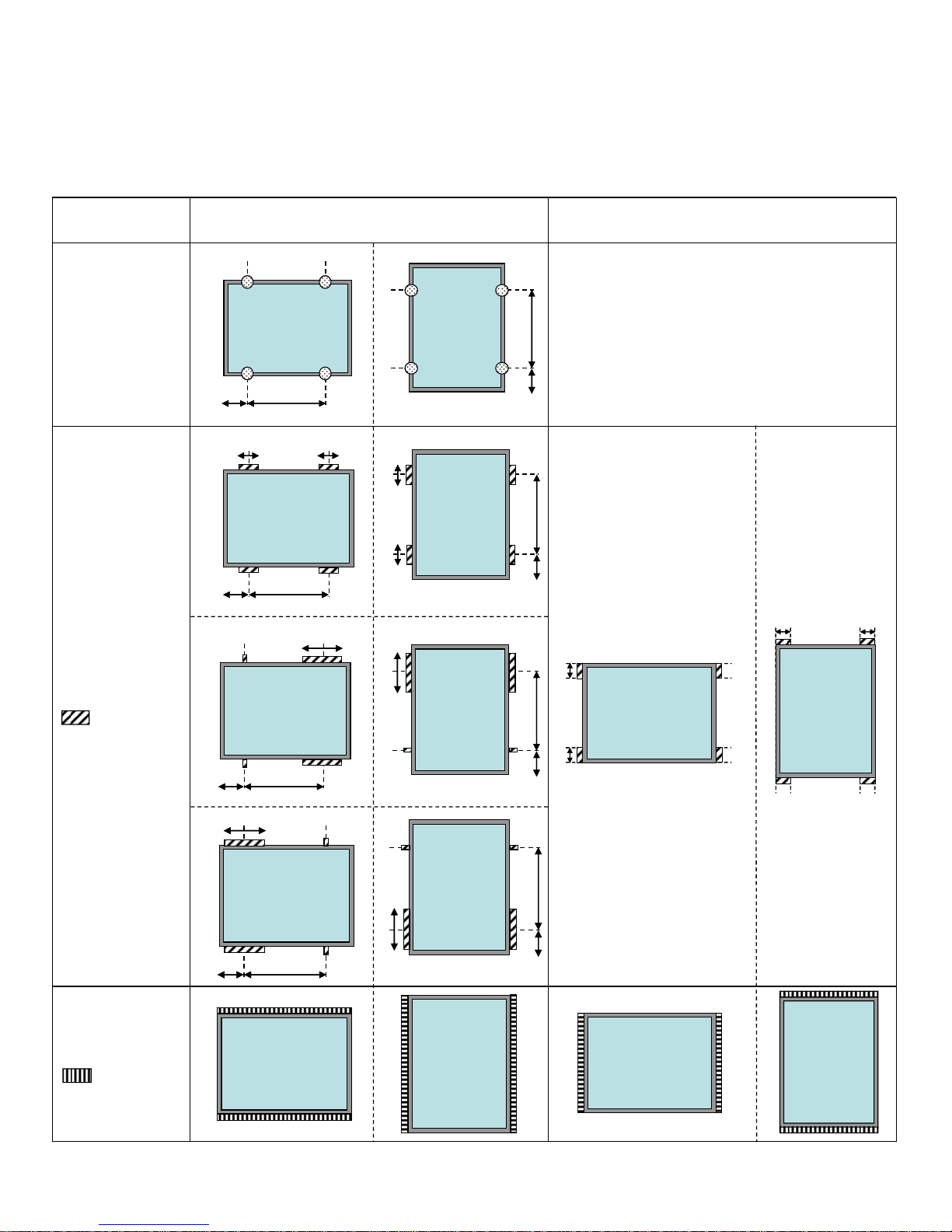

<KD185GX-LPU>

Mountingtable- 2

Permissible

clamping range

825mm256.5mm 825mm256.5mm

100mm

256.5mm 825mm

100mm 100mm100mm 100mm

256.5mm 825mm

100mm 100mm100mm

100mm

256.5mm 825mm

100mm 100mm100mm 100mm

256.5mm 825mm

100mm 100mm100mm

825mm256.5mm 825mm256.5mm

825mm

200mm 200mm

256.5mm 825mm

200mm 200mm

256.5mm

825mm

200mm 200mm

256.5mm 825mm

200mm 200mm

256.5mm

825mm

200mm 200mm

256.5mm 825mm

200mm 200mm

256.5mm

825mm

200mm 200mm

256.5mm 825mm

200mm 200mm

256.5mm

Long Side ShortSide

150mm

150mm 150mm

150mm

150mm 150mm

150mm

TopDown

Clamp

Continuous

Clamp

continuous clamp

KKM-SM-0512

Bolting

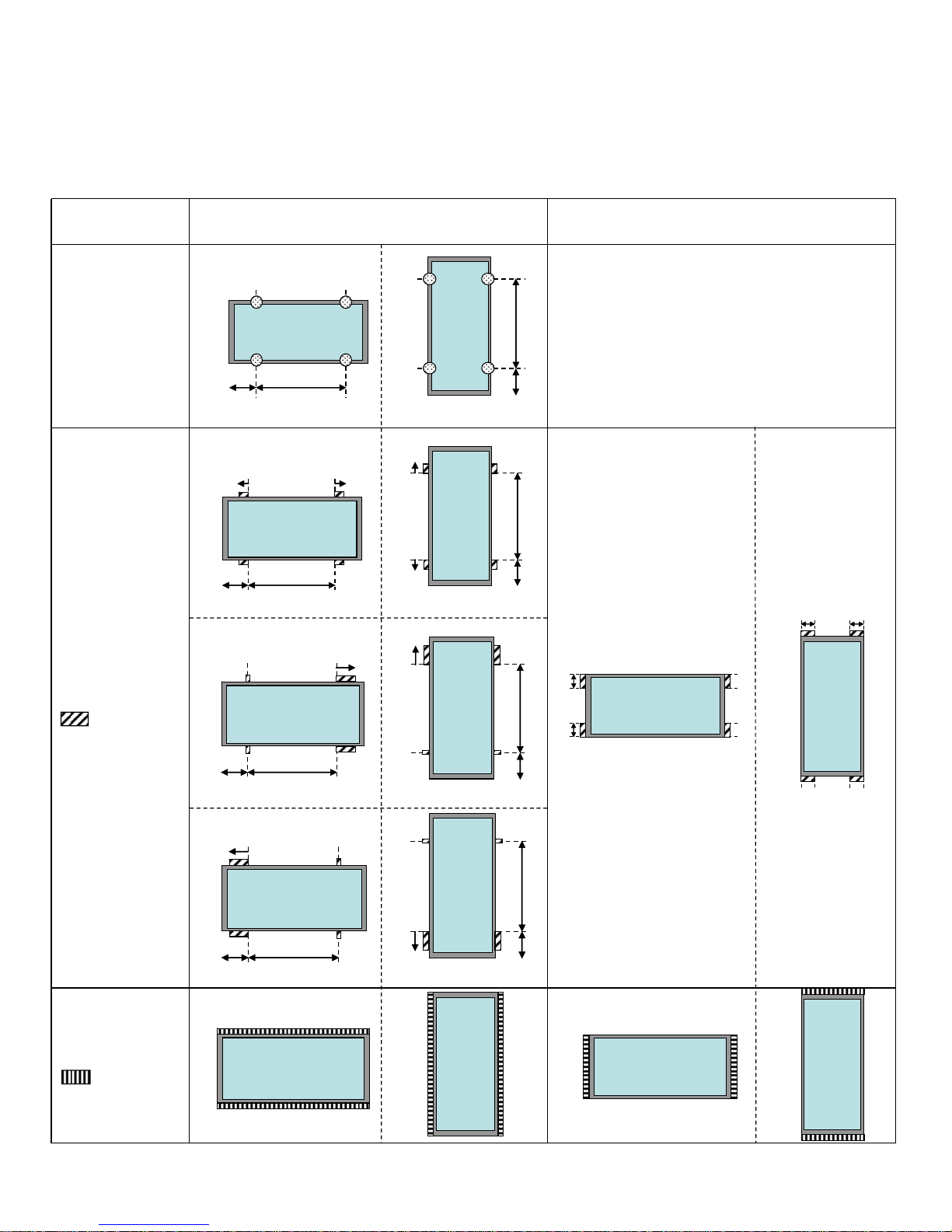

<KD135SX-UPU,KD135GX-LPU>

Permissible

clamping range

100mm

278.5mm 943mm

100mm 100mm

278.5mm 943mm

100mm

278.5mm 943mm

100mm 100mm

278.5mm 943mm

100mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

943mm

278.5mm 943mm

278.5mm

943mm

278.5mm 943mm

278.5mm

Long Side ShortSide

150mm 150mm

Mountingtable- 3

TopDown

Clamp

Continuous

Clamp

continuous clamp
