SET UP GUIDE

MODEL: 616-1410 / 616-12667

616-1410v2 / 616-12667v2

Atomic Projection Clock

with Indoor/Outdoor Temperature

AAA

1. Insert 2-AA batteries into your Outdoor Sensor.

2. Insert the 5 volt power cord into an outlet, then into your Projection

Clock. Optional: Insert 3-AAA batteries for backup.

3. Set time, date, etc.

4. Once the sensor is reading to your clock, place the senor outside in a

shaded location. View our sensor mounting video here:

bit.ly/th_sensor_mounting

• The clock will search for the Atomic Time Signal at power up and at UTC

7:00, 8:00, 9:00, 10:00, and 11:00.

• The Atomic Time Signal Icon will ﬂash while searching and be solid

when it has connected.

• From the normal time display, press the SET button to manually start or

stop a search for the WWVB time signal. For information about WWVB

visit: bit.ly/AtomicTime

Note: The Backlight will be o temporarily while searching for the WWVB time signal.

Power Up

Atomic Time

TX141-Bv3

or TX141-Bv4

Outdoor Sensor

616-1410 / 616-12667

616-1410v2 / 616-12667v2

Projection Clock

Settings Menu

TIME ZONE

ATLANTIC

EASTERN

CENTRAL

MOUNTAIN

PACIFIC

ALASKA

HAWAII

IMPORTANT: Only press or hold one button at a time.

1. Hold the SET button until the display changes to enter the Settings

Menu.

2. Press and release the +/- buttons to adjust values.

3. Press and release SET to conﬁrm values.

4. Press and release the SNOOZE/LIGHT button at any time to save and

exit.

Settings Menu Order:

• Language (English, Spanish, French, German)

• Beep ON/OFF

• Atomic ON/OFF

• DST Settings:

DST AUTO ON (Changes Spring and Fall)

DST ALWAYS OFF (No change in Spring)

DST ALWAYS ON (No change in Fall)

• Time Zone

• 12/24 Format

• Hour

• Minutes

• Year

• Month

• Date

• Month/Date or Date/Month

• Fahrenheit/Celsius

Backlight

• Press the SNOOZE/LIGHT button to adjust the backlight to adjust the

backlight intensity. There are 4 levels, plus an o option.

Auto Dim

Program your display to automatically dim during preselected times.

1. Hold the SNOOZE/LIGHT button to enter the Auto-Dim Settings Menu.

2. Press the +/- buttons to turn the Auto-Dim feature on or o. Press

SNOOZE/LIGHT to conﬁrm.

3. Press the +/- buttons to adjust the starting hour. Press SNOOZE/LIGHT to

conﬁrm.

4. Press the +/- buttons to adjust the stopping hour. Press SNOOZE/LIGHT

to conﬁrm and exit.

The icon will appear on the LCD when the Auto-Dim feature activated.

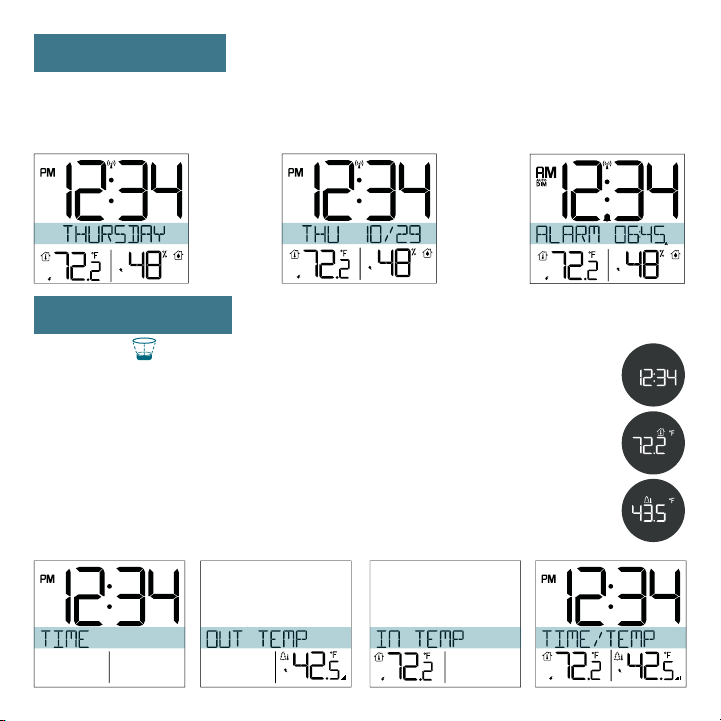

Custom Display

Press the CALENDAR button to change the middle section of your display.

Choose between full weekday, abbreviated weekday with date, or alarm

time.

Projection Image

1. Hold the button to enter the Projection Settings

2. Use the +/- buttons to change projection selection.

3. Projection image will stay on last option selected.

Projection Options:

• Time only

• Indoor Temp only

• Outdoor Temp only

• Alternate Time + Indoor Temp + Outdoor Temp

Projection Brightness & Rotation

Brightness:

Press the button to change the Projection Brightness (High, Low, or O).

Rotation:

Use the Rotation Wheel on the back of the projection arm

to change the projection orientation 270 degrees.

Tilt The Projection Arm:

The Projection Arm can tilt forward and backward to adjust the

location of the projection image on a wall or ceiling.

Time Alarm

Set Alarm:

1. Hold the ALARM button to enter the Alarm Settings Menu.

2. Use the +/- buttons to adjust the ﬂashing values.

3. Press the ALARM button to conﬁrm and move forward.

Note: The alarm will activate after being set, indicated by the Alarm Icon .

The Alarm Time will also remain on screen until the CALENDAR button is

used to switch back to a calendar display.

Activate/Deactivate Alarm:

Press the ALARM button to activate or deactivate the alarm and view your

alarm time. The Alarm Icon will show only when alarm is active. 6

Snooze:

• When alarm sounds, press the SNOOZE button to silence alarm for 10

minutes. The Snooze Icon Zz will ﬂash.

• Press any button except SNOOZE to silence the alarm for 24 hours.

• When alarm ends by button press or time out after 2 minutes, GOOD DAY

will show brieﬂy then return to normal time display.

Temperature Trend Arrows

Both the Indoor and Outdoor temperature have Trend Arrows to indicate

temperature changes (2°F / 1°C) over the past one hour period.

Temperature has risen over the past one hour.

Temperature has been steady over the past one hour.

Temperature has fallen over the past one hour.

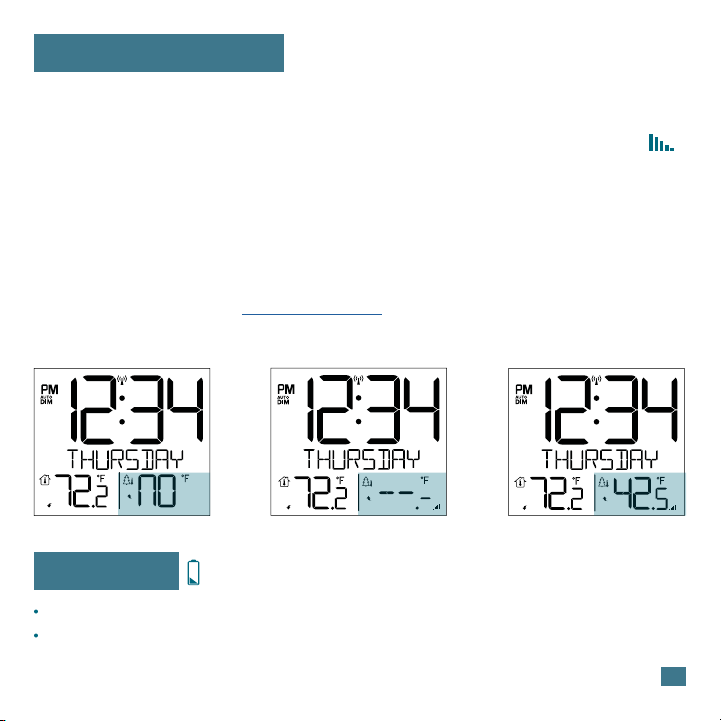

Outdoor Temperature

If you are seeing NO or dashes for your outdoor readings, please try the following

steps:

1. Hold the +button to search for your outdoor sensor. The Reception Indicator

will begin to animate.

2. If after 3 minutes the sensor still isn’t connected, bring the sensor inside next to

the display and remove power from both the sensor and clock.

3. Press any button on the clock 20 times and leave the parts sit for a few moments

with the power o.

4. Install a new set of alkaline batteries into the sensor, then into your clock.

For additional help visit: bit.ly/basic_restart

5. If your outdoor data is still not appearing after these steps, please contact our

support sta via the links below

Low Battery

By the Indoor Temp, replace clock batteries.

By the Outdoor Temperature, replace sensor batteries.

Speciﬁcations

Projection Clock (616-1410/616-12667) or

(616-1410v2/61612667v2)

Temperature Range: 32°F to 99°F

(0°C to 37°C)

Power Requirements: 5 volt Power cord

AC6: GPU280500150WAOO

Optional: 3-AAA LR3, IEC, batteries for

backup (not included)

The plug on the power adapter is intended to serve as the

disconnect device, the socket-outlet shall be installed near

the equipment and shall be easily accessible.

Dimensions: 5.83” L x 1.61” L x 4.06” H

(14.8cm L x 4.1cm W x 10.3cm H)

Outdoor Sensor (TX141-Bv3 or TX141-Bv4)

Temperature Range: -40°F to 140°F

(-40°C to 60°C)

Transmission Range: Over 330 ft. open air

(100 meters) RF 433MHz

Update Interval: About every 51 seconds

Power: 2-AA, IEC, LR6 batteries

(not included)

Battery Life: Over 12 months

Dimensions: 1.57” L x 0.79” W x 5.12” H

(4.0cm L x 2.0cm W x 13.0 H cm)

Designed in La Crosse, Wisconsin •Made in China •Printed in China •DC 091021

Stay in Touch

Follow La Crosse Technology on YouTube,

Twitter, Facebook and Instgram.

Ask questions, watch setup videos, and

provide feedback on our social media outlets.

If you require additional support, get in touch

with our friendly customer support team

based in La Crosse, WI.

Phone: 1.608.782.1610

Online: bit.ly/contact_techsupport

Our knowledgable customer support team is

available: Mon-Fri 8am-6pm CST

We’re Here to Help

This product can expose you to chemicals includ-

ing styrene, which is known in the State of Califor-

nia to cause cancer.

For more information, go to:

www.P65Warnings.ca.gov

WARNING:

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to

try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and

receiver.

Connect the equipment into an outlet on a circuit dierent

from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician

for help.

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received,

including interference that may cause undesired operation.

Caution!

Any changes or modiﬁcations not expressly approved by

the party responsible for compliance could void the user’s

authority to operate the equipment.

in any form, even in part, or duplicated or processed using

electronic, mechanical or chemical process without the

written permission of the publisher.

This booklet may contain errors or misprints. The information

it contains is regularly checked and corrections are included

in subsequent editions. We disclaim any responsibility for

any technical error or printing error, or their consequences.

All trademarks and patents are recognized.

FCC Statment

Warranty Info

La Crosse Technology, Ltd. provides a 1-year

limited time warranty (from date of purchase) on

this product relating to manufacturing defects in

materials & workmanship.

La Crosse Technology, Ltd,

2830 S. 26th St.

La Crosse, WI 54601

For Full Warranty Details, Visit:

www.lacrossetechnology.com/pages/warranty

Battery Replacement Instructions

When batteries of dierent brand or type are used together,

or new and old batteries are used together, some batteries

may be over-discharged due to a dierence of voltage or

capacity. This can result in venting, leakage, and rupture and

may cause personal injury.

•Always purchase the correct size and grade of battery

most suitable for the intended use.

•Always replace the whole set of batteries at one time,

taking care not to mix old and new ones, or batteries of

dierent types.

•Clean the battery contacts and also those of the device

prior to battery installation.

•Ensure the batteries are installed correctly with regard to

polarity (+ and -).

•Remove batteries from product during periods of non-use.

Battery leakage can cause corrosion and damage to this

product.

•Remove used batteries promptly.

•For recycling and disposal of batteries, and to protect the

environment, please check the internet or your local phone

directory for local recycling centers and/or follow local

government regulations.

Care & Maintenance

Altri manuali per 616-1410

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali La Crosse Technology Orologio

La Crosse Technology

La Crosse Technology WT-3161BL Manuale utente

La Crosse Technology

La Crosse Technology 513-1417 Manuale utente

La Crosse Technology

La Crosse Technology 513-1417ALv4 Dimensioni

La Crosse Technology

La Crosse Technology WT-3181 Manuale utente

La Crosse Technology

La Crosse Technology T73743 Manuale utente

La Crosse Technology

La Crosse Technology 513-1211 Manuale utente

La Crosse Technology

La Crosse Technology 404-3840MA Manuale utente

La Crosse Technology

La Crosse Technology 513-1419BLV3 Manuale utente

La Crosse Technology

La Crosse Technology WT-3181P Manuale utente

La Crosse Technology

La Crosse Technology WS-8055U Manuale utente

La Crosse Technology

La Crosse Technology WT-8002U Manuale utente

La Crosse Technology

La Crosse Technology 83247-BHG Manuale utente

La Crosse Technology

La Crosse Technology WT-8005U Manuale utente

La Crosse Technology

La Crosse Technology WT-3181PLx1 Manuale utente

La Crosse Technology

La Crosse Technology 433-3256W Manuale utente

La Crosse Technology

La Crosse Technology 404-1220v2 Manuale utente

La Crosse Technology

La Crosse Technology 513-1919 Manuale utente

La Crosse Technology

La Crosse Technology WT-3143H Manuale

La Crosse Technology

La Crosse Technology W88631 Dimensioni

La Crosse Technology

La Crosse Technology 513-1417H-AL Dimensioni

La Crosse Technology

La Crosse Technology Radio Controlled Analog Clock WT-3181bz Manuale utente

La Crosse Technology

La Crosse Technology WS-6003U Manuale utente

La Crosse Technology

La Crosse Technology WT-3129B Manuale utente

La Crosse Technology

La Crosse Technology C86279 Manuale operativo e di manutenzione

Manuali Orologio popolari di altre marche

Silicon Laboratories

Silicon Laboratories SI5324 Manuale utente

Heathkit

Heathkit GC-1005 Manuale utente

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manuale utente

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuale utente

ALGE-Timing

ALGE-Timing ASC3 Manuale utente

Bodet

Bodet Profil 960 Manuale utente

Nixie Clock

Nixie Clock Divergence Meter Manuale utente

Mini Gadgets

Mini Gadgets MCPro Manuale utente

Casio

Casio TMR-200 Manuale utente

Progetti

Progetti ILTEMPOSTRINGE Manuale

BVItech

BVItech BV-101 Manuale utente

Progetti

Progetti KALIMERO Manuale

Sharp

Sharp SPC900 Manuale utente

Datexx

Datexx DF0063 Manuale utente

LG LEC-005 Manuale utente

IKEA

IKEA ROTBLÖTA Manuale utente

U-Line

U-Line Н-2811 Manuale utente

Digiview

Digiview RC305EL Manuale utente
