Lab.gruppen FP+ Series FP 6000Q Manuale utente

Item no. CDTD_FP6000Q_V4

Lab.gruppen ab •Sweden

internationaL contact • info@Labgruppen.com | uS contact • info@tcuS.com

www.labgruppen.com

VHF

TEM

NOMAD

LINK

BRIDGE C+D

SIG -20 -15 -10 -4 VPL CPL

BRIDGE A+B MUTE

MUTE

SIG -20 -15 -10 -4 VPL CPL

HI-IMP

CLIP

VHF

TEM

VHF

TEM

VHF

TEM

PWR

P A L

FP6000Q

-10dB

-inf 0

-10dB

-inf 0

-10dB

-inf 0

-10dB

-inf 0

channel

FP SERIES

P O W

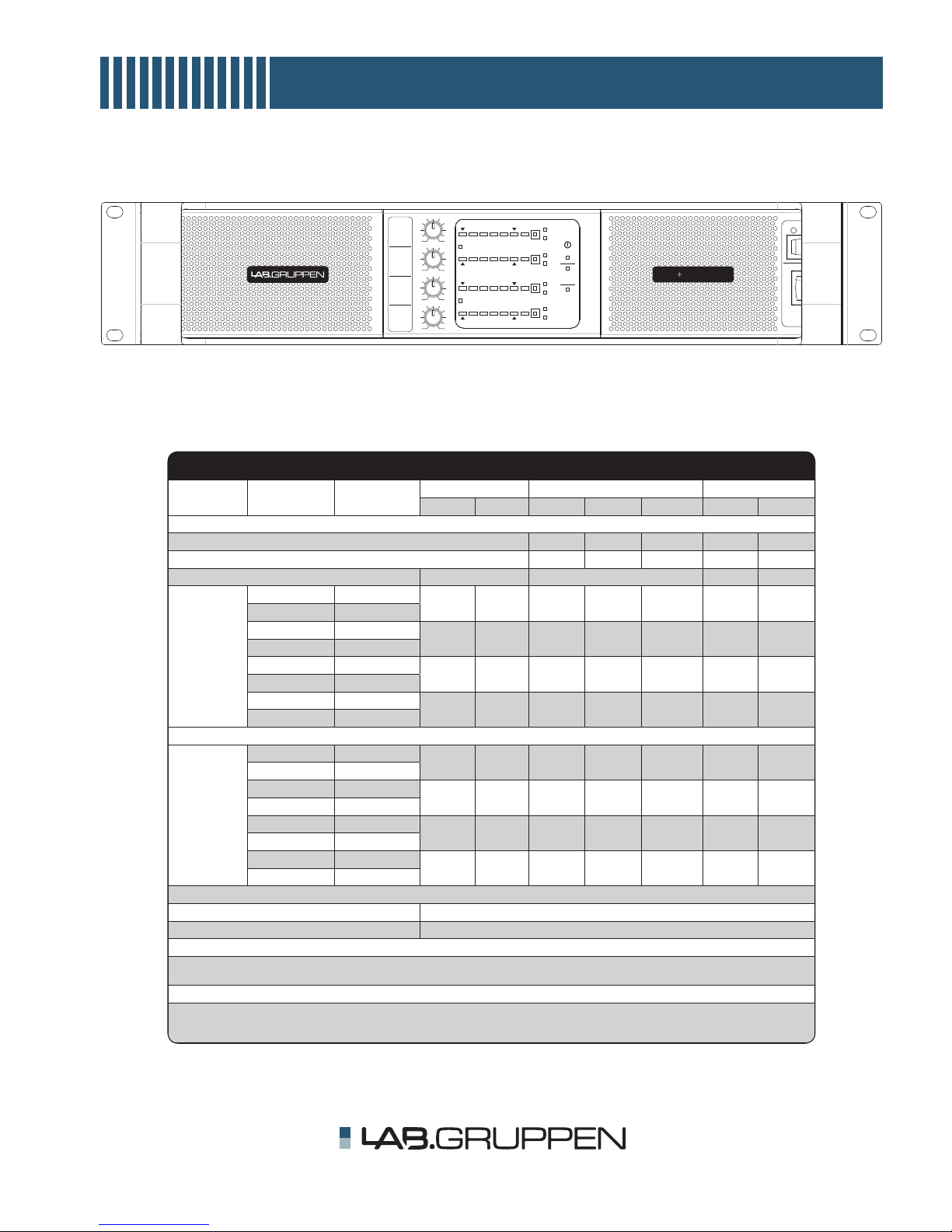

The following tables contain information on measured current consumption as well as calculated heat dissipation during normal operation

(1/8 rated power); and during extreme heavy duty operation (1/4 rated power).

Current Draw and Thermal Dissipation

FP+ Series: Dedicated Touring Ampliﬁers

FP 6000Q

Level Load Rated Power Line Current *2) Watt *1) Thermal Dissipation

115 VAC 230 VAC In Out Dissipated BTU/hr kCal/hr

Standby, with remote power off via NomadLink 0 0 0 0 0

Powered on, idling 134 0134 456 115

Amp (I) Watt

Pink noise (1/8

rated power)

16 Ω/ Ch. 320 x4

6.9 3.5 423 160 263 898 226

32 Ω/ Bridged 640 x2

8 Ω/ Ch. 625 x4

10.9 5.4 700 313 388 1323 333

16 Ω/ Bridged 1250 x2

4 Ω/ Ch. 1250 x4

18.0 9.0 1215 625 590 2015 508

8 Ω/ Bridged 2500 x2

2 Ω/ Ch. 1500 x4

22.8 11.4 1575 750 825 2817 710

4 Ω/ Bridged 3000 x2

Pink noise (1/4

rated power)

*3)

16 Ω/ Ch. 320 x4

11.8 5.9 771 427 344 1175 296

32 Ω/ Bridged 640 x2

8 Ω/ Ch. 625 x4

20.0 10.0 1402 833 569 1942 489

16 Ω/ Bridged 1250 x2

4 Ω/ Ch. 1250 x4

37.3 18.6 2748 1667 1081 3690 930

8 Ω/ Bridged 2500 x2

2 Ω/ Ch. 1500 x4

38.9 19.4 2872 2000 872 2977 750

4 Ω/ Bridged 3000 x2

Mains connector, 230 V CE version 16 A, CEE7

Mains connector, 115 V ETL version 30 A, Nema L5 -30P Twist lock

*1) The ampliﬁer’s PSU operates as a non-resistive load, so the calculation “Volts x Amps = Watts” would not be correct. Instead, measured and

speciﬁed here is what is known as the “Active Power” of the ampliﬁer providing useful, real-world values of power consumption and heat dissipation.

*2) Current draw ﬁgures measured at 230 V. 115 V ﬁgures are 230 V ﬁgures multiplied by two.

*3) Figures measured at maximum power before ampliﬁer protection and limiter features are engaged. Typically this is between 1/4 and 1/3 of rated

power. Note that the max. power condition is very extreme and will not occur during normal operation. Also note that the mains breaker will not be

tripped even if operation is in excess of max. ratings.
