User manual LAM1216
Dear Customer,
Congratulations on your choice of hob.
The user manual will help you use your product quickly and safely.
• Please read this user manual before installing and using the hob.
• Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips about usage.
Warning for possible hazards to health and property.
Warning possibility of electric shock.
Warning of risk of fire.
Warning of hot surfaces.
Product information correct at the time of publication in January 2019.
The company has a policy of continuous product development and reserves the right to change
any products and specifications given in this manual.
The appliance is marked according to the European Directive 2012/19/EU on waste Electrical
and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly you will
help prevent potential negative consequences for the environment and human health. The
symbol on this product indicates that this product may not be treated as household waste.
Instead it should be handed over to the applicable collection point for recycling of electronic
equipment. Disposal must be carried out in accordance with local environmental regulations
for waste disposal. For more detailed information please contact your local council household
waste site.
04_
LAMONA Appliances
Index
Index
01 - Before using the hob 05
02 - Safety 05
General safety 05
Electrical safety 06
Product safety 07-08
Intended use 08
Safety for children 08
03 - Using your hob 09
Controls 09
Hob layout 10
04 - Cleaning and maintenance 11
How to clean your hob 11
05 - Installation 11
General information 11
Positioning 11
Protecting the hob cut out 11
Clearances and dimensions
requirements 12-13
Connect to the electricity supply 14-15
Technical data 15
06 - Your guarantee 16
_ 05
User manual LAM1216
Before Using the hob
• Make sure that you have removed all packaging, wrappings, stickers and films from the hob
surface.
• It is recommended that you clean and wash the hob surface before using for the first time (see
p11).
01 - Before using the hob
This appliance is for
domestic cooking purposes
only. It must not be used for
other purposes, for example
room heating.
General safety
This appliance can be
used by children aged from 8
years and above and persons
with reduced physical,
sensory or mental capabilities
or lack of experience and
knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved.
Children shall not play with
the appliance. Cleaning and
user maintenance shall not
be made by children without
supervision.
• The appliance is not to be
used by persons (including
02 - Safety children) with reduced
physical, sensory or mental
capabilities, or lack of
experience and knowledge,
unless they have been given
supervision or instruction.
Children being supervised
not to play with the
appliance.
• If the product is handed
over to someone else for
personal use or second
hand use purposes, theuser
manual, product labels and
other relevant documents
and parts should be also
given.
• Installation and repair
procedures must always be
performed by Authorised
Service Agents. The
manufacturer shall not
be held responsible for
damages arising from
procedures carried out by
unauthorised persons which
may also void the warranty.
Before installation, read the
instructions carefully.
06_
LAMONA Appliances
• Do not operate the product
if it is defective or has any
visible damage.
• Ensure that the product
function knobs are switched
o after every use.
Electrical safety
• If the product has a failure, it
should not be operated unless
it is repaired by an Authorised
Service Agent. There is the
risk of electric shock!
• Only connect the product to
a grounded outlet/line with
the voltage and protection as
specified in the “Technical
specifications”. Have the
grounding installation
made by a qualified
electrician while using the
product with or without a
transformer. Our company
shall not be liable for any
problems arising due to the
product not being earthed
in accordance with the local
regulations.
NEVER wash the product
by spreading or pouring water
onto it! There is the risk of
electric shock!
• The product must be
disconnected during
installation, maintenance,
cleaning and repairing
procedures.
• If the power connection
cable for the product is
damaged, it must be replaced
by the manufacturer, its
service agent or similarly
qualified persons in order to
avoid a hazard.
• Only use the connection
cable cable specified in the
“Technical specifications”.
• The appliance must be
installed so that it can be
completely disconnected
from the mains supply. The
separation must be
provided by a switch built
into the fixed electrical
installation, according to
construction regulations.
• Any work on electrical
equipment and systems
should only be carried
out by authorised and
qualified persons.
• In case of any damage,
switch o the product and
disconnect it from the mains.
• Make sure that fuse rating
_ 07
User manual LAM1216
Safety
is compatible with the
product. To do this, turn o
the fuse at home.
Product Safety
WARNING: The appliance
and its accessible parts
become hot during use. Care
should be taken to avoid
touching heating elements.
Children less than 8 years of
age shall be kept away unless
continuously supervised.
• Never use the product
when your judgment or
coordination is impaired by
the use of alcohol and/or
drugs.
• Be careful when using
alcoholic drinks in your
dishes. Alcohol evaporates at
high temperatures and may
cause fire since it can ignite
when it comes into contact
with hot surfaces.
• Do not place any flammable
materials close to the product
as the sides may become hot
during use.
• Keep all ventilation slots
clear of obstructions.
• Do not use steam cleaners
to clean the appliance as this
may cause an electric shock.
WARNING: Unattended
cooking on a hob with fat or
oil can be dangerous and
may result in fire.
NEVER try to extinguish
a fire with water, but switch
o the appliance and then
cover flame e.g. with a lid or
a fire blanket.
CAUTION: The cooking
process has to be
supervised. A short term
cooking process has to be
supervised continuously.
WARNING: Danger of
fire: Do not store items on
the cooking surfaces.
• The appliance is not
intended to be operated by
means of an external timer
or separate remote control
system
WARNING: Use only
hob guards designed by the
manufacturer of the cooking
appliance or indicated by the
manufacturer of the
in the instructions for use
as suitable or hob guards
incorporated in the
appliance.
08_
LAMONA Appliances
The use of inappropriate
guards can cause accidents.
Prevention against possible
fire risk!
• Ensure all electrical
connections are secure and
tight to prevent risk of arcing.
• Do not use damaged cables
or extension cables.
• Ensure liquid or moisture is
not accessible to the
electrical connection point.
Intended use
• This product is designed for
domestic use. Commercial
use will void the guarantee.
• This appliance is for cooking
purposes only. It must not be
used for other purposes, for
example room heating.
• The manufacturer shall
not be liable for any damage
caused by improper use or
handling errors.
Safety for children
WARNING: Accessible
parts may become hot during
use. Young children should be
kept away.
• The packaging materials
will be dangerous for
children. Keep the packaging
materials away from
children. Please dispose of
all parts of the packaging
according to environmental
standards.
• Electrical products are
dangerous to children. Keep
children away from the
product when it is operating
and do not allow them to
play with the product.
• Do not place any items
above the appliance that
children may reach for.
_ 09
User manual LAM1216
Do not use the hob if the surface is cracked,
as electrical parts are directly beneath. Switch
o the appliance at the supply to prevent
electric shock and contact your supplier.
The hob surface remains hot after use.
DO NOT TOUCH.
The appliance is not intended to be operated
by means of an external timer or separate
control system.
Controls
Rotate in either direction to switch on and
select the heat level. Each zone has 6 fixed heat
settings as described in the heat settings table.
03 - Using the hob
Using the hob
Heat Settings
1 2 - 3 4 - 5 - 6
Warming Simmering &
Stewing
Frying &
Boiling
When any one of the heating zones is on, the red
indicator light on the control panel lights up.
2
3 4
5
6
0
1
2
3 4
5
6
0
1
2
3 4
5
6
0
1
2
4
5
6
0
1
3
To switch a heating zone o turn the
corresponding knob to ‘0’ (zero)
2
4
5
6
0
1
3
10_
LAMONA Appliances
Hob layout
2
3 4
5
6
0
1
2
3 4
5
6
0
1
2
3 4
5
6
0
1
2
4
5
6
0
1
3
a.
b.
c.
d.
e.
h.
f.
g.
i.
Using the hob

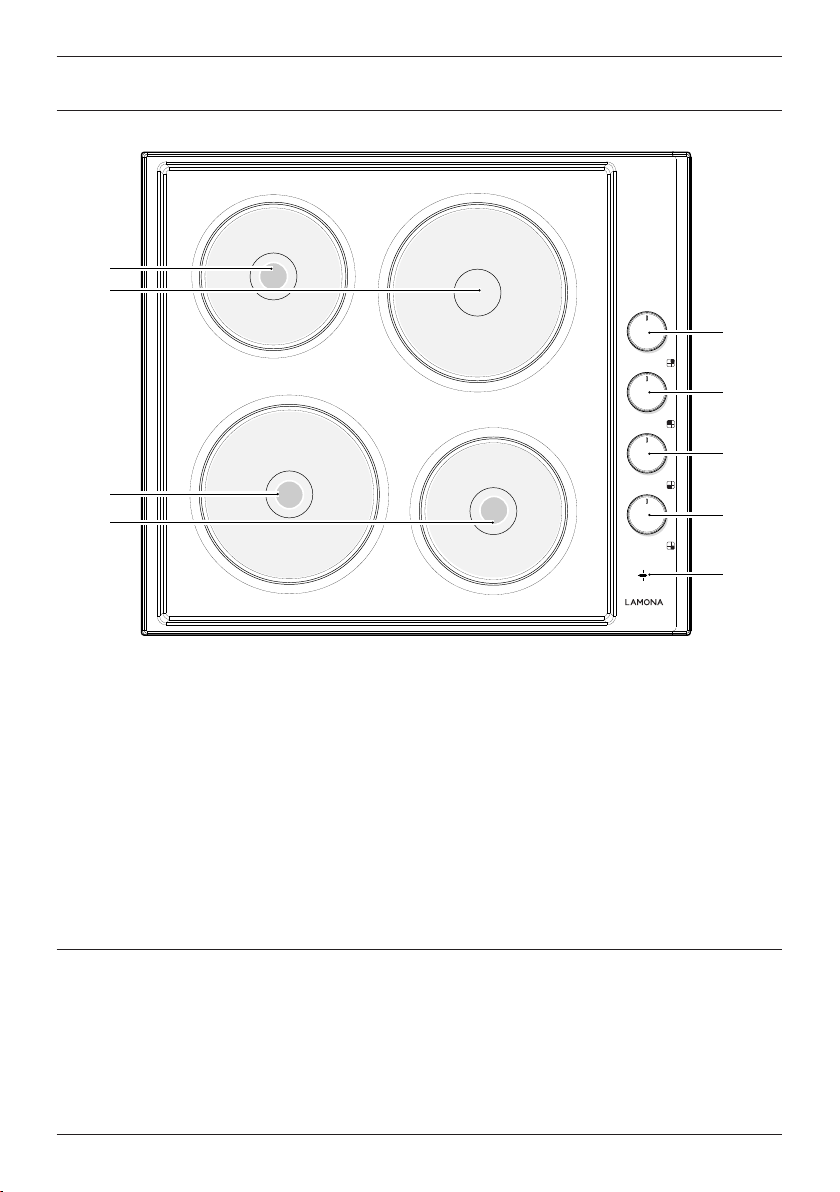

a. Rear Left Zone (Rapid) Ø145mm 1500w
Suitable for 6” or 15cm diameter saucepan
b. Rear Right Zone (Standard) Ø180mm 1500w
Suitable for 7” or 18cm diameter saucepan
c. Front Left Zone (Rapid) Ø180mm 2000w
Suitable for 7” or 18cm diameter saucepan
d. Front Right Zone (Rapid) Ø145mm 1500w
Suitable for 6” or 15cm diameter saucepan
e. Rear right control Knob
f. Rear left control Knob
g. Front left control Knob
h. Front right control Knob
i. Hob on Indicator.
Over heating protection
Hotplates that have a power above 1000W are equipped with over heating protection.
This protection decreases the power of the hotplate in the following conditions:
• There is no saucepan or vessel on the hotplate.
• There is an empty saucepan or vessel on the hotplate.
• The bottom of the saucepan or vessel is not completely flat.
Indice
Altri manuali Lamona Piano cottura
Lamona
Lamona LAM1748 Guida
Lamona
Lamona LAM1746 Guida
Lamona
Lamona LAM1551 Guida
Lamona
Lamona LAM1625 Guida alla risoluzione dei problemi
Lamona
Lamona LAM1850 Guida
Lamona
Lamona LAM1902 Manuale utente
Lamona
Lamona LAM1851 Manuale utente
Lamona
Lamona LAM1110 Manuale utente
Lamona
Lamona LAM1801 Guida
Lamona
Lamona LAM1763 Guida alla risoluzione dei problemi
Lamona
Lamona LAM1741 Guida alla risoluzione dei problemi
Lamona
Lamona LAM 1000 Guida alla risoluzione dei problemi
Lamona
Lamona LAM9500 Guida
Lamona
Lamona LAM1701 Guida alla risoluzione dei problemi
Lamona
Lamona LAM1742 Guida alla risoluzione dei problemi
Lamona
Lamona LAM1761 Guida alla risoluzione dei problemi
Lamona
Lamona LAM1217 Guida
Lamona
Lamona LAM1004 Guida alla risoluzione dei problemi
Lamona
Lamona LAM1112 Guida
Lamona
Lamona LAM9501 Manuale utente
