DESCRIPTION : 16 X CCD COLOR CAMERA
SET MODEL NO. : LVC - A630HM ( NTSC , High Resolution )
LVC - A630HP ( PAL , High Resolution )
LVC - A630NM ( NTSC , NOR Resolution )
LVC - A630NP ( PAL , NOR Resolution
LVC-A630’S Specifications
1. GENERAL SPECIFICATIONS
Signal System NTSC ( LVC – M630HP ) PAL ( LVC – M630NP )
Scanning System 2 : 1 Interlace
Scanning Frequency ( H ) 15.625 KHz
50 Hz
Pick- Up Device 1 / 4 “ CCD
Total Pixcels No. 795 (H) X 596 (V) 470K 537 (H) X 597 (V) 320K
Effective Pixcels No. 752 (H) X 582 (V) 440K 500 (H) X 582 (V) 290K
Scanning Frequency ( V )
S/N Ratio More Than 48 dB
Horizontal Resolution More Than 450 TV Lines More Than 320 TV Lines
LENS X 16 Zoom ( F 1.6 f = 3.9 ~ 63 mm ), Video AF
Minimum Shooting Distance 0.01m ( WIDE ) , 1.2m ( TELE )
Minimum Illumination 1 Lux ( 30 IRE )
Digital Zoom Ratio Basic X 8 ( Total Zoom Ratio X 128 ) , X2 ~ X8 Variable
Sync System Internal
OSD ( On Screen Display ) Chinese / English
Video Output Composite Output 75 ΩTerminated / Y,C Separated
RS-232C
F
u
n
c
t
I
o
n
Camera Control
Zoom Speed 3 Sec Mode
Brightness Control Manual ( Brightness Up / Down )
White Balance Auto / Special / Indoor / Outdoor / Manual / Push Auto
Iris Control Auto / Manual ( Iris Up / Down )
Auto / Manual ( 8 dB ~ 38 dB Control )AGC Control
Shutter Speed 1 / 50 ~ 1/ 10,000 Sec 8 Steps
Flickerless Off / On (1 / 120Sec Shutter Set)
On / OffBack Light Compen.
Focus Mode Manual (Pseudo- Auto Zoom) / Auto
Negative On / OffNegative / Positive
64 Mode Set / Move ( Store with Internal EEPROM )Zoom/Focus Preset
0 ˚C ~ 40 ˚COperation Temperature
0 % RH ~ 60 % RHOperation Humidity
-20 ˚C ~ 60 ˚C , 0 % RH ~ 85 % RHStorage Temperature
9 V ~ 15 VSupplied Voltage
Max 4.3 WPower Consumption
55x56x90 mmDimensions ( W x H x D )
210gWeight
2 / 9
REMARKS
- BOLD : Default Mode
LVC-A630’S Specifications
2. RELIABILITY TESTS
1) Normal Operation Test ( Initial Camera’s Performance Test )
23 ˚C ±5 ˚C 60 % RH
* Check the Camera’s performance , and measurement data ( Compare with given tolerance limit ) .
2) Operating Conditions ( Temperature , Humidity )
0 ˚C ∼40 ˚C 0 % RH ∼60 % RH
3) Environmental Test Procedure ( With Camera only )
40 ˚C , 60 % RH 8 Hours
0 ˚C , 0 % RH 8 Hours
* Conditions : 1. Leave the camera unit at above condition ( High temperature & Low temperature ).
2. After this test , Check the camera’s performance and measurement data .
3. Compare the data with given specifications
4) Storage Test Conditions & Procedure ( With Carton )
60 ˚C , 85 % RH 48 Hours
-20 ˚C , 0 % RH 48 Hours
* Conditions : 1. Leave the carton at above condition ( High temperature & Low temperature ) .
2. After this test , moving it at normal temperature ( 23 ˚C ) for 10hours .
3. Check the camera’s performance and measurement data .
4. Compare the data with given specifications
5) Electrostatic Caution
* It will be damaged Camera module without outer case which flowed in the Electrostatic.
It is necessary to prepare Electrostatic ring , clothes , etc to prevent electrostatic.
6) Vibration Test ( With Carton )
* Vibrate the camera 4mm widths of a vibration ( 1000rpm , 17Hz ) .
Check the camera”s operations after testing each direction X,Y,Z for 30 minutes duration of
a vibration .
7) Drop Test ( WITH CARTON )
* Drop the camera under conditions of height 70 Cm , one corner , 3 edges , 6 surfaces .
Check the camera’s operations after testing for 1 time .
8) Regulations * CE Certification ( CLASS A)
Warning
This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
9) Durability
a) Zoom Motor ; More than 500,000 cycles at room temperature .
b) Focus Motor ; More than 1,000,000 cycles at room temperature .
c) Iris ; More than 500,000 cycles at room temperature .
3 / 9
LVC-A630’S Specifications

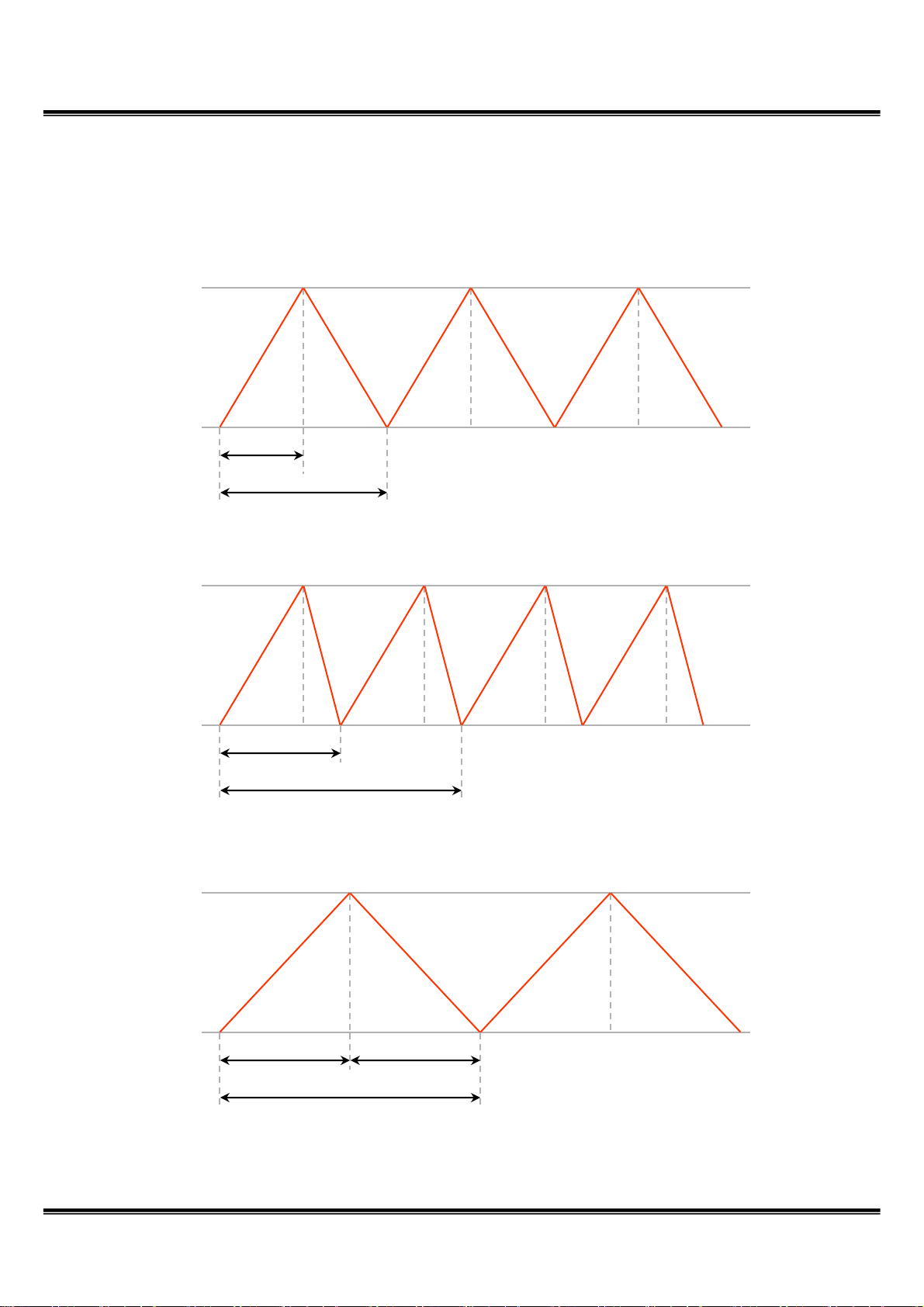

3. LENS TEST CONDITIONS
1) Lens Test Pattern
a) Zoom ;
WIDE
TELE
6sec
12sec
1 Cycle
FAR
NEAR
12sec
2 Cycle
a) Focus ;
6sec
CLOSE
OPEN
1.5sec
1 Cycle
a) Iris ;
1.5sec
3 sec
4 / 9
LVC-A630’S Specifications

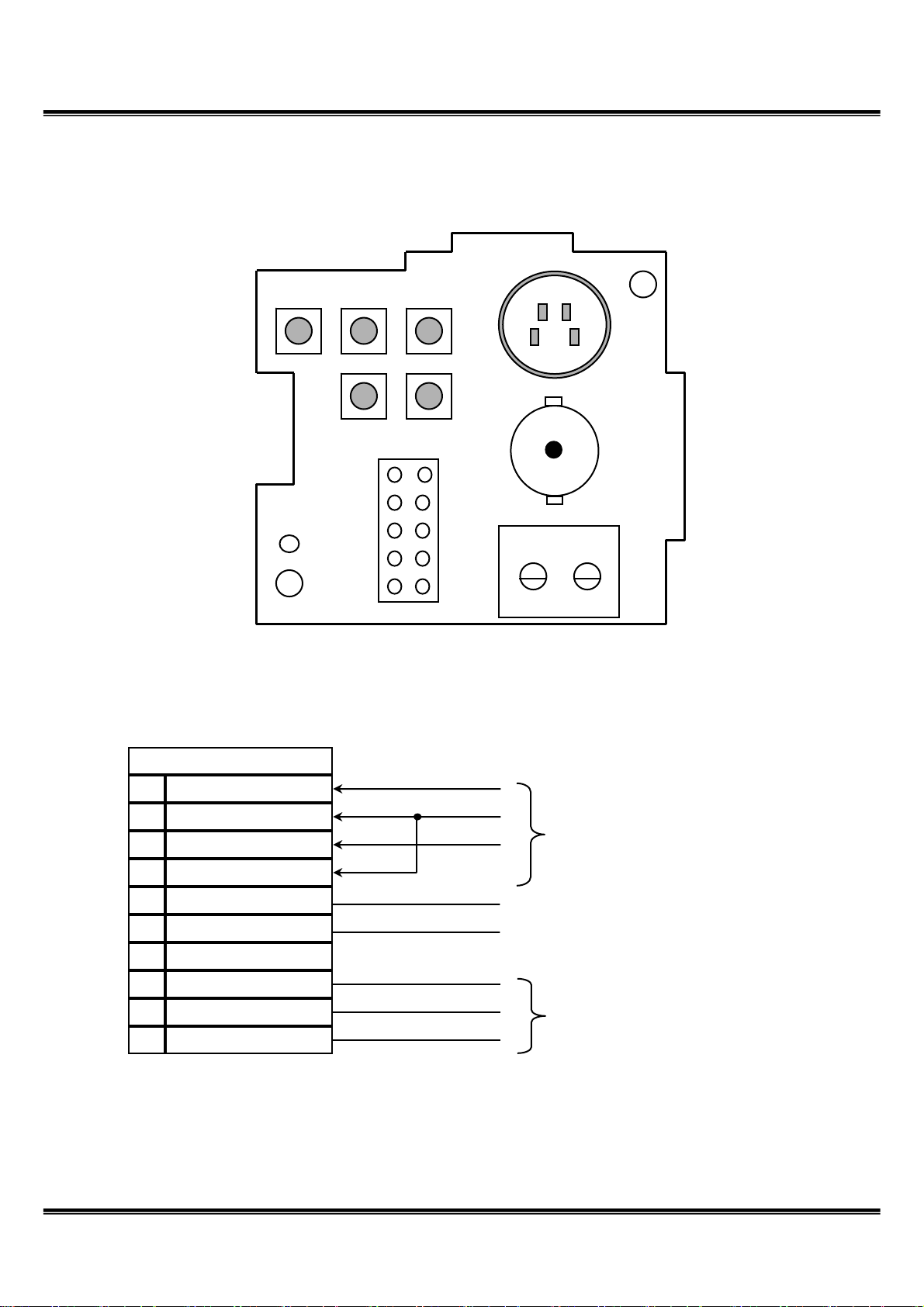

4. INTERFACE
5 / 9
CN3U1
12
910
TELE(UP) MENU WIDE(DN)
FOCUS(+) FOCUS(-)
JK303
S-JACK
JK302
V.OUT
+12V GND
+
1) For P/T/Z Control & RS232C Control ( CONNECTOR : 68125-1011, MOLEX )
1ZOOM
2COM
3FOCUS
CN 3U1
4COM
5AD2
6AD1
7R+
8RD
9TD
10 GND
For RS-232C Control
Zoom & Focus DC Control
A/D Key 2 input
A/D Key 1 input
LVC-A630’S Specifications
5. Applications
KEY
Voltage
AD(1) AD(2) AD(3) AD(4) AD(5) AD(6) AD(7) AD(8)
3) Using A/D Key
0V 0.5V 1.1V 1.6V 2.1V 2.6V 3.1V 3.6V
6.8K 8.2K 12K 18K 33K 68K 180K
AD(2) AD(3) AD(4) AD(5) AD(6) AD(7) AD(8)
AD(1)
AD1
AD2 A0.01uF
3-2) A/D Key application example.
3-3) A/D Key Functions
AD1(1)
AD1(2)
AD1(3)
AD1(4)
AD1(5)
AD1(6)
AD1(7)
AD1(8)
No
Power ON / OFF
Menu
Tele
Wide
Nega / Posi
Focus Near
Focus Far
Push Auto or A/M
Function
AD2(1)
AD2(2)
AD2(3)
AD2(4)
AD2(5)
AD2(6)
AD2(7)
AD2(8)
No
Shutter Speed
Backlight On/Off
Color On/Off
Key Not
Key Not
Key Not
Key Not
Key Not
Function
6 / 9
②RD
③TD
④DTR
⑤SG
⑥DSR
⑦RTS
⑧CTS
⑨RI
( RS-232C D-Sub 9 Connector )
8RD
9TD
CN3U1
10 GND
1
2
3
4
5
6
7
8
9

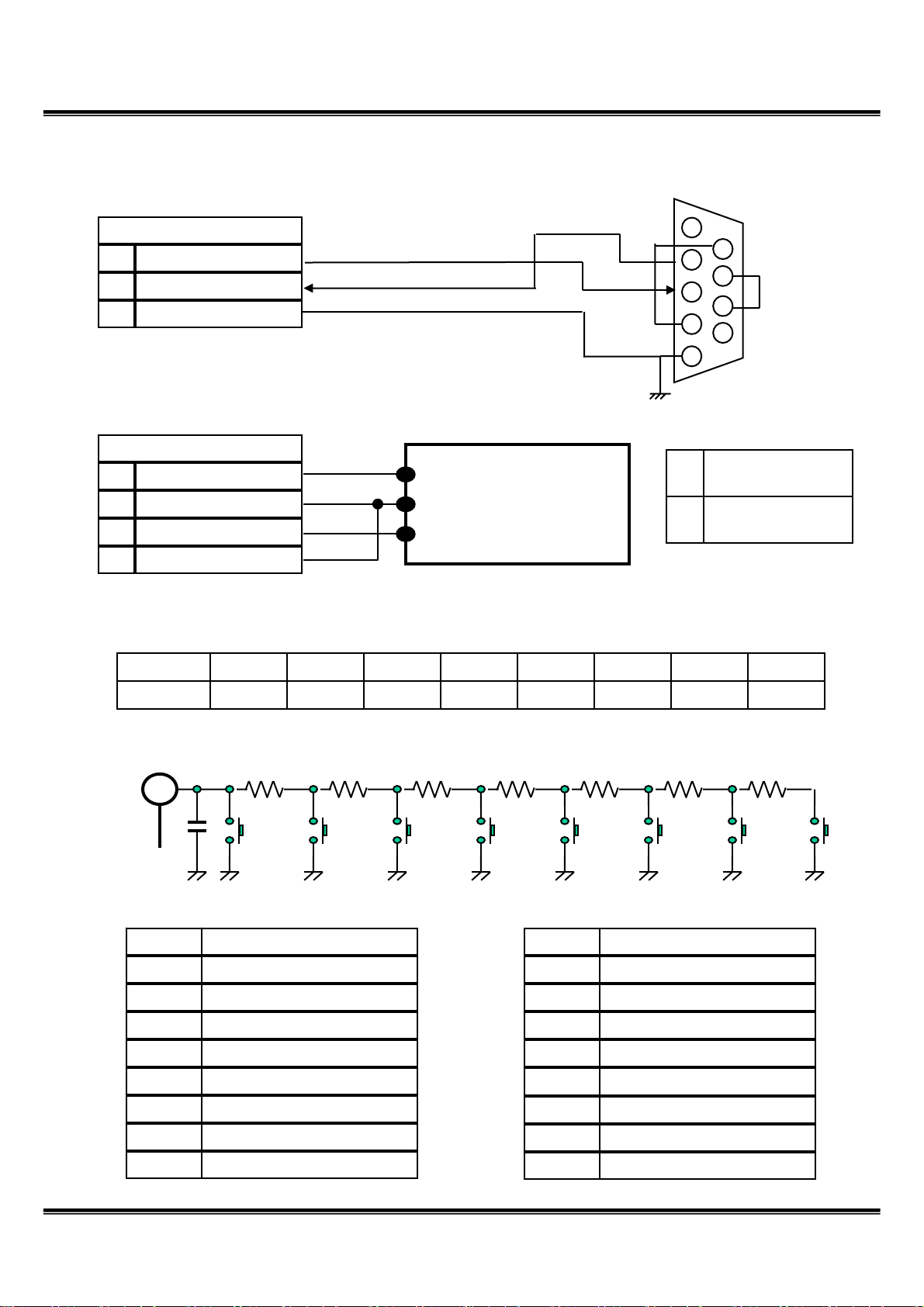

1) RS232C Connect
2) Zoom & Focus DC Control connect
RECEIVER UNIT / CONTROLLER
ZOOM ( + ; Tele , - ; Wide )
COMMON
FOCUS ( + ; Near , - ; Far )
+
-
Voltage Range
Vcom + ( 6 V~12V )
Vcom - ( 6 V~12V )
1ZOOM
2COM
CN3U1
3FOCUS
3-1) A/D Key Voltage Spec
4COM
LVC-A630’S Specifications
6. Accessory (Option)
7 / 9

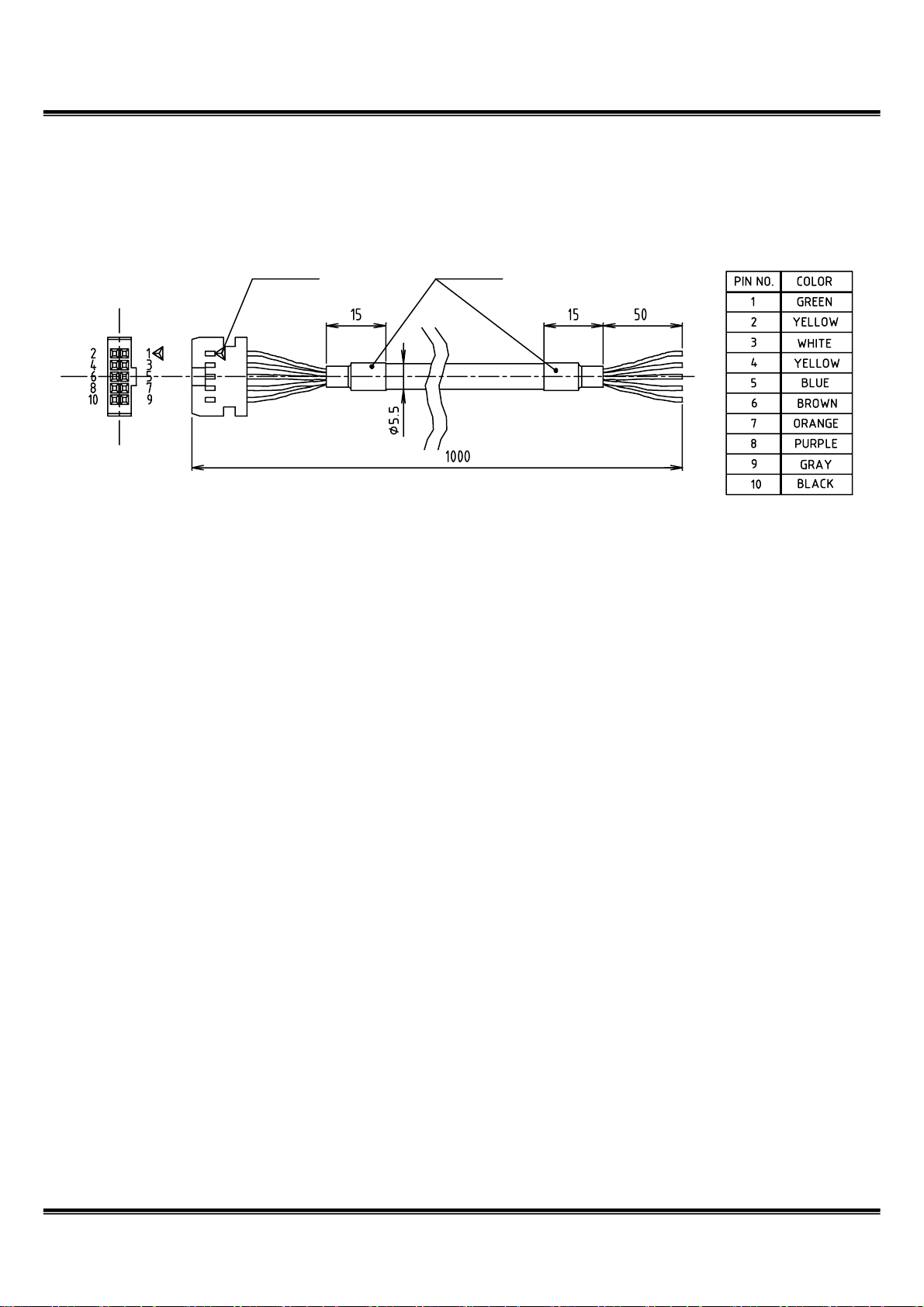

1) 10PIN Cable Ass’y ( P/N : 6850R-ZJA01 )
압축 TUBE
NO.1 MARK
LVC-A630’S Specifications

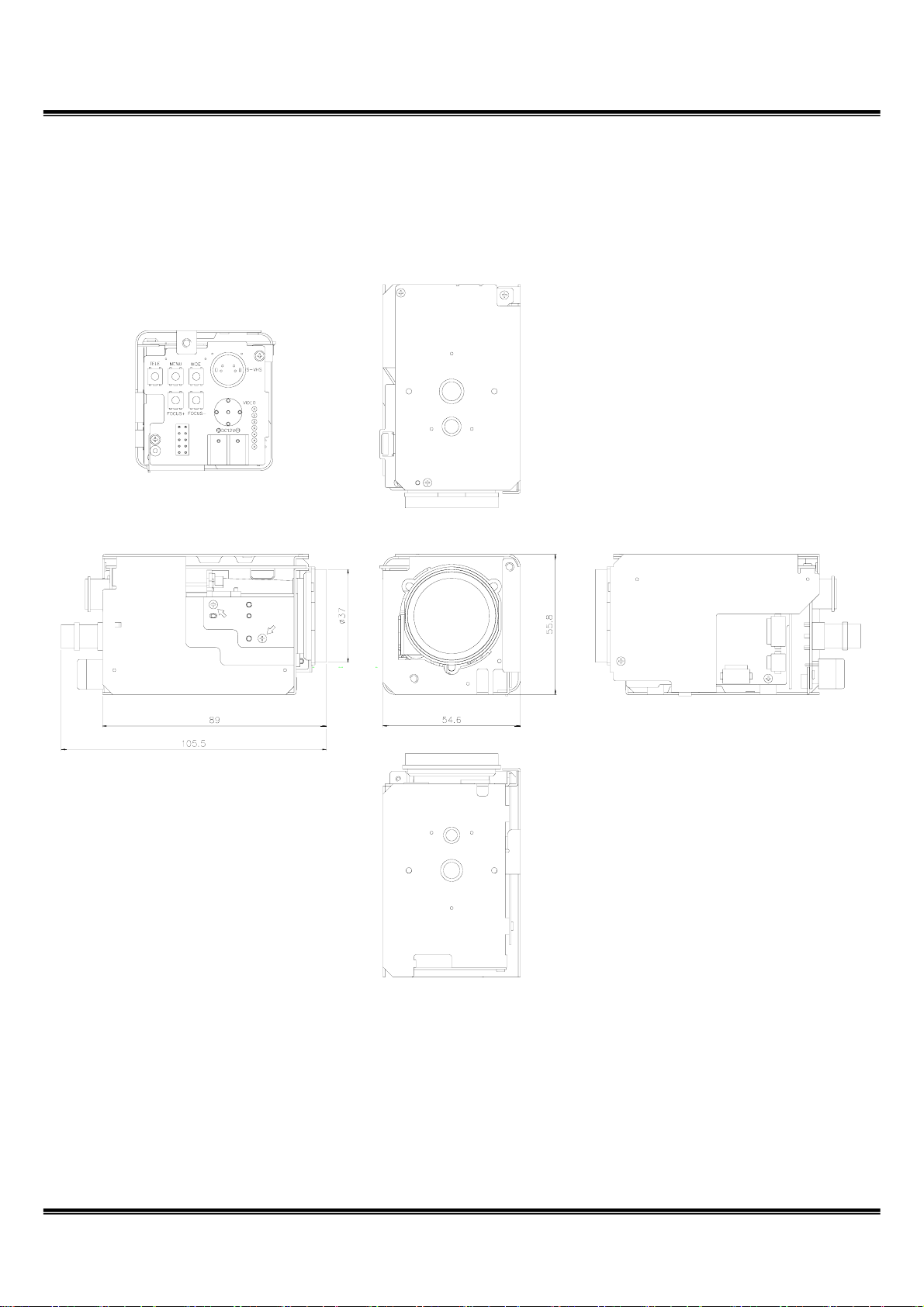

7. DIMENSION
8 /9
LVC-A630’S Specifications

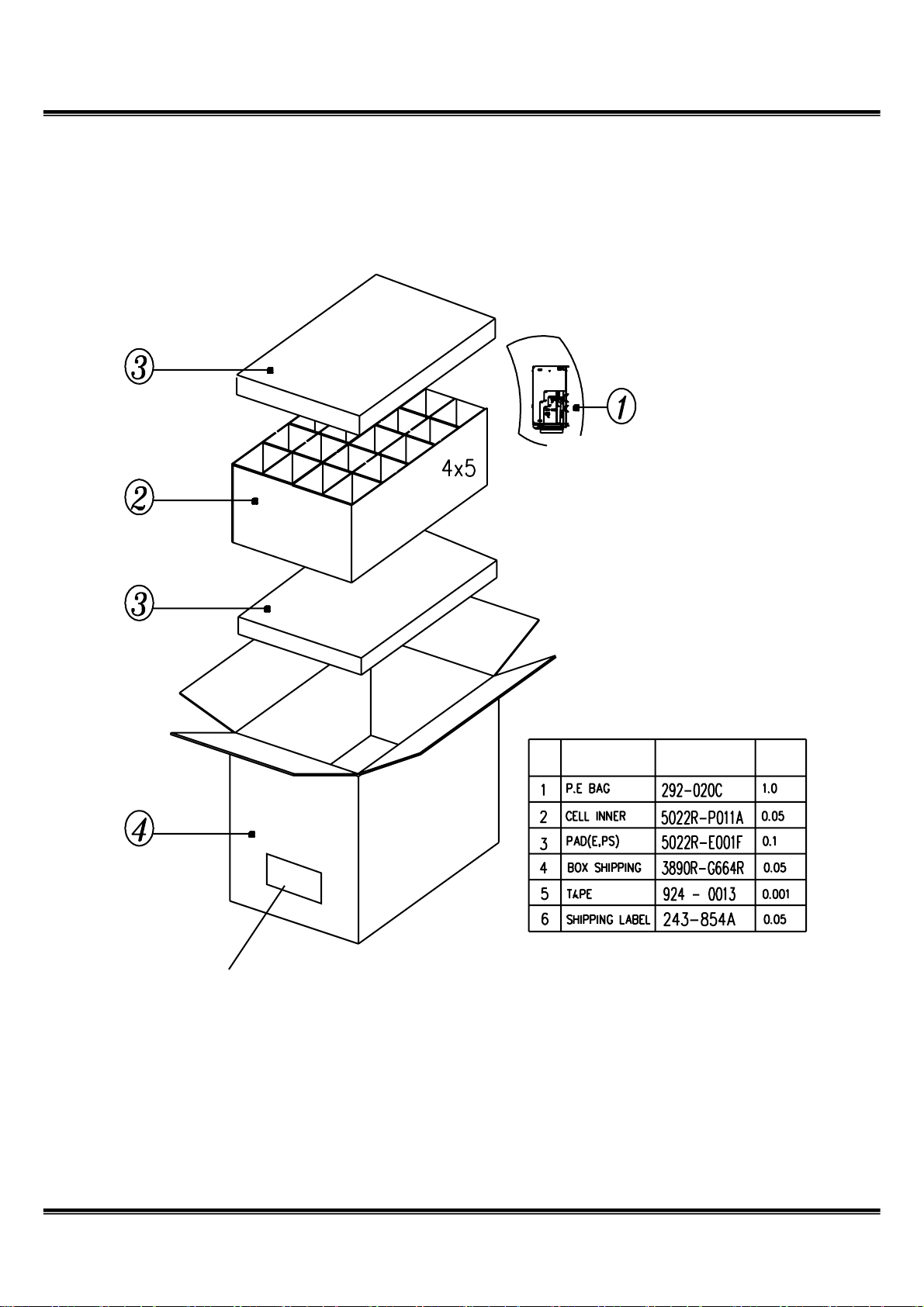

8. CARTON DIMENSIONS
9 / 9
⑥
NO DESC P/N QT’Y
Camera Control Command Protocol
(For RS-232C, RS-422, RS-485)
Model :: x16 Zoom Camera
APPENDIX C DATE ; 23 . NOV . 99
VERSION 3.0
