Lantronix Xpress-Pro SW 92000 Manuale utente

Part Number 900-504a 1

May 2007

XPress-Pro SW 92000 Quick Start

This quick installation guide describes how to install and use the hardened compact Ethernet Switch. Capable of operating at temperature extremes of

-34°C to +74°C, this is the switch of choice for harsh environments constrained by space.

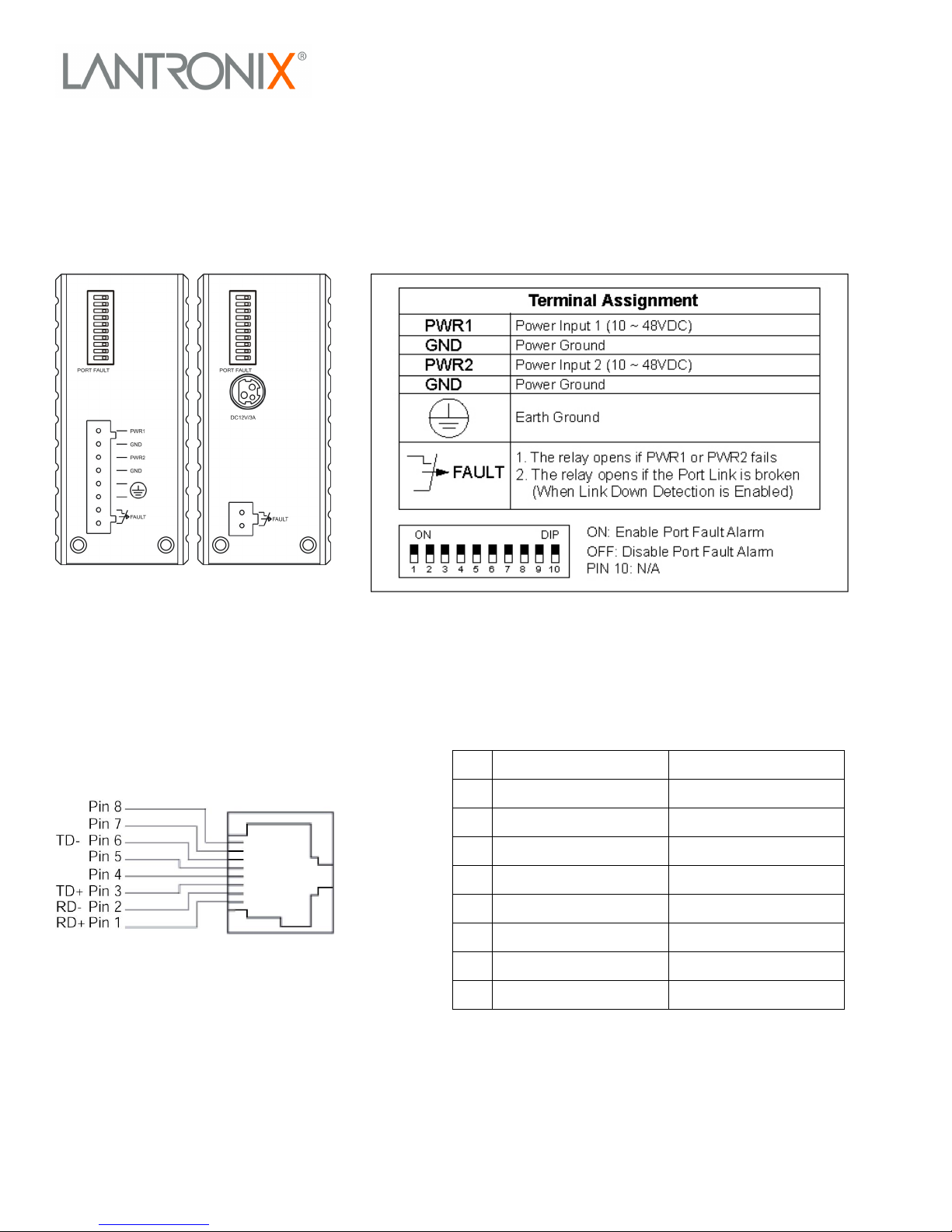

Physical Description

The Terminal Block and Power Inputs

DC Terminal Block Power Inputs: There are two pairs of power inputs can be used to power up this media converter. Redundant power supplies

function is supported. You only need to have one power input connected to run the Switch.

DC JACK Power input: 12VDC.

The 10/100BaseTX and 100BaseFX Connectors

The 10/100BaseTX Connections

The following lists the pinouts of 10/100BaseT/TX ports.

Pin Regular Ports Uplink port

1 Input Receive Data + Output Transmit Data +

2 Input Receive Data - Output Transmit Data -

3 Output Transmit Data + Input Receive Data +

4 NC NC

5 NC NC

6 Output Transmit Data - Input Receive Data -

7 NC NC

8 NC NC

The 100BaseFX Connections

The fiber port pinouts

The Tx (transmit) port of device I is connected to the Rx (receive) port of device II,

and the Rx (receive) port of device I to the Tx (transmit) port of device II.

The Port Status LEDs

Functional Description

Meets NEMA TS1/TS2 Environmental requirements such as

temperature, shock, and vibration for traffic control equipment.

Meets IEC61000-6-2 EMC Generic Standard Immunity for

industrial environment.

Support 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps,

full/half-duplex; Auto MDI/MDIX.

100BaseFX: Multi mode SC, ST, VF-45, MT-RJ, or LC type;

Single mode SC or ST type; WDM Single mode SC type.

Support 2K MAC addresses. Provides 96K bytes memory

buffer.

Alarms for power and port failure by relay output.

Operating voltage and Max. current consumption: 12VDC @

0.99A, 24VDC @ 0.55A, 48VDC @ 0.39A. Power consumption:

18.72W Max.

Power Supply: Redundant DC Terminal Block power inputs or

12VDC DC JACK with 124-240VAC external power supply.

Operating temperature ranges from -34℃to 74℃.

Supports Din-rail or panel mounting installation.

LED State Indication

POWER

Steady

Switch is properly connected to power

and turned on.

PWR1

PWR2

(Green) Off

Switch is not connected to power and is

turned off.

FAULT

Steady

1. Power failure occurred.

2. Port failure occurred (when port fault

alarm dip switch is enabled).

FAULT

(Red)

Off

1. Power failure is not occurred.

2. Port failure is not occurred (when port

fault alarm dip switch is enabled).

3. Port fault alarm dip switch is disabled.

10/100TX or 100FX

Steady

A valid network connection established.

LNK stands for LINK.

LNK/ACT

(Green)

Flashing

Transmitting or receiving data.

ACT stands for ACTIVITY.

Steady

Light solid yellow for a port transferring

at 100Mbps.

100

(Yellow)

Off

The port is transferring at 10Mbps If this

LED is dark.

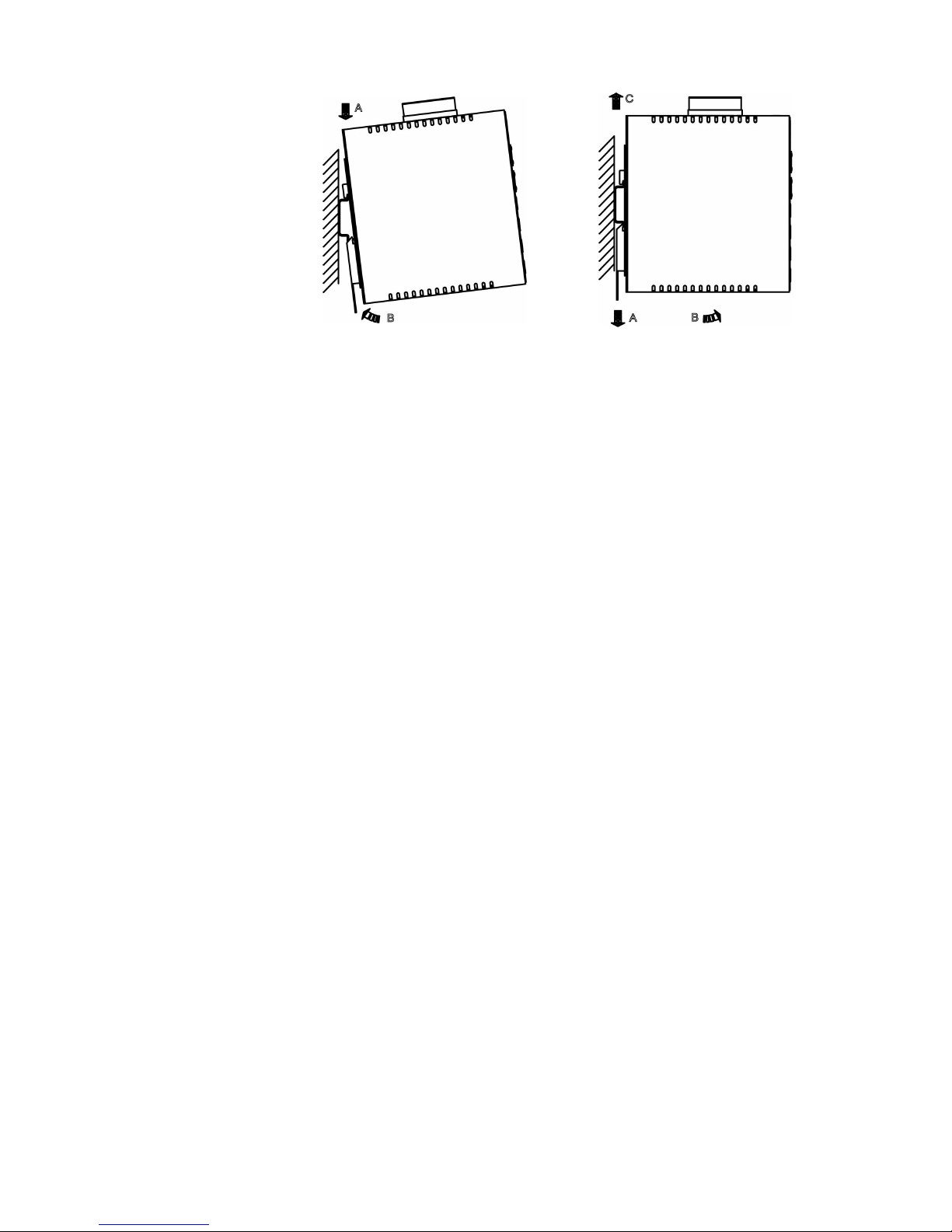

Assembly, Startup, and Dismantling

Assembly: Place the switch on the

DIN rail from above using the slot.

Push the front of the switch toward the

mounting surface until it audibly snaps

into place.

Startup: Connect the supply voltage

to start up the switch via the terminal

block (or DC JACK).

Dismantling: Pull out the lower edge

and then remove the switch from the

DIN rail.
