Lanzar VIBE218 Manuale utente
Viberant Owner’s Manual
Congratulations on your purchase of a Lanzar Viberant amplifier. You have purchased a quality product designed
and engineered to give you many years of uncompromised musical service. Vibe amplifiers are designed with the
latest technology available, which provides headroom for even the most demanding peaks and dynamic ranges
found on modern CD's and recordings.
TABLE OF CONTENTS
Table of Contents
Feature and Controls
1. Vibe218/228/238/248/258/268
2. Vibe418/428/438
3. Installation
4. Specifications
System Wiring
6. 2 channel stereo
7. 2 channel bridged mode
8. 2 channel tri-mode
9. 2 channel triamp system
10. 4 channel stereo
11. 4 channel bridged mode
12. 4 channel tri-mode
13. Precautions
14. Troubleshooting
Viberant Owner’s Manual- 1
Features and Controls
vibe 218/228/238/248/258/268
1 2 37 6 5 1 2 37 6 5
1. INPUT LEVEL CONTROLS
Enables the matching of input levels to the output levels from
head unit (or other signal source).
2. CROSSOVER MODE SELECTOR
Determines the mode of built-in crossover:
low pass (permits only low frequency signals to pass to
speakers),high pass (permits only high frequency signals to pass
to speakers), or flat.
3. BASS BOOST CONTROL
With a bass boost switch engaged, the bass level is increased
approx 18dB.
4. REMOTE BASS BOOST (Vibe228/238/248/258/268)
Plug in the remote bass boost control wire in here
5. POWER & PROTECTION INDICATORS
Provide instant information on status of amplifier, including
short-circuit and thermal overload alerts.
6. HIGH PASS FILTER (HPF)
When Crossover Mode Selector is in High Pass Mode, this control
limits the frequencies which will be distributed to the speakers
to those below the value to which this is set within the range 80-
2.5KHz.
7. LOW PASS FILTER (LPF)
When Crossover Mode Selector is in Low Pass Mode, this control
limits the frequencies which will be distributed to the speakers
to those below the value to which this is set within the range 35-
400Hz.
4
vibe218
Viberant Owner’s Manual2-
Features and Controls
vibe 418/428/438
2 3 476 2 3 4765 2 3 476 2 3 47651
1. REMOTE BASS BOOST (vibe428/438)
Plug in the remote bass boost control wire in here
2. INPUT LEVEL CONTROLS
Enables the matching of input levels to the output levels from
head unit (or other signal source).
3. CROSSOVER MODE SELECTOR
Determines the mode of built-in crossover:
low pass (permits only low frequency signals to pass to speakers),
high pass (permits only high frequency signals to pass to speakers),
or flat.
4. BASS BOOST CONTROL
With a bass boost switch engaged, the bass level is increased
approx 18dB.
5. POWER & PROTECTION INDICATORS
Provide instant information on status of amplifier, including
short-circuit and thermal overload alerts.
6. HIGH PASS FILTER (HPF)
When Crossover Mode Selector is in High Pass Mode, this control
limits the frequencies which will be distributed to the speakers
to those below the value to which this is set within the range 80-
2.5KHz.
7. LOW PASS FILTER (LPF)
When Crossover Mode Selector is in Low Pass Mode, this control
limits the frequencies which will be distributed to the speakers
to those below the value to which this is set within the range 35-
400 Hz.
vibe418
Viberant Owner’s Manual- 3
nstallation
1. Find a suitable location in the vehicle to mount the amplifier.
2. Make sure there is sufficient air flow around the intended mounting location.
3. Bolt the amplifier to the mounting surface.
4. Connect the power ground terminal to the nearest point on the chassis of the car. Keep this ground wire less than one meter (39")
in length. Use 8 gauge wire.
5. Connect the remote terminal to the remote output of the head unit using 14 gauge wire.
6. Connect an empty fuse holder within 300mm (12") of the battery and run 8 gauge of larger high quality cable from this fuse to the
amplifier location.
7. Make sure there is no fuse in this fuse holder. Then make the connection to the "BATT" connection on the amplifier.
8. If multiple amplifiers are being used, use cables (each with its own fuse at the battery) or a #0 or #2 cable from the fuse holder at
the battery to a distribution block at or near the amplifier's location.
9. Connect all line inputs and outputs using high-quality RCA-RCA cables.
10. Insert fuse(s) at the battery fuse holder(s).
11. Recheck all connections before powering up.
12. Set all level controls to their least sensitive positions and set all crossover controls, switches, etc. to the desired frequency or
position.
13. Once the system is powered up, set the volume control on the head unit to about the 2 o'clock position, and then set all the
amplifiers' level controls for maximum output level.
14. Further fine tuning of the various controls may be necessary to obtain the desired results.
Viberant Owner’s Manual4-
Specifications
MODEL Vibe218 Vibe 228 Vibe 238 Vibe248
RMS at 4 Ohms 2 x 100W 2 x 150W 2 x 200W 2 x 300W
MAX at 4 Ohms 2 x 200W 2 x 300W 2 x 400W 2 x 600W
At 4 Ohms Bridged 1 x 400W 1 x 600W 1 x 800W 1 x 1200W
RMS at 2 Ohms 2 x 150W 2 x 200W 2 x 300W 2 x 500W
Min. Speaker Impedance 2 Ohm 2 Ohm 2 Ohm 2 Ohm
T.H.D. 0.04% 0.04% 0.04% 0.04%
Frequency Response 15Hz-35KHz, -1dB 15Hz-35KHz, -1dB 15Hz-35KHz, -1dB 15Hz-35KHz, -1dB
Input Sens t v ty 250mV-5000mV 250mV-5000mV 250mV-5000mV 250mV-5000mV
Input Impedance 22 KOhm 22 KOhm 22 Kohm 22 KOhm
S/N Rat o >90dB >90dB >90dB >90dB
Channel Separat on >65dB >65dB >65dB >65dB
Crossover F lters
Low Pass 35Hz-400Hz 35Hz-400Hz 35Hz-400Hz 35Hz-400Hz
H gh Pass 80Hz-2.50KHz 80Hz-2.50KHz 80Hz-2.50KHz 80Hz-2.50KHz
Bass Boost +18dB +18dB +18dB +18dB
D mens ons (WxHxL) 11.5"x2.3"x8" 11.5"x2.3"x10" 11.5"x2.3"x12" 11.5"x2.3"x15"
Fuse(s) 15A 15A 20A 15Ax2
2 channel
ampl f er 2 channel
ampl f er 2 channel
ampl f er 2 channel
ampl f er
Viberant Owner’s Manual- 5
Specifications
Vibe258 Vibe 268 Vibe 418 Vibe428 Vibe438
2 x 400W 2 x 500W 4 x 100W 4 x 125W 4 x 175W
2 x 800W 2 x 1000W 4 x 200W 4 x 250W 4 x 350W
1 x 1600W 1 x 2000W 2 x 400W 2 x 500W 2 x 700W
2 x 650W 2 x 800W 4 x 175W 4 x 200W 4 x 300W
2 Ohm 2 Ohm 2 Ohm 2 Ohm 2 Ohm
0.04% 0.04% 0.04% 0.04% 0.04%
15Hz-35KHz, -1dB 15Hz-35KHz, -1dB 15Hz-35KHz, -1dB 15Hz-35KHz, -1dB 15Hz-35KHz, -1dB
250mV-5000mV 250mV-5000mV 250mV-5000mV 250mV-5000mV 250mV-5000mV
22 KOhm 22 KOhm 22 KOhm 22 KOhm 22KOhm
>90dB >90dB >90dB >90dB >90dB
>65dB >65dB >65dB >65dB >65dB
35Hz-400Hz 35Hz-400Hz 35Hz-400Hz 35Hz-400Hz 35Hz-400Hz
80Hz-2.50KHz 80Hz-2.50KHz 80Hz-2.50KHz 80Hz-2.50KHz 80Hz-2.50KHz
+18dB +18dB +18dB +18dB +18dB
11.5"x2.3"x17" 11.5"x2.3"x19" 11.5"x2.3"x12" 11.5"x2.3"x14" 11.5"x2.3"x17"
25Ax2 30Ax2 15Ax2 15A x 2 25Ax2
2 channel
ampl f er 4 channel
ampl f er 4 channel
ampl f er 4 channel
ampl f er
2 channel
ampl f er
Viberant Owner’s Manual6-

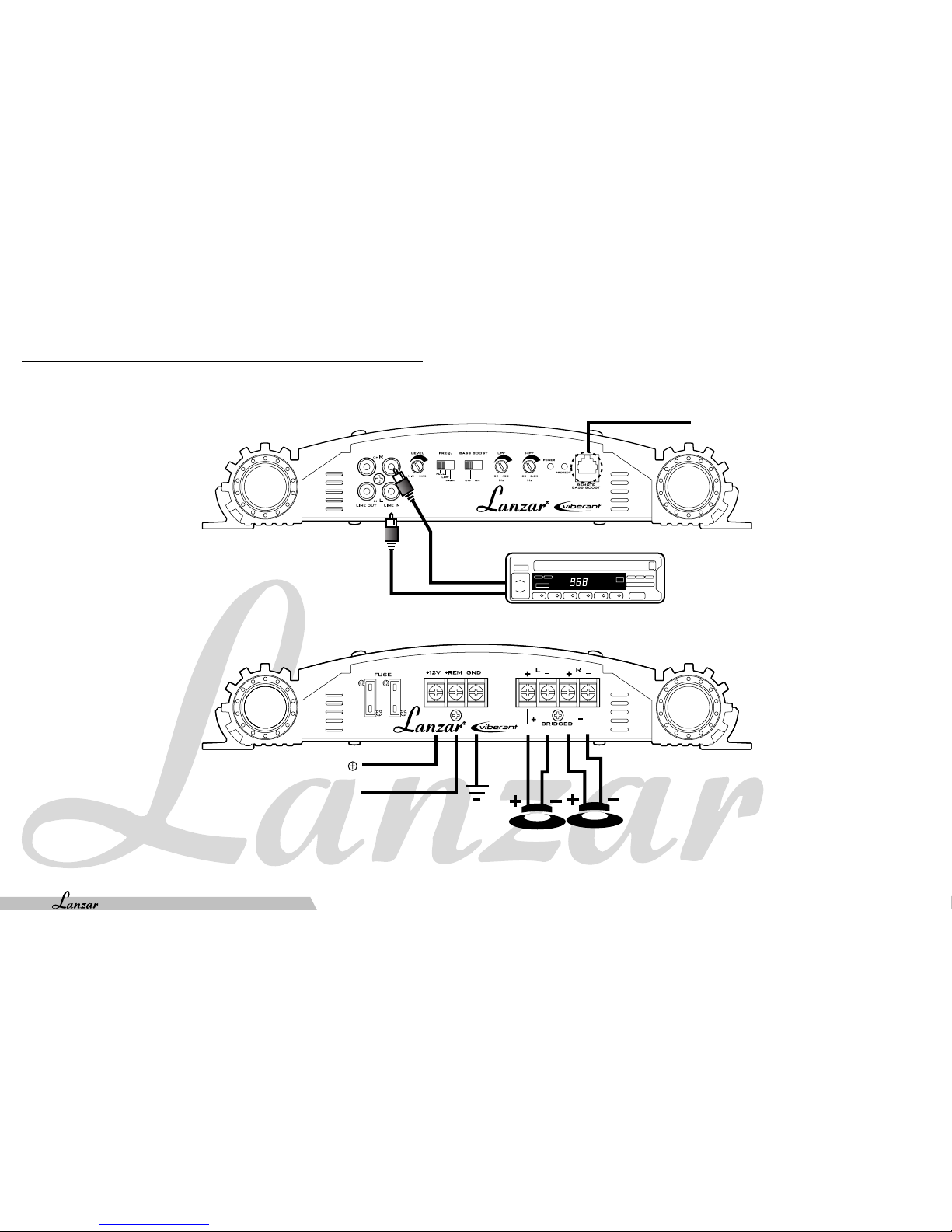

System Wiring
head unit
L/R Audio
Outputs
LEFT speaker RIGHT speaker
To Remote Output
From Head Unit
To Battery
SPEAKER
IMPEDANCE
4 OHMS!
2 CHANNEL STEREO CONF GURAT ON vibe218/228/238/248/258/268
FRONT
REAR
(v be218 w thout
Remote Bass Boost)
Viberant Owner’s Manual- 7
System Wiring
To a second amplifier
head unit
Y Adaptors
Speaker
To Remote Output
From Head Unit
To Battery
SPEAKER
IMPEDANCE
4 OHMS!
FRONT
REAR
2 CHANNEL BR DGED MODE CONF GURAT ON
vibe218/228/238/248/258/268
(v be218 w thout
Remote Bass Boost)
Viberant Owner’s Manual8-
System Wiring
2 CHANNEL TR -MODE CONF GURAT ON vibe218/228/238/248/258/268
FRONT
REAR
LEFT
speaker
Speaker
To Remote Output
From Head Unit
To Battery
SPEAKER
IMPEDANCE
4-8 OHMS!
head unit
(v be218 w thout
Remote Bass Boost)
RIGHT
speaker
Viberant Owner’s Manual- 9
System Wiring
TR AMP SYSTEM US NG THREE 2 CHANNEL AMPL F ERS
vibe218/228/238/248/258/268
Master Amp Front (Woofers) Master Amp Rear
Slave Amp #1 Front (Mids) Slave Amp #1 Rear
Slave Amp #2 Front (Tweeters) Slave Amp #2 Rear
Sw tch n
H gh Pass Pos t on
Sw tch n
Full Pos t on
Sw tch n
Low Pass Pos t on
FROM HEAD UNIT
TO OUTPUT
YADAPTOR
YADAPTOR
TO REMOTE OUTPUT
FROM HEAD UNIT
TO BATTERY
RL
WOOFERS
SPEAKER IMPEDANCE
2-4 OHMS
TO REMOTE OUTPUT
FROM HEAD UNIT
TO BATTERY
RL
FULL
TO REMOTE OUTPUT
FROM HEAD UNIT
TO BATTERY
RL
TWEETER
