Larson Electronics BL24-LED-600V-100-HD Manuale utente

BL24-LED-600V-100-HD

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

1of 4

Magnetic Mount LED Blasting Light

Waterproof - 100' 600V SO Cord - 120-277V AC 4320 Lumens

Instruction Manual

Thank you for your purchase of the Larson Electronics BL24-LED-600V-100-HD.

WARNING:

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CRITICAL SAFETY INSTRUCTIONS:

•INSTALLATION SHOULD ONLY BECONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY

RELEVANT LOCAL BUILDING CODES.

•RISK OFFIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF FIXTURE'S ELECTRICAL

SYSTEMS. IFNOTQUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE FIXTURE'S RATED VOLTAGE.

•TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP

OBJECTS. SUITABLE FOR DAMP LOCATIONS.

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. THE BL24-LED-600V-100-HD MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL

CODE AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.

WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS

PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,

CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.

WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE

INSTALLATION OR PERFORMING ANY MAINTENANCE.

RISK OF FIRE/ELECTRIC SHOCK –DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.

RISK OF PERSONAL INJURY –FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.

RISK OF BURN –ALLOW FIXTURE TO COOL BEFORE SERVICING.

WARNING:

USER SHOULD BE TRAINED IN THE PROPER USE AND MAINTENANCE OF THIS DEVICE. THIS LINE

CORD IS INTENDED TO ALLOW OPERATORS TO EXTEND POWER TO EQUIPMENT WHEN STATIONARY OUTLETS ARE NOT

READILY AVAILABLE.

IMPROPER USE OF THIS CORD, PLUG, AND RECEPTACLE CAN LEAD TO SERIOUS INJURIES OR DEATH TO

PERSONNEL.

PERIODIC INSPECTION OF THE CORD IS NECESSARY.

THE CORD MUST BE ROUTINELY CHECKED FOR CUTS, BREAKS, OR ANY SEVERE ABRASIONS, AND IF ANY ARE FOUND,

THE CORD MUST BE REPLACED BEFORE RESUMING USE.

Magnetic Warning

•PEOPLE WITH PACEMAKERS SHOULD CONSULT THEIR PHYSICIAN(S) BEFORE USE.

ELECTROMAGNETIC FIELDS INCLOSE PROXIMITY TOHEART PACEMAKER COULD CAUSE

PACEMAKER INTERFERENCE OR PACEMAKER FAILURE.

•KEEP FINGERS AWAY FROM MAGNET WHEN MOUNTING ASINJURY COULD OCCUR.

BL24-LED-600V-100-HD

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

2of 4

IMPORTANT

READ CAREFULLY BEFORE OPERATING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF

UNSURE ABOUT ANY PART OF THESE INSTRUCTIONS, CONSULT A QUALIFIED ELECTRICAL PROFESSIONAL.

WARNING: OPERATE ONLY AT THE VOLTAGE LISTED ON THE PRODUCT. DO NOT OPERATE IN CLOSE PROXIMITY OF

COMBUSTIBLE OR FLAMMABLE MATERIALS. NEVER LOOK DIRECTLY AT LIGHT WHEN ON. DO NOT SHINE LIGHT INTO THE

FACE OF SOMEONE ELSE.

WARNING: CONSULT A QUALIFIED ELECTRICAL PROFESSIONAL/ELECTRICIAN TO INSTALL THIS DEVICE IN

ACCORDANCE WITH APPROPRIATE LOCAL AND NEC CODES AND REGULATIONS.

WARNING: DEVICE IS SUITABLE FOR INSTALLATION IN WET LOCATIONS; GFCI PROTECTION RECOMMENDED.

WARNING: ALTHOUGH FIXTURE IS WATERPROOF, IT IS NOT DESIGNED OR INTENDED TO BE SUBMERGED.

WARNING: DO NOT ALLOW LINE VOLTAGE WIRES TO BECOME SUBMERGED!

IP68 RATED; SUITABLE FOR WET LOCATIONS (ALTHOUGH FIXTURE IS WATERPROOF, IT IS NOT DESIGNED OR

INTENDED TO BE SUBMERGED).

ALL OUTDOOR INSTALLATIONS AND INDOOR INSTALLATIONS NEAR A WET LOCATION REQUIRE THE USE OF A

GFCI DEVICE FOR SAFETY, ACCORDING TO THE NATIONAL ELECTRICAL CODE® (NEC).

KEEP AWAY FROM FLAMMABLE OBJECTS. DO NOT POSITION WITHIN ONE (1) INCH OF ANY COMBUSTIBLE

MATERIALS.

IF DROPPED OR DAMAGED, THE UNIT MAY NO LONGER BE WATERPROOF AND SHOULD BE REPLACED.

TO AVOID HAZARDS TO CHILDREN, ACCOUNT FOR ALL PARTS AND DESTROY PACKING MATERIALS.

PEOPLE WITH PACEMAKERS SHOULD CONSULT THEIR PHYSICIAN(S) BEFORE USE. ELECTROMAGNETIC FIELDS

IN CLOSE PROXIMITY TO HEART PACEMAKER COULD CAUSE PACEMAKER INTERFERENCE OR PACEMAKER

FAILURE.

KEEP FINGERS AWAY FROM MAGNET WHEN MOUNTING AS INJURY COULD OCCUR.

INSTALLATION

MOUNTING

Mount via the 400 lbs. grip magnetic base. This allows for

easy fixture placement and removal.

Run cable from light to your power source outputting voltage

on product nameplate. Cable should be placed in a manner as

to not cause any hazards to the surrounding area such as trips

or snags. Make sure all electrical connections are made.

Always use transformer to energize light.

When removing, do not drag the magnets to disconnect, as it

may scratch the surface/paint. Each magnet provides 200 lbs.

grip magnetic force.

WIRING

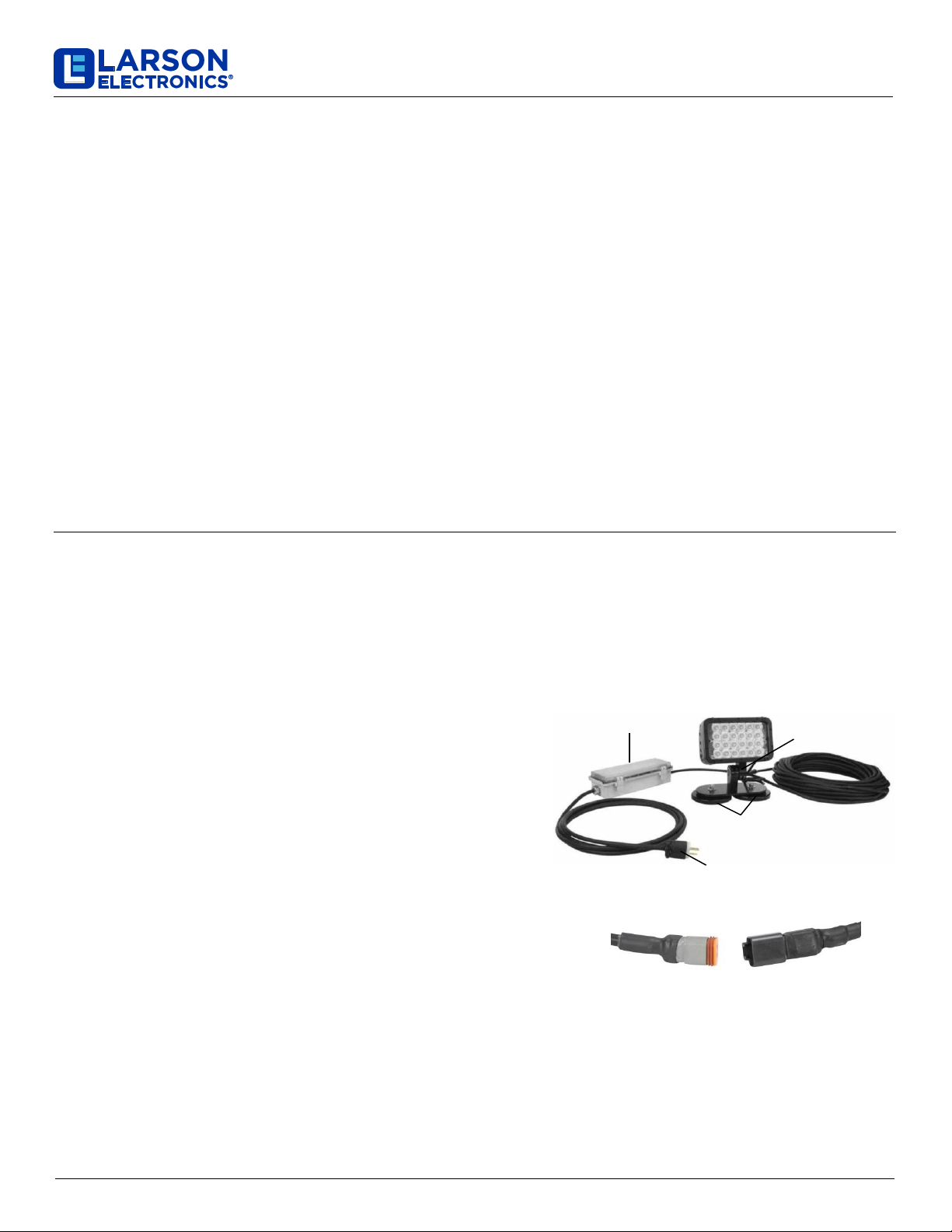

Once mounted, check to ensure the deutsch connector from the transformer is plugged into the back of the

light. Run cord and transformer near power source. Connect the transformer into the proper voltage listed on

its product label. Improper voltage could cause the unit to fail, voiding warranty. The light is “instant-on” and will

turn on once power is supplied. Keep transformer enclosure closed at all times during operation. It is not

necessary to access internal parts unless performing repair or maintenance.

DEUTSCH CONNECTOR

TRANSFORMER

MAGNETS

CORD CAP

ADJUSTMENT

POINT

The Larson Electronics BL24-LED-600V-100-HD LED Blasting Light offers high light output and extreme durability

combined with a versatile magnetic trunnion mounting system that provides convenience and 270 degrees of adjustability.

This IP68 rated LED blasting light is waterproof to three meters and produces 4,320 lumens . This light runs on standard

120-277 VAC and comes equipped with a 400 lbs grip magnetic mount and 100 feet of 600V SO cord.

BL24-LED-600V-100-HD

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

3of 4

This unit is equipped with 100 feet of 600V SO cable leading to an encapsulated step down transformer. There

is two feet of 600V SO cable coming out of the inline transformer, and is terminated in a 14W47 cord cap. This

inline power supply for this LED blasting light is an auto sensing universal voltage transformer that operates on

any voltage within the 100-277 volts AC 50/60Hz range. This unit allows operators to power the LED blasting

light from any 120-277V AC power source, and steps down AC voltage to 24V DC.

We strongly encourage a licensed electrician install this product,in all locations especially in outdoor areas

where weatherproofing may be required. Universal voltage driver permits operation at 120V - 277V AC, 50 or 60Hz.

Warning: Check product label for correct input voltage!

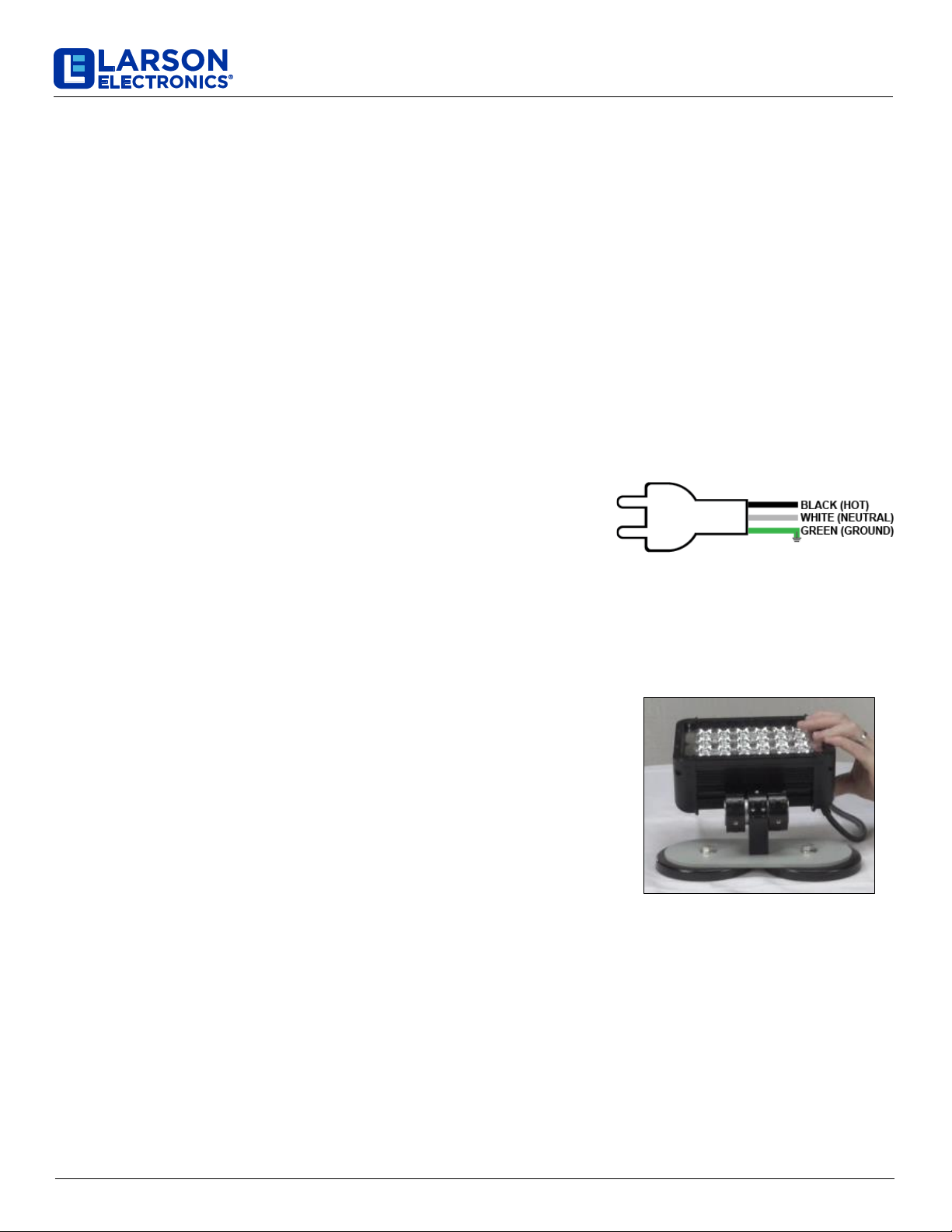

Attach supply line wires to the appropriate light fixture wires as shown

in thediagram 

Secure each pair of wires according to the diagram. Utilize a junction box or

similar device and take precautionary steps for weatherproofing all

connections if installed in a location where water may come in contact with the

unit. Ensure the unit is properly grounded and that wiring is done according to

all local and national electrical/building codes.

Standard Cord Cap

This unit comes pre-wired from factory with the selected cord cap. Take

precautionary steps for weatherproofing all connections if installed in a

location where water may come in contact with the unit. All outdoor

installations and indoor installations near a wet location require the use of a

GFCI device for safety, according to the National Electrical Code® (NEC).

Ensure the unit is properly grounded.

VOLTAGE

These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels

across a specific range. This particular blasting light is fitted with our DCP-11-DP-HD encapsulated inline transformer

terminated in a 15 amp Leviton 14W47 wet guard plug which allows operators to simply plug the unit into any standard wall

outlet equipped with 120-277VAC.

LIGHT ADJUSTMENT

The light can adjust up or down by loosening the allen screw in the center

of the light base. Loosen thescrew to move the light up or down and

tighten when complete. Tighten all screws once desired position is

achieved.

Light can be easily readjusted by lifting off the metal surface and re-

attaching to the desired position on the magnetic surface.

MAINTENANCE

If the lens becomes dirty, wipe down with a mild soap and water solution.

It is recommended to occasionally inspect the unit for any defects and to ensure the cable is not frayed and is

gripping tightly in all points of cable contact.

TROUBLESHOOTING

Refer to the guide below or contact the manufacturer if the fixture does not function properly.

Is the correct line voltage supplied?

Is the line active?

Are all Deutsch connecter properly attached?

BL24-LED-600V-100-HD

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

4 of 4

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The BL24-LED-600V-100-HD is designed to provide years of reliable performance. Should the need for replacement

parts arise, please contact Larson Electronics.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SALES@LARSONELECTRONICS.COM OR BY PHONE AT 1-800-369-6671 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
