Technical Parameters
Input and Output
Operation temperature
Environment
Ta: -30
O
C ~ +55
O
C
Safety and EMC
EMC standard (EMC) ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Radio Equipment(RED) ETSI EN 300 328 V2.2.2
Certication CE,EMC,LVD,RED
EN 62368-1:2020+A11:2020
Safety standard(LVD)
1
User Manual Ver 2.0.1
Model No.: RT2, RT7, RT8C
1, 4, 8 zone CCT/Touch color wheel/Wireless remote 30m distance/AAAx2 battery
CCT Touch Wheel RF Remote Controller

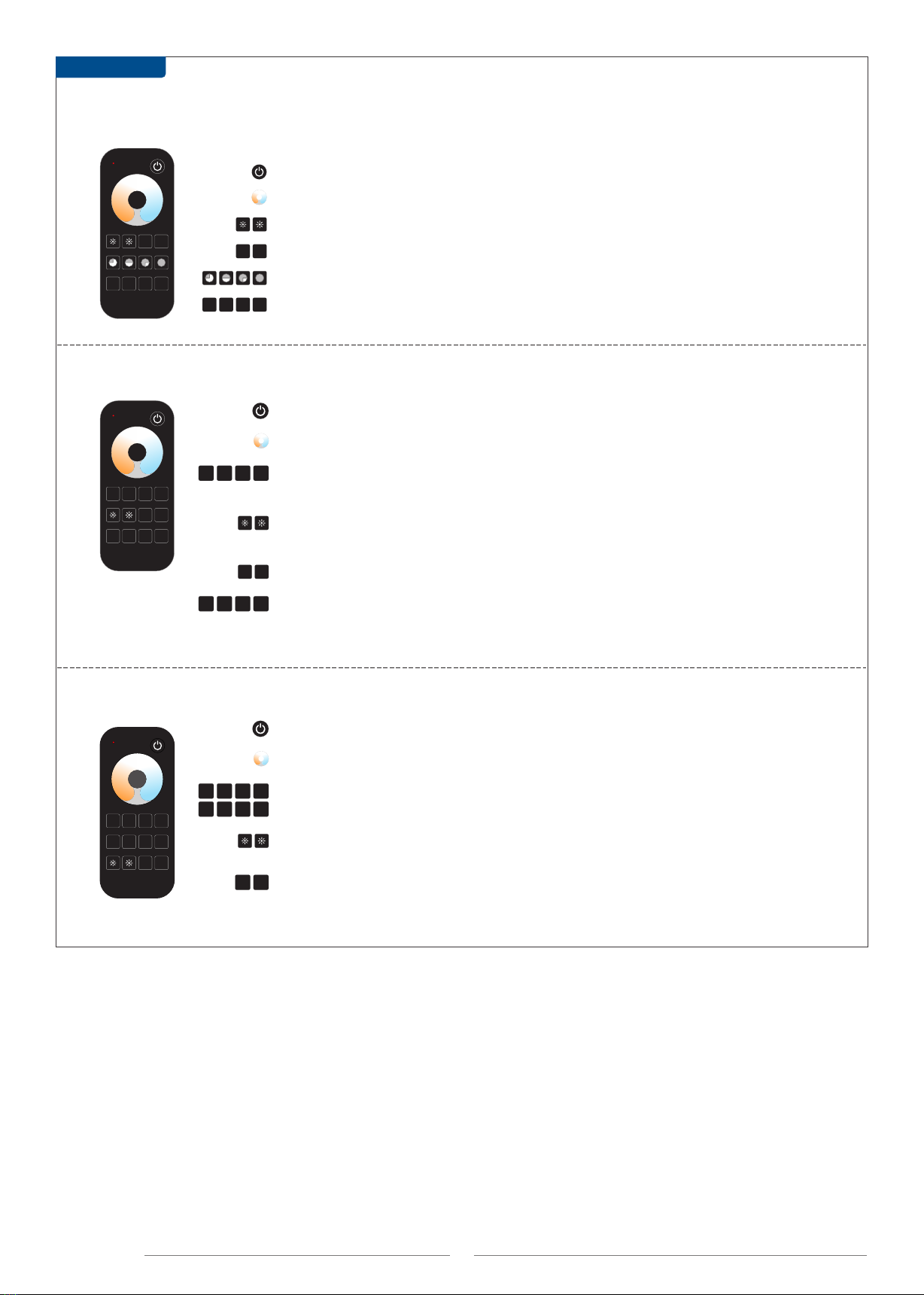

RT2 RT7
1 Zone CCT 4 Zone CCT
LVDRED
● Apply to dual color(warm white + cool white) LED controller.
Ultra sensitive color adjustment touch wheel.●
● Each remote can match one or more receiver.
● AAAx2 b attery powered.
● Operate with LED indicator light.
Features
Output signal (2.4 z)RF GH
Working voltage 3 AAAx2)VDC(
Working current <5mA
Standby current <10μA
Standby time 1 year
Remote distance 30m(Barrier-free space)
Warranty
5 years
Warranty
Operation
● When turn on light, the indicator display blue. when turn off light, the indicator display red.
● When touch the color wheel, the indicator will display the same color.
● When press or touch operation is invalid (If the light is off), the indicator display red.
● To extend battery life, no touch or press key operation after a few seconds, the touch wheel will enter sleep state, you need press any key to make touch
wheel quit sleep state.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller’s Match key Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key (single zone remote) or zone key
(multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key (single zone remote) or zone key
(multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
Match:
Short press match key, immediately press on/off key (single zone remote)
or zone key (multiple zone remote) of the remote.
The LED indicator fast flash a few times means match is successful.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times means all matched remotes
were deleted.
Gross weight
Size
Package
0.088kg
L140 x W60 x H26mm
Mechanical Structures and Installations
53.00 mm
122.00 mm
17.50 mm
To x the remote, three options are offered for selection:
Option 1: x the remote' back holder on the wall with two screws.
Option 2: adhere the remote' back holder to the wall with paster.
RT8C
8 Zone CCT
3VDC
(AAAx2) Battery Back holder
58.00 mm
33.00 mm
53.00 mm
22.00 mm
