INSTALLATION GUIDE
Instructions to install Express Kit on top of any flooring surface
WWW.CONNECTRAC.COM02182021 PAGE 1
EXPRESS KIT - On top of any flooring surface
2.7
EXPRESS

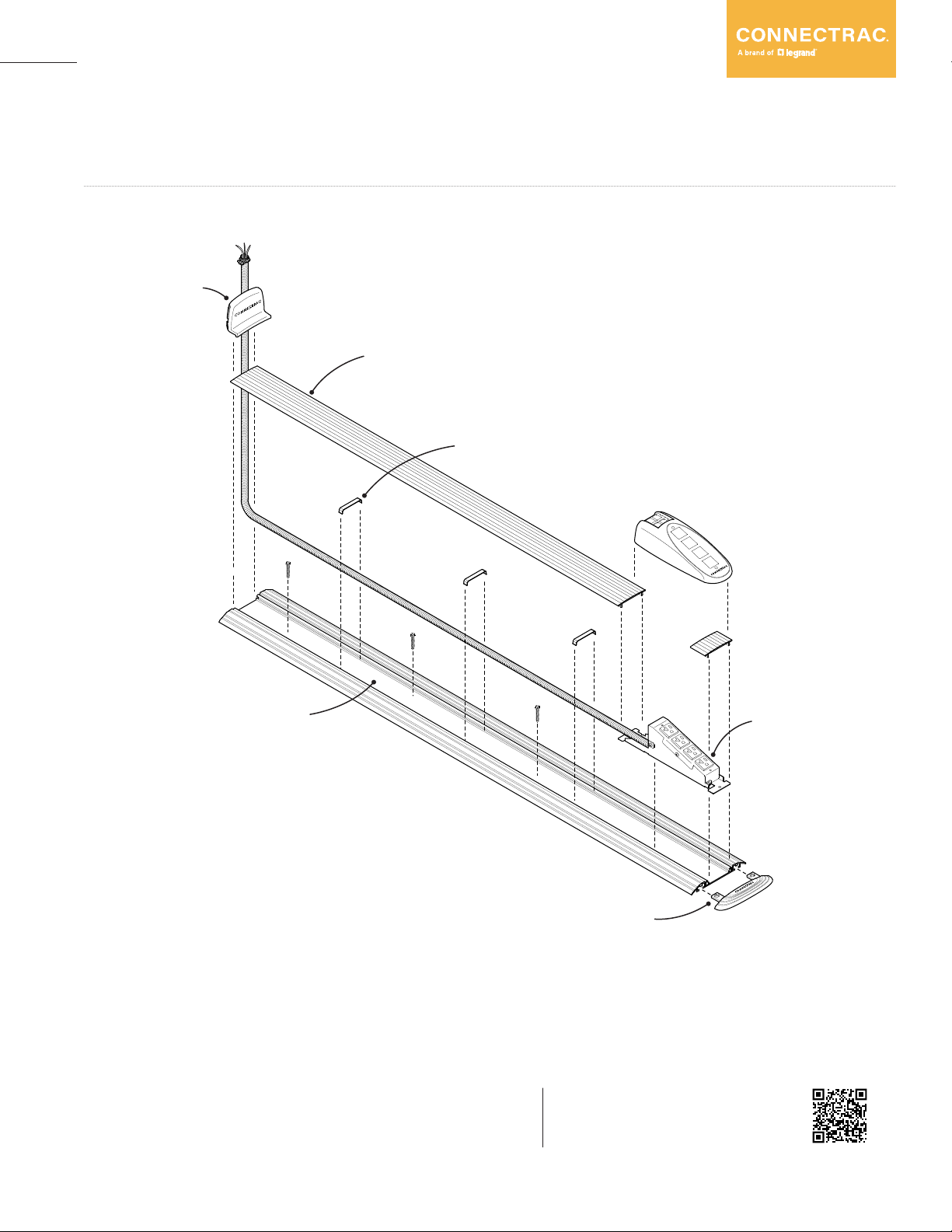

COMPONENTS
Typical for each wireway installation
WWW.CONNECTRAC.COM02182021 PAG E 2
EXPRESS KIT - On top of any flooring surface
WALL
BASE TRIM
Finishes cable
opening at wall
BOTTOM TRACK
Screws to concrete
Aluminum - trimmed to length
END COMPONENT
Slots into bottom track
Secured with set screws
POWER SYSTEM
Receptacle device
TOP CAP
Snaps into bottom track
Aluminum - trimmed to length
WIRE MANAGEMENT CLIPS
Secures cabling in wireway
QUESTIONS? CALL US AT 877.480.5637 Overview Video available at:
https://vimeo.com/412915841
WWW.CONNECTRAC.COM02182021 PAG E 3
EXPRESS KIT - On top of any flooring surface
1CUT A 1”x 2” HOLE IN WALL
This opens the path for cables
to go from the wireway into the wall.
Also cut the steel stud track and flatten it.
2EVALUATE YOUR SPACE
If the length of your wireway fits
into your space, proceed to Step 3.
As an option, the bottom track can
be trimmed to whatever length you
need by using an aluminum-cutting
saw blade.

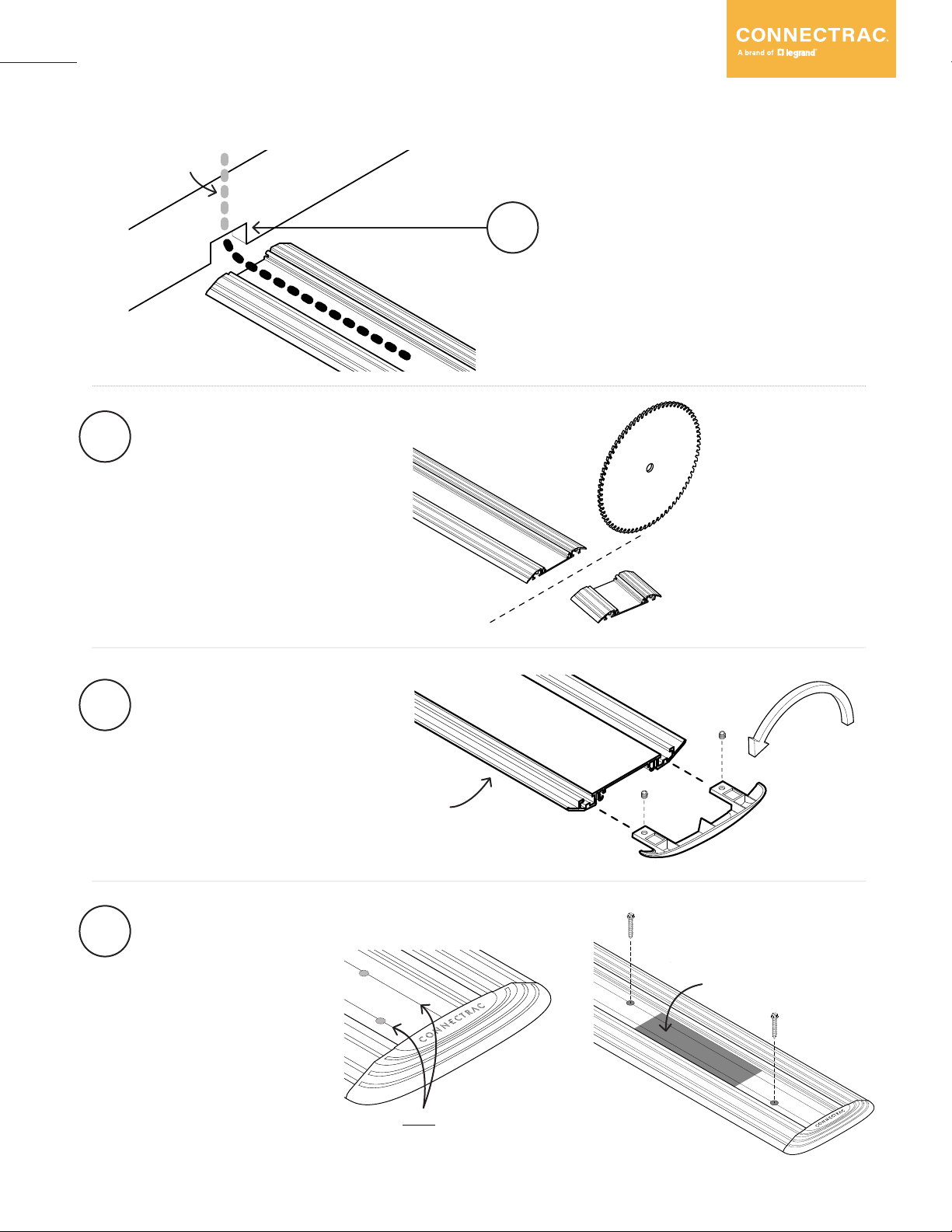

3ATTACH END COMPONENT
Flip the bottom track upside down,
insert the end component, and
tighten the set screws.
Measure where you will
place the device (it can go
anywhere in the wireway).
Screw the bottom track to
the floor - we recommend
staggering one screw
every 18”-24”.
4PLAN FOR DEVICE & FASTEN DOWN TRACK
Path of cabling
You must use the grooves on either side
of the bottom track to stagger screws
CAUTION
Do not cut the top cap yet!
Don’t put screws where you
need to place the device.
(Allow 10” for device).
CAUTION
FLIP!
Upside-down
bottom track
INSTALLATION IN 9 STEPS
WWW.CONNECTRAC.COM02182021 PAG E 4
EXPRESS KIT - On top of any flooring surface
POWER
DOWN
CENTER
DATA TO EITHER SIDE
PLACE CABLING INTO WIREWAY
Once the pre-wired conduit is placed, lay the cables to each side of conduit.

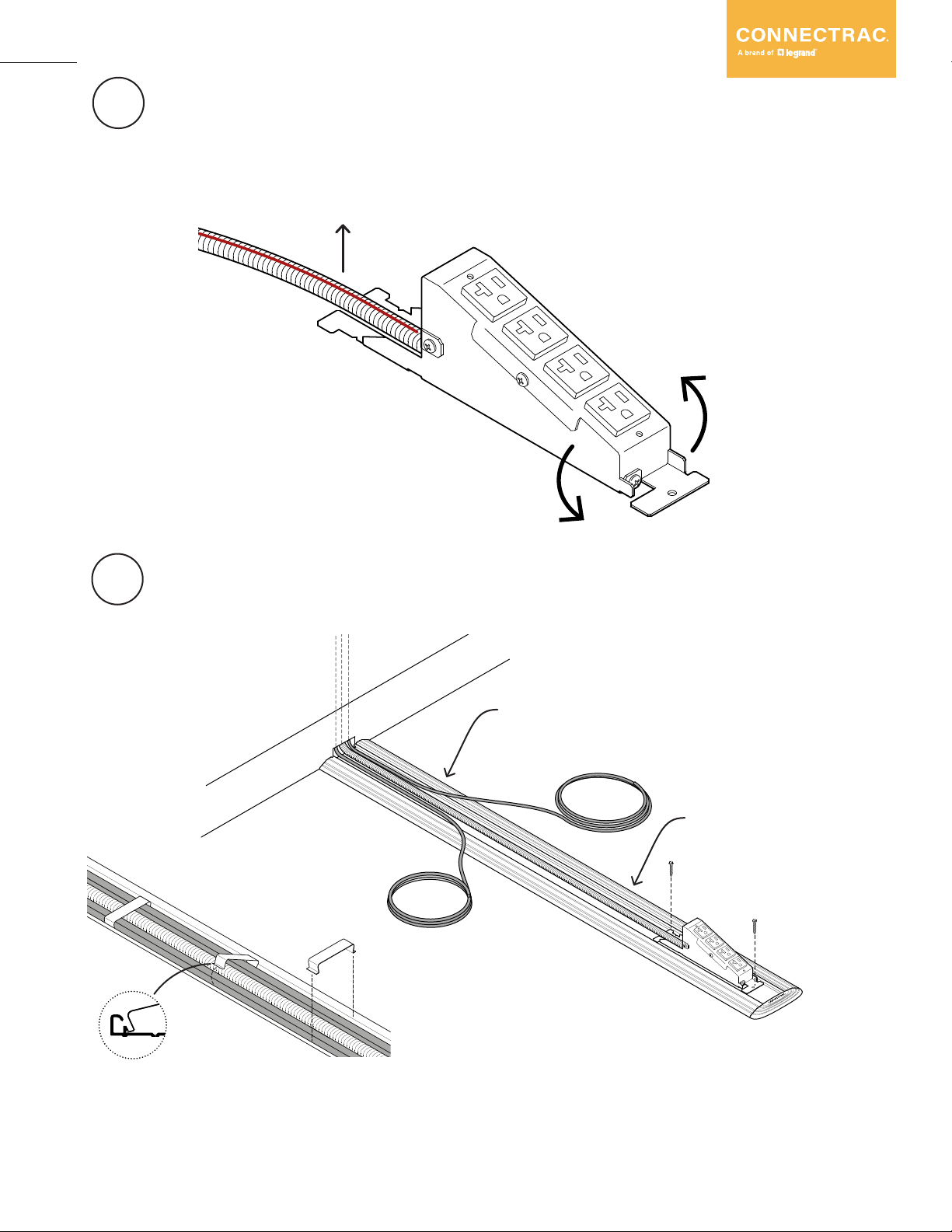

5STRAIGHTEN AND FLATTEN CONDUIT
It’s important to make sure the conduit is flat and not twisted inside the wireway so that the top cap
fits appropriately. There is a red line marking the top of the conduit - make sure it’s always facing up!
RED LINE UP!
6
WIRE MANAGEMENT CLIPS
To protect cables and to make it easier to install the top cap,
snap the clip into the grooves on both sides of the bottom track.
WWW.CONNECTRAC.COM02182021 PAG E 5
EXPRESS KIT - On top of any flooring surface
7ABOUT THAT HOLE IN THE WALL
The Wall Base Trim covers it up:
Use mounting tape to stick the backplate
against the wall base, making sure to align
the legs in the aluminum bottom track.
Use screws for additional support.
Set aside the frontplate until after the
top cap is installed, then snap the front-
plate onto the backplate.
Tape backplate
Alternate wall application:
A
B
WWW.CONNECTRAC.COM02182021 PAG E 6
EXPRESS KIT - On top of any flooring surface
MEASURE
FROM WALL
TO THIS
NOTCH
8
MEASURE
END TO END
INSTALLING THE WIREWAY TOP CAP
The top cap is designed to hold down the receptacle device without using screws.
There will be 2 cuts in the top cap.
2) For the second cut, measure from the end of the wireway to the end of the device
(minimum length 2”). Then snap those top cap pieces into your wireway.
1) For the first cut, measure between the wall
and the metal notch on the receptacle device.
WWW.CONNECTRAC.COM02182021 PAG E 7
EXPRESS KIT - On top of any flooring surface

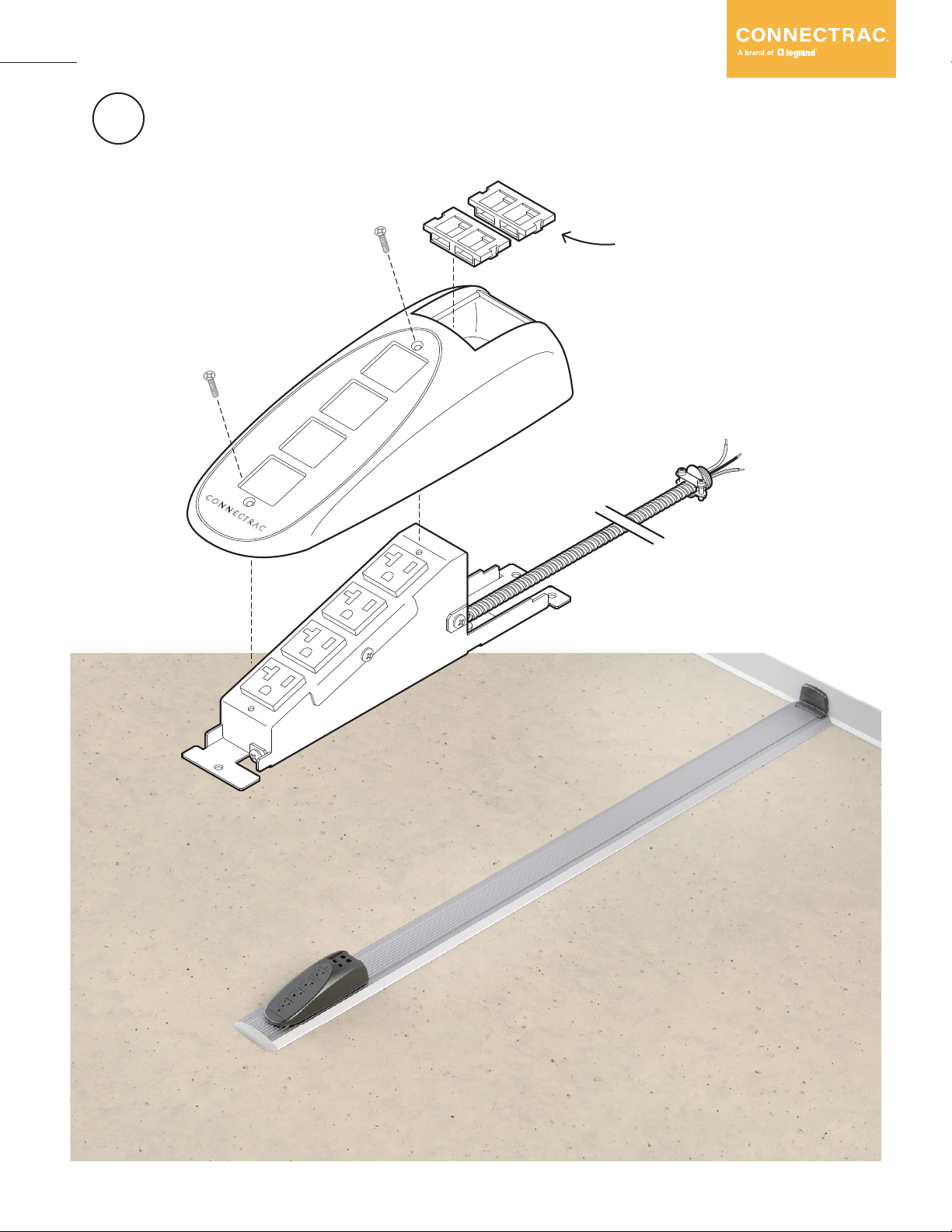

INSTALLING RECEPTACLE DEVICE COVER
The last step is to terminate any data cabling, and attach the cover to the electrical device.
9
Snap in Keystones
WWW.CONNECTRAC.COM02182021 PAG E 8
EXPRESS KIT - On top of any flooring surface
2STAGGER THE BOTTOM TRACK AND THE TOP CAP
Oset the bottom track joints from the top cap joints. This helps strengthen the assembly.
1USE INCLUDED COUPLERS
Insert as shown, then tighten set screws.
Stagger joints at
least six inches
HOW TO ADD A 6’ EXTENSION
