LEGRAND Pass & Seymour OS300S Manuale utente

OS300S

120/277VAC

IR Wall Switch

Syracuse, NY 13221

800.223.4185

Installation Instructions

S ECIFICATIONS

Voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . .120/277VAC, 50/60 z

Load Limits:

@120VAC . . . . . . . . . . . . . . . . . . .0-800W tungsten or ballast

@277VAC .............................0-1200Wballast

Load Type Compatibility . . . . . . . . . .incandescent, fluorescent,

magnetic or electronic ballast

Time Delay Adjustment . . . . . . . . . . . . . . . . . . .5 to 30 minutes,

user-selectable or automatic

Sensitivity Adjustment . . . . . . . . . . . . . . . . . . . . . . . . igh or 50%

Alerts . . . . . . . . . . . . . . . .Selectable Audible and/or Light Flash

orsepowerRating ...............................1/6 P

US Patents: 4,787,722

4,874,962

SmartSet™ Time Records typical occupancy patterns. Using this history

Delays (which is constantly updated), it chooses an optimal

time delay from 7 minutes (when space is usually

vacant) up to 30 minutes (for times that show heavy

usage). SmartSet behavior starts immediately, and

is refined continually as history is collected.

Fixed Time Delay DIP switch selections provide fixed time delays of 5,

10, 15, 20, 25 or 30 minutes.

Auto On Mode The OS300S will turn lights ON and OFF automatically

based on occupancy. If the lights are turned OFF

manually, automatic-ON operation will not be

reenabled until no motion is detected for five minutes.

This feature prevents lights from accidentally being

turned ON after they were deliberately turned OFF.

Manual On Mode Occupants must turn ON the lights by pressing the

Auto-ON/OFF button. The sensor will then keep the

lights ON until no motion is detected for the selected

time delay period. There is a 30 second reset delay.

If motion is detected during this time, the sensor will

turn the lights back ON automatically. After the reset

delay time has elapsed, the Auto-ON/OFF button must

be pressed to turn the lights ON.

Button Override The lights can be turned ON or OFF by pressing the

Auto ON/OFF button, regardless of the operating

mode.

Turning The Lights On

Call 800.223.4185 for Technical Support

UNIT DESCRI TION AND O ERATION

The OS300S is a passive infrared wall switch that turns lighting ON and OFF

based on occupancy and ambient light levels. SmartSet™ technology allows

the sensor to be installed without any adjustments. This technology allows the

sensor to automatically adjust to the usage patterns in the space. Alternate

operating modes, selected by DIP switch settings, can be combined to create the

ideal custom control.

Time Delays

The OS300S time delay holds the lights ON until no motion is detected for a time

period of 5 seconds to 30 minutes, at which point it turns the lights OFF. The

sensor can automatically select the time delay, or the user can choose a fixed

delay.

Walk-Through Use for rooms that have frequent walk-through traffic

Mode (ie. room that accepts mail deliveries). The OS300S

turns the lights OFF three minutes after the area is

initially occupied, if no motion is detected after the

first 30 seconds. If motion continues beyond the first

30 seconds, the set time delay applies.

Test Mode To test the sensor, a short time delay of 5 seconds is

set as the default (SmartSet/Test). Test Mode cancels

automatically after five minutes, or if a fixed time

delay is selected. To restart the Test Mode, change the

time delay switch setting to any fixed amount and then

return it to the SmartSet/Test setting.

Alerts

The OS300S can provide alerts as a warning before the lights turn OFF.

Light Level Control

Visit our website at: www.passandseymour.com

Sensitivity Adjustment

The OS300S constantly monitors the controlled environment and automatically

adjusts to avoid common ambient conditions that can cause false detections,

while providing maximum coverage.

Light Level Control Lights are held OFF, even when the controlled area is

Enabled occupied, as long as the ambient light level is greater

than a chosen threshold level. The light level can be

set with the overhead lights ON or OFF.

High Default setting. Suitable for most applications.

Low Reduces sensitivity by approximately 50%. Useful in

cases where the sensor is detecting movement outside

of the desired area (also consider masking the lens)

and where heat sources cause unnecessary activation.

Light Flash Alert Lights will flash OFF for one second, one minute

before they will be turned OFF by the sensor.

Audible Alerts Sensor will “chirp” twice, at one minute and at

30 seconds before turn-OFF. A distinct alert will sound

10 seconds before the lights go OFF.

Dual Alerts When both Light Flash Alerts and Audible Alerts are

selected, the Audible Alert at one minute remaining

is replaced by the Light Flash Alert.

No Alerts No warning will be provided.

TROUBLESHOOTING

Lights will not turn ON (LED does flash):

1. Press and release the button. If the lights turn ON, verify that the correct

On Mode is selected in the DIP switches.

2. Check all wire connections, in particular, the Load connection.

3. Check to see if light level control is enabled and natural light is holding

OFF light. Test by holding hand over the sensor lens.

4. If lights still do not turn ON, call 800.223.4185 for technical support.

Lights will not turn ON (LED does not flash)

1. Check the wire connections, in particular, the Ground and Line

connections. Verify that connections are tightly secured.

2. Press and release the button. If the lights turn ON, verify that the

Sensitivity is set to igh/Auto.

3. If lights still do not go ON, call 800.223.4185 for technical support

Lights will not turn OFF

1. There can be up to a 30 minute time delay after the last motion is

detected. To verify proper operation, place the unit in any Fixed time delay

(any of switches 1, 2, or 3 in the ON position), then select Automatic time

delay (switches 1, 2, and 3 in the OFF position) to temporarily reenable

Test Mode. Move out of view of the sensor. The lights should turn OFF in

approximately 15 seconds.

2. Verify that the sensor is mounted at least six feet away from any

heating/ventilating/air conditioning device that may cause false detection.

Verify that there is no significant heat source (e.g., high wattage light bulb)

mounted near the sensor.

3. If the lights still do not turn OFF, call 800.223.4185 for technical support.

Sensing motion outside desired areas

1. Select Sensitivity – Low (dip switch 4 = ON) if necessary.

2. Mask the sensor’s lens, using the opaque tape supplied, to limit the field-

of-view to the desired area.

No response to repeated button presses

Rapid pressing of the Auto-ON/OFF button will cause a delay in proper

functioning of sensor. If the sensor does not respond to pressing the Auto

ON/OFF button, wait for 10-15 seconds, and then press the button once again

COVERAGE ATTERNS

The OS300S will cover up to 300 sq. ft. The typical recommended coverage for

desktop activity is 150 sq. ft. The sensor has a two-tiered, multi-cell viewing

Fresnel lens with 180 degree field of view.

4.0'

(1.2m)

25'

(7.6m)

floor

Masking the lens

Opaque adhesive tape is supplied so that sections of the sensor’s view can

be masked. This allows you to eliminate coverage in unwanted areas. Since

masking removes bands of coverage, remember to take this into account when

troubleshooting coverage problems.

25'

(7.6m)

10'

(3.1m)

1. Make sure that the power has been turned OFF at the circuit breaker.

2. Connect the existing wires to the sensor terminals.

• ot or Black to Line; Load or Red to Load; Ground or Green to Ground

• Do not allow bare wire to show above connector.

• The ground wire must be tightly fastened or the unit will not operate

properly.

• If the metal junction box is grounded, attachment of the strap (by screws)

to the junction box can constitute a suitable ground. Assure that the green

ground screw on the sensor is completely tightened.

3. Attach the sensor to the wall box by

inserting screws into the two wide

holes on the top and bottom of the

attached metal bracket. Match them

up with the holes in the wall box and

tighten.

4. Turn circuit breaker ON. Wait one

minute, then push the auto/OFF switch

and the lights will turn ON. There is a

delay due to initial power-up of the

sensor that only occurs during

installation.

Screw Terminal

Push–In

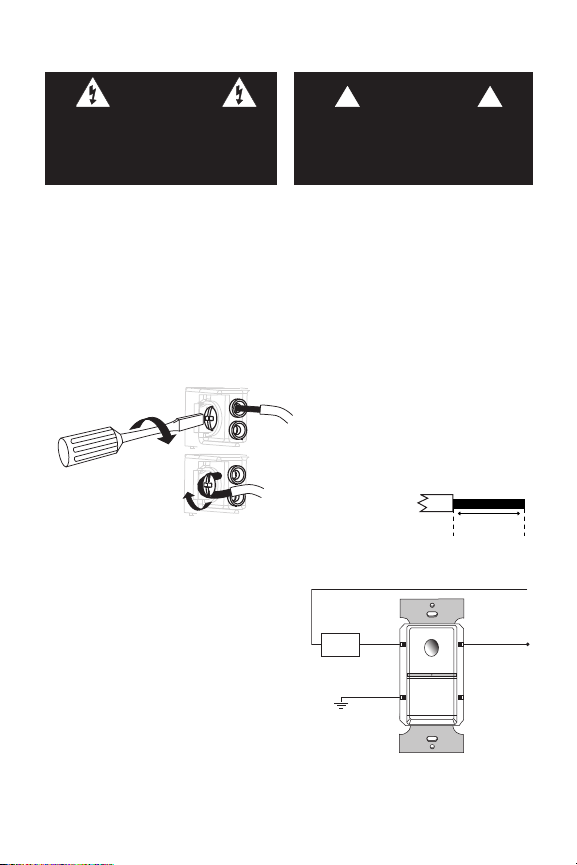

INSTALLATION

Load Red Hot BLK

Neutral

Ground

GRN

Single-Level Wiring

Insert or wrap wire as

shown and tighten screw

in the clockwise direction.

Strip Gage

1/2"

12.7mm

#12 – #14 AWG

Cu Wire Only

WARNING

TURN THE OWER OFF AT THE

CIRCUIT BREAKER BEFORE

INSTALLING THE SENSOR OR

WORKING ON THE LOAD.

CAUTION

THE GROUND MUST BE TIGHTLY

SECURED OR THE SENSOR WILL

NOT WORK.

2345678

Squeeze Here

ADJUSTMENTS

Sensor Adjustment

Your OS300S has been preset for optimum performance at the factory. It is

designed with SmartSet technology for “Install and Forget” functionality. If you

need to change the settings follow the directions below.

All major adjustments to the OS300S must be made with the wall plate

removed. To access DIP switches, remove the button cap by squeezing the top

sides of the button and pull it gently away from the unit.

When the adjustments are completed, replace the button by inserting its hinges

into the LED light bar and then squeeze the top of the button while pressing it

into the unit. Reinstall the cover plate.

Light Level Adjustment

To set, or reset, the threshold to match a current ambient light level, put the

sensor into TEST mode. Press and hold the button for 3 seconds, until a beep is

heard, then step away from the sensor. After 25 seconds another short beep will

sound, indicating that the threshold level has been set. This threshold will be

retained, even if power is lost, or Light Level Control is temporarily disabled,

until it is re-programmed in this manner.

Automatic Reset

olding the On/Off button for ten seconds will cause the OS300S to reset to

default settings. This includes resetting the light level threshold to maximum

(i.e. even the brightest ambient light will not hold the light OFF). The sensor

occupancy history is also reset.

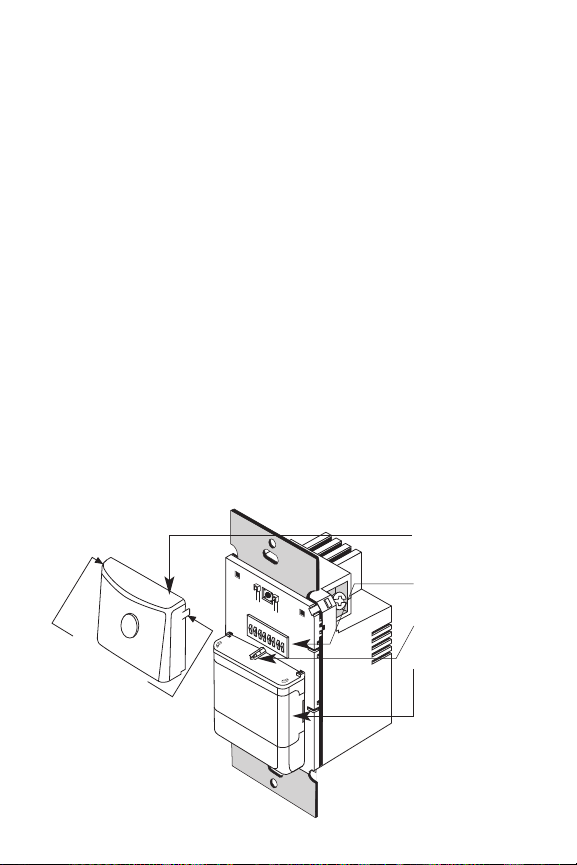

Auto On/Off Button

DIP Switches

LED

Lens

OS300S Diagram

DI SWITCH SETTINGS

ORDERING INFORMATION

Units come in White (-W), Ivory (-I), Gray (-GRY), and Light Almond (-LA) .

Add color designator to catalog number when ordering.

Auto On

Manual On

ON Mode

SmartSet/Test

10 minutes

15 minutes

20 minutes

25 minutes

30 minutes

override

5 minutes

123

Time Delay

DIP Switch #s:

=ON =OFF

High

Low, 50%

Sensitivity

Disabled

Enabled

Walk Through

12345678

Time Delay

FACTORY

PRESETS

Walk Through

On Mode

Sensitivity

Audible Alerts

Visible Alerts

Factory Settings

Disabled

Enabled

Audible Alerts

DIP Switch #

Disabled

Enabled

Visible Alerts

DIP Switch #

Bypass occupancy & light level functions.

Load is manually controlled with OS300S button.

Catalog # Description

OS300S Universal PIR Wall Switch; 120/277VAC, 50/60 z

Limited FIVE YEAR Warranty

Pass & Seymour/Legrand will remedy any defect in workmanship or material in Pass & Seymour/Legrand products

which may develop under proper and normal use within five years from the date of purchase by a consumer:

(1) by repair or replacement, or, at Pass & Seymour/Legrand’s option, (2) by return of an amount equal to the

consumer’s purchase price. Such remedy is IN LIEU OF ANY AND ALL EXPRESSED OR IMPLIED WARRANTIES OF

MERC ANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Such remedy by Pass & Seymour/Legrand does

not include or cover cost of labor for removal or reinstallation of the product. ALL OT ER FURT ER ELEMENTS

OF DAMAGE (INCIDENTAL OR CONSEQUENTIAL DAMAGES) FOR BREAC OF ANY AND ALL EXPRESSED OR

IMPLIED WARRANTIES INCLUDING WARRANTIES OF MERC ANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE ARE EXCLUDED EREBY. (Some states do not allow disclaimer or exclusion or limitation of incidental

or consequential damages, so the above disclaimers and limitation or exclusion may not apply to you.) ANY

IMPLIED WARRANTIES INCLUDING W ERE REQUIRED WARRANTIES OF MERC ANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE S ALL BE LIMITED TO T E FIVE YEAR PERIOD SET FORT ABOVE. (Some states do not

allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.)

To ensure safety, all repairs to Pass & Seymour/Legrand products must be made by Pass & Seymour/Legrand or

under its specific direction. Procedure to obtain performance of any warranty obligation is as follows: (1) Contact

Pass & Seymour/Legrand, P.O. Box 4822, Syracuse, NY 13221 for instructions concerning return or repair; (2)

return the product to Pass & Seymour/Legrand, postage paid, with your name and address and a written

description of the installation or use of the Pass & Seymour/Legrand product, and the observed defects or failure

to operate, or other claimed basis for dissatisfaction.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

P.O. Box 4822, Syracuse, NY 13221-4822

Technical Support: 800.223.4185 • www.passandseymour.com

340783 Rev. B 07925

Indice

Altri manuali LEGRAND Interruttore

LEGRAND

LEGRAND pass & seymour LightSense PSWS Manuale utente

LEGRAND

LEGRAND Arteor 5 722 69 Manuale utente

LEGRAND

LEGRAND MyHome F524 Manuale utente

LEGRAND

LEGRAND 0065403 Manuale utente

LEGRAND

LEGRAND WattStopper UW-100 Manuale utente

LEGRAND

LEGRAND radiant Manuale utente

LEGRAND

LEGRAND Mosaic 0 766 60 Manuale utente

LEGRAND

LEGRAND 7 521 84 Manuale utente

LEGRAND

LEGRAND 0 677 55 Manuale utente

LEGRAND

LEGRAND XMS-2624P Manuale utente

LEGRAND

LEGRAND 672 63 Manuale utente

LEGRAND

LEGRAND VANTAGE CIS10-DIN Manuale utente

LEGRAND

LEGRAND DMX3 Manuale utente

LEGRAND

LEGRAND PRO 21 7756 62 Manuale utente

LEGRAND

LEGRAND Valena Life LE-752107 Manuale utente

LEGRAND

LEGRAND Pass & Seymour RRW600U Manuale utente

LEGRAND

LEGRAND LEXIC 037 23 Manuale utente

LEGRAND

LEGRAND Soliroc 778 51 Manuale utente

LEGRAND

LEGRAND Pass & Seymour WattStopper DRCL453P Manuale utente

LEGRAND

LEGRAND Pro 21 7756 44 Manuale utente

LEGRAND

LEGRAND 4 126 23 Manuale utente

LEGRAND

LEGRAND C2G 29974 Manuale utente

LEGRAND

LEGRAND TradeMaster Manuale utente

LEGRAND

LEGRAND In One 495 05 Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
