Leica Lino L360 Manuale utente

Leica Lino

L360,

L2P5, L2+

, L2,

P5,

1Start up

Leica Lino 757665g en

FIN

ROK

RUS

EST

SLO

User Manual

Version 757665g

English

Congratulations on your purchase of the Leica Lino.

The safety instructions follow the

section on how to operate the

instrument. Before starting up the

instrument for the first time, please

read through the entire User Manual paying special

attention to the section Safety Instructions .

Contents

Start up ................................................................1

Operation.............................................................3

Technical data ...................................................12

Safety instructions ........................................... 14

Start up

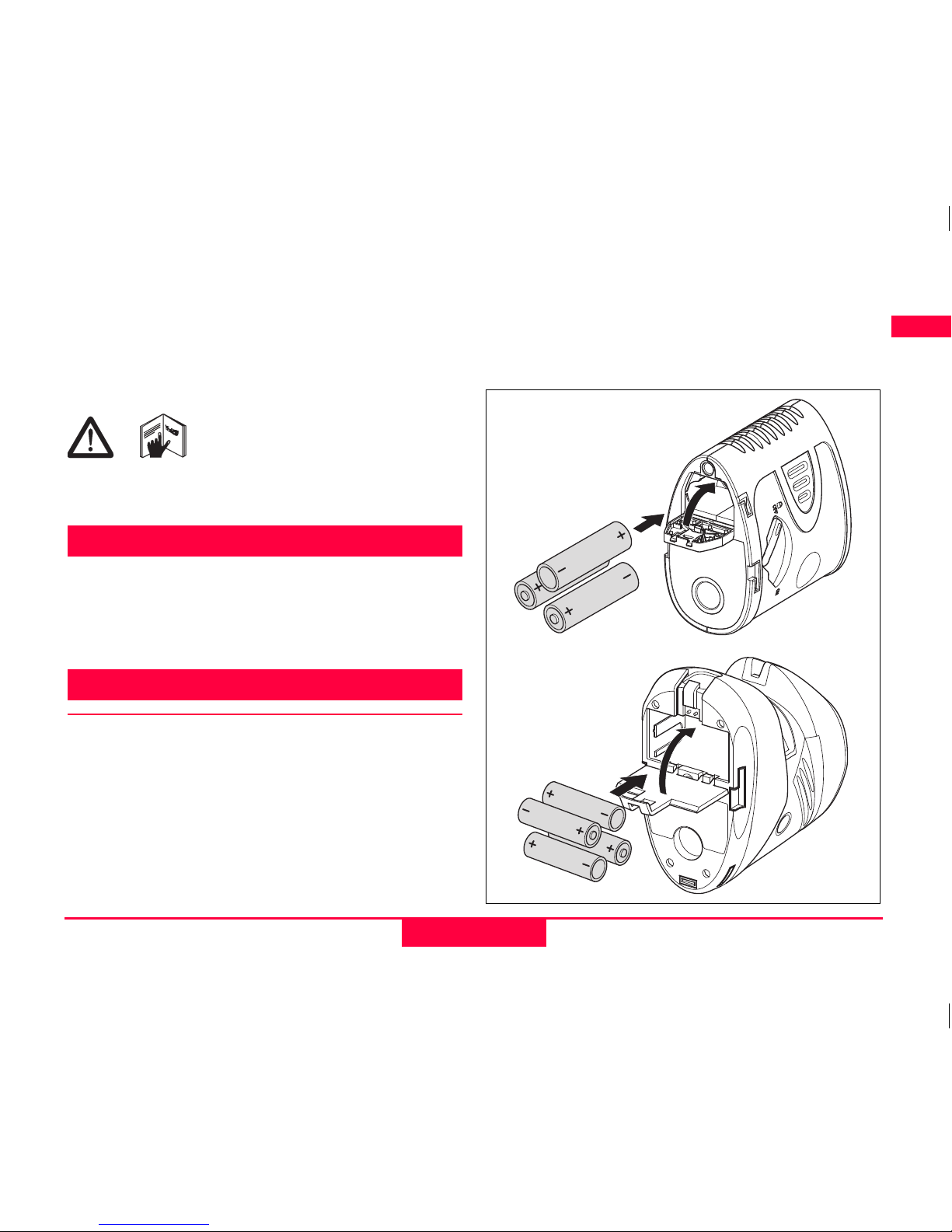

Inserting / replacing batteries

Slide the locking button forwards to unlock the

battery compartment. Open the battery compart-

ment cover and insert the batteries, observing the

correct polarity. Then press the battery compartment

cover back down until it engages.

The battery symbol 9 lights up when the battery

voltage is too low. Replace the batteries as soon as

possible.

• Insert the batteries observing the correct polarity

• Use alkaline batteries or rechargeable batteries only

• Remove the batteries if the instrument is not to

be used for a long period of time (to prevent

corrosion)

L2, P3, P5

L2P5, L2+

Start up Leica Lino 757665g en

FIN

ROK

RUS

EST

SLO

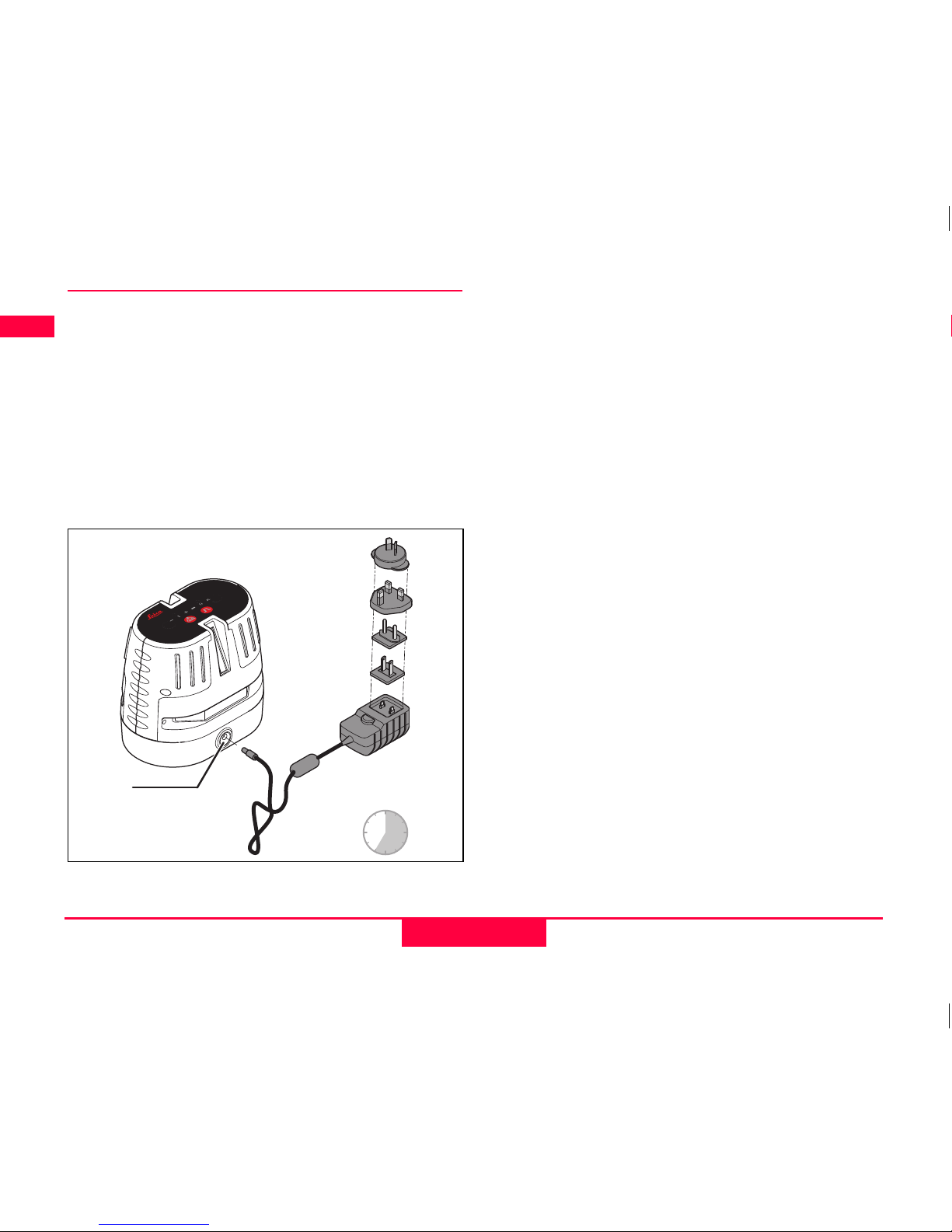

Charging / first-time use

• The battery must be charged prior to first use

because it is delivered with as low an energy

content as possible.

• The permissible temperature range for charging is

between 0°C and +40°C/+32°F and +104°F. For

optimal charging we recommend charging the

batteries at a low ambient temperature of +10°C

to +20°C/+50°F to +68°F if possible.

• It is normal for the battery to become warm

during charging.

1Jack for battery charger

Lino L360

L360

3Operation

Leica Lino 757665g en

FIN

ROK

RUS

EST

SLO

Operation

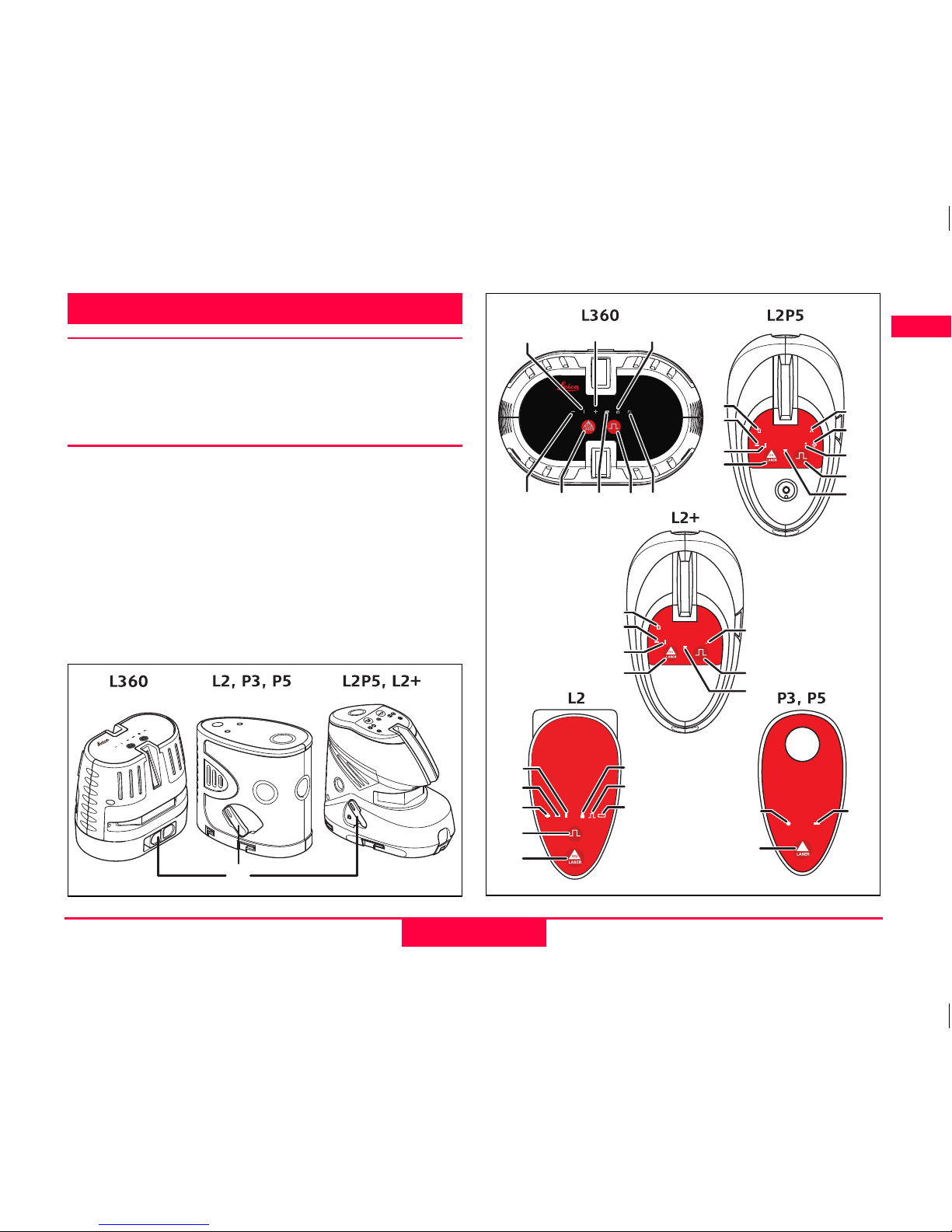

Keypad and control elements

1LASER key

2PULSE/POWER SAVE MODE key

3Lock switch

Display

4Laser crossline

5Horizontal laser line

6Vertical laser line

7Locked

8Pulse/Power save mode ON

9Battery voltage too low

AT Plumbing and crossline intersection point

AK Plumbing point

AL Laser switched on

Lino L360

647

519 82

Lino L2

Lino L2P5

Leica Lino L2

12 9

Leica Lino P3

Lino L360

Operation Leica Lino 757665g en

FIN

ROK

RUS

EST

SLO

Switching on/off

Lino L360, L2P5, L2+, and L2:

•ON: Briefly press the LASER key 1.

•OFF: Press and hold down the LASER key 1.

Lino P3 and Lino P5:

•ON: Move the Lock switch 3to the right.

•OFF: Move the Lock switch 3to the left.

Laser functions

Pressing the LASER key 1activates the following laser functions:

Action

L360 L360 L2P5 L2P5

L2 L2+ P3 P5

not in Lock

mode in Lock mode not in Lock

mode in Lock mode

1x horizontal and

vertical

only

horizontal

horizontal and

vertical

only

horizontal

horizontal and

vertical

horizontal and

vertical all 3 points all 5 points

2x only

horizontal only vertical all lines and

points only vertical only

horizontal

only

horizontal

only plumbing

points

only plumbing

points

3x only vertical again as 1x all points again as 1x only vertical only vertical again as 1x

plumbing

point and

right/left

4x again as 1x - only plumbing

point - again as 1x again as 1x - again as 1x

5x - - again as 1x - - - - -

5Operation

Leica Lino 757665g en

FIN

ROK

RUS

EST

SLO

Self-levelling and Lock functions

The instrument automatically levels itself within the

specified grade range (Refer to "Technical data") .

Press the Lock switch 3in order to transport or tilt

the instrument beyond the self-levelling range. When

locked, the pendulum is fixed and the self-levelling

function is deactivated.

Pulse/Power save mode

(only Lino L360, L2P5, L2+, and L2)

The instrument is fitted with a Power save mode. If

particularly good visibility of the laser line is not

necessary and you wish to save energy, you can

switch the Pulse mode on and off by pressing the

PULSE/POWER SAVE MODE key 2.

To be able to detect the laser lines over long

distances (> 15 m) or in unfavourable lighting condi-

tions, a laser detector can be used. The detector is

able to locate the laser beam in Pulse mode, even

over long distances.

(Laser detector refer to accessories)

Operation Leica Lino 757665g en

FIN

ROK

RUS

EST

SLO

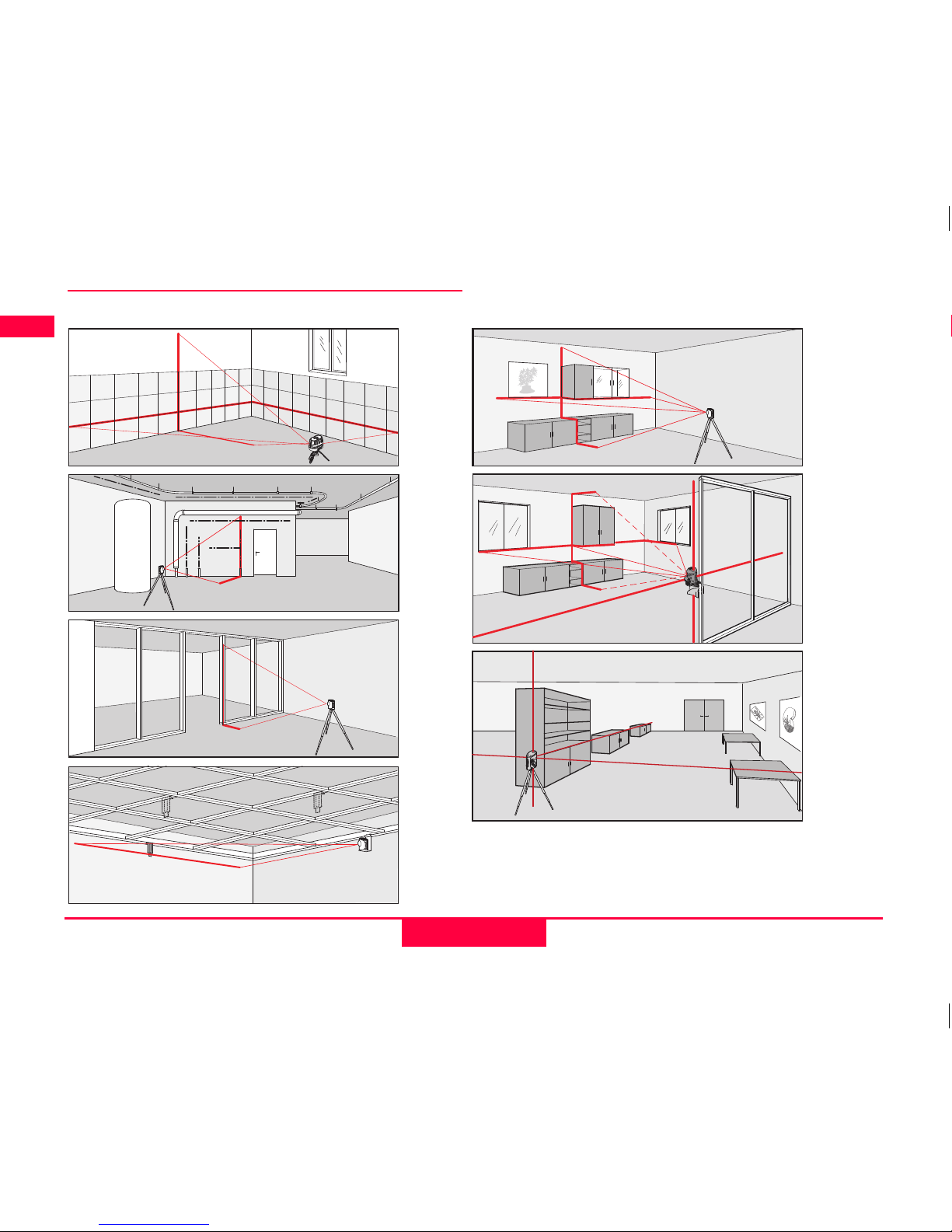

Applications

7Operation

Leica Lino 757665g en

FIN

ROK

RUS

EST

SLO

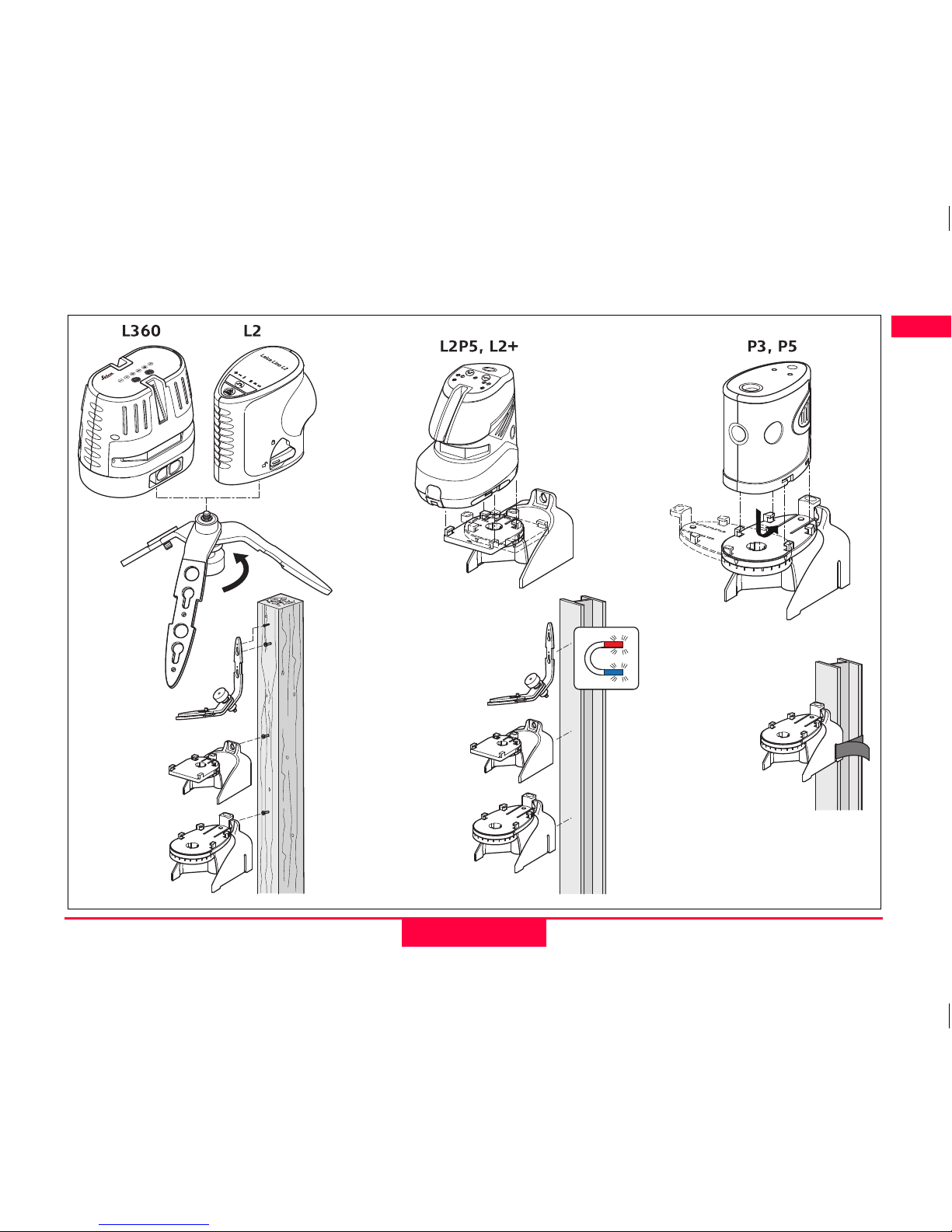

How to use the wall mount bracket:

Lino L360

Operation Leica Lino 757665g en

FIN

ROK

RUS

EST

SLO

Checking the accuracy of the Leica

Lino

)Check the accuracy of your Leica Lino regu-

larly and particularly before important measuring

tasks.

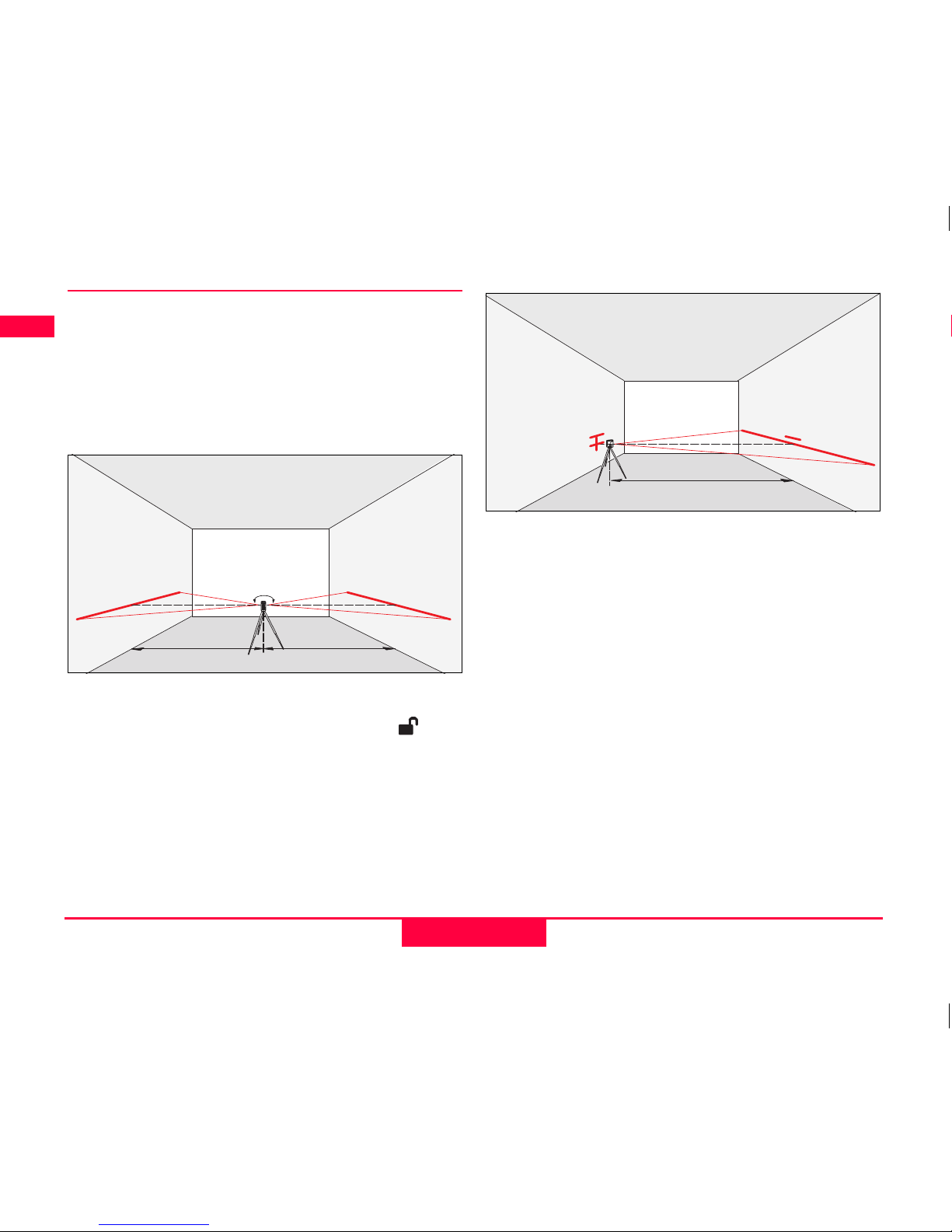

Checking the accuracy of the levelling

Set the instrument on a tripod half-way between two

walls (A+B) that are approx. 5 m apart.

Place the Lock switch 3in the "Unlocked" ( )

position.

Direct the instrument at wall A and switch on the

instrument. Activate the horizontal laser line or laser

dot and mark the position of the line or the dot on

wall A (-> A1).

Rotate the instrument by 180° and mark the hori-

zontal laser line or the laser dot in exactly the same

way on wall B (-> B1).

Then place the instrument at the same elevation as

close as possible to wall A and again mark the hori-

zontal laser line or the laser dot on wall A (-> A2) .

Rotate the instrument by 180° again and mark the

laser on wall B (-> B2). Measure the distances of the

marked points A1-A2 and B1-B2. Calculate the differ-

ence of the two measurements. If the difference

does not exceed 2 mm, then the Leica Lino is within

tolerance.

| (A1 - A2) - (B1 - B2) | ≤2 mm

A1 B1

2.5 m 2.5 m

5 m

9Operation

Leica Lino 757665g en

FIN

ROK

RUS

EST

SLO

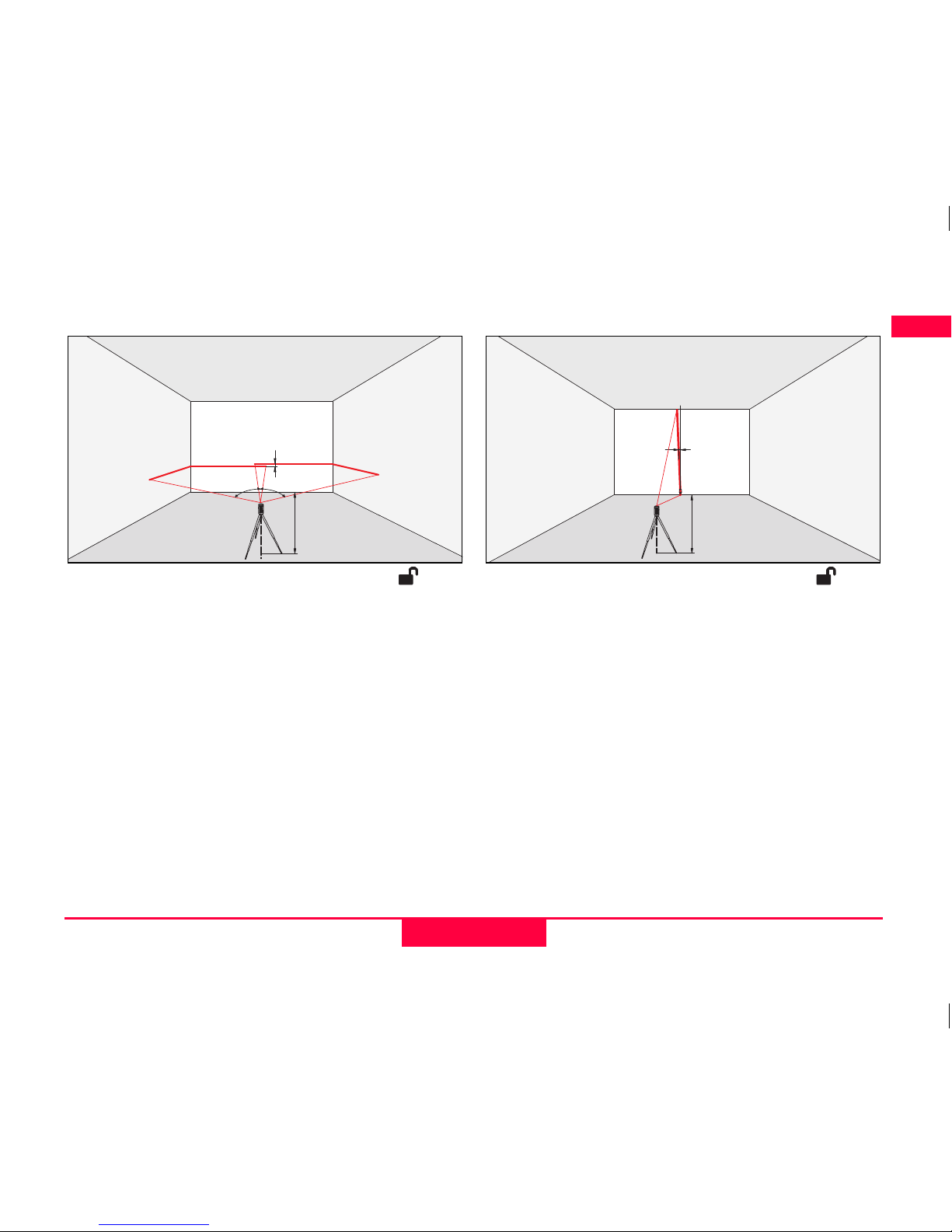

Checking the accuracy of the horizontal line

(only Lino L360, L2P5, L2+, and L2)

Place the Lock switch 3in the "Unlocked" ( )

position.

Position the instrument approx. 5 m away from the

wall. Direct the instrument at the wall and switch on

with the LASER key 1. Activate the laser line with the

LASER key 1and mark the intersection point of laser

crosshairs on the wall.

Swivel the instrument to the right and then to the

left. Observe the vertical deviation of the horizontal

line from the marking. If the difference does not

exceed 3 mm, then the Leica Lino is within tolerance.

Checking the accuracy of the vertical line:

(only Lino L360, L2P5, L2+, and L2)

Place the Lock switch 3in the "Unlocked" ( )

position.

As reference, use a plumb-bob and attach it as close

as possible to an approx. 3 m high wall.

Position the instrument at a distance of approx.

1.5 m from the wall at an elevation of approx. 1.5 m.

Direct the instrument at the wall and switch on with

the LASER key 1. Activate the laser line with the

LASER key 1. Rotate the instrument and align it with

the bottom of the plumb line. Now read off the

maximum deviation of the laser line from the top of

the plumb line. If the difference does not exceed

2 mm, then the Leica Lino is within tolerance.

max.

3 mm

5 m

1.5 m

max.

2 mm
