LENCO XEMIO-950 Manuale utente

XEMIO-950

User Manual

For information and support, www.lenco.eu

What’s in the box?

Operating Unit

User Manual

USB Cable

Earphone

Installation CD

Content

Buttons location and usages 1

Basic Operation 2

Operation of Music Mode 3 - 6

Operation of Video Mode 6 - 8

Operation of Photo Mode 9

Operation of Record Mode 9 - 10

Operation of Apps Mode 10

Operation of Charging 10

Operation of E-Book Mode 11

Operation of Settings Mode 12

Operation of Radio Mode 13

Technical Specification 14

Trouble Shooting 14

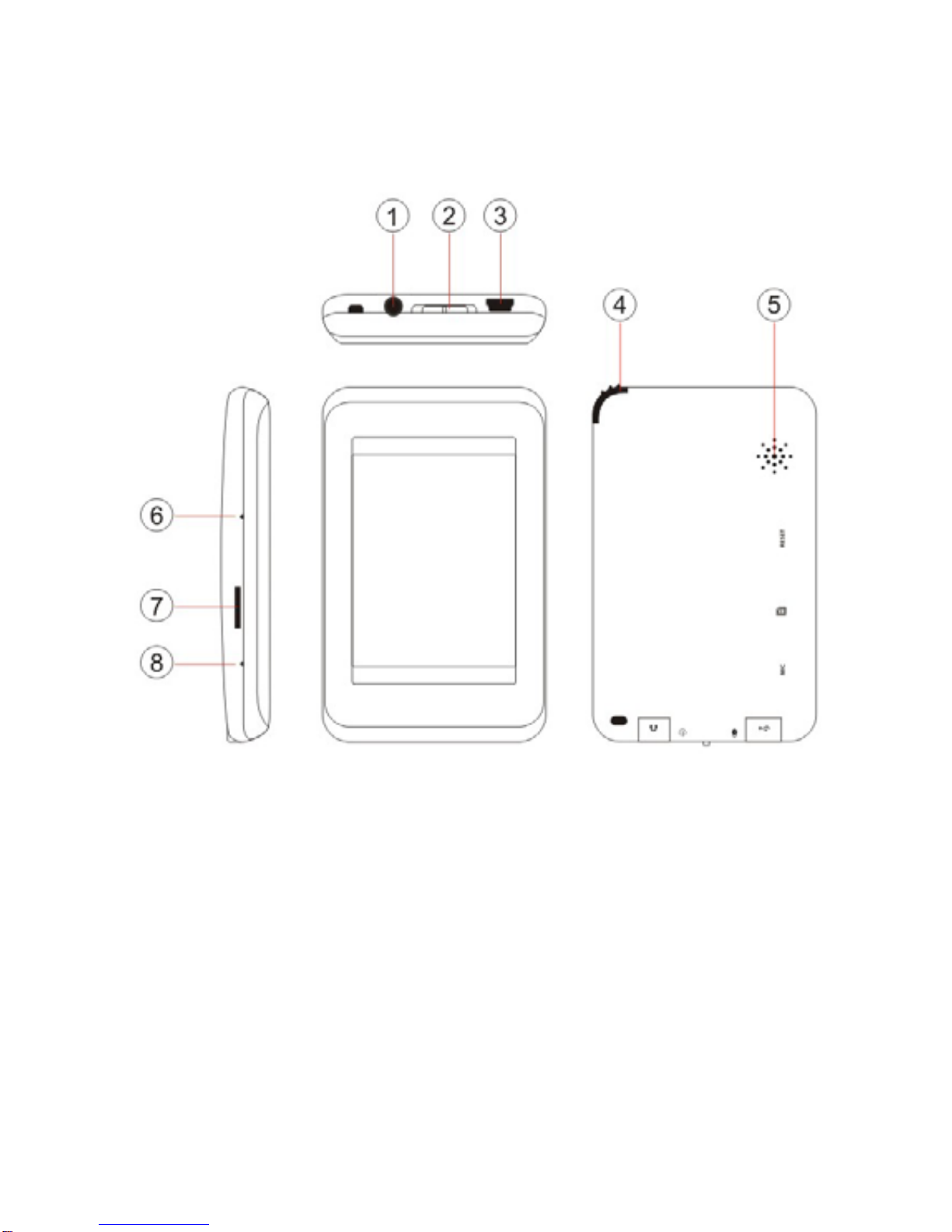

Buttons location and usages

(1) Earphone Jack

(2) ON/OFF/Lock Button

(3) USB Port

(4) Touch Pen

(5) Speaker

(6) Reset Button

(7) Micro SD Card Slot

(8) Microphone

Basic Operation

Power on/off and Lock

Slide the ON/OFF/HOLD switch to the on position and hold

for 3 seconds to switch on the device. Slide the switch to

the LOCK position to key-lock the player.

Main interface

Once your switch the player on you’ll reach to the main

interface as below..

Operation of Music Mode

Use the touch pen provided to touch on the main

menu to enter the music mode. Once you’ve entered the

music mode, the following screen would show up.

Current play

Double click the Current Play

icon to resume playing the

current song.

All Music

Double Click the All Music icon

to show your library of music,

double click any particular song

to start playing.

Artist

Double Click the Artist icon to show all of your artists,

double click any particular artist to show the songs of that

artist. Double click a song to start playing.

Album

Double Click the Album icon to browse all of your albums,

double click any particular album to browse the songs of

that album. Double click a song to start playing.

My Favourite

Double Click the My Favourite icon to browse all songs

that you’ve added to be your favourite. Double click a song

to start playing.

Record

Double Click the Record icon to browse all recorded files.

Double click a file to start playing.

Click to jump back to the main menu.

Music Player interface

Whenever you start playing a song you’ll reach the Music

Player Interface as below.

Play Music

Double click the Play button in

the middle to start playing,

double click again to pause.

Volume

Double click or to

adjust the volume.

Previous / Next

Click to jump to the next song, and click to jump

back to the previous song.

Play Option

Double click the to enter the Play Option Menu. You

can set your preference in Repeat Mode / Play Mode /

MSEQ / EQ Setting / User EQ Setup.

Repeat Mode

Double click Repeat Mode to

choose from Once / Repeat / All

/ All Repeat / Intro. Once you’ve

selected, double click to

confirm and return to sub-menu.

Play Mode

Double click Repeat Mode to

choose from In Order or

Shuffle Play. Once you’ve

selected your choice, double

click to confirm and return to sub-menu.

MSEQ

Double click MSEQ to choose different sound effect from

3D / Bass / LEQ. Once you’ve selected your choice,

double click to confirm and return to sub-menu.

EQSel

Double click EQSel to choose different EQ from Normal /

MSEQ / Rock / Pop / Classic / Bass / Jazz / UserEQ.

Once you’ve selected your choice, double click to

confirm and return to sub-menu.

USER EQ Setup

Double click User EQ Setup to adjust your own EQ

Setting. Once you’ve selected your choice, double click

to confirm and return to sub-menu.

A – B Repeat

Click once to set the starting point of the A-B

Repeat, then click again to set the ending point. The

A-B repeat setting is done. To cancel A-B repeat mode,

click again.

Lyrics

Click to choose to display lyrics.

*The player only supports .LRC lyric.

Operation of Video Mode

Use the touch pen provided to touch on the main

menu to enter the video mode. Once you’ve entered the

video mode, the following screen would show up.

Click any particular movie in the list to

start playing.

Basic Video Control

The following control

panel will show up

when a video start

playing.

Click to choose previous movie, hold to

rewind. Click to choose next movie, hold to

fast-forward. Click / to adjust the volume.

Click to resume playing from where the video

stopped last time.

Video Files Supported

AVI File:

Codec: XVID

Resolution: Max. 800x480

Audio Codec: MP3

WMV File:

Codec: WMV 7/8/9

Resolution: Max. 720x480

Audio Codec: WMA
