Lenovo IDEAPHONE S890 Manuale utente

User’s Manual

Model: Lenovo S890

Read this manual carefully

before operating the handset

Lenovo Mobile Phone

English

Technical Parameters

Product: WCDMA digital mobile phone

Model: Lenovo S890

System: Android 4.1.1

Size: Approximately 143.6*74.5*9.3mm

Weight: Approximately175g (including battery)

Standby time: Max 710 hours *

Battery capacity：2250 mAh

*may vary depending on local signal

strength

SAR Information

0.438W/Kg@1g (HEAD) 0.378 W/Kg@1g

(BODY)

Body-worn Operation

This device was tested for typical body-worn

operations. To comply with RF exposure

requirements, a minimum separation distance of

1.0 cm must be maintained between the user’s

body and the handset, including the antenna.

Third-party belt-clips, holsters, and similar

accessories used by this device should not

contain any metallic components. Body-worn

accessories that do not meet these requirements

may not comply with RF exposure requirements

and should be avoided.

Use only the supplied or an approved antenna.

Unauthorized antennas, modifications, or

attachments could impair call quality, damage the

phone, or result in violation of regulations. Do not

use the phone with a damaged antenna. If a

damaged antenna comes into contact with the

skin, a minor burn may result. Please contact

your local dealer for replacement antenna.

Procedure Initial Setup

Procedure

Charging the phone

Inserting the SIM card

Inserting the memory card

Port Assignment and Button

Layout

POWER key

VOLUME

(

)

VOLUME

key (-)

BACK keyHOME keyMENU key

Applications Overview

Browser

Browses websites. The web

browser in this unit can

access the Internet via the

WIFI network for business

and personal use.

Receives/Sends and views

mails by linking directly to

your mailbox.

Gallery

Browses and edits images.

In an image full-screen

page it supports slideshow

functions and such

operations as, Share, Set

as, and Details.

Contacts

Allows you to add or delete

contacts and edit or delete

particulars of a contact.

LeCalendar

Creates new events,

toggles the day view, the

week view and the month

view, and enables the event

reminder function.

Gravity sensor and

multi-touch

Auto rotate screen according to the rotation of the

device. You can lock the S890 screen in the

current direction screen rotation lock downward.

To unlock the screen direction: Menu - System

settings - Display - Auto-rotate screen.

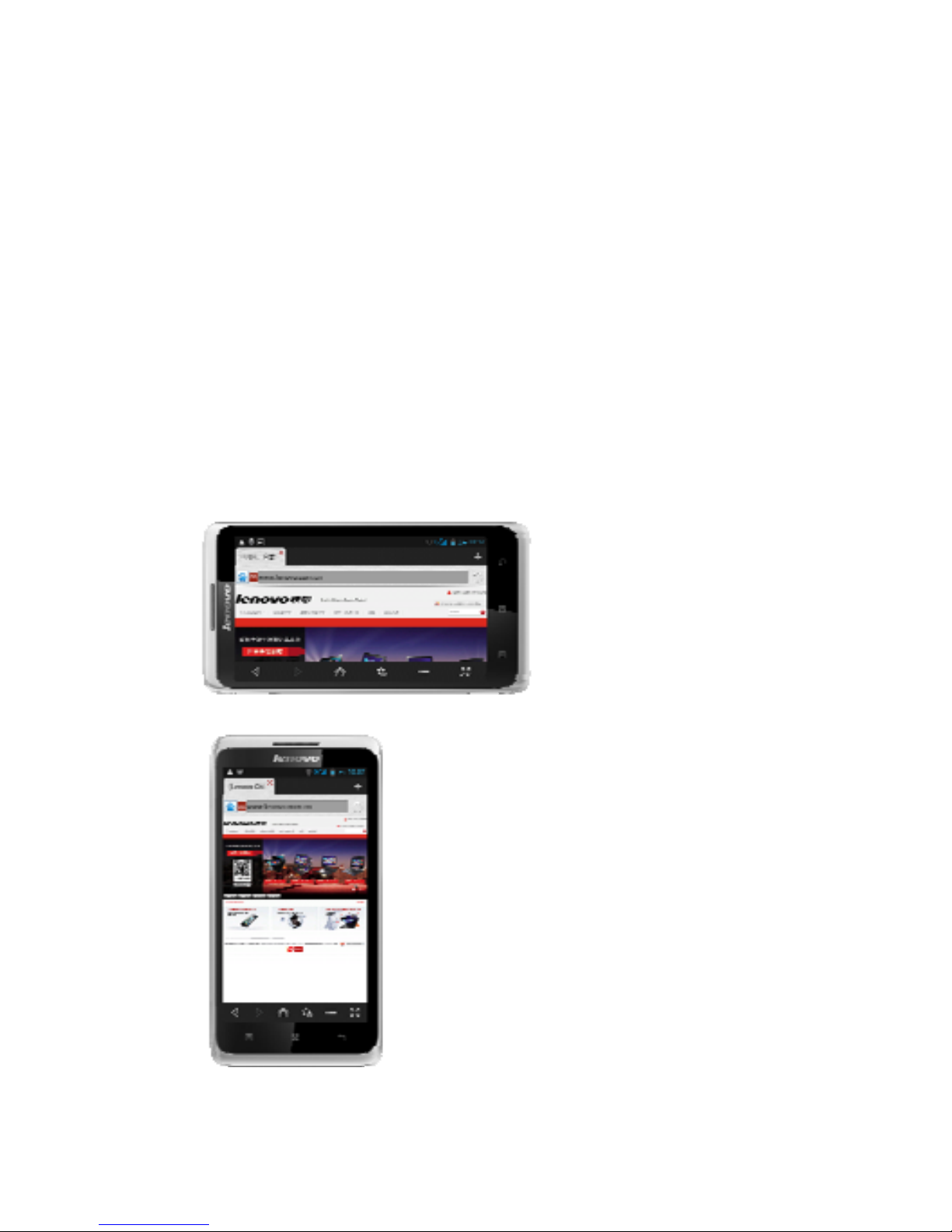

Use the S890 in the landscape or portrait mode

After launching one application, you can rotate

the screen to your preferred direction.

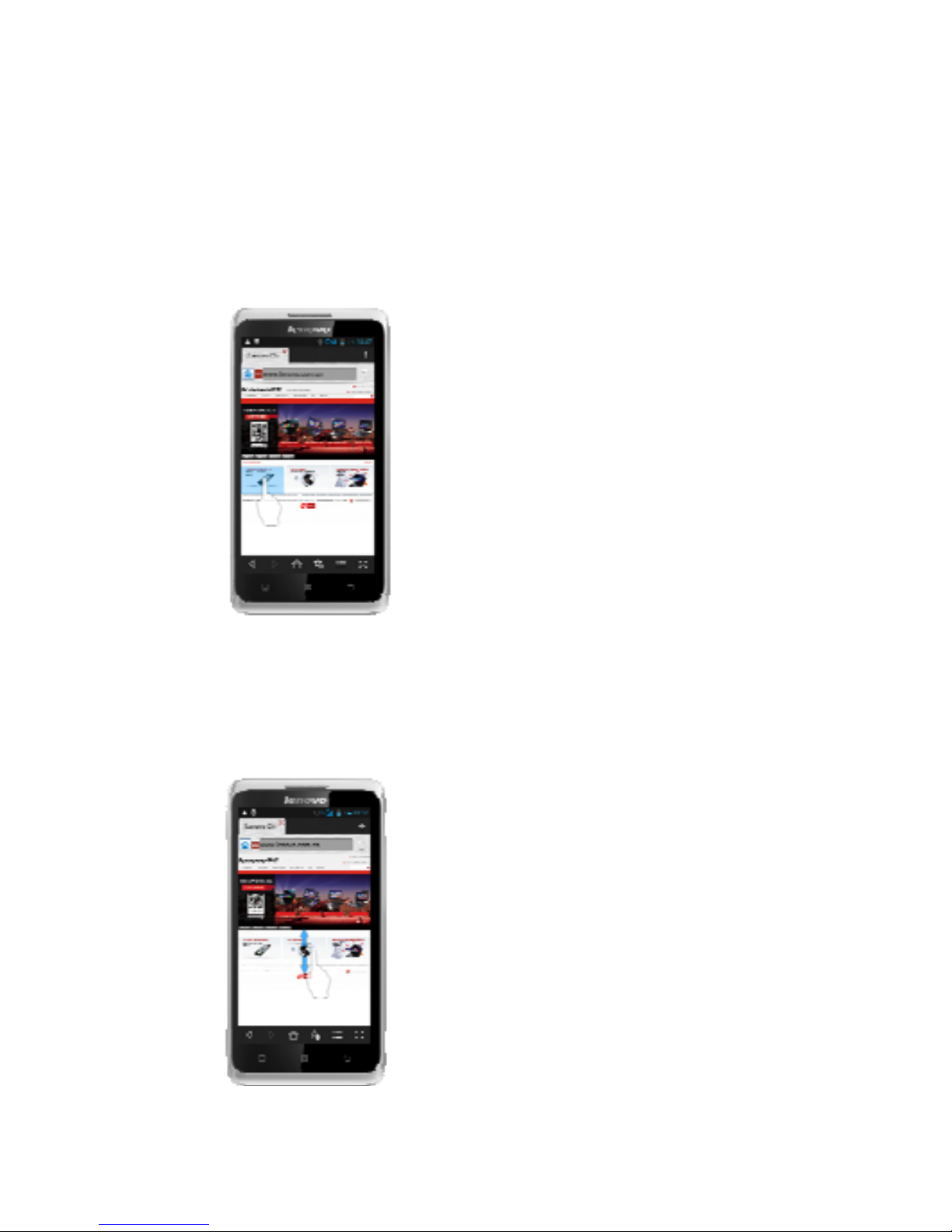

Use the multi-touch function

The multi-touch function enables you to perform

various operations on the screen.

Open an

application

Open an application: Tap

the icon of this application

on the screen. By clicking

home key, you can return

to the home screen.

Scroll

Scroll the screen by

dragging up or down on the

content.

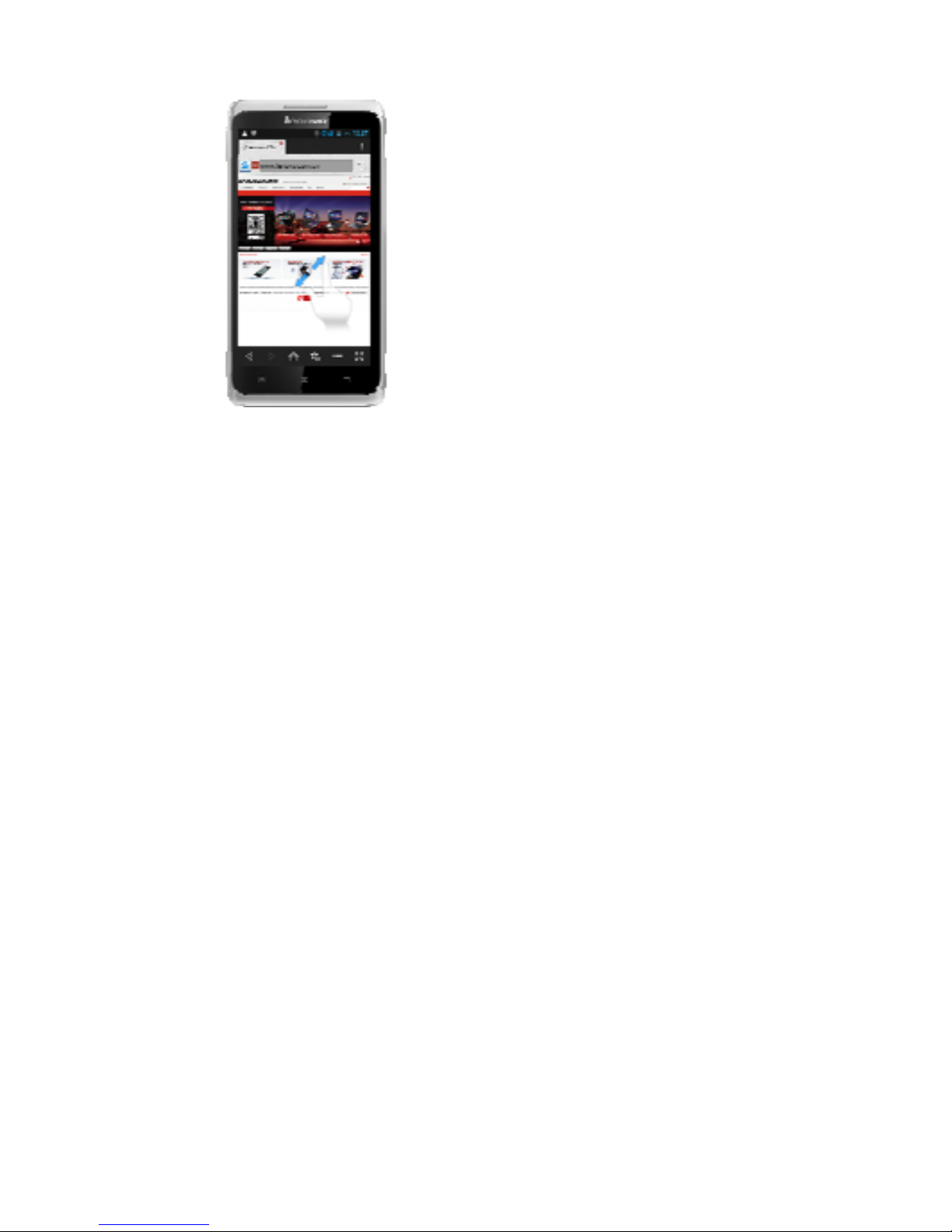

Zoom in or out

You can zoom in or out a

map or web page while

viewing it. To do so, just

move your two fingers apart

or together.
