Lenovo S850 Manuale utente

User Manual

Model: Lenovo S850

Read this manual carefully

before operating the handset

Lenovo Mobile Phone

English

Technical Parameters

Product

WCDMA digital mobile phone

Model

Lenovo S850

System

Android 4.4

Size

Approximately 141.2mm×71.5mm×8.2 mm

Weight

Approximately 138.7 g (including battery)

Standby Time

Max 395 hours*

Battery Capacity

2150 mAh

NOTES:*May vary depending on local signal strength.

Initial Setup Procedure

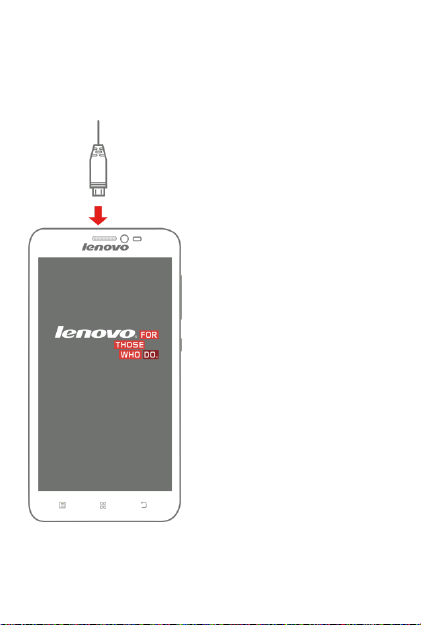

Charging the phone

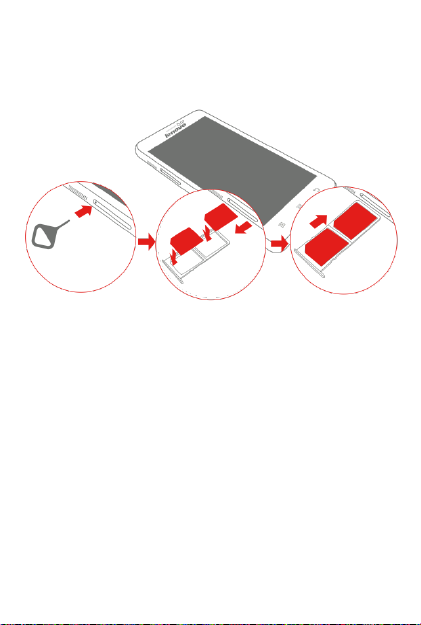

Inserting the SIM card

Port Assignment and Button Layout

KEY

Description

MENU KEY

Can enter the commonly used, the

characteristic and more menus.

HOME KEY

Can return to the idle interface.

BACK KEY

Can return to the superior menu.

VOLUME KEY

According to the volume switch increase

or decrease volume.

POWER ON/OFF

Short click this button to lock screen

function, long press the key to power

on/off the phone.

Applications Overview

Icon

Name

Note

Browser

Browses websites. The web browser in this unit

can access the Internet via the WIFI network for

business and personal use.

Receives/Sends and views mails by linking

directly to your mailbox.

Gallery

Browses and edits images. In an image

full-screen page it supports slideshow functions

and such operations as, Share, Set as, and

Details.

Contacts

Allows you to add or delete contacts and edit or

delete particulars of a contact.

Calendar

Creates new events, toggles the day view, the

week view and the month view, and enables the

event reminder function.

Gravity sensor

Auto rotate screen according to the rotation of the device. To unlock the

screen direction: Menu > Settings > All Settings > Display > Auto-rotate

screen.

After launching one application, you can rotate the screen to your preferred

direction.

Precautions and Tips for S850 Safety and

Maintenance

When using mobile phone, please abide by the following.

Read the user manual thoroughly before using your mobile phone.

Do not turn on your mobile phone if use is prohibited or may cause

interference or danger.

Your mobile phone should be switched off while on airplanes. If the

alarm or schedule settings can cause the mobile phone to turn on

automatically when it is in “off” mode, the settings should be checked

to ensure they have been deselected before boarding.

When using your mobile phone, keep it away from hot or high-voltage

environments, such as electric appliances or cooking equipment.

To prevent fire, turn off your mobile phone in areas containing

flammable objects, such as filling stations and fuel storage.

Do not hold your mobile phone when driving. Do not place your phone

above an air bag in a car or any area that may be occupied by an

expanded air bag. You may get hurt if the phone is impacted by a

strong force by the air bag expanding.

Only Lenovo approved batteries, chargers and accessories may be

used. Lenovo is not responsible for any consequences due to the use

of accessories from a third party.

Do not disassemble your mobile phone.

When your mobile phone is close to other electronic devices,

interference may occur. Keep your mobile phone away from other

electronic devices, such as televisions, radios, personal computers,

pacemakers, hearing aids, medical equipment, etc. Do not store your

phone near credit cards or magnetic fields. In hospitals or other

special areas, use your mobile phone in accordance with the site’s

regulations.

Mechanically vibrating or shaking the mobile phone may cause

damage. Do not knock your phone screen with a sharp item.

Using a cell-phone case or plastic case may damage the surface of

your phone.

Do not use solvents (such as benzene, diluents, alcohol, etc.) to wipe

the mobile phone's cover. Similarly, do not bring your phone into

contact with corrosive chemicals ordetergents. Only a clean, soft cloth

should be used to gently wipe your phone.

Avoid exposing the mobile phone to the sun or placing it in a smoky or

dusty environment.

Keep your mobile phone dry. It should never be used in a high

humidity environment, such as a bathroom. Your mobile phone is not

waterproof and should not be exposed to rain or other moisture.

If an external antenna is used on your mobile phone, do not touch the

antenna. Only the original antenna should be used. Your phone may

be damaged by using any other antenna.

When pulling out the charger plug from your mobile phone, hold and

pull the plug outwards. Do not jerk the power cord.

Do not depend only on your mobile phone as the sole communication

equipment for an emergency, such as a medical rescue.

To prevent hazards, place your mobile phone in a safe location out of

reach of children.

Be aware of heat generated by your mobile phone

When your Mobile phone is turned on or the battery is charging, some

parts might become hot. The temperature that they reach depends on the

amount of system activity and the level of charge in the battery. Extended
