LevelOne FVS-3800 Manuale utente
2
Ethernet Media Converter –
Web Smart Series

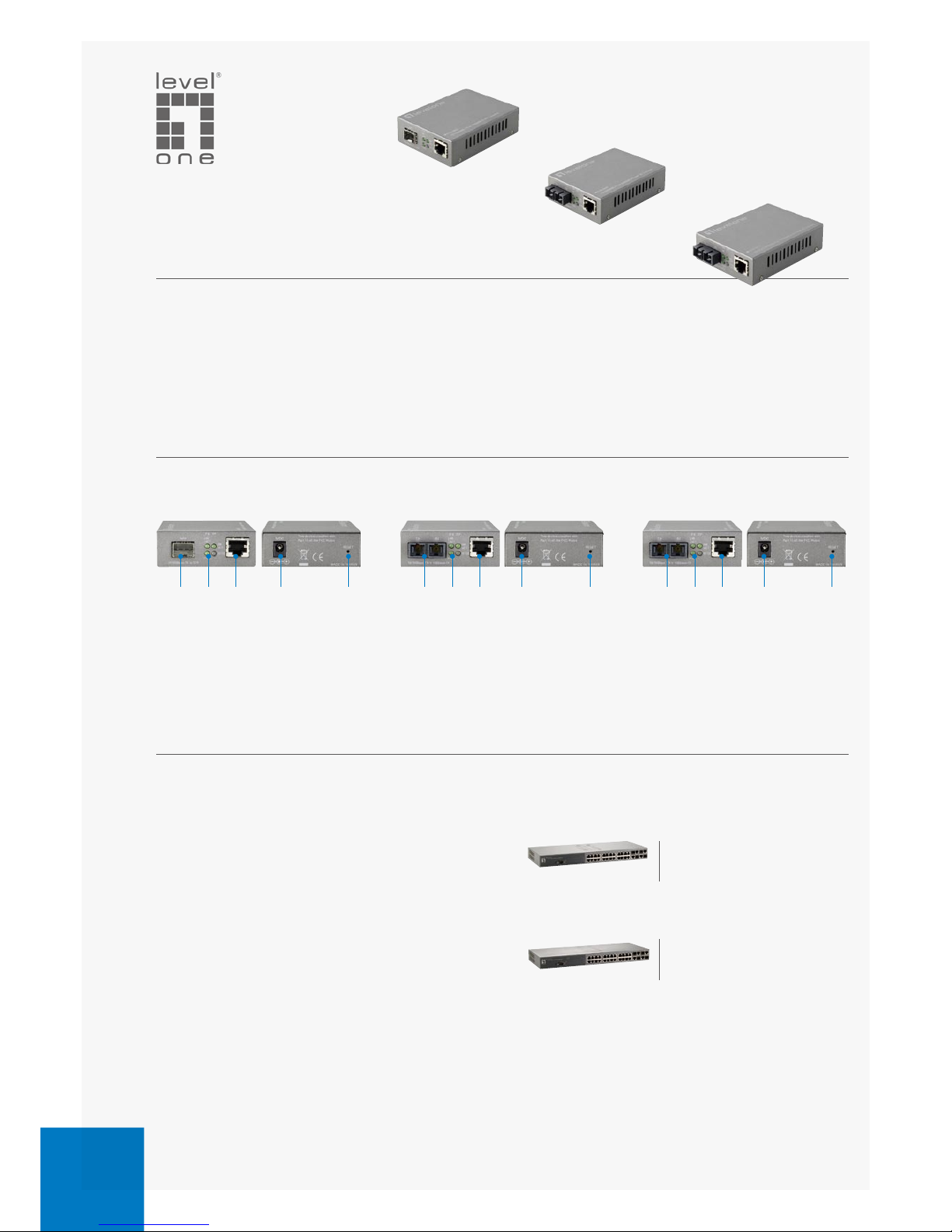

The LevelOne Media Converter Web Smart
Series is designed to make conversion between
10/100/1000Base-TX and 100/1000Base-FX Ethernet.
With web-based management, the network
administrator can logon to the converter remotely to
monitor, congure and control the status of each unit.
Works Well With
H/W Version: 1
FGL-2870
24 FE + 4 GE Combo SFP
L2 SNMP Switch
GEL-2870
24 GE + 4 GE Combo SFP
L2 SNMP Switch
The overall network reliability is enhanced, and the
network eciency is also improved to accommodate
and deliver high bandwidth applications.
Enhanced features like VLAN, Q-in-Q and also remote
control TS1000 and IEEE802.3ah supported.
Key Features
- HTTP Management with remote rmware upgrade
supported
- ICMP and ARP protocols supported
- DHCP Client for easy IP address setup
- LLCF (Link Loss Carry Forward) and LLR (Link Loss
Return) supported*.
- 802.1Q VLAN and Double VLAN (Q-in-Q) supported
- Support 802.3x Flow Control to prevent lost data by
controlling the device ow loading
1
1. Fiber port/connecter
2. LED indicator
3. RJ45 port
4. DC power jack
5. Reset button
FVS-3800 / GVS-3800
FVS-3200 / GVS-3200
FVS-3120 / GVS-3110
FVS-3800 / GVS-3800 FVS-3200 / GVS-3200 FVS-3120 / GVS-3110
2 3 4 5 4 51 2 3 4 51 2 3
*GVS-3800/3200/3110 support LLCF and LLR, FVS-3800/3200/3120 support only LLR.
www.level1.com
I
one world_one brand_one level_ Media Converter
3
Technical Specications
Standards
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3x full-duplex ow control
IEEE802.3z/ab 1000Base-T*
100Base-FX/LX
1000Base-SX/LX*
Cable
UTP: Cat.5 Cable and up to 100m
Fiber:
100Mbps MM: 50/125, 62.5/125, or 100/140μm multi-mode
100Mbps SM: G8, 3/125, 8.7/125, 9/125 or 10/125μm single-
mode
1000SX: 50/125, 62.5/125, or 100/140μm multi-mode
1000LX: G8, 3/125, 8.7/125, 9/125 or 10/125μm single-mode
Dimension Diagram
Admin
Central Oce Department A
Server
GEL-2870
CVH-3000
* In above example diagram, converter modules at local and remote ends should be paired for proper connectivity, and the distance mainly
depends on cable and transceiver selection accordingly.
GVS-3800*
GVS-3110*
FVS-3800*
Warehouse A
Warehouse B
Cat.5 UTP
Fiber
Software Features
Web UI Manageability with Port Conguration
IEEE802.1Q VLAN, Double VLAN (Q-in-Q)
Carrier Remote Control IEEE802.3ah and TS-1000 supported
LLCF/LLR supported
Power Specication
Power Requirement: 1A@+5VDC above
Power Consumption: 1.5Watts
Hardware
Ambient Temperature: 0~50°C
Humidity: 5%~90%
Dimensions (H*W*D): 26.2 x 70.3 x 94mm
Certications: Comply with FCC Part 15 Class A & CE Mark
Approval
*GVS-3800/3200/3110
SFP-3611*
SFP-3611*SFP-7421*
SFP-7421*
GVS-3800*GVS-3110*FVS-3800*
4
Order Information FVS-3800: 10/100BASE-TX to 100BASE-X SFP Converter
FVS-3200: 10/100BASE-TX to 100BASE-FX MMF SC Converter
FVS-3120: 10/100BASE-TX to 100BASE-LX SMF SC Converter
GVS-3800: 10/100/1000BASE-T to 1000BASE-X SFP Converter
GVS-3200: 10/100/1000BASE-T to 1000BASE-SX MMF SC Converter
GVS-3110: 10/100/1000BASE-T to 1000BASE-LX10 SMF SC Converter
Package Contents Smart Media Converter
Power Adapter
CD Manual
All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.
© Copyright Digital Data Communications GmbH. All Rights Reserved.
V1.0
Optional Accessories
SFP-1101
155Mbs transceiver 1310nm
FP/LED-LD, (MMF 2km),
Duplex LC
SFP-1311
155Mbs transceiver 1310nm
FP-LD,
(SMF 20km), Duplex LC
SFP-1411
155Mbs transceiver 1310nm
FP-LD,
(SMF 40km), Duplex LC
SFP-7321
155Mbs BIDI, (SM
20km1310/1550),
Simplex LC
SFP-7331
155Mbs BIDI, (SM
20km1550/1310),
Simplex LC
SFP-7421
155Mbs BIDI, (SM
40km1310/1550),
Simplex LC
SFP-3001
1.25 G transceiver 850nm
VCSEL, SX (MMF 500m),
Duplex LC
SFP-3211
1.25 G transceiver , 1310 nm
FP-LD, LX (SMF 10m), Duplex
LC
SFP-7431
155Mbs BIDI, (SM
40km1550/1310),
Simplex LC
SFP-9421
1.25G BIDI, (SM 40km
1310/1550), Simplex LC
SFP-9431
1.25G BIDI, (SM 40km
1550/1310), Simplex LC
SFP-3411
1.25Gbps SFP Transceiver,
SM, EZX, Duplex LC
connector (120km)
SFP-3711
1.25 G transceiver 1550nm
DFB-LD, EZX (SMF 120km),
Duplex LC
SFP-3841
1.25 G transceiver TX Copper
(100m), RJ-45 Type
SFP-3611
1.25Gbps SFP Transceiver,
Duplex LC connector (80km)
CVH-3000
12-Slot Media Converter
Chassis
