LevelOne VDS-0200 Manuale



Ethernet over VDSL2

Converter (AnnexA) VDS-0200

H/W Version: 1

Why convert Ethernet to VDSL?

The LevelOne VDS-0200 converts your data

from Ethernet to VDSL, making it easy to send

high-bandwidth data over long distances. This

new technology uses traditional twisted-pair

telephone wiring instead of expensive Cat.5

cables.

New technology = cost-effective

deployment

When using VDSL2 (Very High Speed Digital

Subscriber Line) technology, users can transmit

data up to 300 meters without having to

add expensive Ethernet switches or cables

to extend the network reach. And with

100Mbps downstream and 60Mbps upstream,

VDSL2technology provides ample space for all

high bandwidth usage.

Fast transfer speeds? Yes.

Easy Installation? Yes.

VDS-0200 works especially well in applications

where traditional copper phone lines are

already installed: apartments, condominiums,

hotels, university campus, etc. There is no need

to run expensive Ethernet cables and installers

can easily integrate VDSL technology into the

existing network. The VDS-0200 is plug and play

ready and requires minimum installation time.

Customized settings

Each VDS-0200 also allows for customized

settings for advanced use. Using a built-in

DIP switch, users can customize the behavior

of the device to match the desired network

conguration.

Annex A

For networks that utilize PSTN telephone

systems.

Key Features

- Supports a VDSL connection up to 2km over

single pair copper wire

- Provides100Mbps downstream and 60Mbps

upstream over 300m

- Features selectable Fast and Interleaved modes

- Selectable xed data rate and xed SNR

margin

- Features 4 Dip Switches for Conguration

Settings

- Low-Latency for Video/Voice/Data applications

FSW-0811

8-Port Fast Ethernet Switch

Works Well With

1. LEDs

2. Dip Switch

3. Power Port

4. Telephone Port

5. VDSL2 Interface

6. 10/100Mbps Ports

WBR-6001

N_Max Wireless Broadband

Router

2 3 5 61 4 6



Media Converter

www.level1.com

one world_one brand_one level_

VDSL Transmission

ITU-T G.993.1/2, SG15Q4 DMT Compliance

Trellis Code with 1024 DMT bins

Max Data Rate: 100/60 Mbps

1 * RJ-11 Port for DSL

1 * RJ-11 Port for Telephone

LAN Interface

Auto-Detection for 10/100 BaseT and Half/Full duplex

High performance bridge for Ethernet extension

Fully compatible with IEEE802.3/IEEE802.3u

Automatic MDIX Function

RJ-45 Connector x 2

ITU-T G.993.1/2, SG15Q4 DMT Compliance

Trellis Code with 1024 DMT bins

Technical Specication

LEDs

Power, LAN1, LAN2 , DSL, M/S

Power Supply

DC 5V, 1A/2A

Dimension

120mm (L) x 90mm (W) x 28mm (H)

Operating Temperature and Humidity

Operating: 0°C ~ 50°C

Humidity: 5% ~ 95% (non-condensing)

EMI Certications

CE, FCC Class B

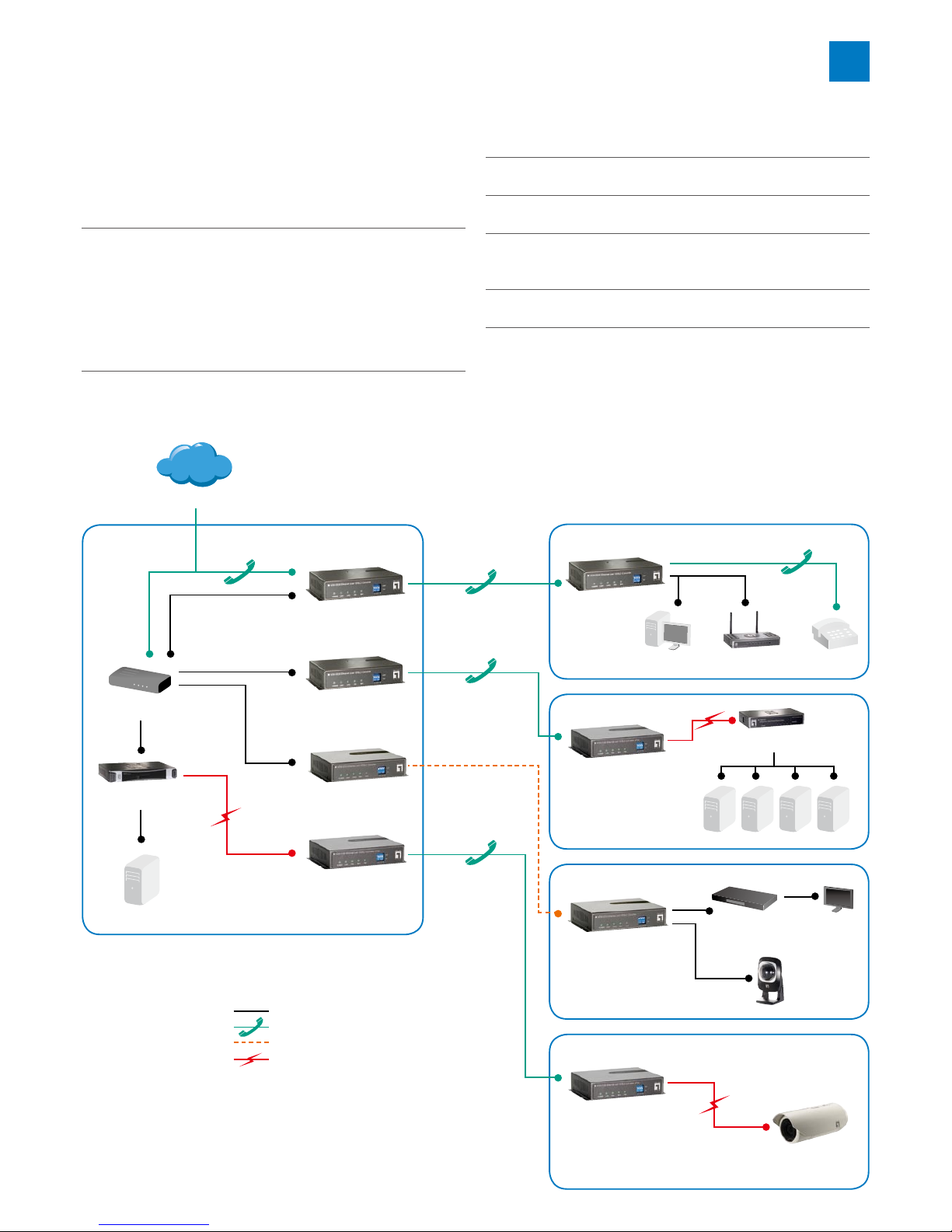

Product Diagram

Ofce B

Ofce C

Ofce D

Ofce E

Internet

VDS-0200/0201

Wireless Router

VDS-0202 BNC

VDS-0120 PSE

VDS-0130 PD

Modem Router

Server IP Set up box

Phone

PSTN

PoE Switch

Ethernet Cable (RJ 45)

Phone Line (RJ 11)

BNC

PoE

VDS-0200/0201

Up to

100/60 Mbps

for 300meters

Ofce A

PD Switch

Up to

100/60 Mbps

for 300meters

VDS-0202 BNC

Up to

100/60 Mbps

for 400meters

Network

Camera

Up to

100/60 Mbps

for 300meters

VDS-0120 PSE

PD Device



Order Information VDS-0200: Ethernet over VDSL2 Converter

Package Contents VDSL2 Converter

Power Adapter

User Manual

Telephone Line

V1.0

All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.
