LevelOne WBR-6006 Manuale utente
1
WBR-6006
150Mbps Wireless Router
User Manual
V1.0
2
Safety
FCC WARNING
This equipment may generate or use radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly approved in
the instruction manual. The user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
CE Declaration of conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN
55022 class B for ITE, the essential protection requirement of Council Directive 89/336/EEC
on the approximation of the laws of the Member States relating to electromagnetic
compatibility.
CE Marking Warning
Hereby, Digital Data Communications, declares that this product (Model-no. WBR-6006) is in
compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
The CE-Declaration of Conformity can be downloaded at:
http://www.levelone.eu/support.php
The specification is subject to change without notice.
3
Table of Contents
Chapter 1 Introduction ........................................................................... 4
1.1 Packing List ................................................................................. 4
1.2 Spec Summary Table ................................................................. 4
1.3 Hardware Configuration............................................................. 6
1.4 LED indicators............................................................................. 6
1.5 Button Definition.......................................................................... 7
1.6 Procedure for Hardware Installation........................................ 8
Chapter 2 Getting Start.......................................................................... 9
Chapter 3 Making Configuration ........................................................ 13
3.1 Login to Configure from Wizard.............................................. 14
3.2 System Status ........................................................................... 18
3.3 Advanced ................................................................................... 19
3.3.1 Basic Setting .......................................................................... 19
3.3.2 Forwarding Rules .................................................................. 42
3.3.3 Security Settings.................................................................... 45
3.3.4 Advanced Settings ................................................................ 59
3.3.5 Toolbox.................................................................................... 68
Appendix A FAQ and Troubleshooting ............................................. 71
What can I do when I have some trouble at the first time? ...... 71
How do I connect router by using wireless? ............................... 73
4
C
C
Ch
h
ha
a
ap
p
pt
t
te
e
er
r
r
1
1
1
I
I
In
n
nt
t
tr
r
ro
o
od
d
du
u
uc
c
ct
t
ti
i
io
o
on
n
n
Congratulations on your purchase of this outstanding Wireless Broadband Router. This
product is specifically designed for Small Office and Home Office needs. It provides a
complete SOHO solution for Internet surfing, and is easy to configure and operate even for
non-technical users. Instructions for installing and configuring this product can be found in this
manual. Before you install and use this product, please read this manual carefully for fully
exploiting the functions of this product.
1.1 Packing List
WBR-6006 150Mbps Wireless Router
Power Adapter
Cat.5 Cable
Antenna x1
CD Manual / Utility
Quick Installation Guide
1.2 Spec Summary Table
Device Interface
Ethernet WAN RJ-45 port, 10/100Mbps, auto-MDI/MDIX 1
Ethernet LAN RJ-45 port, 10/100Mbps, auto-MDI/MDIX 4
Antenna 1.8 dBi fixed antenna 1
WPS
Button/Wireless On
/ Off
For WPS connection and Enable / Disable
“Wireless Function” 1
Reset Button Reset to Factory Default setting 1
LED Indication Status / WAN / LAN1 ~ LAN4/ WiFi ●
Power Jack DC Power Jack, powered via external DC
5V/1A switching power adapter 1
5
Wireless LAN (WiFi)
Standard IEEE 802.11b/g/n-lite compliance ●
SSID SSID broadcast or in stealth mode ●
Channel Auto-selection, manually ●
Security WEP, WPA, WPA-PSK, WPA2, WPA2-PSK ●
WPS WPS (Wi-Fi Protected Setup) ●
WMM WMM (Wi-Fi Multimedia) ●
Functionality
Ethernet WAN PPPoE, DHCP client, Static IP ●
WAN Connection Auto-reconnect, dial-on-demand, manually ●
One-to-Many NAT Virtual server, special application, DMZ,
Super DMZ(IP pass-through)
●
NAT Session Support NAT session 10000
SPI Firewall IP/Service filter, URL blocking. ●
DoS Protection DoS (Deny of Service) detection and
protection
●
Routing Protocol Static route, dynamic route (RIP v1/v2) ●
Management SNMP, UPnP IGD, syslog, DDNS ●
Administration Web-based UI, remote login, backup/restore
setting
●
Performance NAT up to 90Mbps and Wireless up
to70Mbps
Environment & Certification
Package
Information
WBR-6006, DC 5V/1A power adapter, Quick
Installation Guide
Package
Information
Device dimension (mm)
Package dimension (246x210x62mm)
SP/MP/ZP
156x110
x22
Package dimension (214x146x69mm) PP ●
Package dimension (290x234x100mm) AP ○
Operation Temp Temp.: 0~40oC, Humidity 10%~90%
non-condensing
●
Storage Temp Temp.: -10~70oC, Humidity: 0~95%
non-condensing
●
EMI Certification CE/FCC compliance ●
RoHS RoHS compliance ●
*Specifications are subject to change without prior notice.
6
1.3 Hardware Configuration
Front View
1.4 LED indicators
LED status Description
Status Green in flash Device status is working.
WAN LED
Green RJ45 cable is plugged
Green in flash Data access
LAN LED Green RJ45 cable is plugged
Green in flash Data access
WiFi LED
Green WLAN is on
Green in flash Data access
Green in fast flash Device is in WPS PBC mode
Green in dark Wi-Fi Radio is disabled
LAN1~LAN4
LEDs
Wi-Fi
LED
WAN
LED
2 in1 Button
1. WPS
2. Wireless On / Off
Status
LED
7

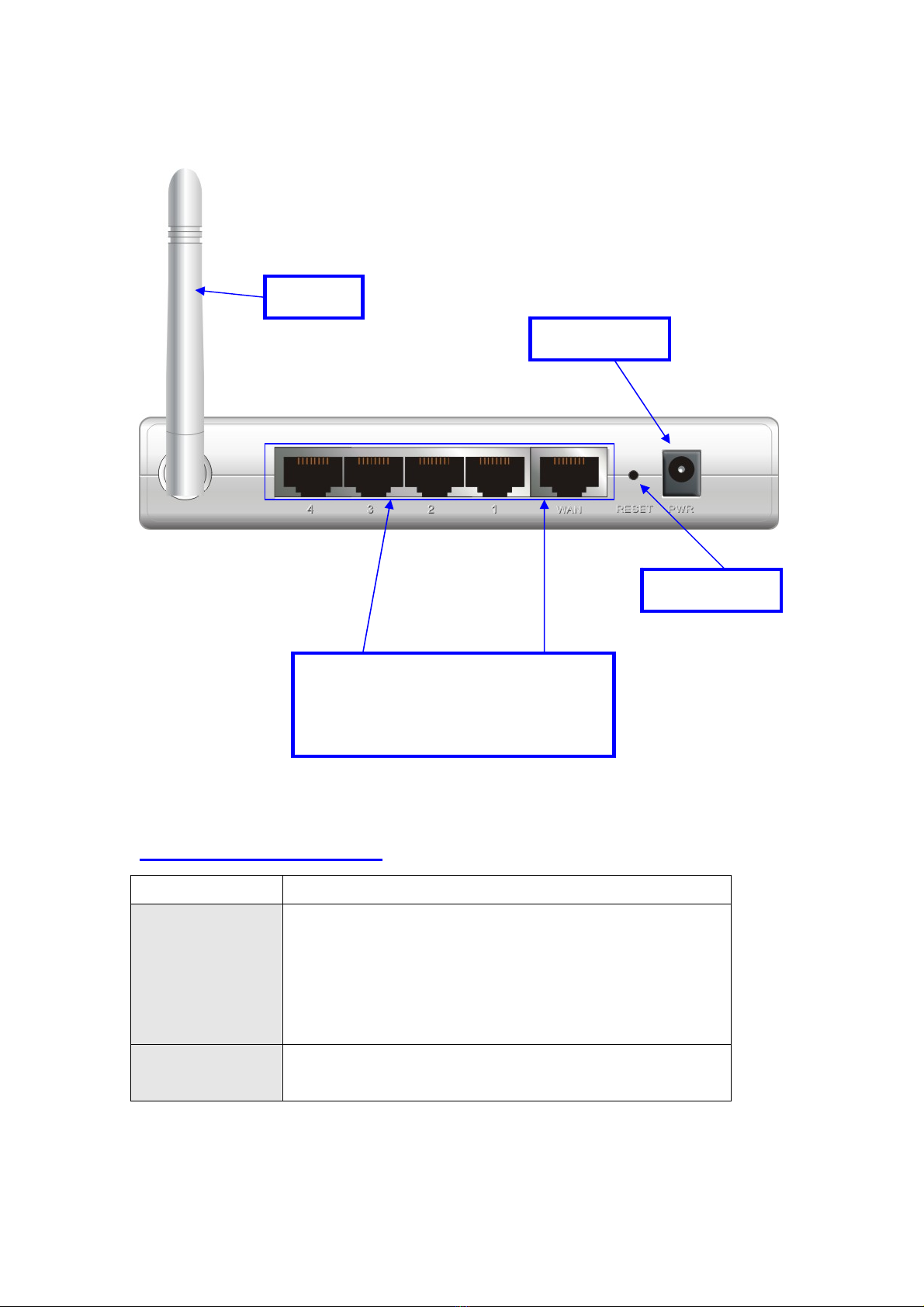

Rear View
1.5 Button Definition
Description
2 in one Button
(WPS and Wireless
On / Off)
1. Press and hold for 3 seconds to turn On / Off the Wireless
LAN. (Please confirm WLAN status as indicated by WLAN
Light)
2. When Wireless is On, press this button (about 1 sec)to
execute WPS function.
Reset Press 6 sec to reset to default when the device works
simultaneously.
Auto MDI/MDIX RJ-45 Ports
Automatically sense the types of WAN
and LAN when connecting to Ethernet
Reset Button
Antenna
Power Jack
8
1.6 Procedure for Hardware Installation
Step 1 Insert the Ethernet cable into LAN
Port:
Insert the Ethernet patch cable into LAN port
on the back panel of Router, and an available
Ethernet port on the network adapter in the
computer you will use to configure the unit.
Step 2 Insert the Ethernet patch cable into
Wired WAN port:
Insert the Ethernet patch cable form DSL
Modem into Wired WAN port on the back panel
of Router.
Step 3 Power on Router:
Connect the power adapter to the receptor on
the back panel of your Router.
Step 5. Complete the setup.
When complete, the Status LED will flash.
9
C
C
Ch
h
ha
a
ap
p
pt
t
te
e
er
r
r
2
2
2
G
G
Ge
e
et
t
tt
t
ti
i
in
n
ng
g
g
S
S
St
t
ta
a
ar
r
rt
t
t
Insert the CD into CD reader on your PC. The program, AutoRun, will be executed automatically.
And then you can click the “Easy setup” Icon for this utility.
Configure the settings by the following steps.
2.1.Select Language then click “Next” for
continues.
2.2 Setup mode
You can select Wizard mode to run the setup
step-by-step or run advanced mode to
diagnose the network settings of the router.
10
2.3 Advanced mode Setup.
Check the PC, Router or Internet icons for
the Status of PC, Router or Internet.
2.4 Quick Wizard Install mode Setup
1. Make sure the router is powered on.
2. Make sure your network adapter is
connected to the LAN port of the router
3. Make sure your network adapter has an IP
address.
Click “Next” for continues
2.5 Wireless Setting.
Key in the SSID, Channel and Security
options, and then click “Next” for continues.
