LevelOne FEP-2402 Series Manuale utente

FEP-2402 Series

24-Port Fast Ethernet PoE Switch,

802.3at/af PoE

User Manual

1. Introductions

Thank you for purchasing the PoE Switch.

The PoE Switch, is a 24-port 10M/100M PoE + 2-port 1000M (SFP) Switch with PoE On/Off

control capability. With 24 dip switches, each PoE port can be manually set for On-Off control.

24-Port PoE Switch supports up to 30W on each LAN port when the corresponding port DIP switch

is set ON. The Gigabit ports are supporting 10/100/1000M as uplink port connecting NVR or other

edge switch via SFP ports.

The PoE Switch supports power protections as OVP (Over Voltage Protection), OCP (Over

Current Protection), robust short-circuit protection (SCP) and surge protection. You may also make

use of PoE repeater to extend another 100 meters or several 100 meters distance if multiple PoE

repeaters are cascaded.

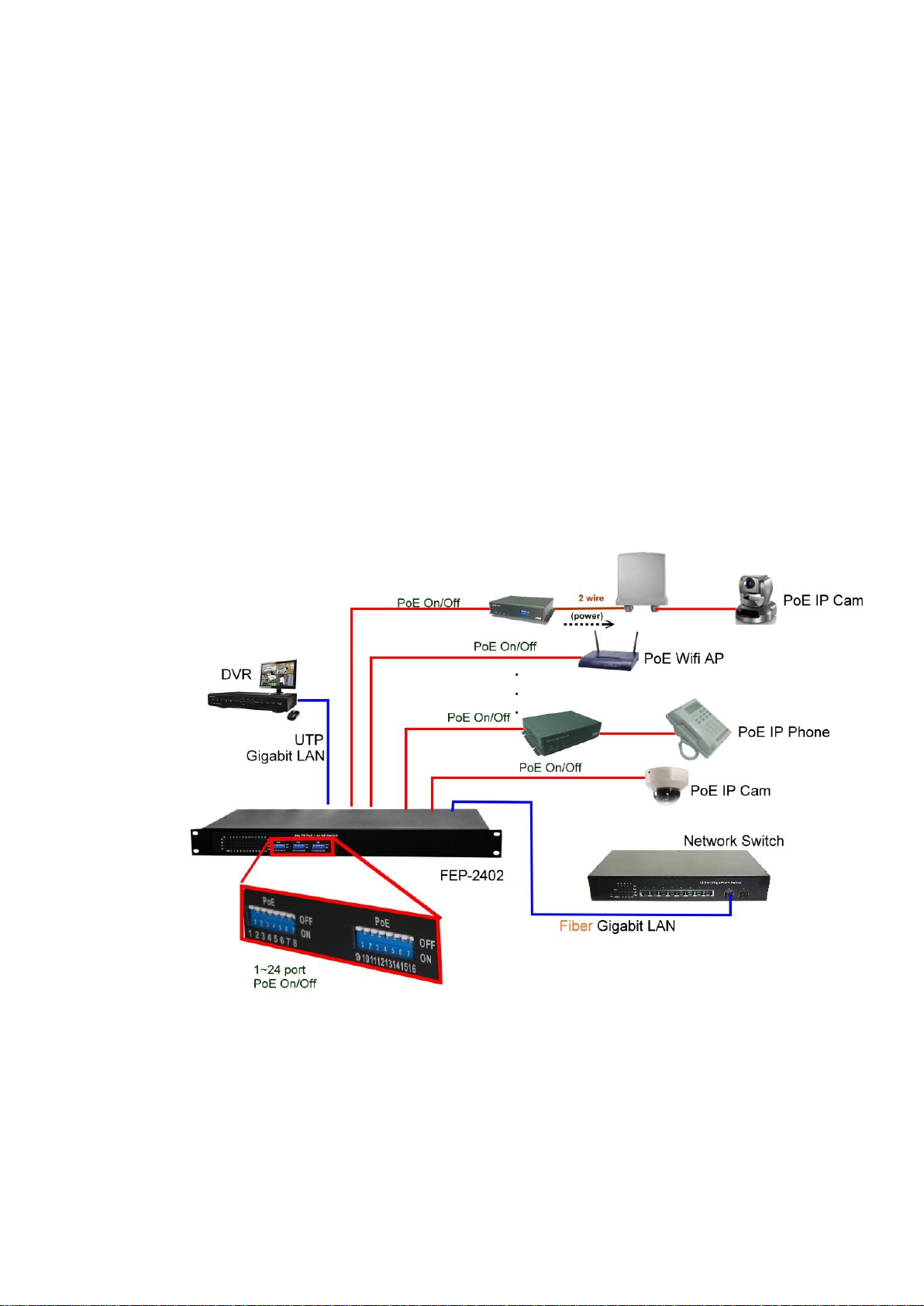

2. Application

PoE Switch Connects with PoE PD Devices

3. Packing Contents

Inside the package you shall find:

(1) One PoE Switch

(2) One AC input port (100~240V)

(3) One User Manual

Please check if the packing is damaged or any component is missing. If so, please contact your

distributor.

4. Technical Specifications

Standards

IEEE 802.3/u 10/100/1000BaseT/TX/FX

IEEE 802.3x Flow Control

IEEE 802.3at/af PoE compliant

midspan PoE compliant

Features

MAC Address: 8K

Buffer Memory: 512KB

Transmission Method: Store and Forward

Filtering/Forwarding Rates

1000Mbps port –1,488,000pps

100Mbps port - 148,800pps

10Mbps port - 14,880pps

Transmission Media

10BaseT Cat. 3, 4, 5 UTP

100/1000BaseTX Cat. 5 UTP/SFP

PoE on each Port

30W

Output PoE Pin

4, 5, 7, 8

LED Indicators

Port 1~24: 10/100M, PoE ON/OFF

Power, Port 25, 26 (1000M)

Power Adaptor

Input: 100-240VAC, 50~60Hz

Output: 56VDC

Dimensions

480 × 118 × 40 mm (L x W x H)

Weight

2.5 kgs

Operating Temperature

0 to 40℃

Humidity

10 to 90% RH (non-condensing)

Certifications

FCC Class A, CE

5. LED Indicators

On the front panel of 24-Port FE PoE + 2-Port GE Switch, there are LED indicators as the following;

POWER: “Green On”indicates power is on and normal.

Port 1~24 LAN:“Green On”indicates each Ethernet LAN port is in connection.

GbE Port 25, 26: “Green On”indicates Gigabit LAN port is in connection.

“Yellow On”indicates Fast Ethernet LAN port is in connection.

PoE: “Green On”indicates Power over Ethernet function is enabled for each port.

“OFF”indicates the PoE is disabled, and it becomes a regular LAN port.

6. Dip Switch Settings vs Power over Ethernet

Note that the dip switches can be switched ON and OFF anytime. However, it is

suggested that the dip switches be set ready before the PoE port is connected for

power management.

The device will be re-started if the overall PoE power consumption is over the

power budget. Please make less PoE ports enabled when over the power budget.

1 ~ 24 ports DIP ON

Per PoE Port

30 Watts Injected

Maximum

PoE Power

150/250/380/500/630 Watts
