LevelOne Infinity IES-0920 Manuale utente

IES-0920

8 FE + 1 MM SC Unmanaged Switch -40 to 75, DIN-rail

User Manual

v1.00 - 1206

IES-0920 UserManual Page 1

Preface

Thismanual describeshowtoinstallandusetheIndustrial Ethernet Switch.Thisswitch

integratesfull wirespeedswitchingtechnology.Thisswitchbringsthe answerto

complicatedIndustrial networking environments.

To get the most out of this manual, you should havean understanding of Ethernet

networking concepts.

In this manual, you will find:

•Features on the switch

•Illustrative LED functions

•Installation instructions

•Specifications

IES-0920 User Manual Page 2

Table of Contents

PREFACE .................................................................................................................. 1

PRODUCTOVERVIEW............................................................................................. 3

INDUSTRIAL ETHERNET SWITCH .........................................................................................................3

PACKAGE CONTENTS...........................................................................................................................3

PRODUCT HIGHLIGHTS.......................................................................................................................4

FRONT PANEL DISPLAY .......................................................................................................................5

PHYSICAL PORTS ................................................................................................................................6

INSTALLATION ........................................................................................................ 7

DINRAIL MOUNTING.........................................................................................................................8

CONNECTINGTOPOWER....................................................................................................................9

CONNECTINGTOYOUR NETWORK ...................................................................................................12

SPECIFICATIONS................................................................................................... 13

APPENDIX A – CONNECTOR PINOUTS................................................................. 15

IES-0920 UserManual Page 3

Product Overview

Industrial Ethernet Switch

Package Contents

When you unpack the product package, youshall find the items listed below. Please

inspect the contents, andreport any apparent damage or missing items immediately to

your authorized reseller.

•IES-0920

•QuickInstallationGuide

•CD User Manual

IES-0920 User Manual Page 4

Product Highlights

Basic Features

•Meets NEMATS1/TS2 Environmental requirements such as temperature, shock, and

vibration for traffic control equipment.

•Meets EN61000-6-2 & EN61000-6-3 EMC Generic Standard Immunity for industrial

environment.

•UL1604 Class I, Division 2 classifiedfor use in hazardous locations (applicable to

versions with terminal blockpower option).

•Supports 802.3/802.3u/802.3X.

•Auto-negotiation: 10/100Mbps, full/half-duplex. Auto MDI/MDIX.

•Supports 2048 MAC addresses.

•Provides 768K bits memory buffer.

•Alarms for power and port link failure by relay output 1.5A @ 24VDC.

•Operating voltage and Max. current consumption: 0.76A @ 12VDC, 0.38A @ 24VDC,

0.19A @ 48VDC. Power consumption: 9.12W Max.

•Power Supply: Redundant DCTerminal Block power inputs or 12VDC DC JACK with

100-240VAC external power supply.

•FieldWiringTerminal: Use Copper Conductors Only, 60/75℃, 12-24 AWG torque value 7

lb-in.

•-40℃to 75℃(-40℉to 167℉) operating temperature range.Tested for functional

operation @ -40℃to 85℃(-40℉to 185℉). UL1604 Industrial Control Equipment

certified Maximum Surrounding AirTemperature @ 74℃(165℉).

•Supports DIN-Rail or Panel Mounting installation.

IES-0920 UserManual Page 5

Front Panel Display

Status LEDs

LED

Status

Description

PW 1,2

(Green) Steady PowerOn

Off Power Off

Fault

FAULT

(Red)

Steady •Redundant power is failed or not

being used

•Port failure (When Port Fault Alarm is

enabled)

Off •Redundant power isactive

•Port failure is not occurred

•Port Fault Alarm is disabled

10/100Base-TX or 100Base-FX/BX

LNK/ACT

(Green) Steady Network connection is established

Flashing Transmitting or Receiving data

100

(Yellow) Steady Connection at 100Mbps speed

Off Connection at 10Mbps speed

IES-0920 User Manual Page 6

Physical Ports

This switch provides:

Eight 10/100Base-TX ports

Eight 10/100Base-TX ports + one 100Base-FX/BX port

Six 10/100Base-TX ports + two 100Base-FX/BX ports

Four 10/100Base-TX ports + four 100Base-FX/BX ports

Connectivity

RJ-45connectors

SC or ST connector on 100Base-FX fiber port

SC connector on 100Base-BX fiber port

IES-0920 UserManual Page 7

Installation

This chapter gives step-by-step instructions about how to install the switch:

Selecting a Site for the Switch

As with anyelectric device, you should place the switch where it will not besubjected to

extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you

select should meet the following requirements:

•The ambient temperature should be between -40 to 75 degrees Celsius.

•The relativehumidity should be less than 95 percent, non-condensing.

•Surrounding electrical devices should not exceed the electromagnetic field (RFC)

standards.

•Make sure that the switch receives adequate ventilation. Do not block the ventilation

holes on each side of the switch

•The power outlet should be within 1.8 meters of the switch.

IES-0920 User Manual Page 8

DIN Rail Mounting

Fix the DIN rail attachment plate to the back panel of the switch.

Installation: Place the switch on the DIN rail from above using the slot. Push the front of

the switch toward the mounting surface until it audibly snaps into place.

Removal: Pull out the lower edgeand then removethe switch from the DIN rail.

IES-0920 UserManual Page 9

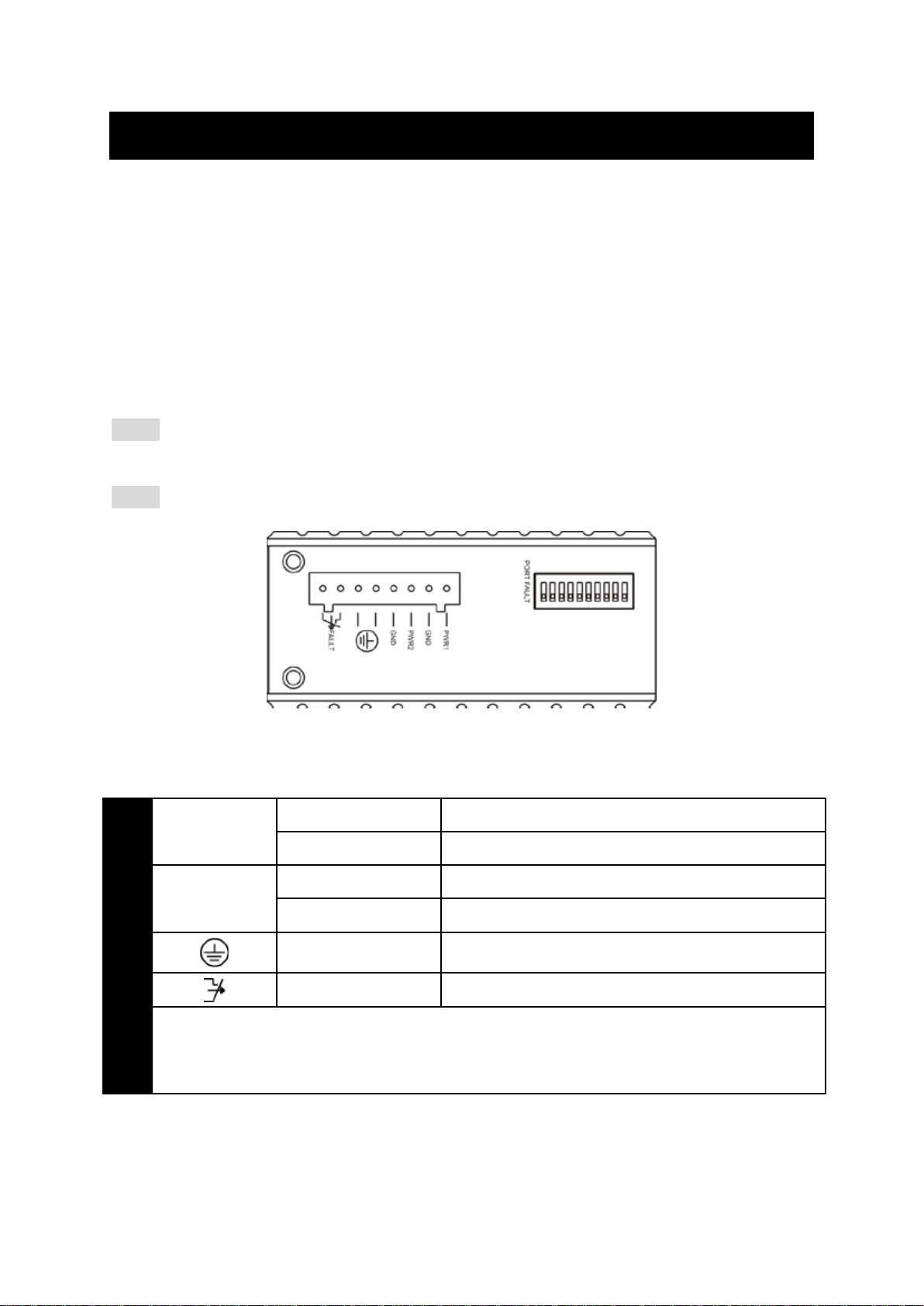

Connecting to Power

Redundant DCTerminalBlockPower Inputs or 12VDC DC Jack (Optional)

Redundant DCTerminal Block Power Inputs

There are two pairs of power inputs can be used to power up this device.You need to have

two power inputs connected to run the device, but the FAULT LED indicator will light up to

remind that the power redundant systemfunctions abnormal in case either PWR1 or PWR2

is dead.This device, however, continues working normally even fault LED indicator lights

up.

Step 1: Connect the DC power cordto the plug-able terminal block on the switch, and

then plug it into a standard DC outlet.

Step 2: Disconnect the power cord if you want to shut down the switch.

FieldWiringTerminal: Use Copper Conductors Only, 60/75℃,12-24 AWG torquevalue 7

lb-in.

Terminal Block

PW1 + 10 – 48VDC

–

Power Ground

PW2 + 10 – 48VDC

– Power Ground

Earth Ground

Relay Output 1A @ 24VDC

1. Therelaycontact opens if Power1 or Power2 falls

2. Therelaycontact opens if the Port Link is broken

(When Link Down Detection is enabled)
