Leviton HCCS7-10W Manuale utente

Decora Home Controls

10 Amp Scene-Capable

Wall Switch Receiver Module

Definition:

The Decora Home Controls (DHC) 10 Amp Scene-Capable

Wall Switch Receiver Module is the newest addition to

the DHC line of powerline carrier home automation

components. The Switch Receiver is

designed to control loads up to 10 Amps

in any DHC-equipped home in single-

pole (one location) or 3-way (multi-

location) applications when used with

the Cat. No. MS00R-1 Multi-Remote unit.

The module offers new quieter ON/OFF

manual and remote switching control for

one or more incandescent, fluorescent or

low-voltage lighting loads. It features

Leviton’s new Intellisense™ advanced

circuitry for the utmost in reliability, even

where electrical “noise” exists on the

power line. Provides Scene Control

capability when used with DHC Scene

Controller HCCS7-10W.

Application:

The Decora Home Controls (DHC) 10 Amp Scene-Capable Switch Receiver Module is intended for

residential ON/OFF single-pole, 3-way, 4-way and higher-level switching for incandescent loads

where dimming is not required, as well as inductive and resistive loads. Controls loads like attic

fans and fluorescent lighting to go on and off automatically at preset times in response to DHC

programmers and also provides manual control. Provides easy shutdown via manual or remote

control from multiple locations.

Product Bulletin

For Cat. No. HCS10-1SW

Cat. No. HCS10-1SW

Catalog Number Color Rating Description

HCS10-1SW White 10Amp, 125VAC DHC 10Amp Watt Scene-Capable

(Ivory kit Incandescent, 1200VA Fluorescent Switch Receiver

included) and Magnetic Low-Voltage,

10Amp Inductive, 1/4 HP

G-5965/B1-1M eg

For Technical Assistance call:1-800-824-3005

Leviton Manufacturing Co., Inc.

59-25 Little Neck Parkway, Little Neck, NY 11362-2591

Telephone: 1-800-323-8920 • FAX: 1-800-832-9538

Tech Line (8:30AM-6:00PM Eastern Time Monday-Friday): 1-800-824-3005

Leviton Manufacturing of Canada, Ltd.

165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9

Outside Canada: 1-514-954-1840 • FAX: 1-514-954-1853/1854

Inside Canada: 1-800-469-7890 • FAX: 1-800-563-1853

Visit Leviton’s Web site at: www.leviton.com

Ordering Information

LEVITON

PAT.

PEND.

TOP

DEVICE SHOWN WITHOUT

FRAME AND ROCKER

PAT.

PEND.

TOP

LEVITON

FRAME

ROCKER

A.C. ON/OFF

INDICATOR

LIGHT

LENGTH OF WIRE LEADS ARE 6 INCHES

FROM THE BACK OF THE BASE TO THE

FREE END (CUT WITH INSULATION INTACT)

1 25/64

2 3/8

1 47/64

1 19/32

2 21/32

4 1/8

Cat. No. Mahogany Cat. No. Ivory Cat. No. White Cat. No. Gray Cat. No. Almond Cat. No. Black

–

DRKOS-0LI DRKOS-0LW DRKOS-0LG DRKOS-0LA DRKOS-0LE

Rocker/Frame Color Change Kits for HSC10-1SW

Features and Benefits:

■Fits in standard wall boxes and replaces regular switches to

provide manual and remote ON/OFF switching and Scene

Lighting Control

■Features Leviton’s Intellisense (gated automatic gain control)

that adjusts receiver sensitivity to help eliminate signal

problems due to line noise

■Increases customer satisfaction and makes Intellisense

installations more profitable by eliminating time-wasting call-

backs

■Modules are backward compatible with 16400/450-S and

16400/450-SD DHC Scene Controllers

■Can be used for single-pole as well as three-way applications,

reducing inventory needs

■True Decora-style operation - push top of rocker to turn ON

and bottom to turn OFF

■Packed with Ivory and White snap-on rocker/frame kit;

optional snap-on rocker/frame color kits sold separately

NOTE:A Cat. No. HCA02-10E Coupler/Amplifier/

Repeater should be installed at the main panel in every

DHC installation to ensure adequate signal strength

Agency Standards:

■UL Listed to File No. E31373 ■CSACertified to File No. LR 3413 ■NOM Certified #057

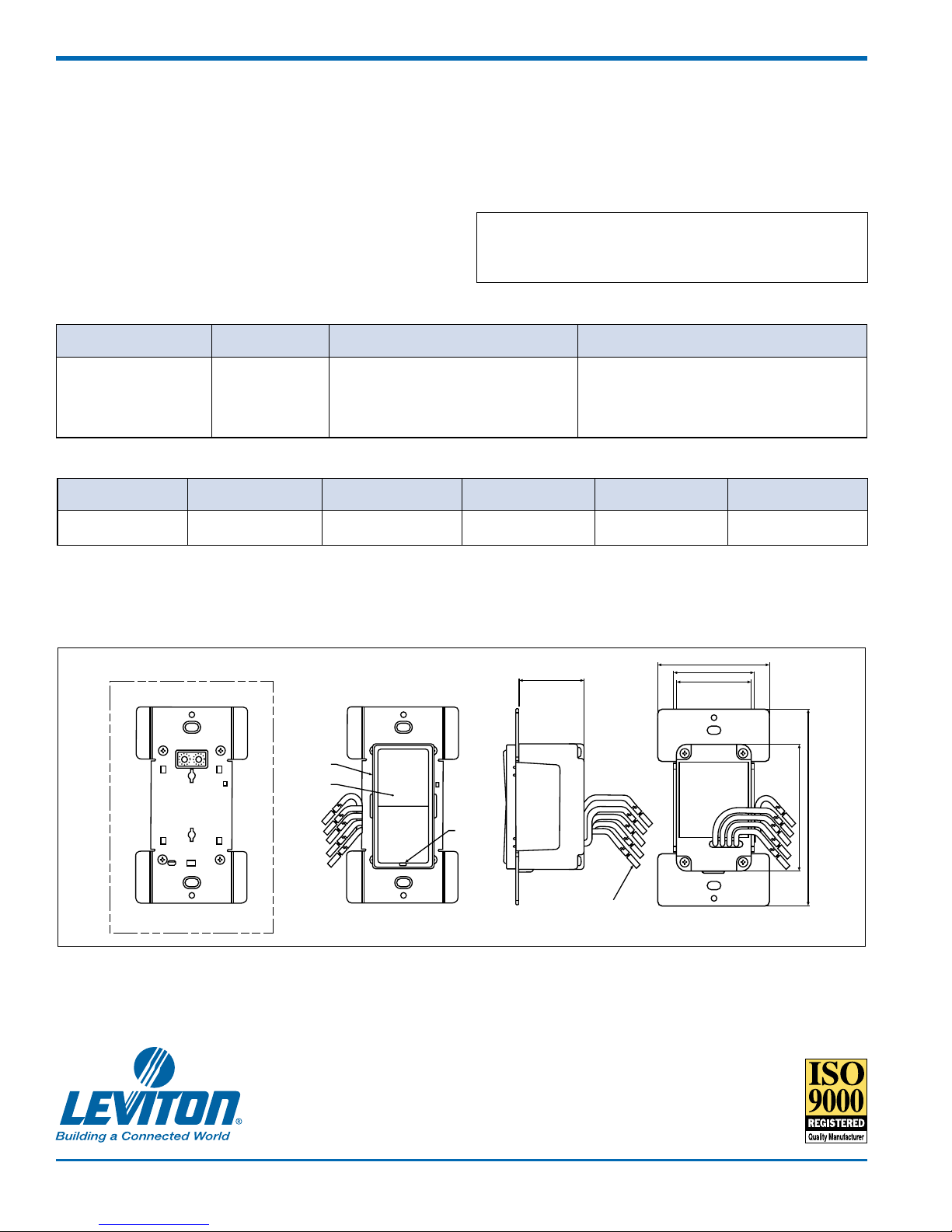

Dimensional Diagram

HCS10-15W
