Lexicon PCM NATIVE CHORUS Manuale utente

OWNER’S MANUAL

PCM NATIVE CHORUS

The Lexicon®Legacy

continues...

...with the PCM Native Chorus

For over 40 years Lexicon®has

been recognized as the gold

standard of digital reverb and

effects processing and has

continuously introduced leading

edge technology for the audio

industry. Lexicon again rocked

the audio industry with the

introduction of the PCM Native

Reverb and PCM Native Effects

Plug-In Bundles, the ultimate

bundles for creating professional,

inspirational mixes within popular

DAWs like Pro Tools®, Logic®, and

any other VST®, Audio UnitTM, or

RTAS®compatible platform.

With all the ﬂexibility you would

expect from native plug-ins,

these powerhouse plug-ins offer

legendary Lexicon processing

with the most versatile and ﬁnely

crafted studio presets. Designed

to bring the highest level of sonic

quality and functionality to all

your audio applications, the PCM

Native Series Plug-Ins will take

center stage in your DAW.

Congratulations and thank you

for purchasing the PCM Native Chorus plug-in. With decades of legacy products to pull from,

the PCM Native plug-ins include the ﬁnest collection of factory presets available. Designed to

bring the highest level of sonic quality and functionality to all of your audio applications, the

PCM Native plug-ins will take center stage in your DAW.

Quick Start

• Open your DAW and choose the Lexicon plug-in from your list of plug-ins

• In the plug-in’s window, select a category

• Select a preset

• Adjust parameters (optional)

• Save the preset (optional)

It can be as simple or as in-depth as you’d like. The included presets work well for most

situations, but you can easily adjust any parameter and save any preset. See the “Factory

Presets” section for more information on editing, loading and saving presets.

Included Items

• PCM Native Chorus software CD

• iLok license code

• This manual

Table of Contents

Installation ............................................... 1

Install the Plug-in .................................... 1

iLok License ............................................ 1

First Look—The User Interface................ 2

Overview................................................. 2

Level Meters....................................... 3

Preset Category.................................. 3

Preset Selector ................................... 3

Realtime Display................................. 3

Control Buttons.................................. 3

Stereo/Phase Analyzers...................... 3

Fader Area.......................................... 3

The Realtime Display .............................. 4

Off ...................................................... 5

3-D Voice View .................................. 5

Frequency........................................... 5

Live Impulse Response....................... 5

The Stereo/Phase Analyzers ................... 6

Lissajous Figure Window.................... 6

Stereo Width Meter............................ 6

The Fader Area ....................................... 7

Parameter Name ................................ 7

Parameter Value ................................. 7

Modiﬁer Button.................................. 7

Fader .................................................. 7

The Control Buttons................................ 8

Compare ............................................ 8

Edit..................................................... 8

Reload ................................................ 8

Store................................................... 8

Edit Navigation and Full Edit Mode ....... 9

The Soft Row........................................... 10

Customizing the Soft Row.................. 10

Master Edit Page .................................... 11

LFO Edit Page......................................... 12

Voice Edit Pages ..................................... 13

Presets..................................................... 14

Loading a Preset..................................... 14

Storing and Managing Presets................ 15

Portable Presets...................................... 16

Where are presets stored?...................... 17

Tempo Mode Presets............................... 18

Getting the most out of your computer.. 19

The Algorithm.......................................... 22

Chorus (Flange)....................................... 23

The Parameters ....................................... 24

Delay Master........................................... 24

Mix...................................................... 24

Diffusion ............................................. 24

Feedback Diffusion ............................ 24

Delay Level Master............................. 24

Delay Time Master ............................. 24

Delay Feedback Master ..................... 25

LFO Control ............................................ 25

LFO Waveform ................................... 25

LFO Rate ............................................ 25

Voice Parameters .................................... 25

Delay Time ......................................... 25

LFO Select.......................................... 25

Wander............................................... 25

Delay Level......................................... 25

Feedback Level .................................. 26

Output Pan......................................... 26

Feedback Pan..................................... 26

Output Filter Type .............................. 26

Output Frequency.............................. 26

Output Bandwidth.............................. 26

Output Shelf....................................... 26

Feedback Filter Type.......................... 26

Feedback Frequency.......................... 27

Feedback Bandwidth ......................... 27

Feedback Shelf................................... 27

Lexicon Plug-Ins & Upgrades................... 27

Available Lexicon Plug-Ins ...................... 27

Upgrading .............................................. 27

Installation

Install the Plug-in

Insert the CD into your CD-ROM drive. The Installer should start automatically.

If the Installer doesn’t start automatically, you can start it manually by opening the appropriate

ﬁle on the CD:

Mac®: Use the “.dmg” installation ﬁle

Windows®: Use the “32-bit.exe” or “64-bit.exe” installation ﬁle

Once the Installer is open, follow the on-screen instructions to install the software.

iLok License

You must download the license to your 2nd Generation iLok USB smart key before running

any program that might use this plug-in. If a valid iLok license is not present, the initial plug-in

validation scan will fail and you may not be able to run the plug-in without digging into your

system. For more information go to www.iLok.com.

Important! Your PCM Native Plug-in will not work without an authorized

2nd Generation iLok USB smart key inserted in your computer’s USB

port!



!

First Look—The User Interface

Overview

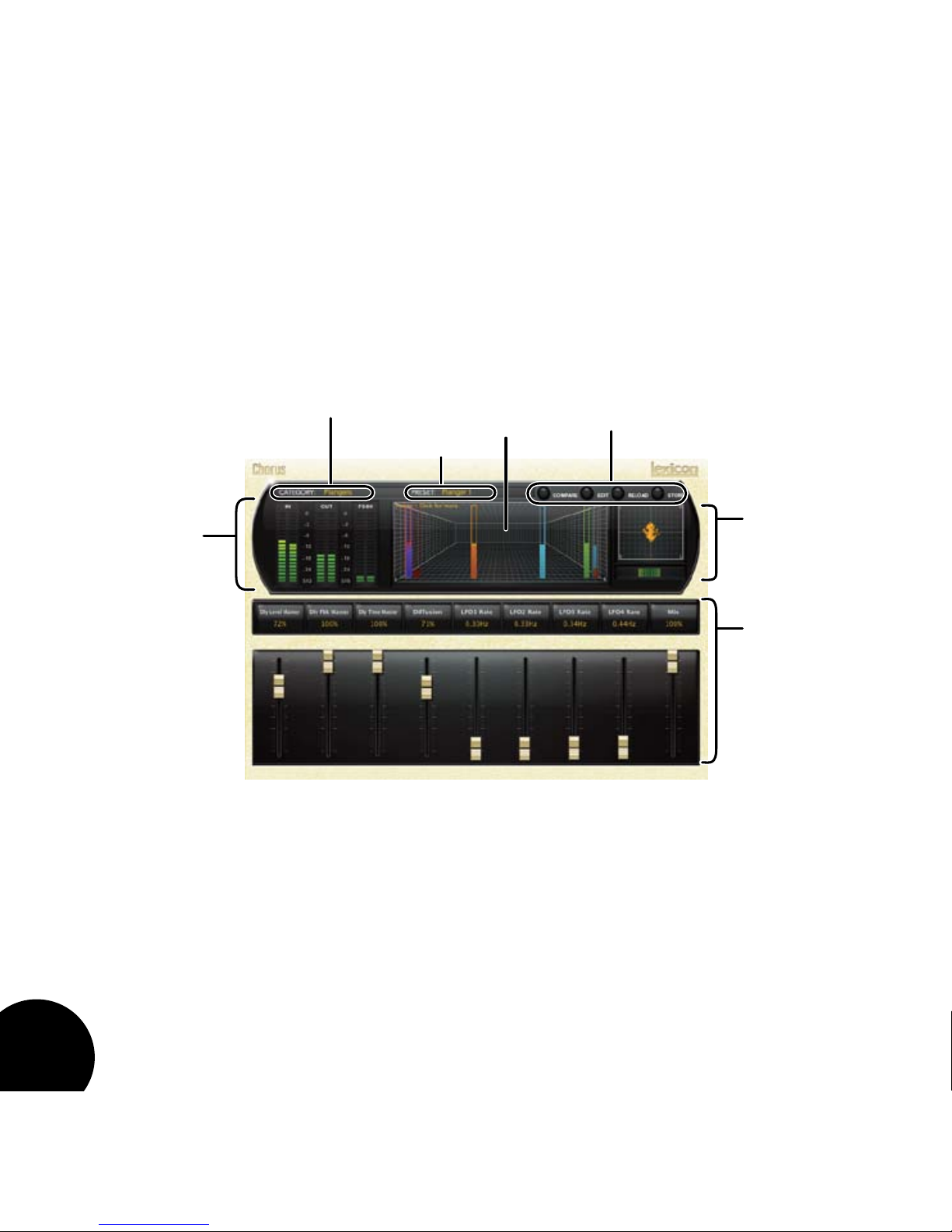

When the plug-in is instantiated, you will see a window that looks something like this:

Level Meters

Fader

Area

Control Buttons

Preset
